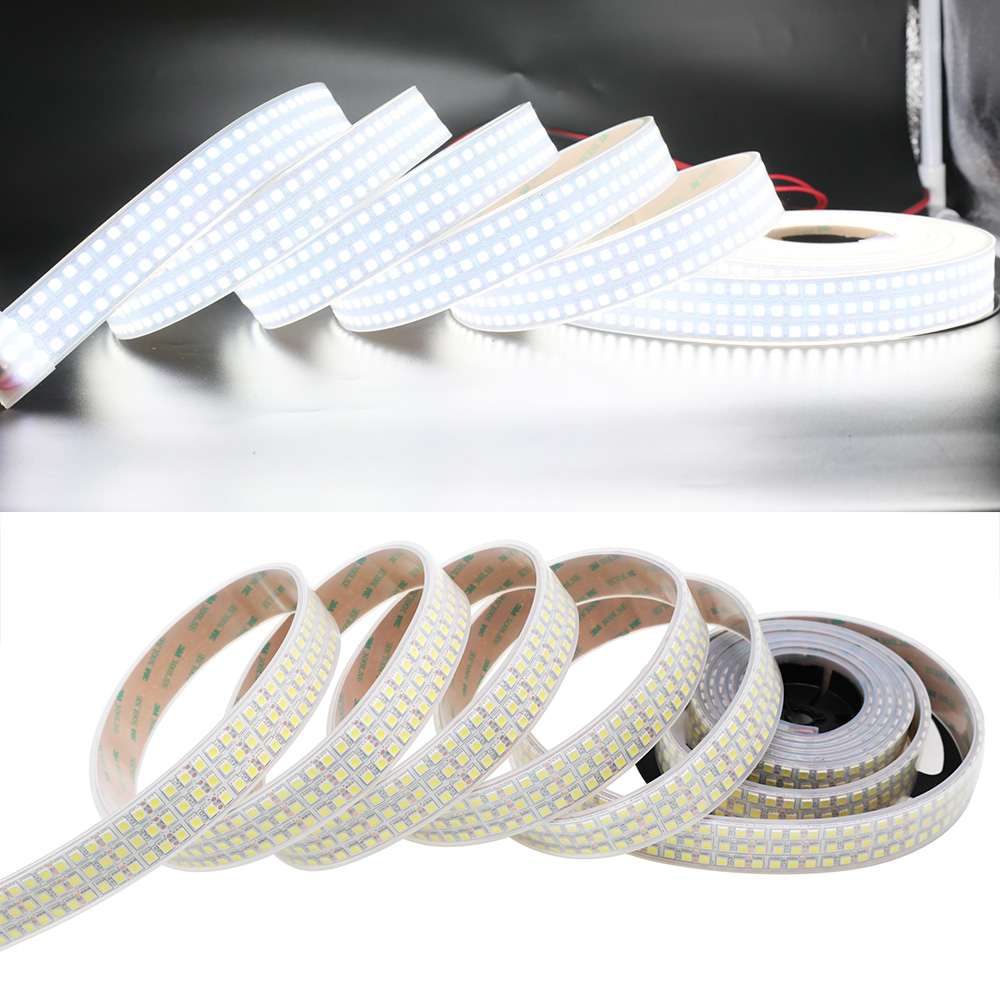

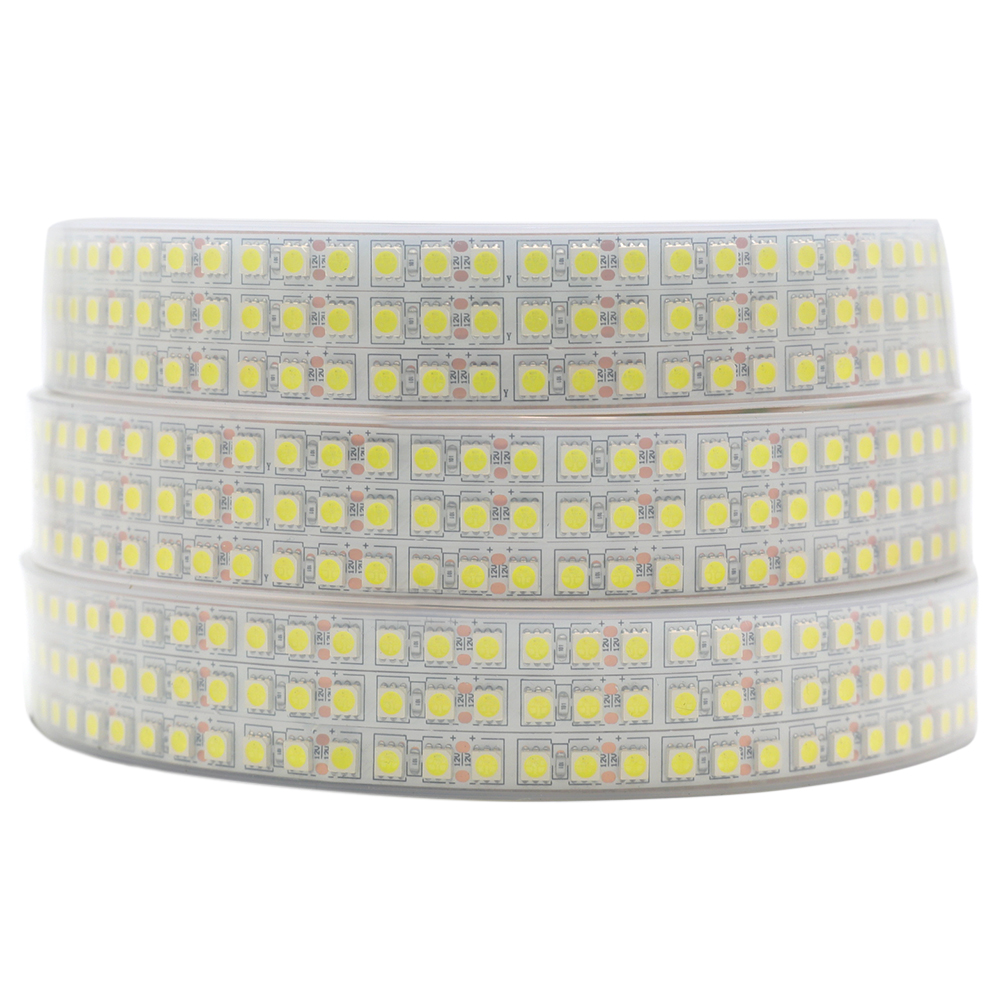

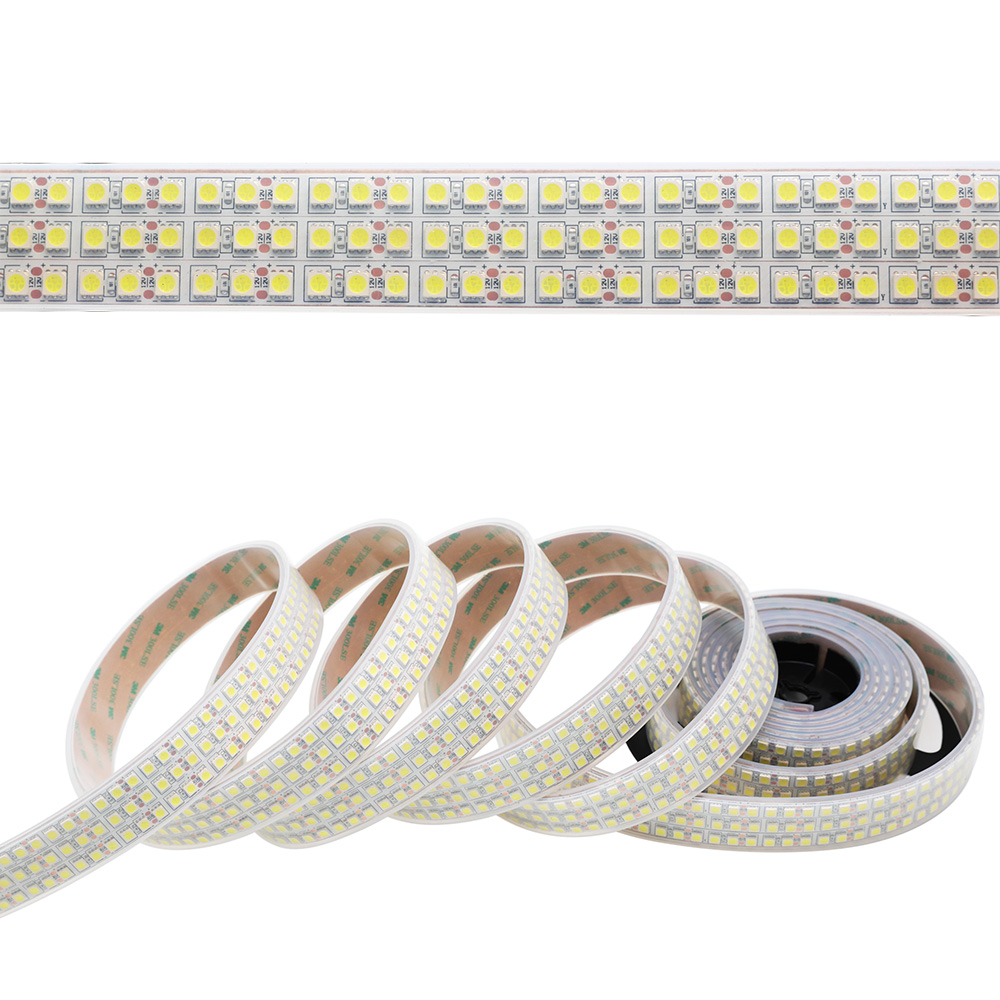

DC12/24V Triple Row 1800LEDs High Density SMD5050/5054 Optional Super Brightness 32mm Waterproof Flexible LED Strip Light 16.4ft Per Reel By Sale
12/24V low voltage, high lighting efficiency, safety, and stability. Among them, the low voltage can guarantee the service life of the light strip, up to 50,000 hours.
We provide 3000K, 4000K, 6000K, 7000K color options for you to choose from. While ensuring quality, we try our best to provide you with more light strips that meet your needs.
Can customize IP67 waterproof light strip for you, rainproof and waterproof, you can use it in an outdoor environment.

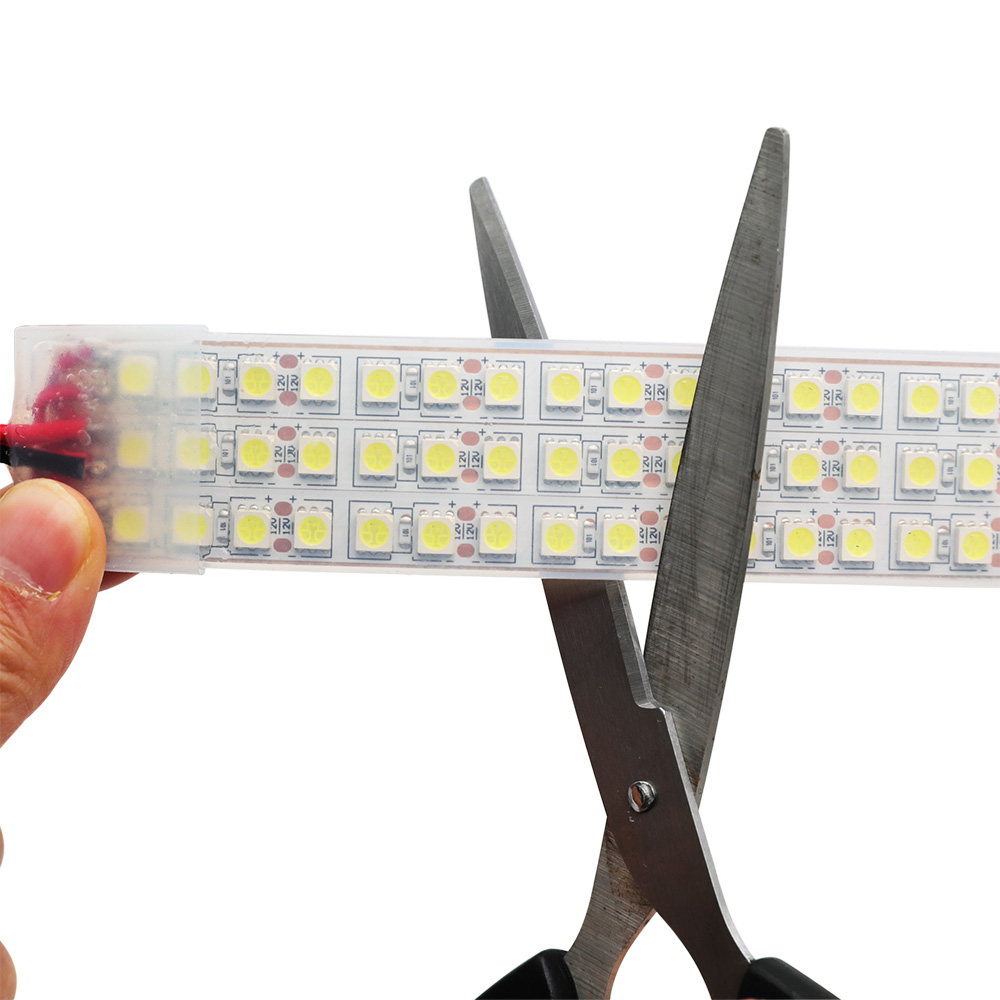

Our led quantities are 1800LEDs of which every 9LEDs can be cut, you can customize the length at the cutting point according to your own project requirements.
There is a 3M tape on the back, and the PCB can be bent at will for easy installation.
Please Note: DC12V Version only have the white PCB, if you need the black PCB, please choose the DC24V version
Standards and Certifications
LED Strip Type: SMD 5050/5054 1800PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: 3000K/4000K/6000K/7000K
Dimension: 16.4ft/roll, every 9 PCS LED can be cut
LED Quantity: 360 LEDs per 1meter (3.28 ft)
PCB Color: Black/White
Warantty: 3 years

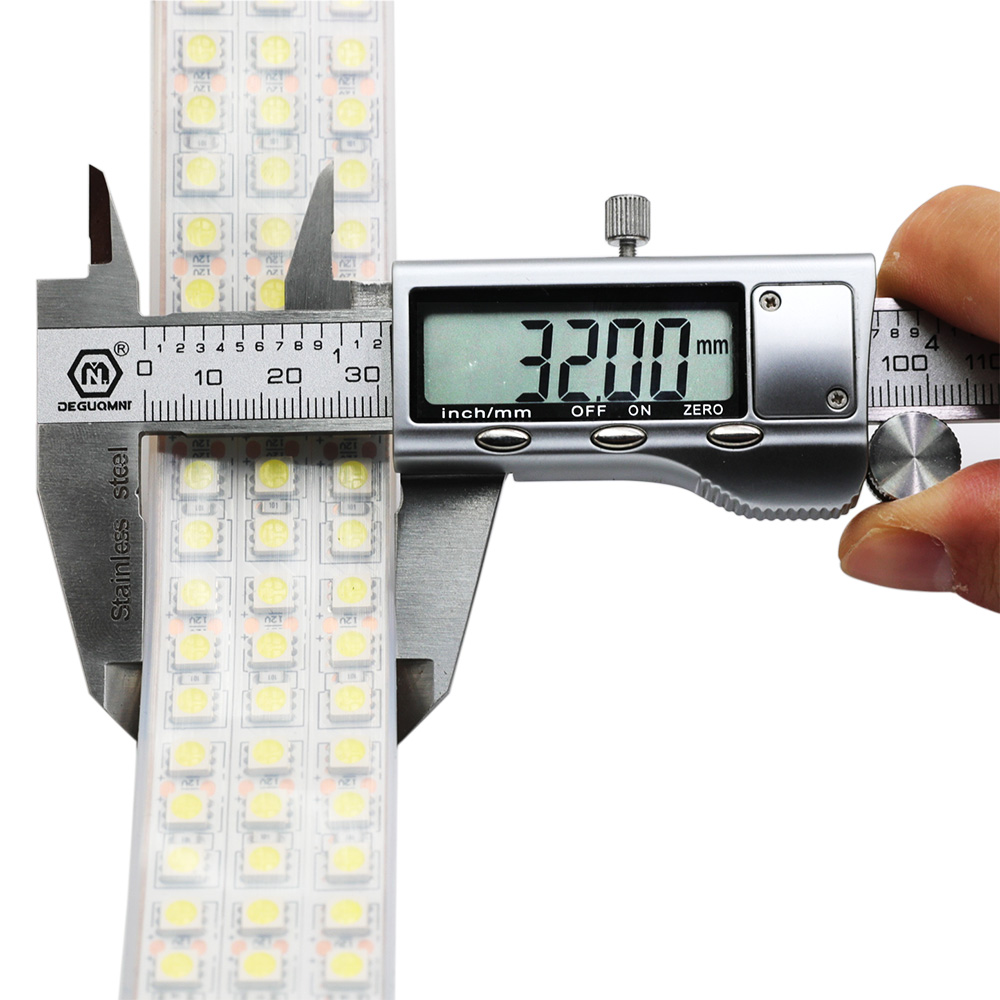

PCB Width: 32mm/1.26in
Dimensions: L500cm(196.8 in ) x W3.2cm(1.26 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24V DC
Working Power: 54w/m, 270w/Roll
Color Temperature CCT(White): Warm White(3000-3500k), Daylight White(5500-7000k), Cool White(8000-10000k)
Beam Pattern: 120 degree
Water Proof: Waterproof IP67
CRI (Ra>): 90
1*5m/16.4ft Triple row led strip light
Indoor home Decorative
Display case lighting
- Architectural lighting
Waterproof Level Description
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
The waterproof grade of IP67 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
