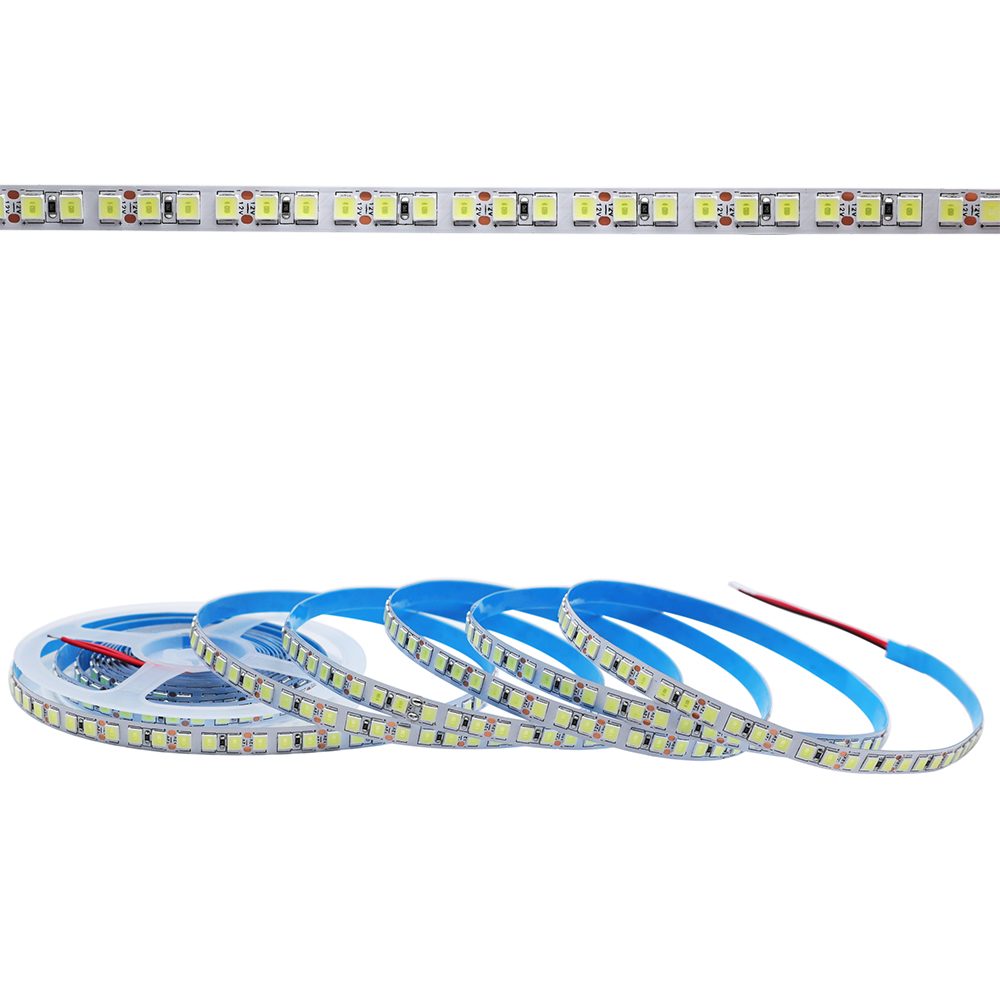

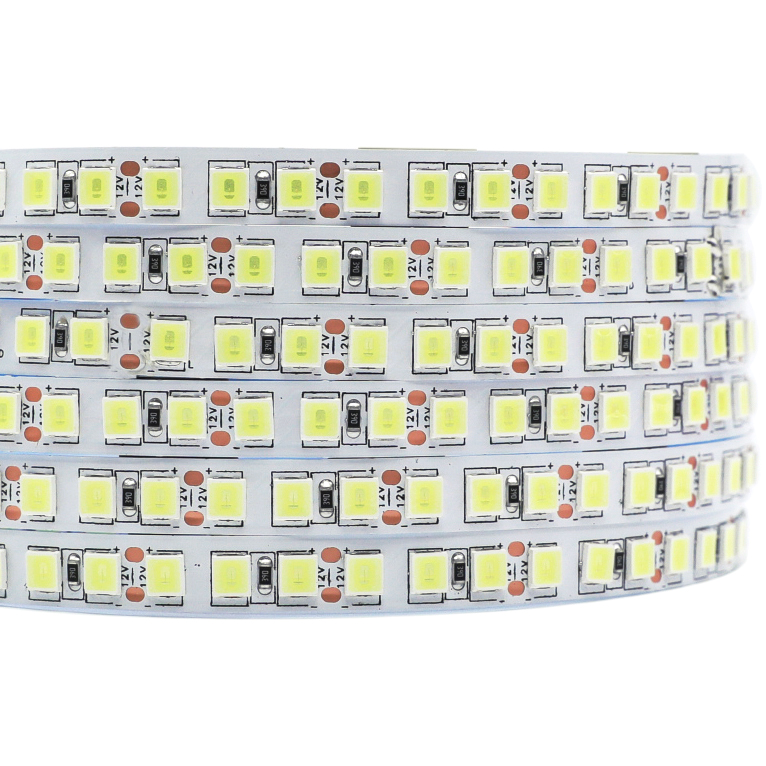

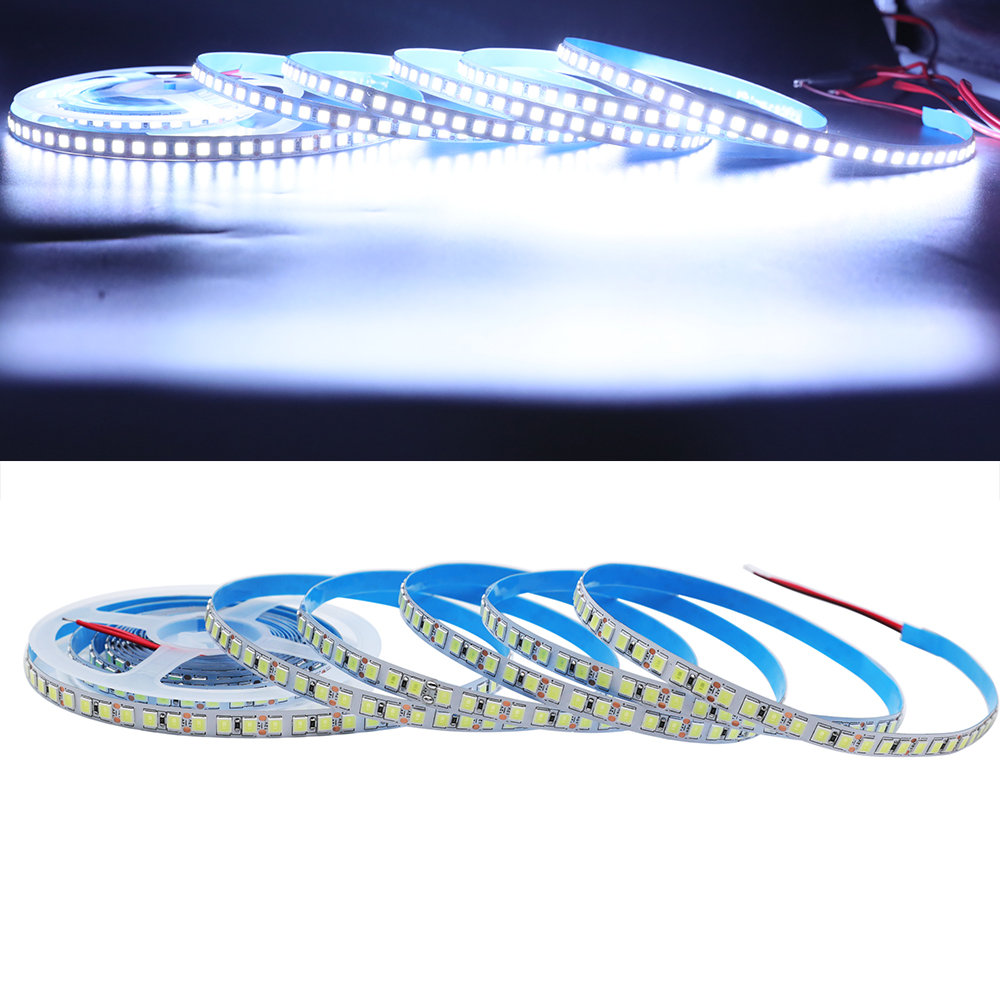

DC12/24V Single Row 600LEDs SMD5054 Optional Superbright 10mm Width Waterproof Flexible LED Strip Light 16.4ft Per Reel By Sale
12/24V low voltage, high lighting efficiency, safety, and stability. Among them, the low voltage can guarantee the service life of the light strip, up to 50,000 hours.
We provide 3000K, 4000K, 6000K, 7000K color options for you to choose from. While ensuring quality, we try our best to provide you with more light strips that meet your needs.
Can customize IP65/67 waterproof light strip for you, rainproof and waterproof, you can use it in an outdoor environment.

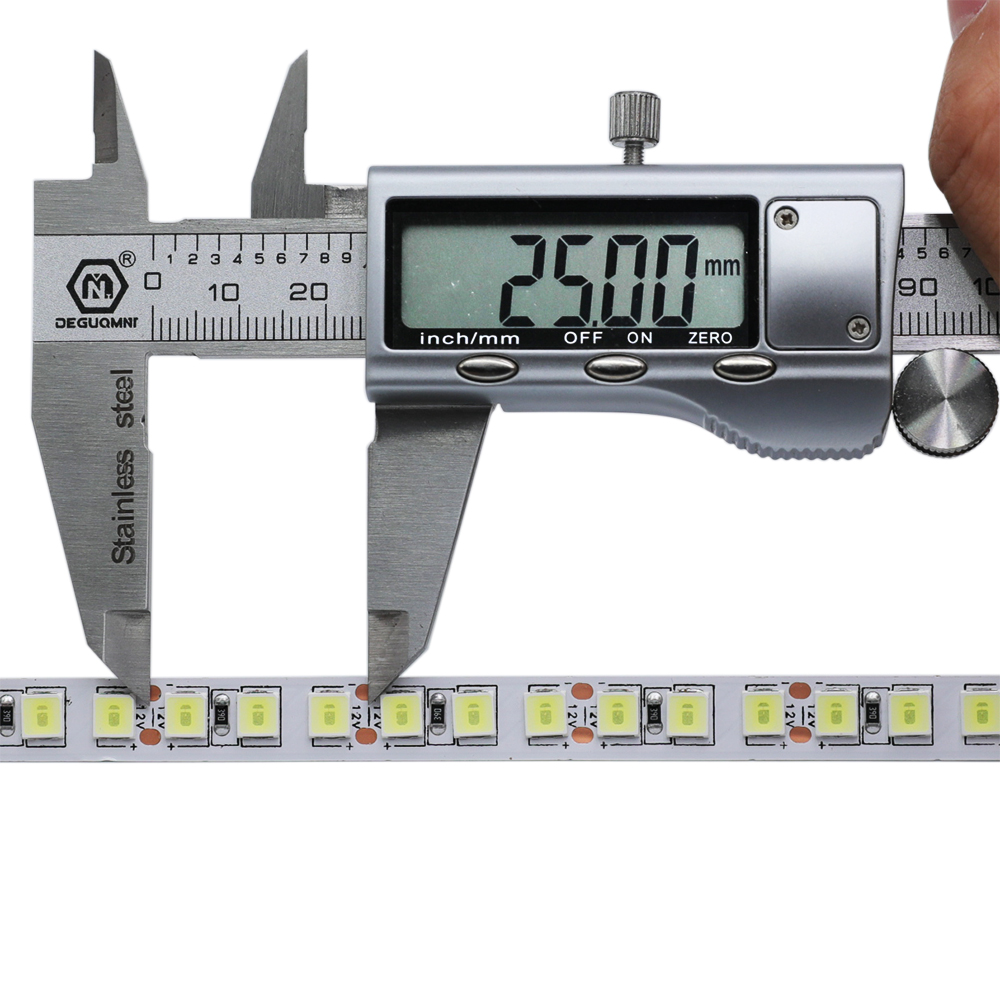

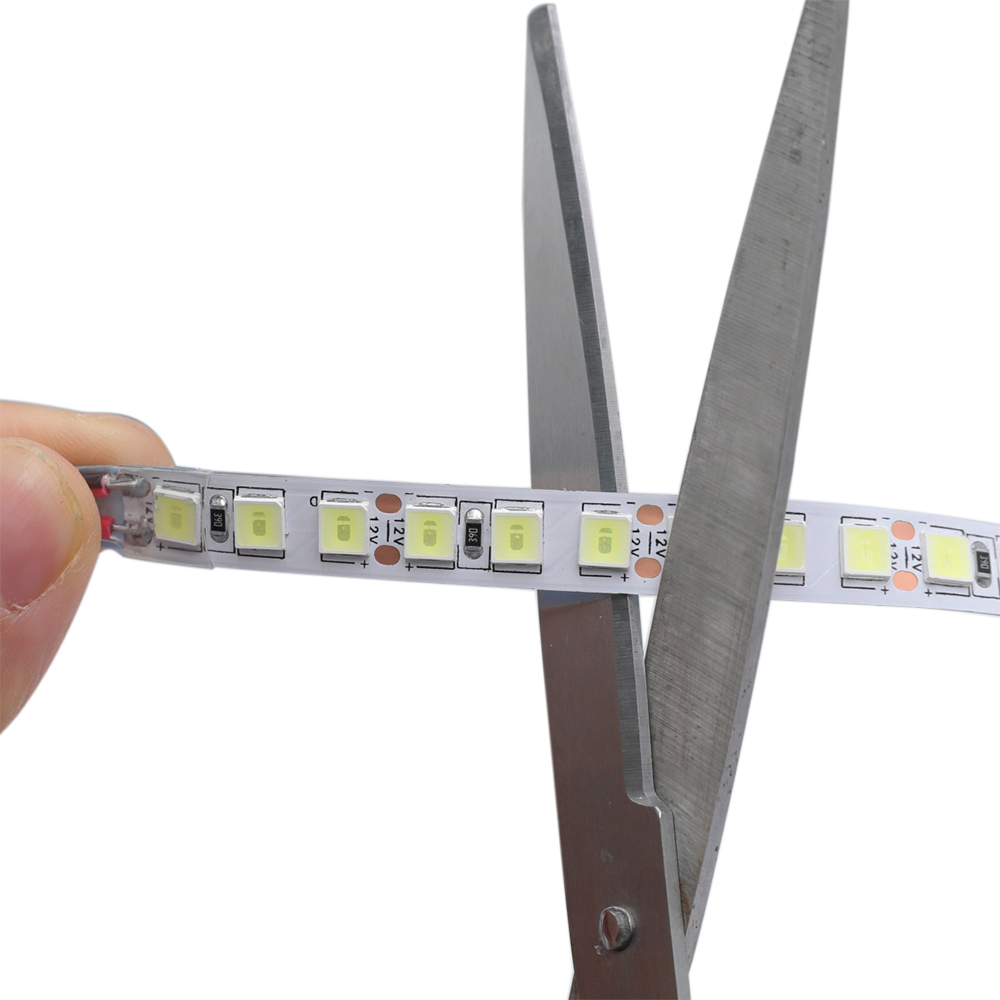

Our led quantities are 600LEDs of which every 3LEDs can be cut, you can customize the length at the cutting point according to your own project requirements.

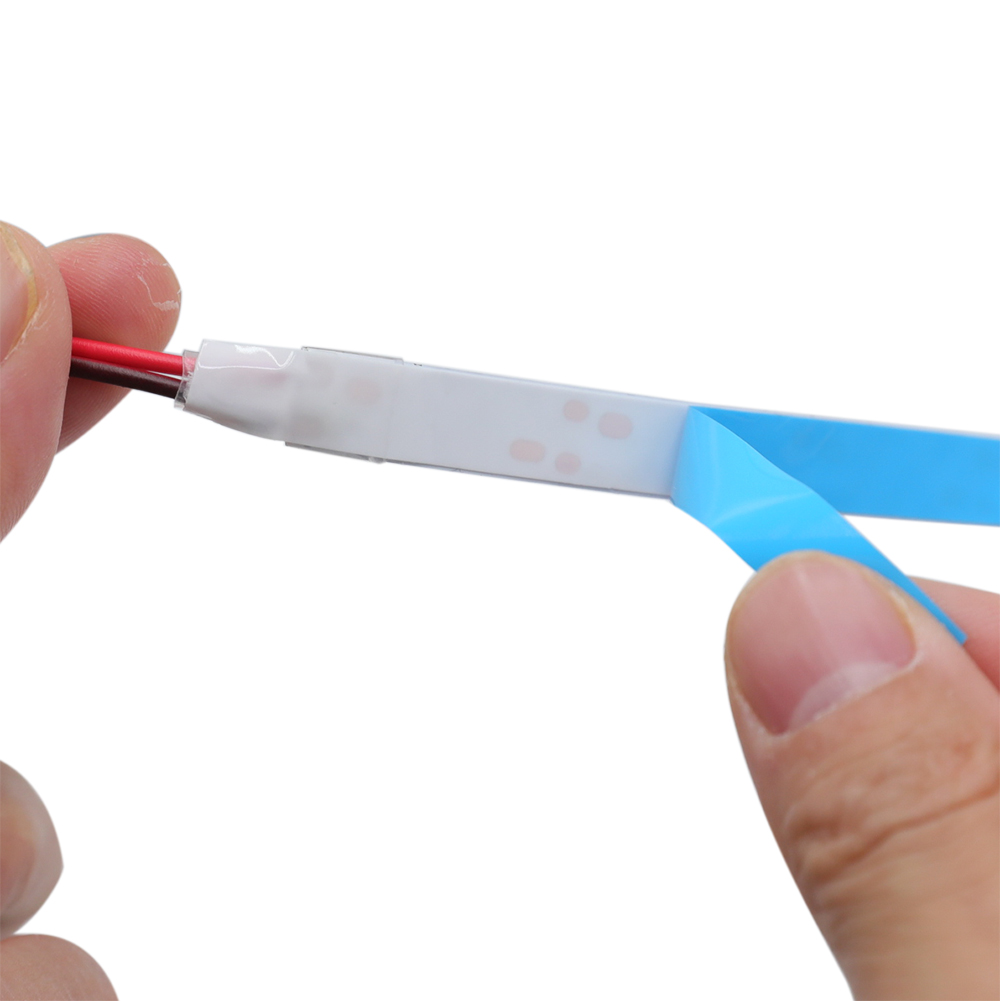

There is a 3M light strip on the back, and the PCB can be bent at will for easy installation.
Note: Only the white color(warm white/natural white/daylight white/cool white) LED strip light can achieve IP65 waterproof, another color(red/green/blue) can't achieve IP65 waterproof.
Standards and Certifications
LED Strip Type: SMD 5054 600PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: 3000K/4000K/6000K/7000K
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft)
PCB Color: Black/White
Warantty: 3 years

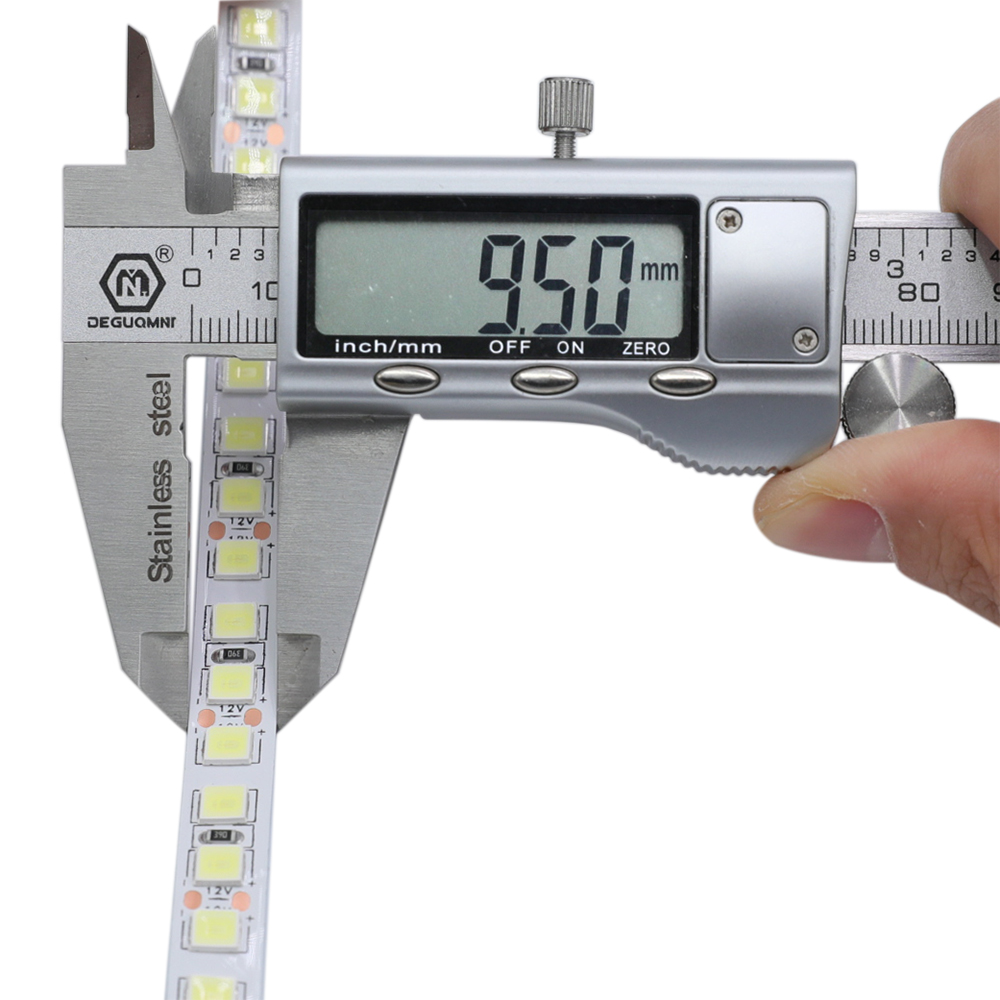

PCB Width: 9.5mm/0.37in
Length: L500cm(196.8 in )
Input Voltage(V): 12/24V DC
Working Power: 18w/m, 90w/Roll
Color Temperature CCT(White): Warm White(3000-3500k), Daylight White(5500-7000k), Cool White(8000-10000k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20/ Waterproof IP65/67
CRI (Ra>): 90
1*5m/16.4ft Single row led strip light
The difference fo single color and RGB color:
RGB Color is 4 Channels but the Single Color is 2 Channels.
The difference of SMD5050 and SMD5054:
Indoor home Decorative
Display case lighting
- Architectural lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
