24V 2835 480 LEDs Per Meter Bright Quad Row LED Light Strip 5m

Name: 24V 2835 480 LEDs Per Meter Bright Quad Row LED Light Strip 5m
Brand: SuperLightingLED
SKU: FSLQR-24V-2835X480W30
Price: 22.98 AUD
Availability: InStock

Model: FSLQR-24V-2835X480W30 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: A$86.19 A$33.0262% off

Qty Discounts Off Price
1-19 A$33.02	20-49 A$32.36	50-99 A$31.70	100+ A$31.04
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

30mm (1.18in)

Select Light Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

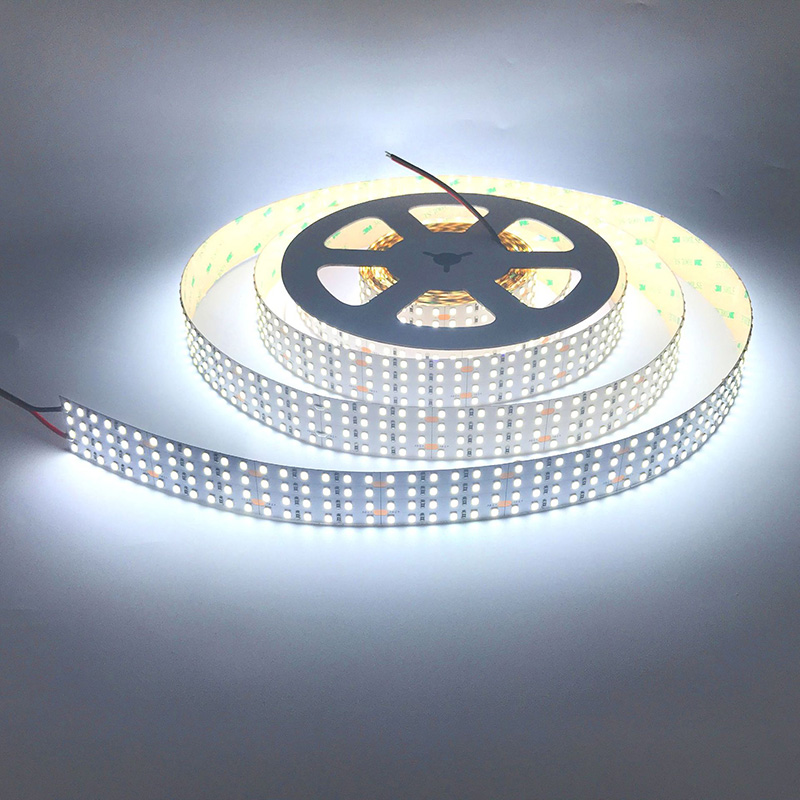

This 2835 Quad Row LED Strip is the economy version of FSLQR-24V-2835X480-5M. The flexible brightest led light strips quad row led tape light is still designed with 480 LEDs per meter, excellent brightness and energy efficiency, with 2835 SMD LED light source, lower power consumption per meter at 38W/m (11.6W/ft).

The increased number of LEDs is helpful for brightness, providing powerful and even illumination. It's great to use the 2835 quad row high power led flexible light strip as work lights with ceiling aluminum profiles to focus on illuminating your workspace, factory, warehouse, and other situations that require a high degree of visibility. In addition, the aluminium profile's good heat dissipation function also helps to reduce the temperature of quad row led strips when they are working and prolong their service life.

With the 24V power supply design to reduce DC wire loss, this 2835 bright quad row led tape light still provides consistent brightness over long distances, perfect for large commercial lighting projects.

Product Specifications

LED Strip Type:	2835 Quad Row LED Light Strip
LED Chip:	SMD 2835 (San'an)
Input Voltage:	24V DC
PCB Width:	28mm / 1.1"
Light Color:	3000K Warm White, 4000K Natural White, 6500K Daylight
Dimension:	5m/16.4ft roll
LED Quantity:	480 LEDs per meter (146/ft)
Working Power:	38W/m±10%, 190W/roll

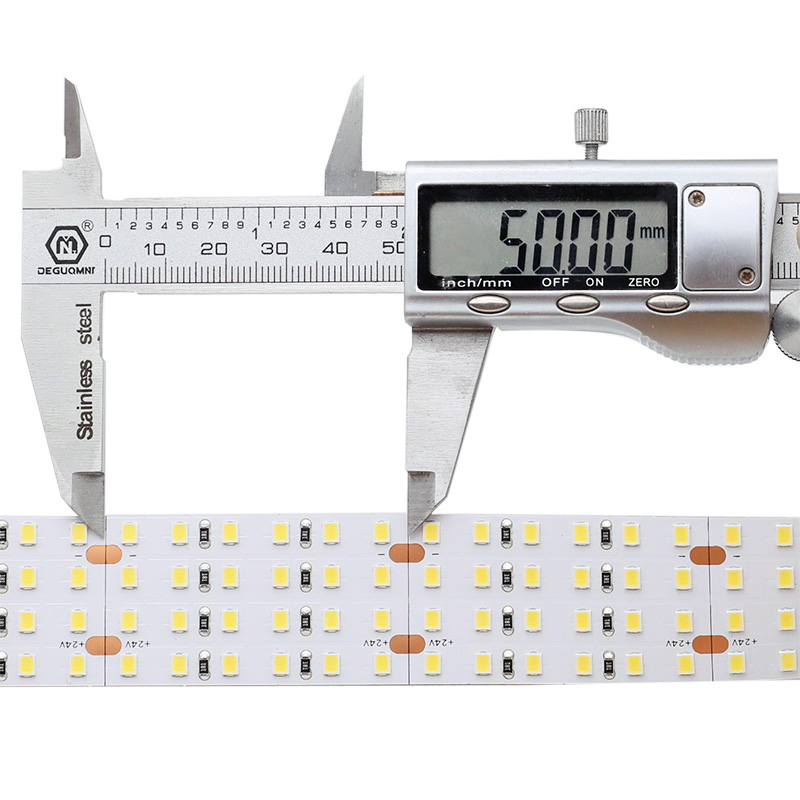

Cut Unit:	9 LEDs, 25mm/1"
Lifespan:	50,000+hours
Beam Pattern:	120 degrees
Waterproof Rating:	Non-waterproof IP20, Outdoor Silicone Tubing Waterproof IP67 IP68

How to Connect Quad Row LED Strip to Power Supply:

1) Directly connect to a AC to DC 24V led transformer (LRS-350-24 Meanwell power supply in the kit)

Connect LED Strip to Power Supply

2) Dimming:

Dimming LED Strip Light Wiring Diagram

The controller in the KIT option is DM110 30A high power led knob dimmer, the wiring diagram is for referrence, no remote.

24V 2835 480 LEDs Per Meter Bright Quad Row LED Light Strip 5m

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLQR-24V-2835X480W30

PDFFSLQR-24V-2835X480W30 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Waterproof IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

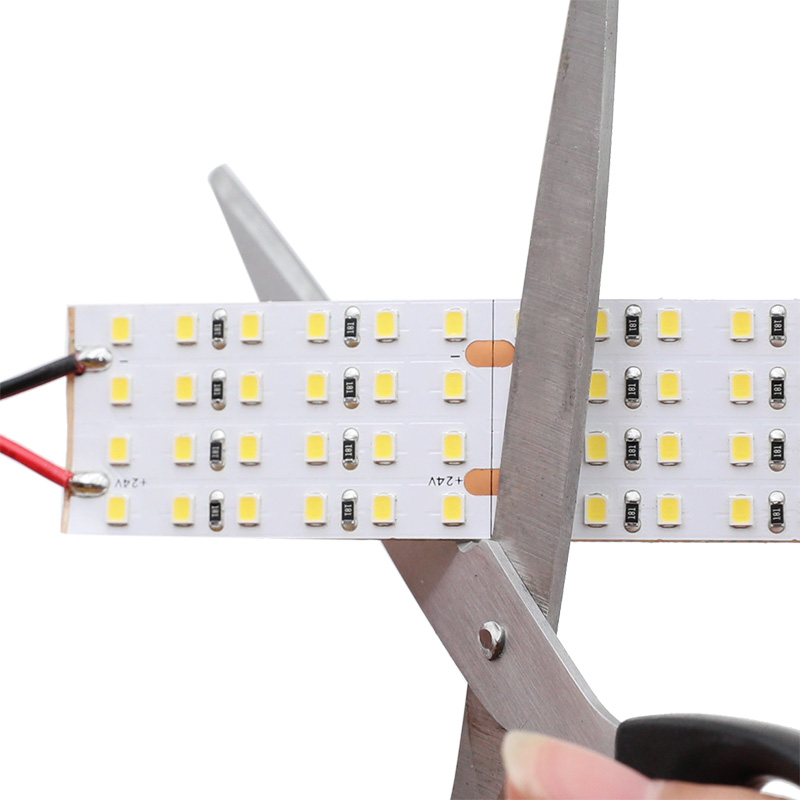

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Warm White (3000K) · Natural White(4000K) · Daylight White( 6500K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 30mm (1.18in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
