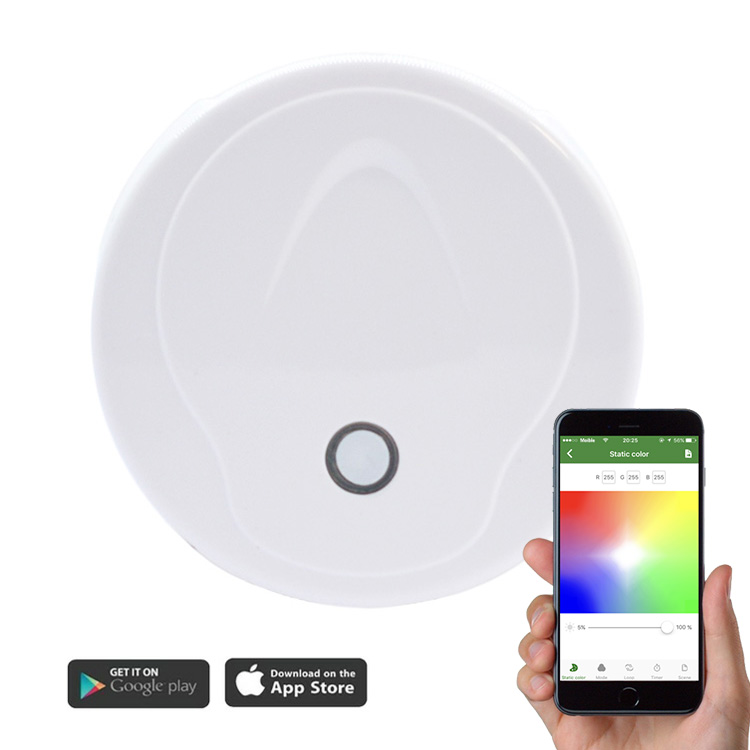

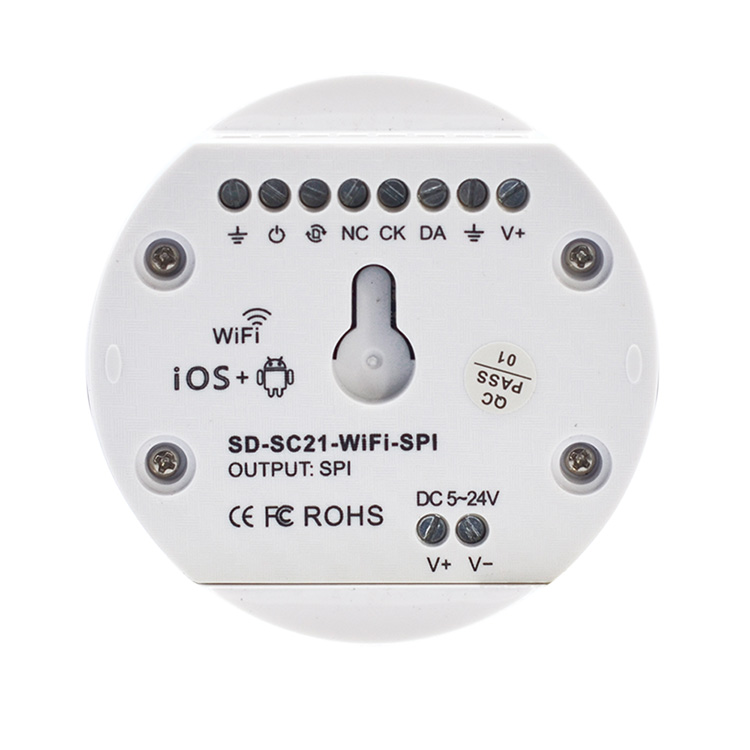

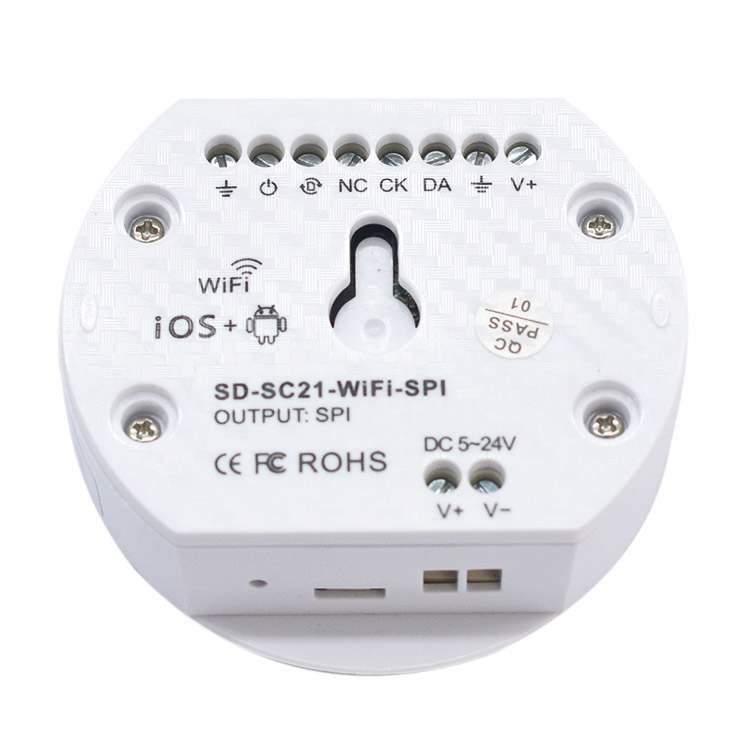

WiFi SPI Programmable Time Controller WiFi-SPI For WS2801 WS2812B LPD6803 Addressable Digital LED Strip Lights
WiFi-SPI is LED strip controller, can control all kinds of LED strip with different chip type.
Edit running effect through horse-race, chase, flow, trail, gradual change style, cooperate with running distance and direction, fine adjust run color and background color, realize thousands of powerful editing effect.
Can store up to 32 changing modes,
Can run large cycle mode, or run small loop mode,
Changing mode or loop mode can be stored in 8 scenes or timing run.
Standards and Certifications
Input voltage: DC5-24V
Output signal: SPI
Grey level: 256
Remote distance: 30m
Working temperature: -30℃~55℃
Product size: Φ72×25mm
Net weight: 71g
Safety & Warnings
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any power supplies used to comply with the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
1. 5-year warranty:
The warranty is for free repair or replacement and covers manufacturing faults only.
Do not include fees of on-site maintenance and consumable parts.
Artificial damage caused by improper use, such as using the inappropriate power supply, improper accessories, improper installation, did not follow the instructions, error using or negligence.
Any damages caused by force majeure, such as natural disaster, abnormal voltage.
The normal use of products caused by aging, wear and tear, but it does not affect the normal use.
