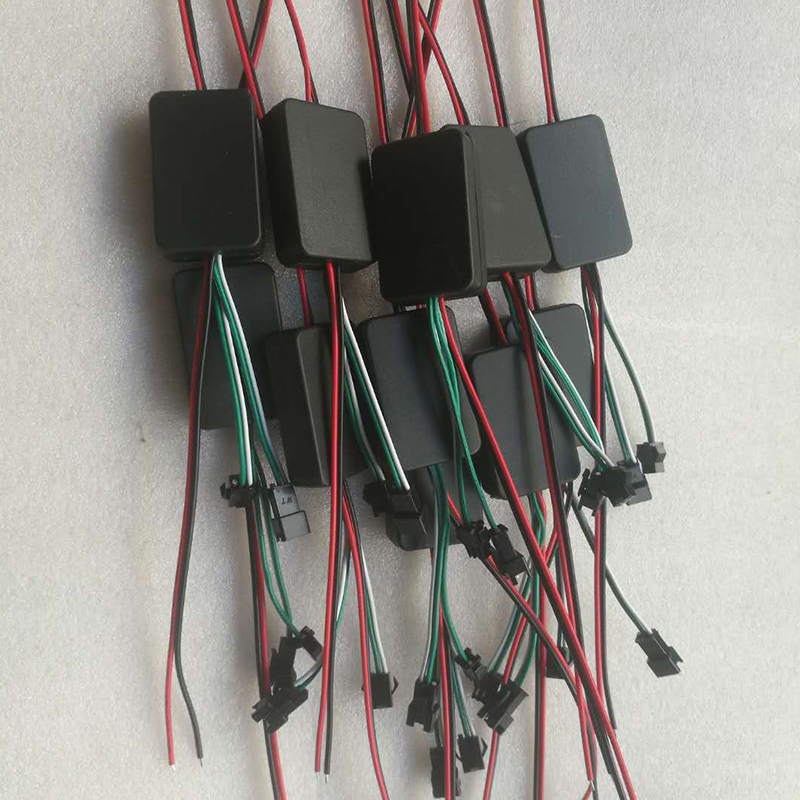

TTL/SPI Signal Amplifier - Extend Strip Length to 200M/656ft
DC5V/12-24V, TTL/SPI 1 to 1 Signal Output Data Signal Amplifier For Programmable Dream Color TM1812, WS2811, WS2812B IC LED Light Strips, Extend the length to 200M/656ft
1 .TTL/SPI Signal Output Data Signal Amplifier Apply for kinds of the big outdoor LED project, aims to solve the problems of LED installation long-distance, Weak signal transmission, and complicated wiring.
2. The maximum line length of the controller outlet and amplifier input port is 200 meters/ 656 ft.
3. The length of the amplifier outlet and LED strips input line should not exceed 5 meters/ 16.4ft.
4. Power must be cut off before installation, and the connectors should be waterproofing.
Standards and Certifications
Working temperature: -20-60℃
Supply voltage: DC12-24V/DC5V
Static power consumption: <1W
External dimension: L35 Χ W30 Χ H8mm
