DC5/24V,WF300 Series 2.4GHz WIFI RF Wireless Controller Control Via Smart Phone Tablet PC For Programmable IC Pixel Full Color LED Lighting
Related Products
DC5/24V,WF300 Series...
$39.98
WS2811 DC12/24V 300LEDs...
$35.98 $27.9822% off
WS2811 DC12V Waterproof...
$10.00 $2.3976% off
WS2811 DC12V 150LEDs...
$25.98 $15.9838% off
Mean Well LRS-200-24 ...
$39.00 $36.985% off
DC5-24V, LED Digital WIFI...
$59.98
LC-2000B SPI LED WIFI...
$80.00 $44.9844% off- Special Price: $39.98
This LED-WiFi SPI dream color music controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more Substantial. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
Use WiFi technology can make our control range wider, can get rid of narrow space constraint, in the building can control more than 15m, in outdoor can control more than 30m.
In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.

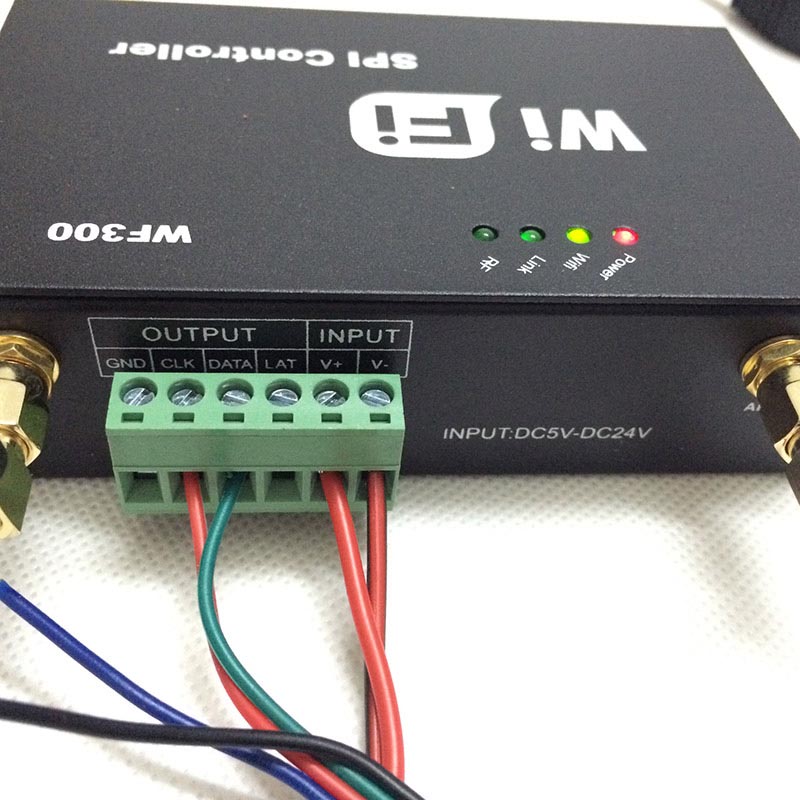

This connector structure belong to drawer structure, with 1 output channel, the device interface of power supply and LED is together, five interface one the left side GND(V-),CLK,DATA,LAT, V+, is connect led equipment, the one interface is connect the anode V+ of power supply, the sixth interface connects the cathode V- of power supply. This controller now can support 10 kinds of SPI strip in the market, for LPD6803 TM1803 UCS1903 WS2811 TM1812 TM1809 WS2801 TLS3001 TLS3008 P9813 IC dream color led strip lights or led dream color string module lights.
Product Specification Download
IOS App download link: (Magic color 3.0)
https://itunes.apple.com/cn/app/magic-color-3-0/id1056037328?mt=8
Android App download link:
https://www.superlightingled.com/PDF/MagicColor(wf300).apk
Product Specification
Remote control technical parameters
Working temperature：-20-60℃
Power supply method：AAA*3
Supply voltage：1.5V*3
Standby power：0.015mW
Standby current：3uA
Working current：200uA
Emission current：10mA
Remote control distance：about 30m
Standby time：6 month
Software technical parameters
Name：Magic Color
Runtime platform: Android version support Android system(better one can support Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.
Language: English
Category: communications
Free, green, no plug-ins
Controller technical parameters
Working voltage: DC5--24V
Output control: SPI signal output
Output current: 4A*3
Connect mode: SPI signal wires(DATA, CLK)

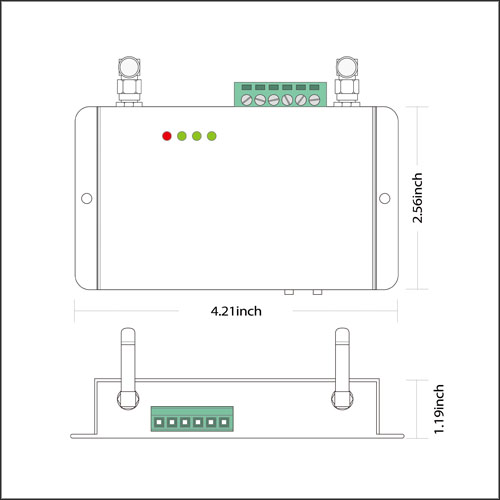

External dimension: L107*W65*H30（mm）
Receiving sensitivity: 802.11b DSSS(-5dBm)，802.11b CCK (-10dBm)，802.11g OFDM(-15dBm)
Connection Diagram
How to use WF300 wifi SPI led controller to connect 4 zone dream color led strips
Applications
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, Christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Safety
Supply voltage of this product is 5/24Volts DC, do not exceed.
Shorting output wires may cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
Note
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Package including
1 x LED WIFI Controller
1 x RF remote
1 x 4pin connect cable
