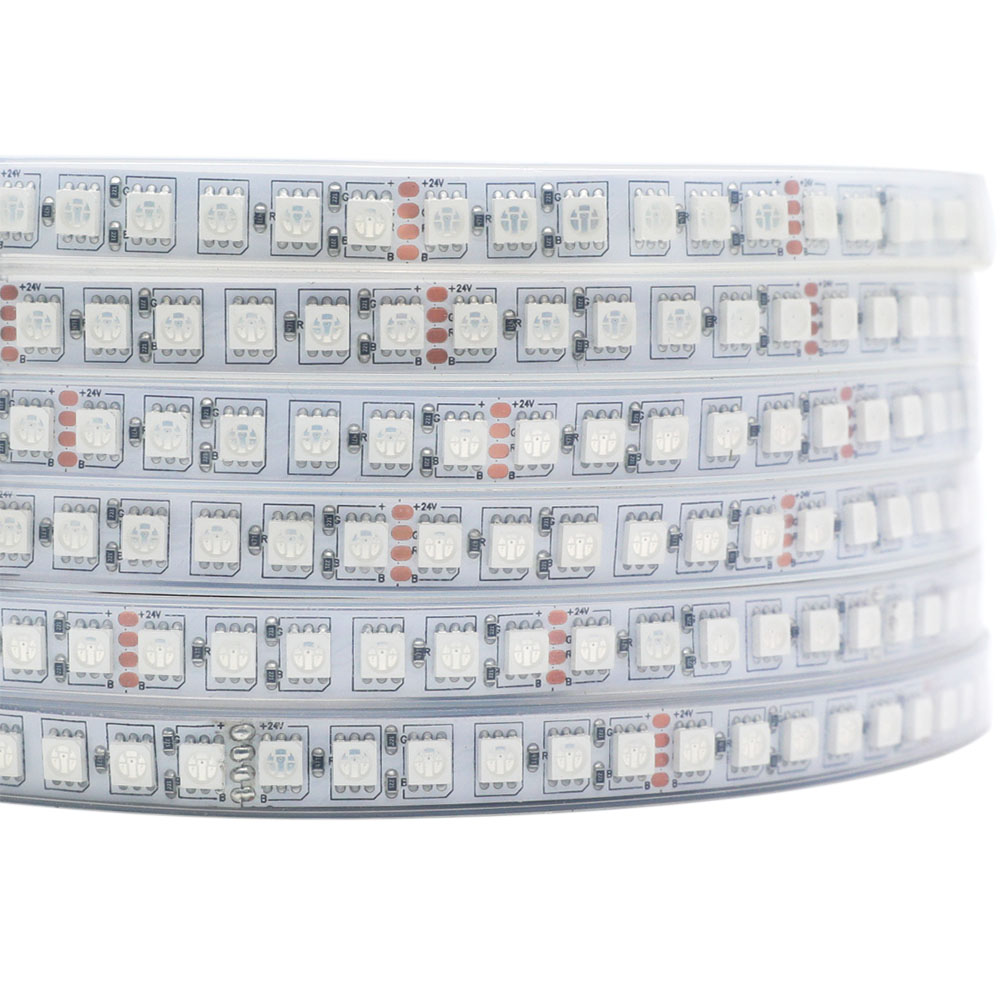

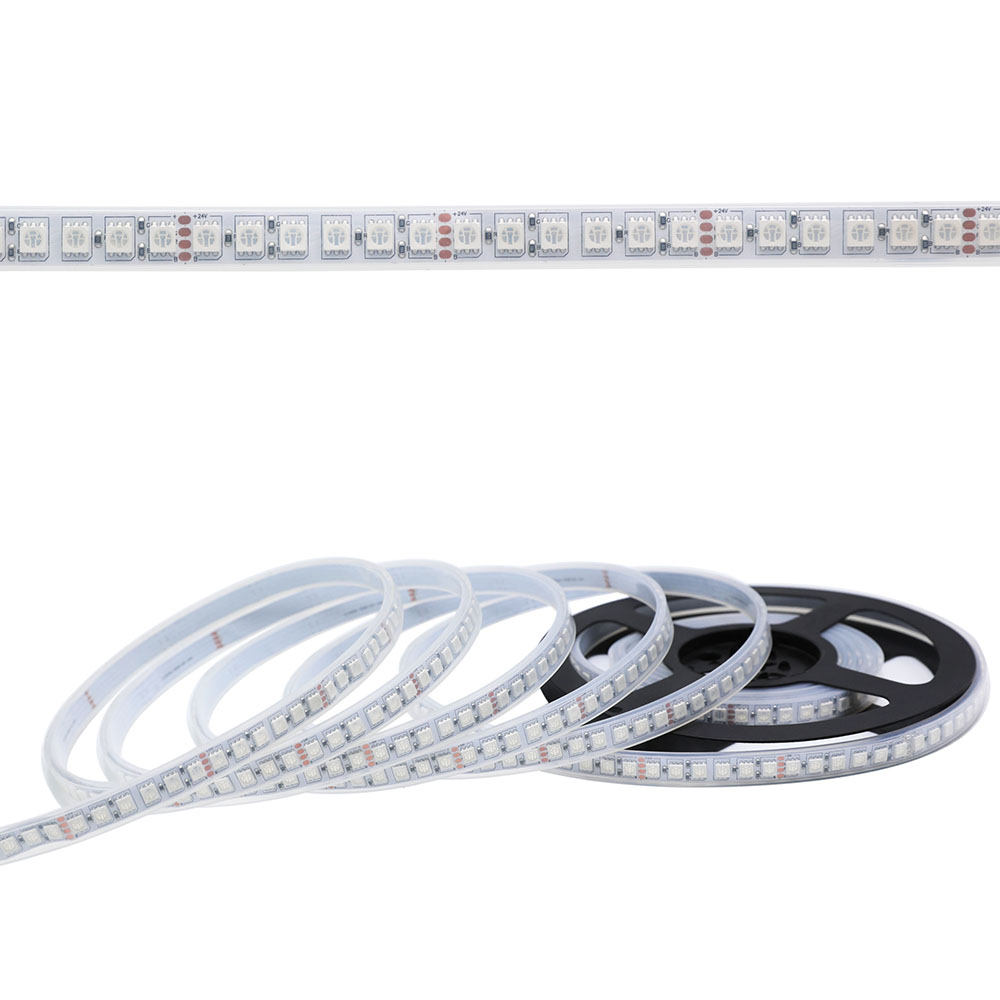

DC12/24V 5050SMD 16.4Ft 600LEDs Color Changing RGB LED Strip Lights
SMD5050 LED chip adopts high-quality raw materials to ensure high-quality and high-efficiency lighting. Because its size is 5.0mm x 5.0mm, it called SMD5050. Three LEDs are integrated into a plastic reflector.
SMD5050 has excellent advantages in lumen and luminous flux and has higher brightness than ordinary SMD2835/3528. Can be made into Single color/Dual White/RGB/RGBW/RGBCCT, this LED is Color changing RGB LED strips.

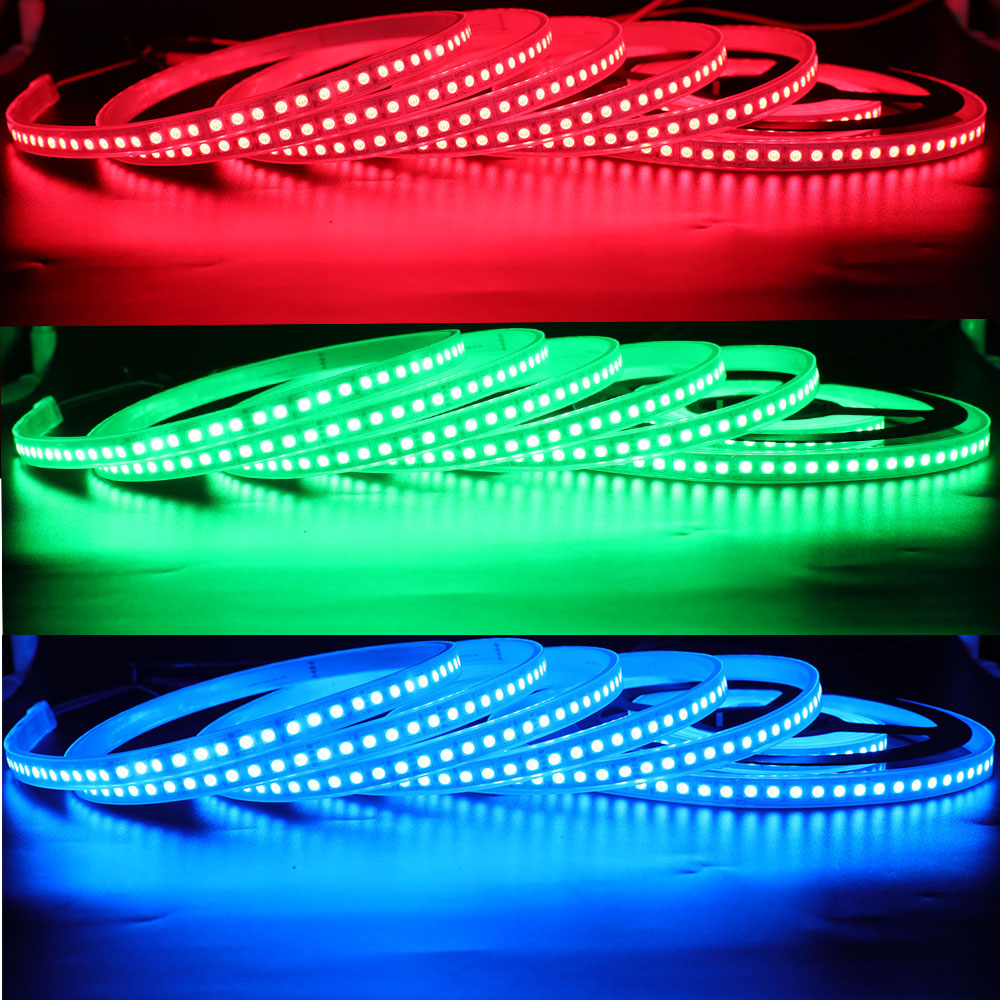

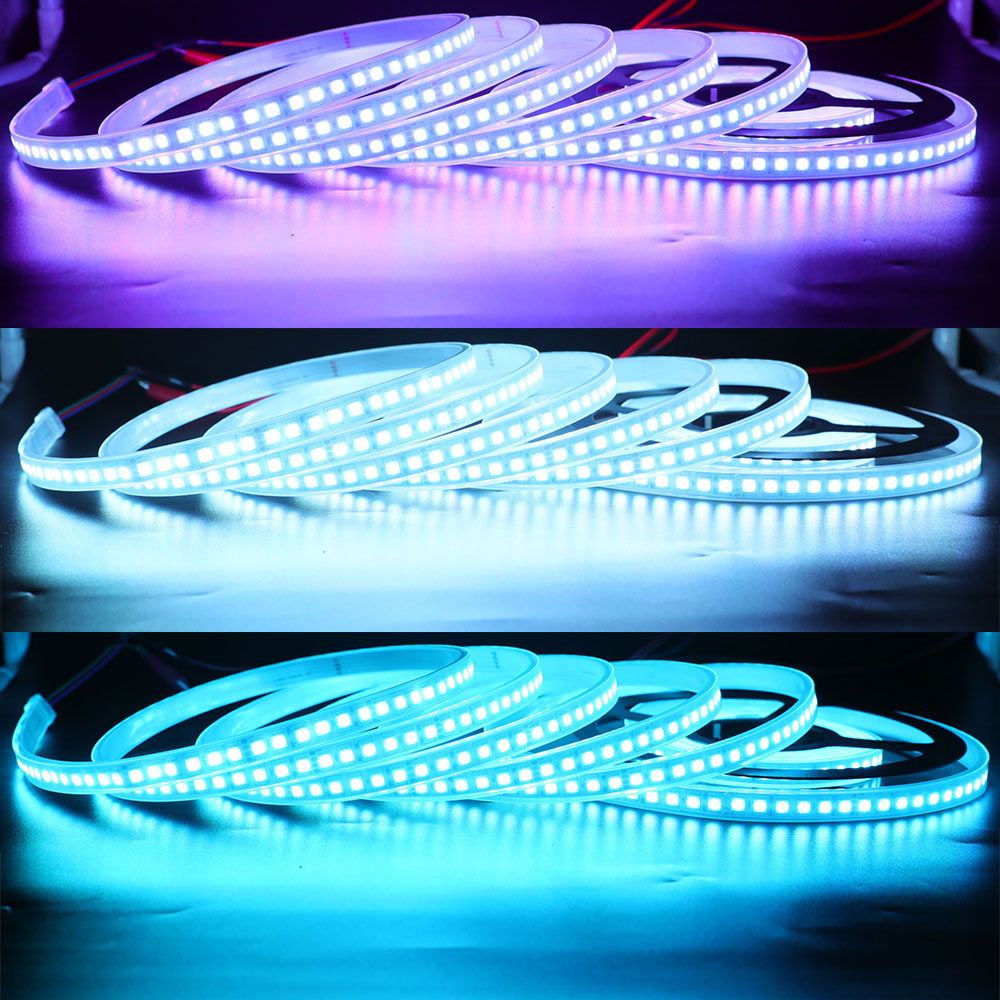

RGB LED integrates red, green, and blue SMD chips, which can change the color of ambient lighting, and use with an RGB LED controller, the effect is excellent.
IP67 waterproof light strips can be customized, and IP67 waterproof LED light strips can work in the outdoor rainy environment. Exterior is sealed with silicone sleeves. Double ends are waterproofed with transparent glue, which has good sealing performance.

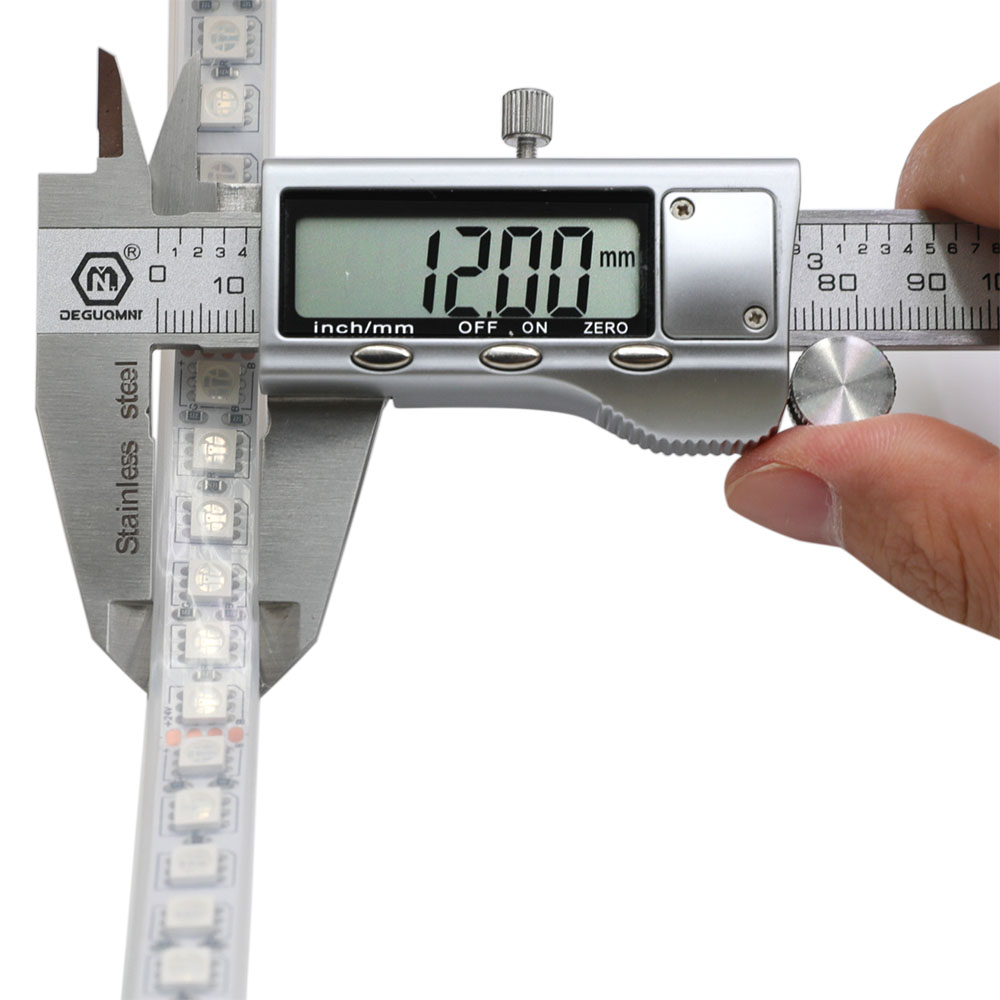

IP20 non-waterproof RGB LED light strips PCB board width is 10mm, with good heat dissipation effect, IP67 waterproof RGB LED strip lights are 12mm.

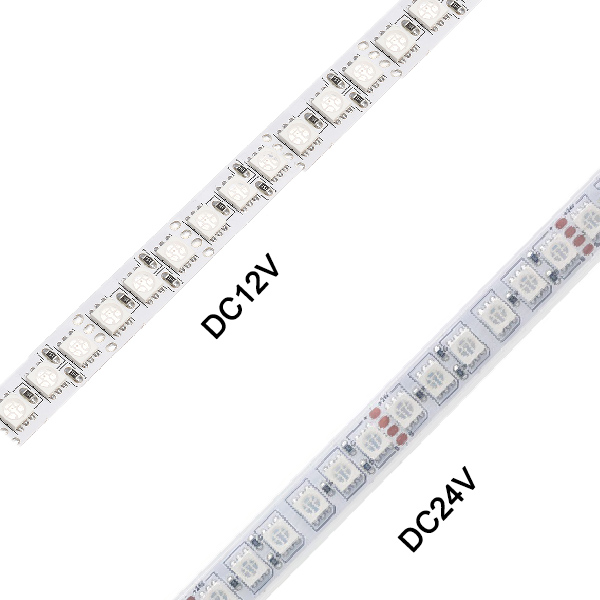

DC12/24V low voltage, safe, stable, and efficient, DC12V light strip(3LEDs cuttable), DC24V light strip (6LEDs cuttable).
DC12/24V working voltage safe, stable, and efficient

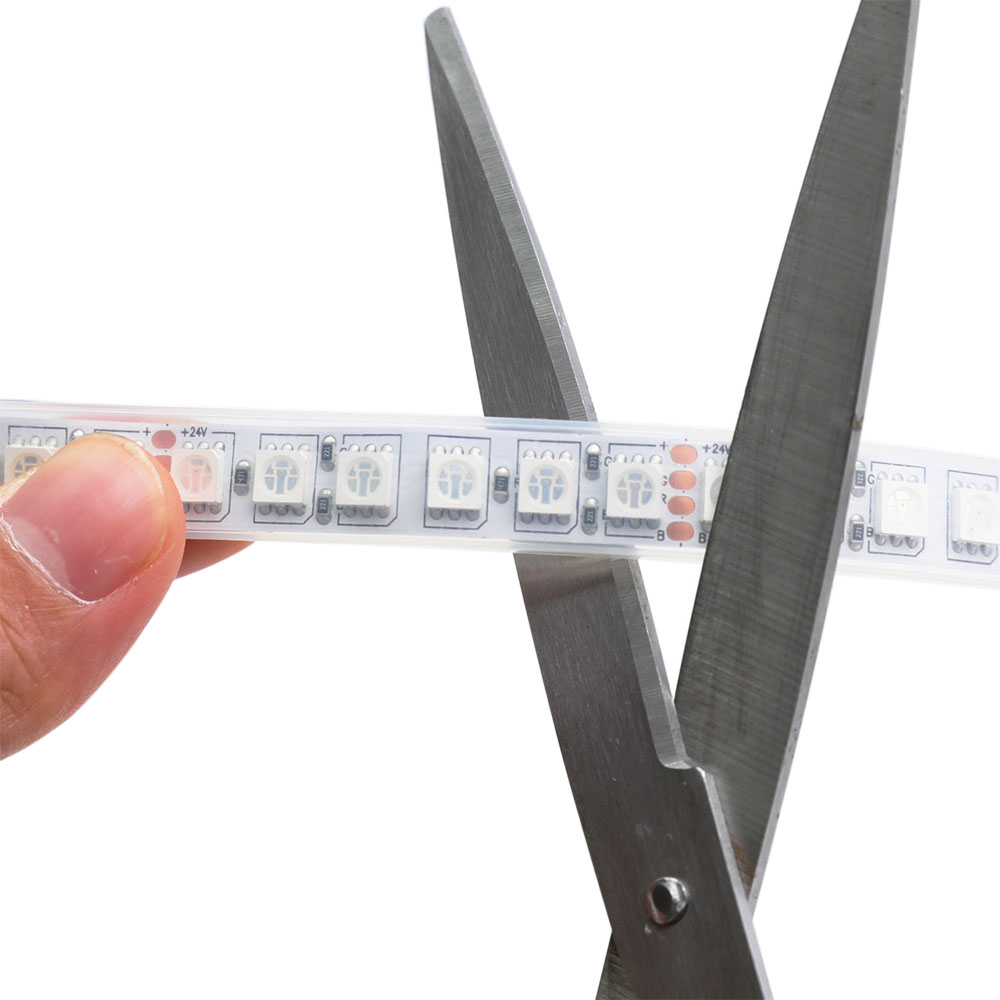

DC12V light strip(3LEDs cuttable), DC24V light strip (6LEDs cuttable).
High-quality and high-efficiency lighting
IP67 waterproof LED strip light can be customized
High-density 120LEDs per meter, 600LEDs/Roll
PCB width 10mm, good heat dissipation effect
Standards and Certifications
LED Strip Type: SMD 5050 RGB 600LEDs/16.4ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 3/6 PCS LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft), 600LEDs/Roll
Warantty: 3 years

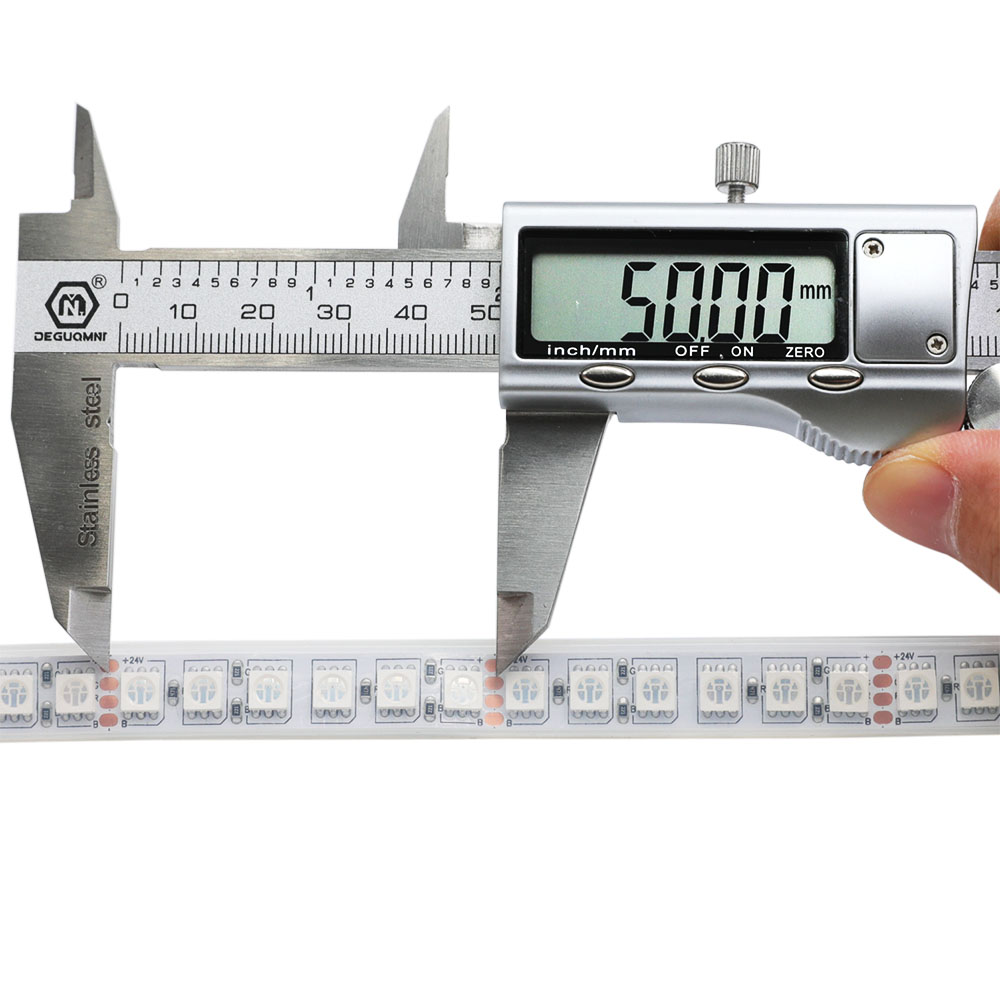

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24VDC
Working Power: 120W/16.4ft Max
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP67
1 * 5m/16.4ft RGB LED strip light
The following is the description of the kit optional
If you choose LED strip light, we will send you 1*5m FSLSR-RGB-5050X600W10
if you have any requirements for other types of the LED Controller, you can visit our Color Change RGB Controller Series
if you have any requirements for other types of the DC24V LED Power Supply, you can visit our DC24V Waterproof LED power supply series
You can also visit our LED Ultra Slim switching power supply
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
