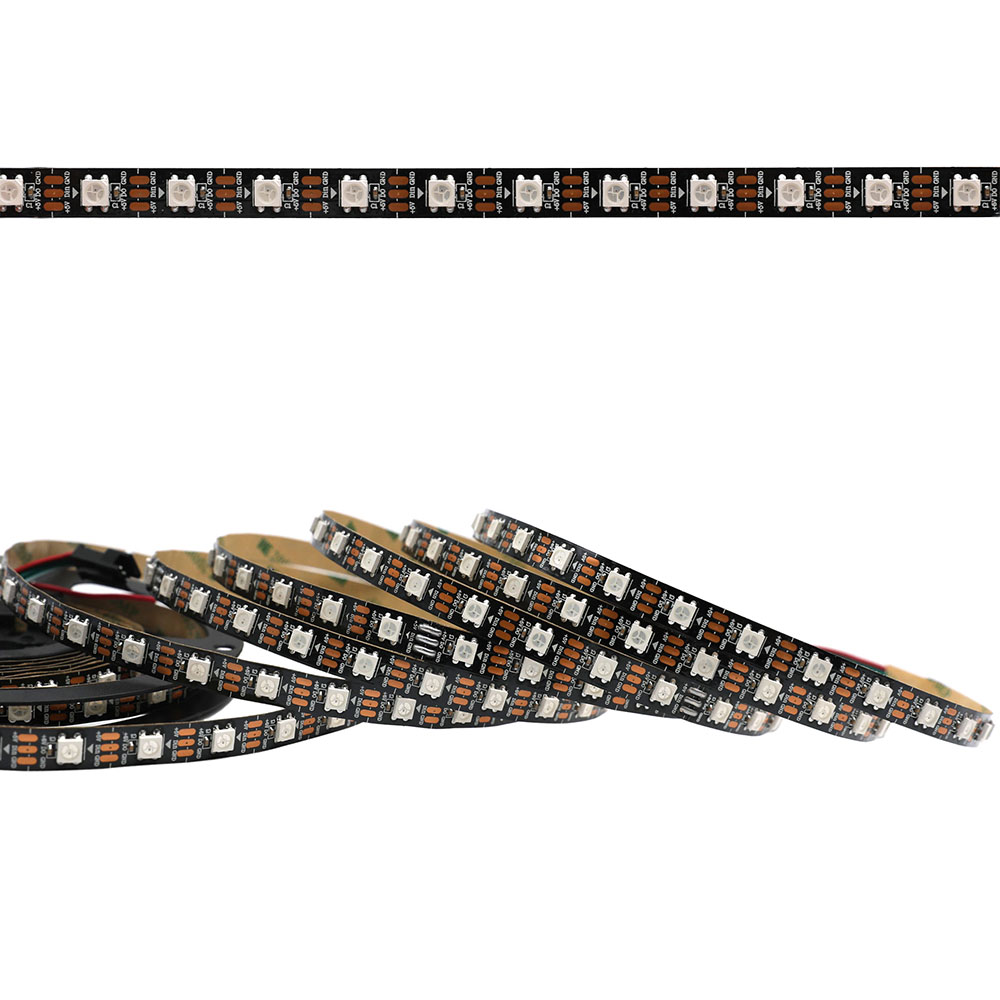

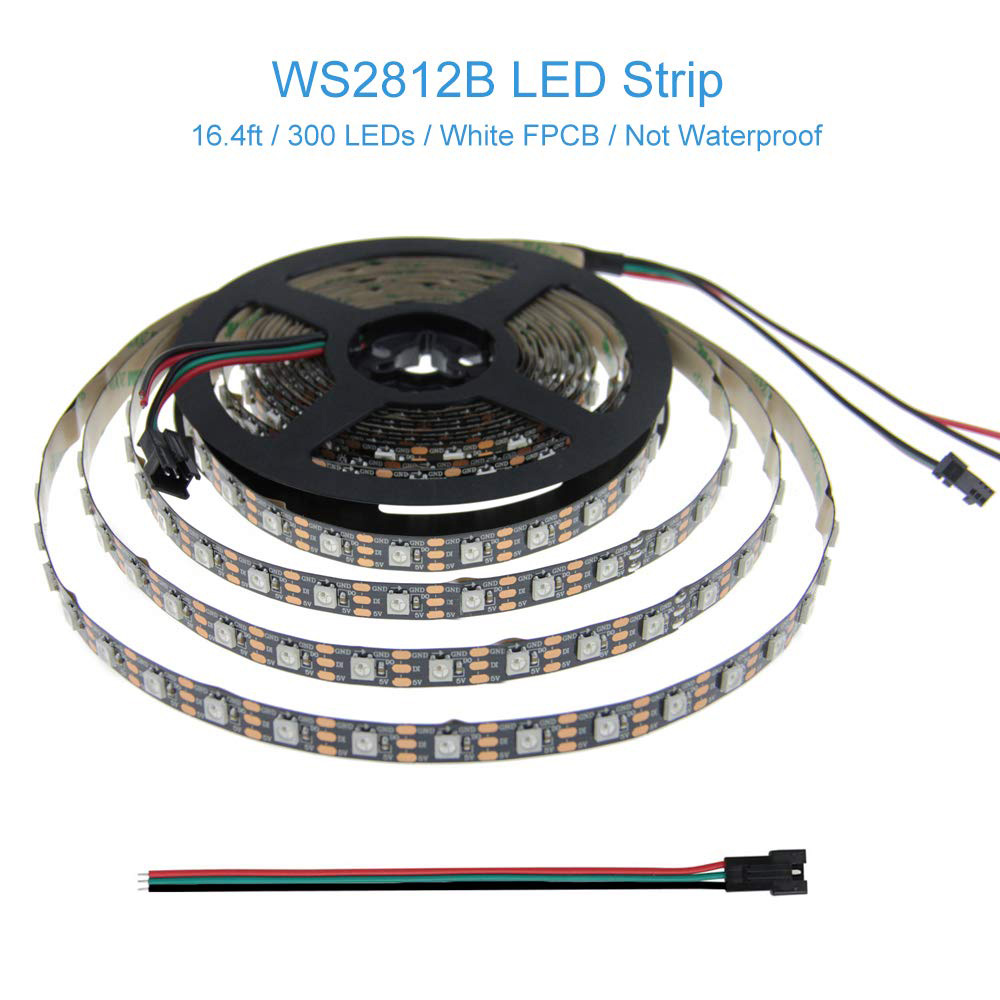

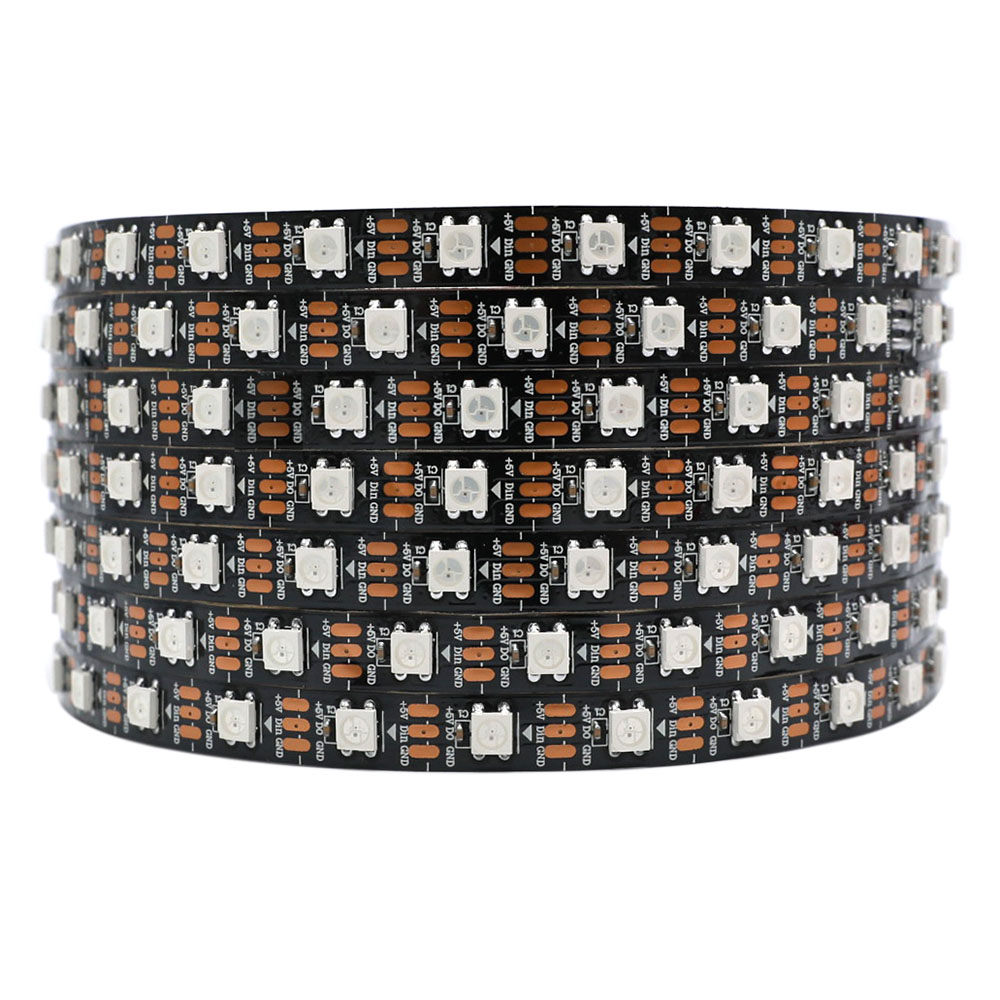

WS2812B DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Indoor Use, 300LEDs, 1.64ft ~ 16.4ft Per Reel By Sale

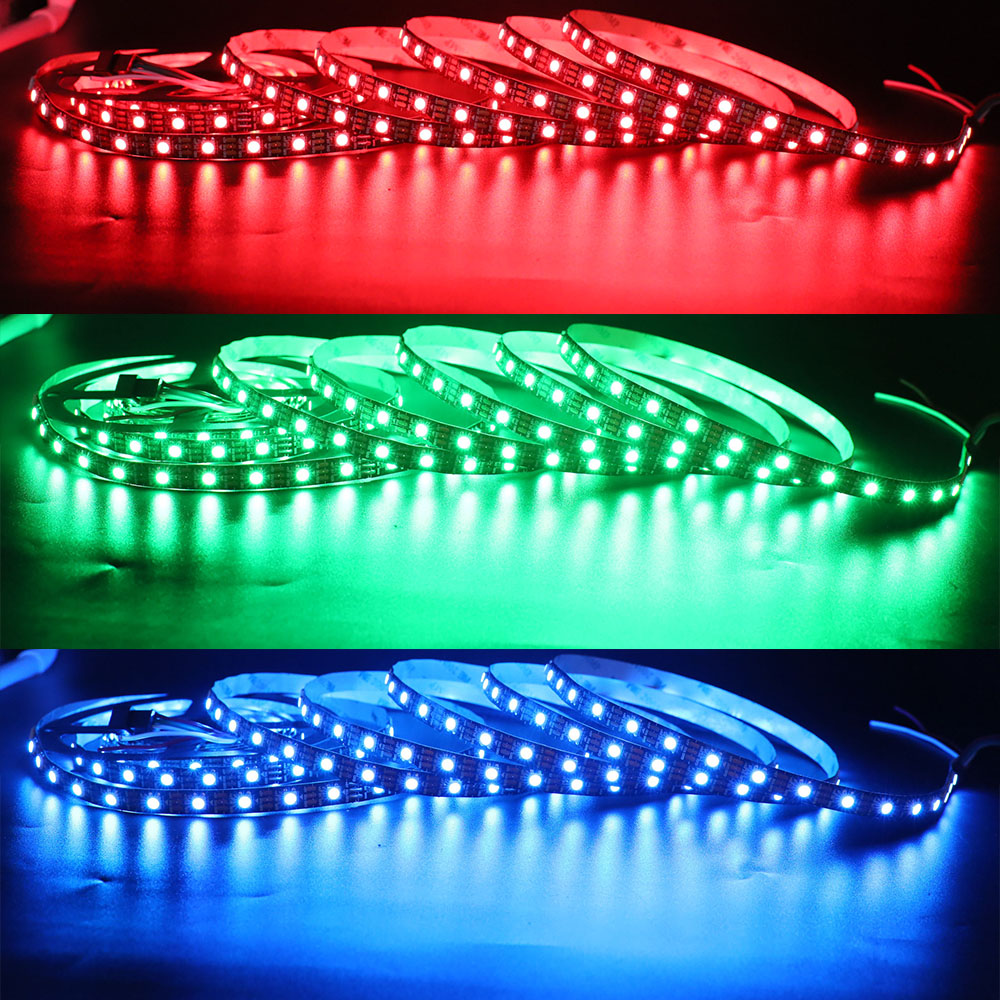

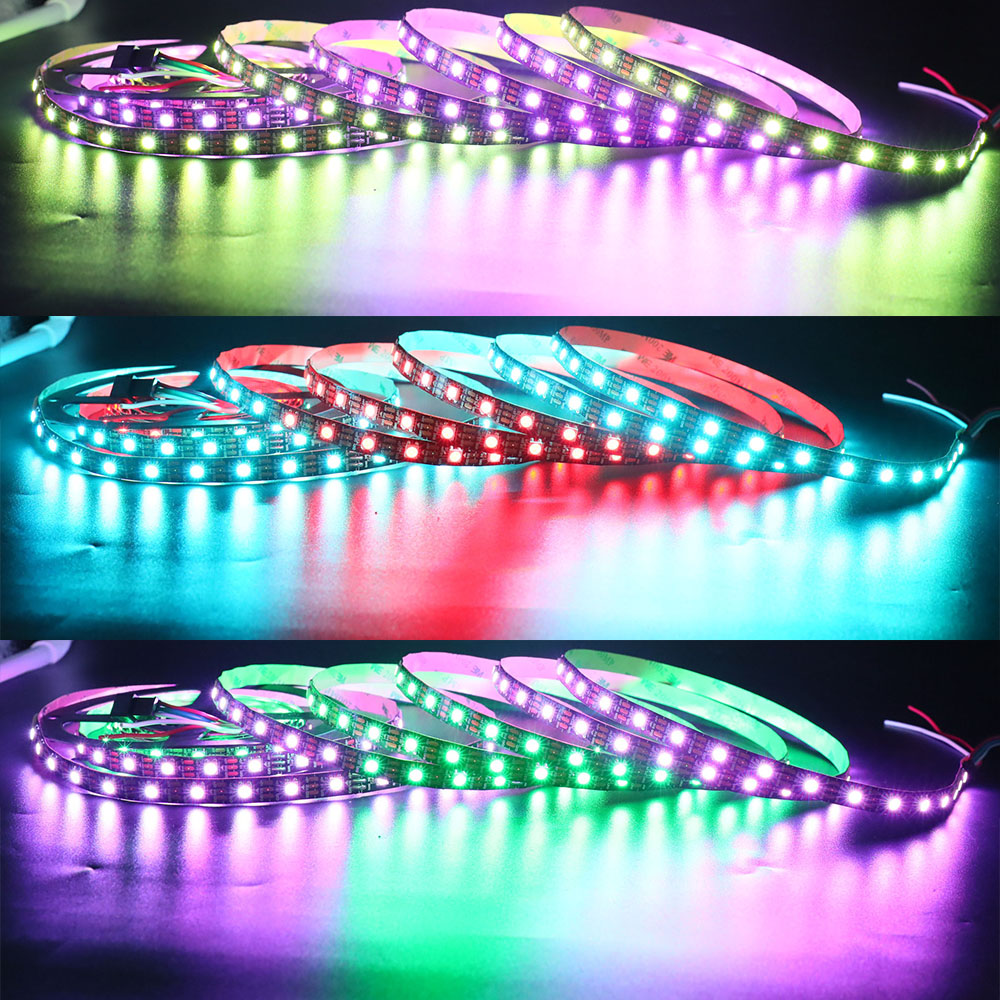

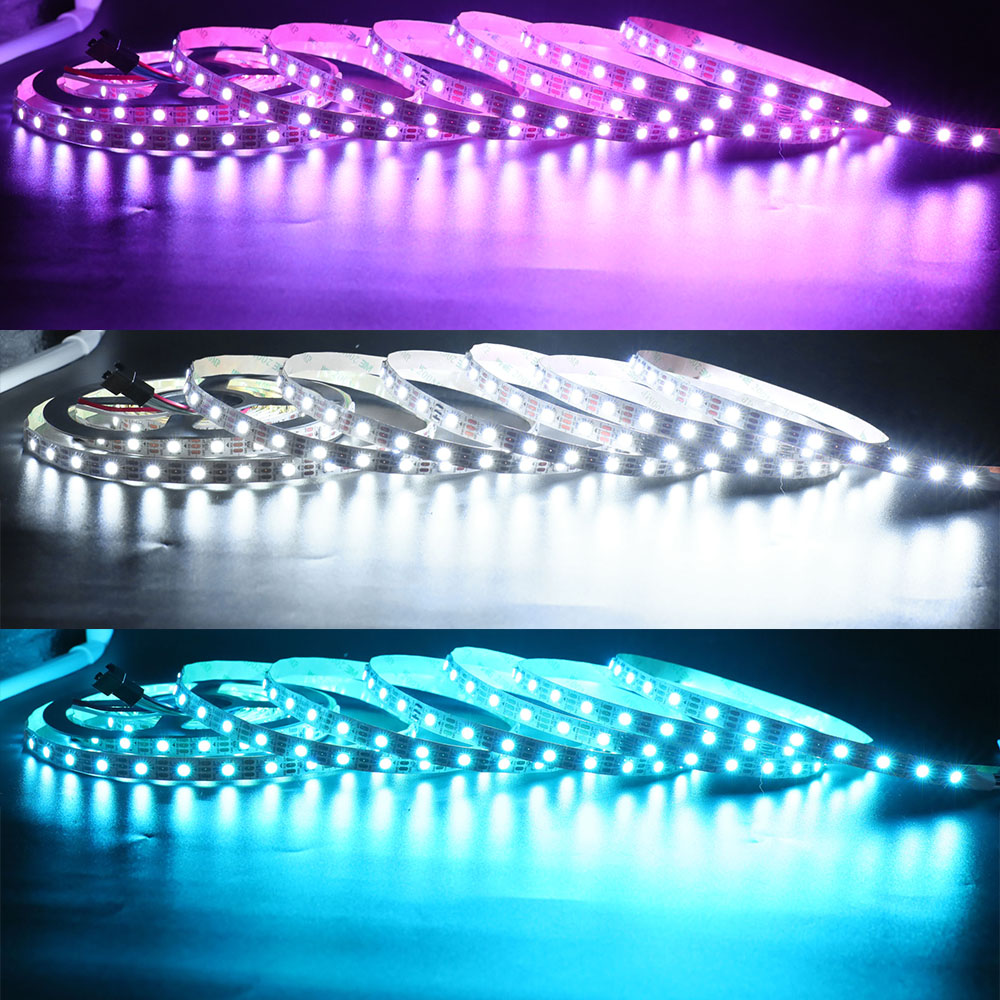

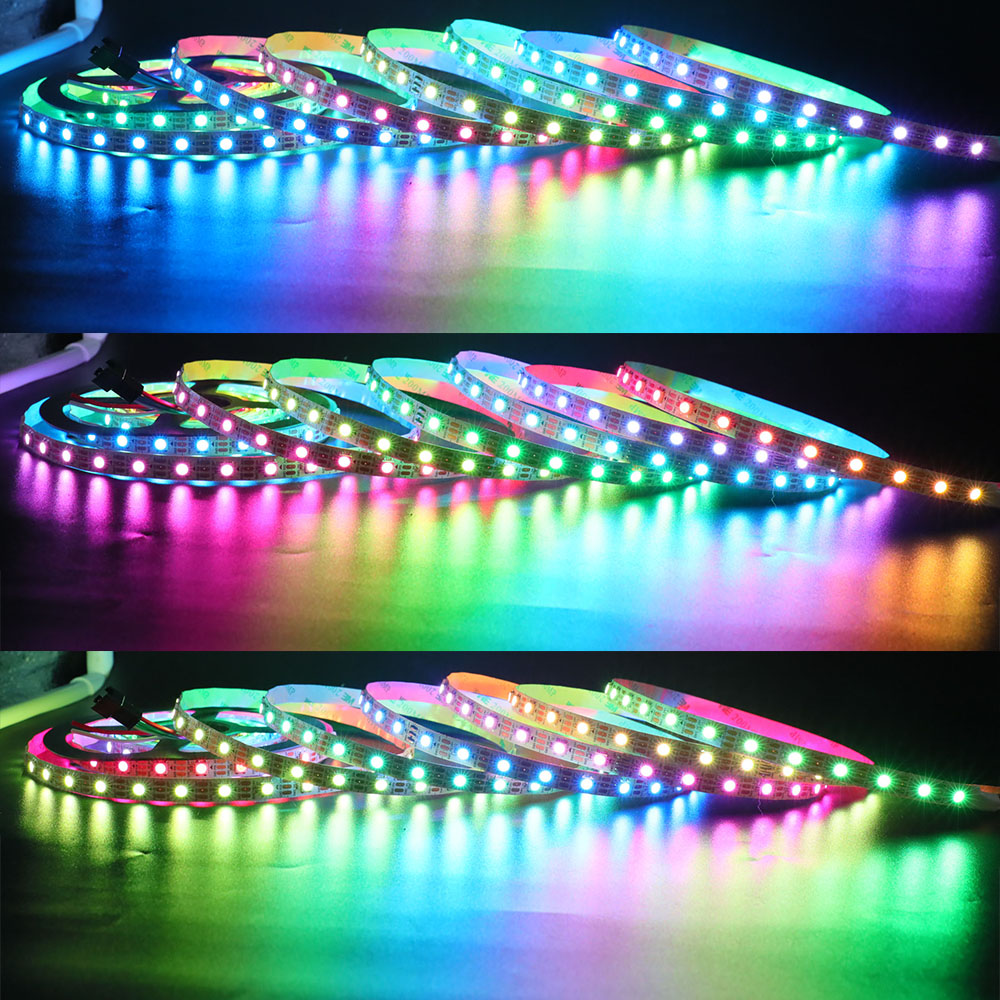

1. Universal WS2812B dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Non-waterproof flexible LED light strip with 300 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2812B IC chip control. 5meter(16.45ft) Per Reel By Sale.
2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.

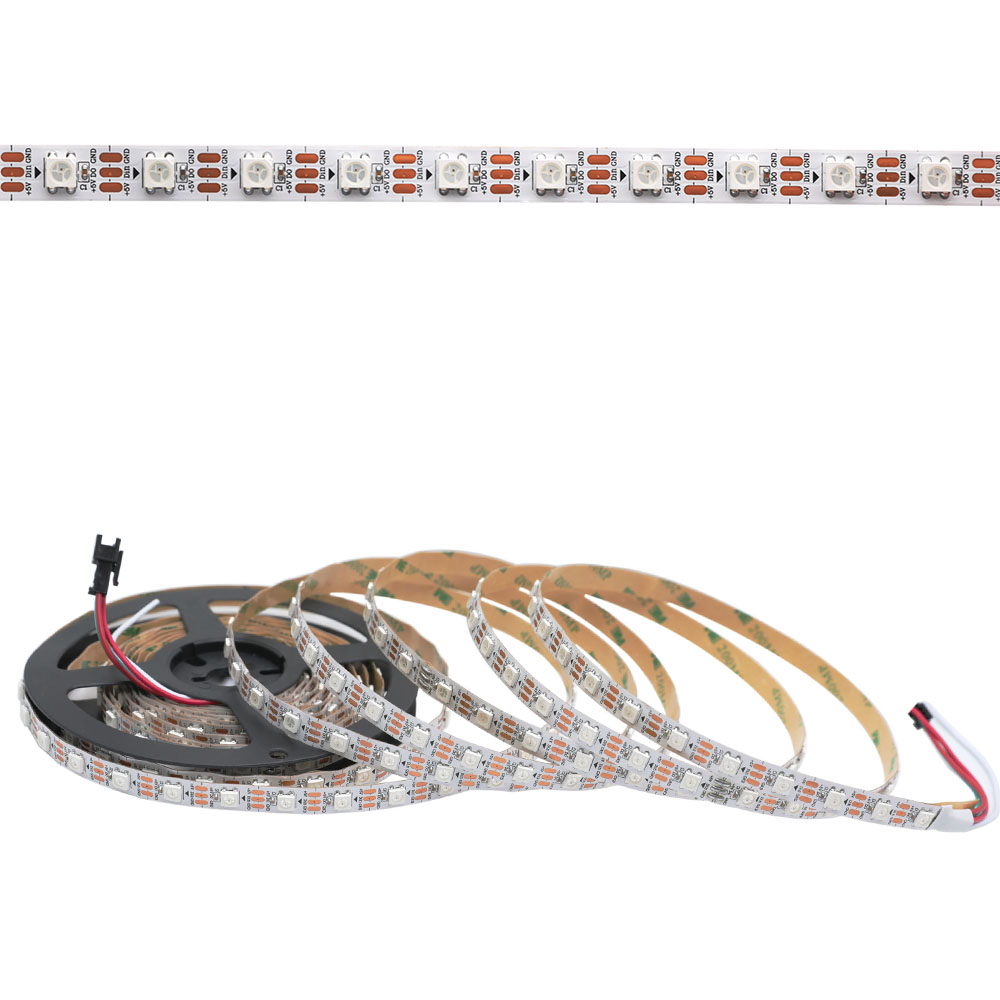

3. This strips soft and easy bent for installation. Available in 5 meters (197 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 1-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
4. The 5VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration.
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 300LEDs/16.4ft

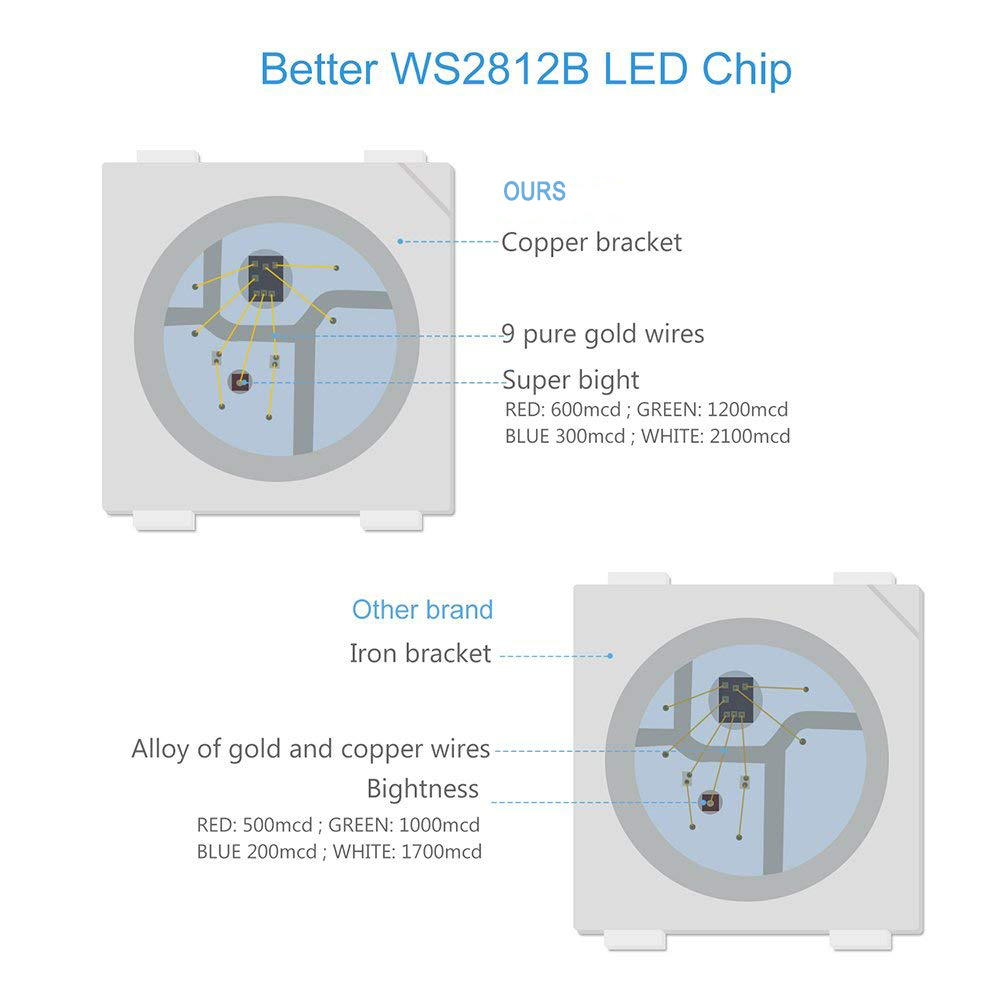

LED Chip: WS2812B IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

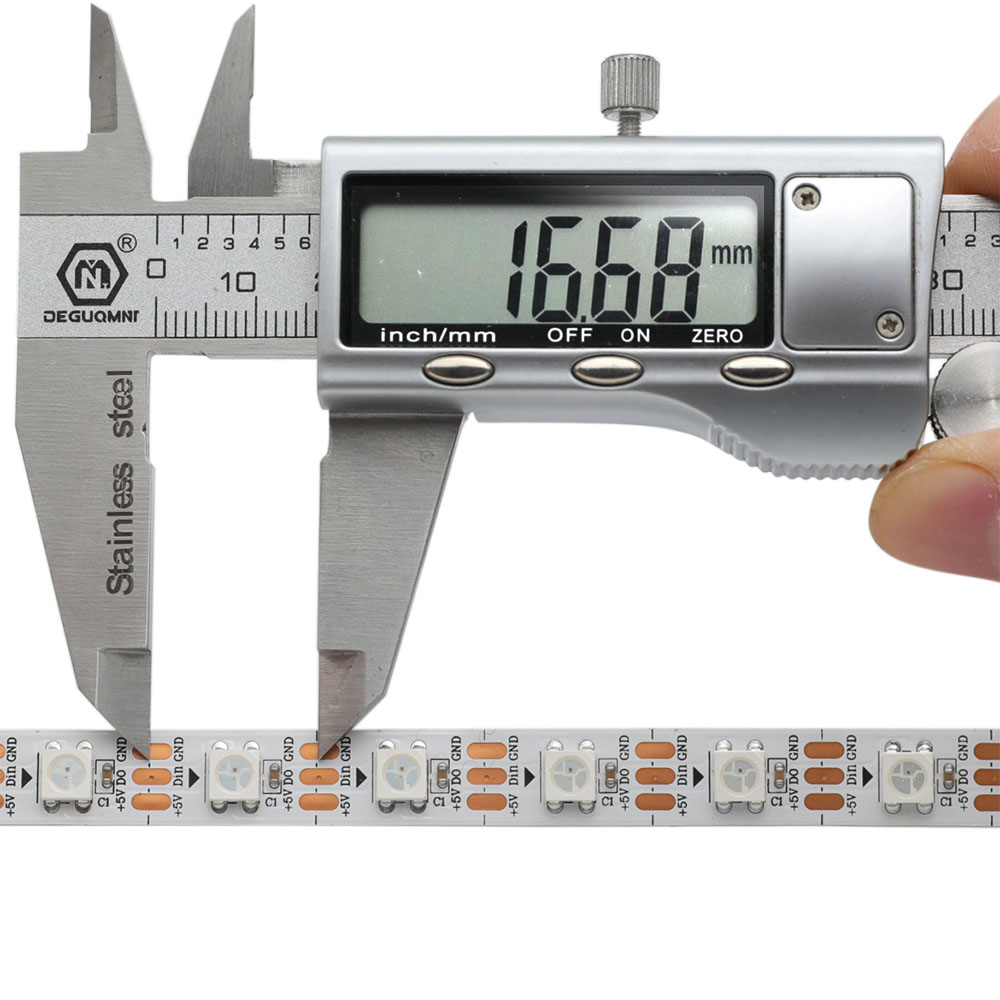

Dimension: 16.4ft/roll, every 1 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 60 LEDs per 1meter (3.28 ft)

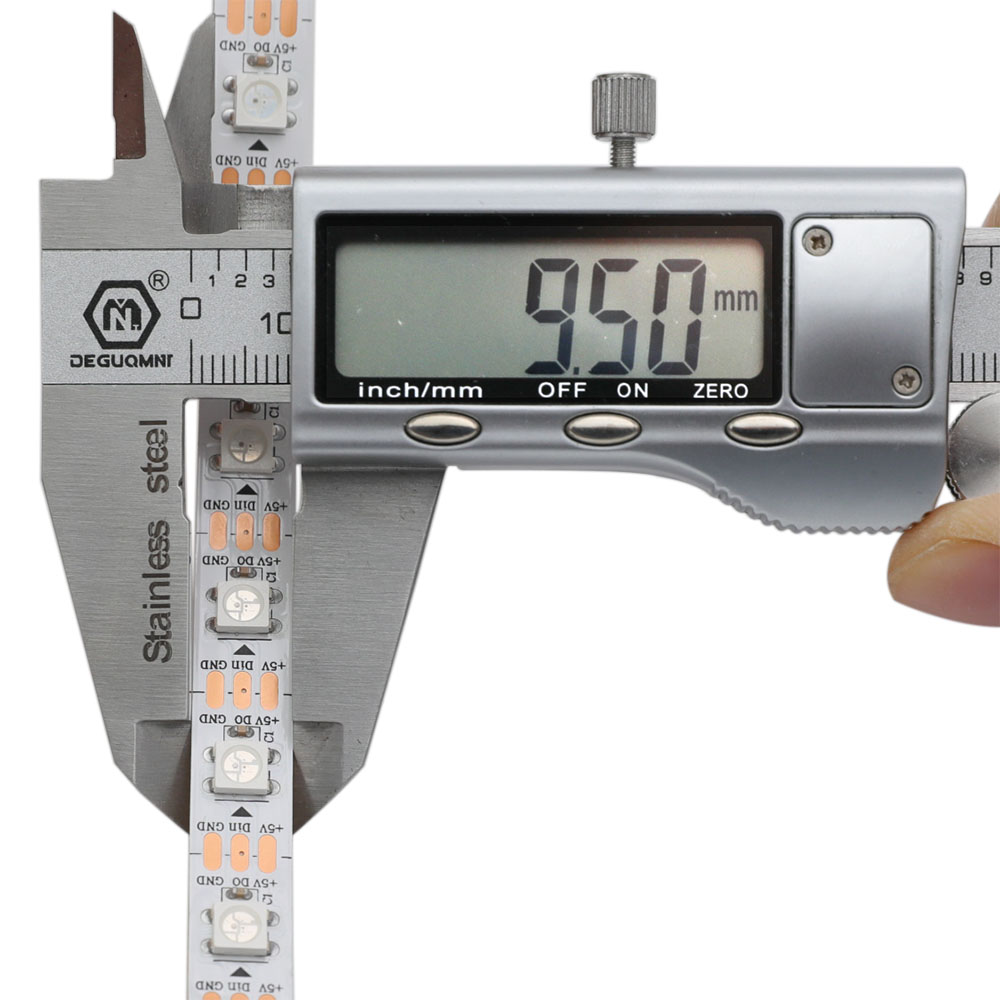

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 5VDC
Working Power: 90W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Non-Waterproof
Warantty: 3 years

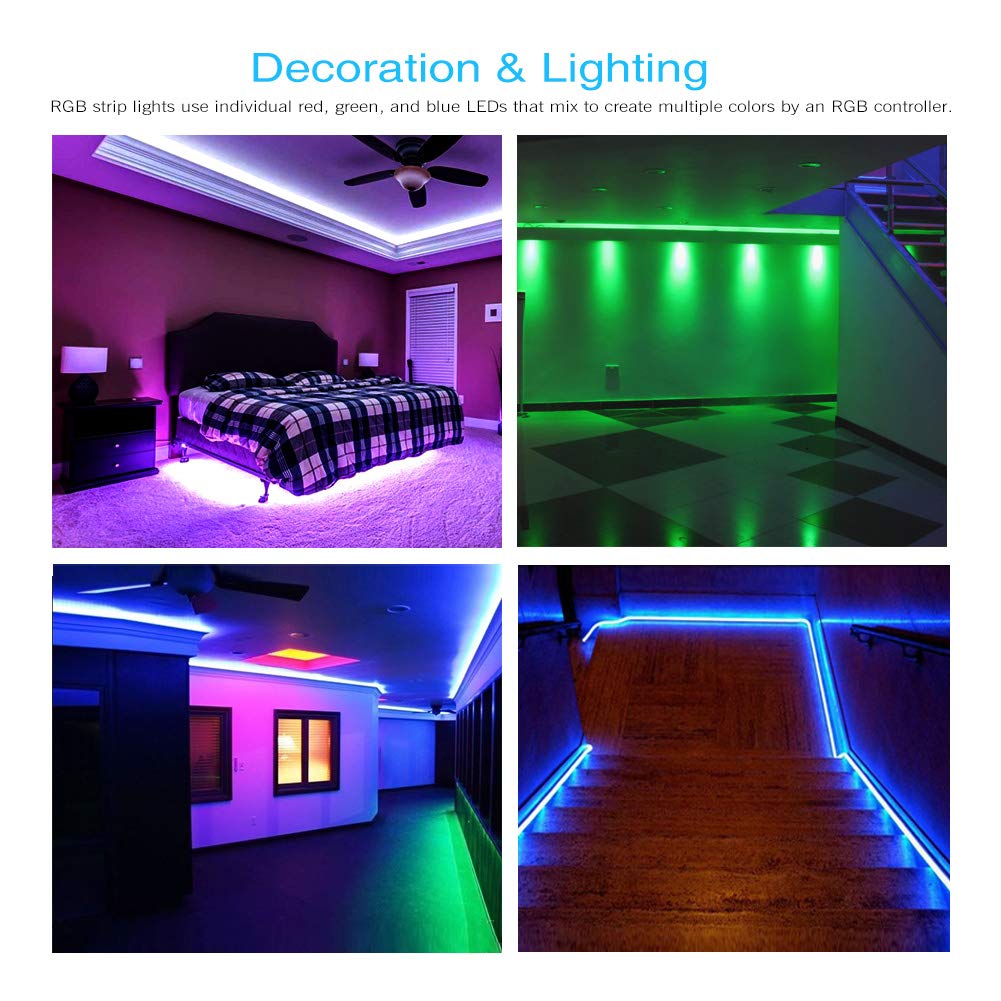

LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*

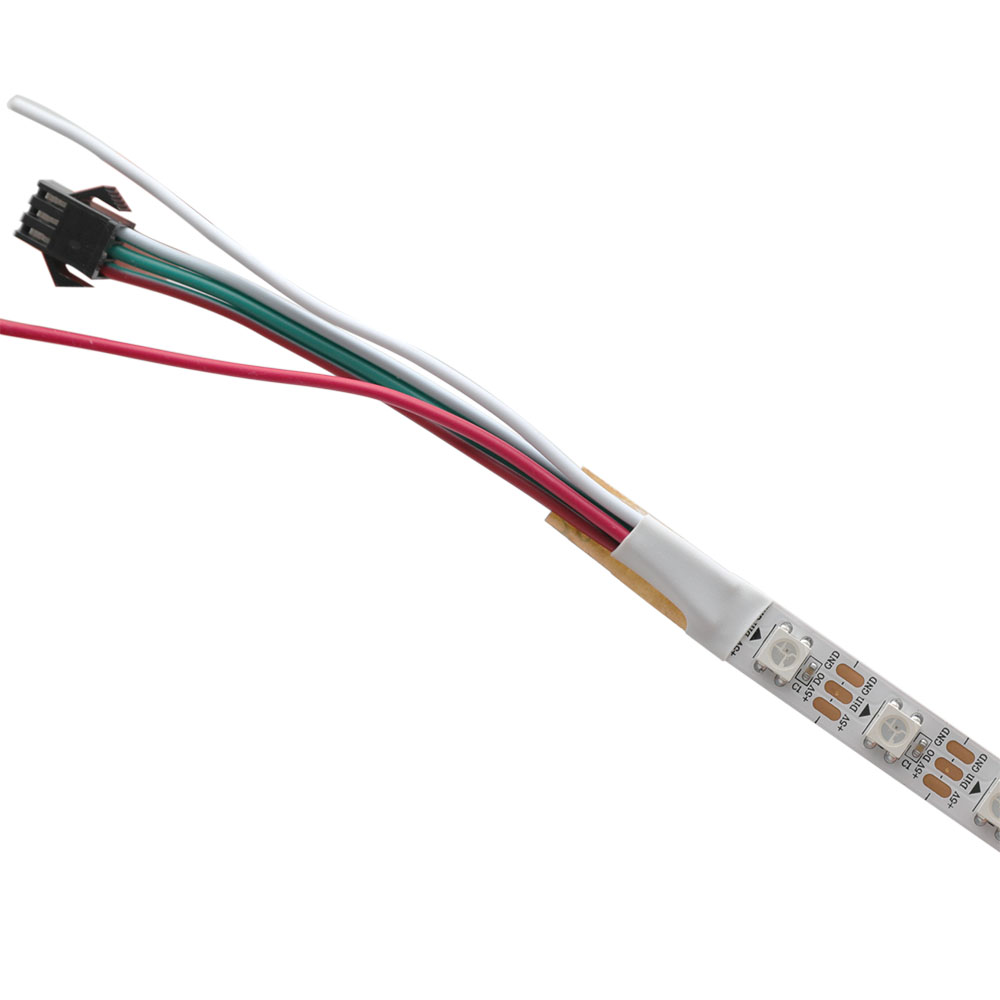

|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*

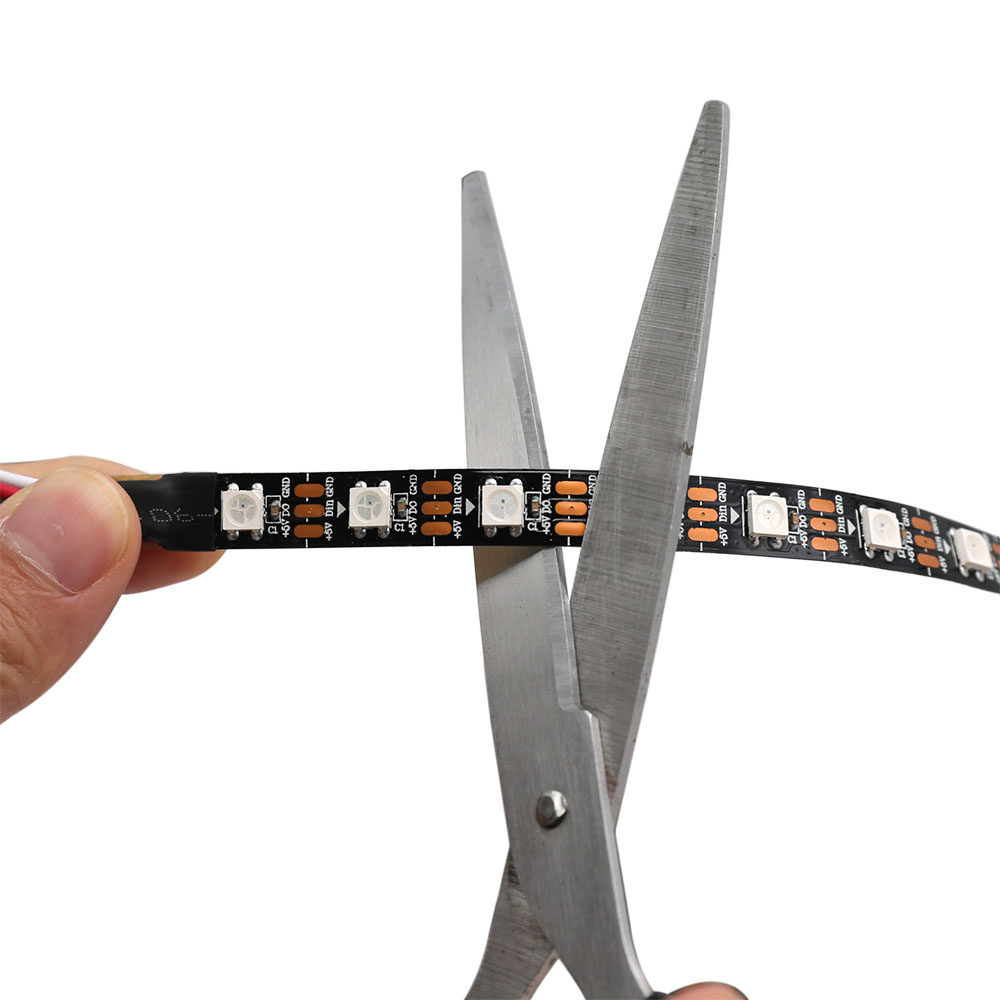

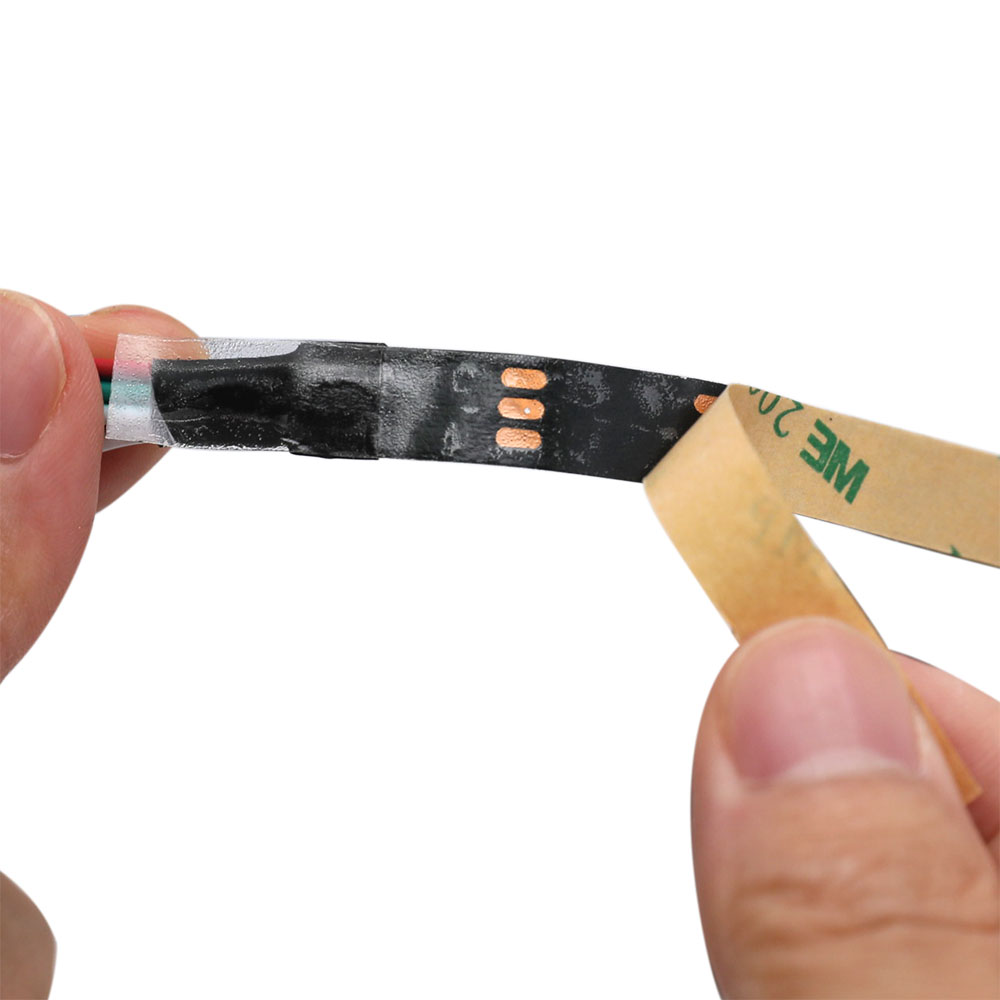

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
