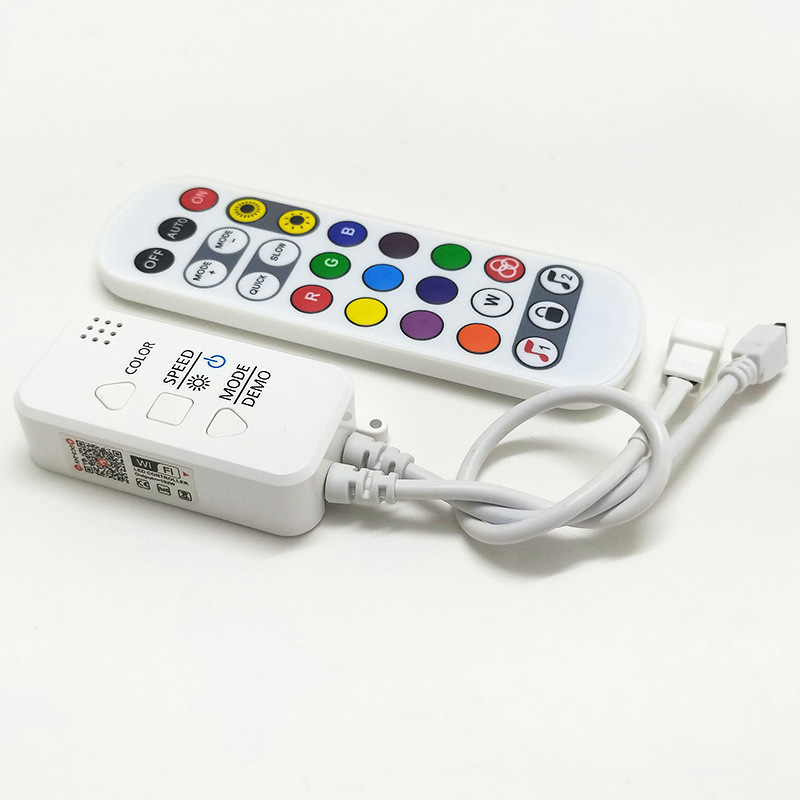

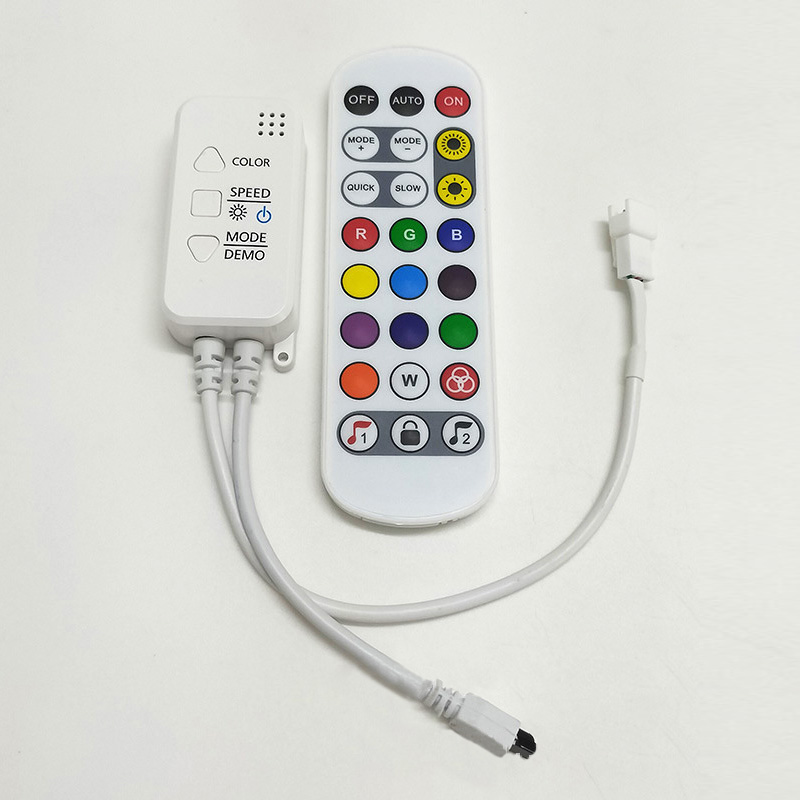

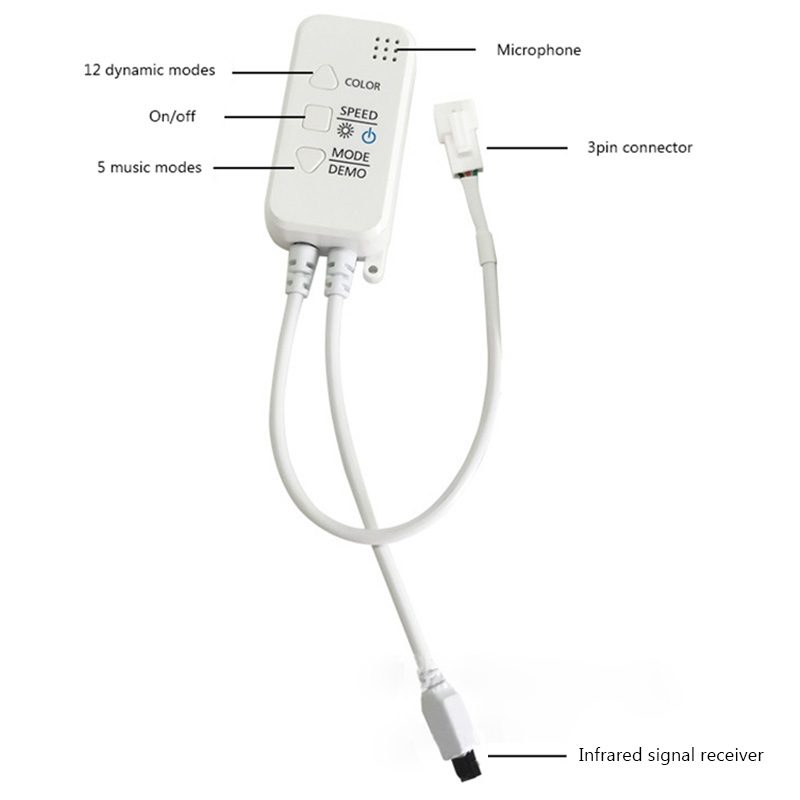

Tuya Smart WiFi Voice Control IR Remote SPI Music Controller
Tuya WiFi addressable dream color controller is suitable for WS2811, UCS1903, TM1804, 1803, 1829, 6803 and other IC types of addressable LED strips. It can be widely used in light box advertising, stage scenery, home furnishing decoration, etc. Convenient wiring, simple to use, and with memory storage function. It can be used for mode selection, brightness adjustment, speed adjustment and other dynamic lighting effects through infrared remote control. The static color and dynamic mode of the led light strip can be changed under the control of the smart phone APP, and the brightness of the light strip can be adjusted. This addressable dream color controller can be intelligently linked with multiple devices, and can be controlled by Amazon Alexa and Google Home. It also has external voice control and APP voice control functions, and the LED lighting can change with the rhythm of the music.
Working Voltage: DC12V
Working Temperature: -20℃~60℃
Control Type: WiFi App / IR remote / Voice Control(Amazon Alexa and Google Assistant)
Support IC: WS2811, WS2812, UCS1903, TM1804, 1803, 1829, 6803, etc.
Product Size: 60*32*16mm
Control Pixel: 200
1. Scan the product QR code to download the APP and register an account.
2. Connect the music controller and the led light strip, and turn on the power.
3. Open the Tuya Smart APP, click to add a device, select Lighting → Light strip → Confirm that the indicator light is flashing quickly, enter the WIFI password → Click Next → The connection is added successfully → Click Finish to complete the product network configuration.
(Reset the device: switch the power supply 3 times, on-off-on-off-on, enter the flashing state, please complete the network operation within three minutes.)
4. Use APP to control the color and light mode of the light strip, adjust the brightness, switch the machine, set the scene, and time, etc.
1) Enter the scene page, the APP presets 12 kinds of dynamic scenes (falling, rainbow, snake, chasing, flying, colorful flags, collision, rebound, sparkle, jump, breathing, flashing). Each dynamic scene can be edited and changed in color, and it is not possible to rename or add new scenes.
2) Enter the music mode (divided into local mode and APP mode), the local mode is external voice control, including five music modes: passion, cheerful, soft, brisk, and flowing. The APP mode includes three types: music rhythm, game, and romance. The LED lighting can change with the rhythm of the music.
3) Enter the setting interface, you can set the delayed shutdown and timing to turn off the light, turn on the light, turn on the light and dimming, turn on the light and set the scene.
4) This led controller can be controlled by smart phone APP and intelligent voice, and can also be controlled by controller buttons and remote control. It is simple and clear, has power-off memory, is convenient and practical, and avoids repeated settings.
1. Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, Christmas, holiday, Retail LED lighting, etc.
2. Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs, etc.
