WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale

Model: WS2812B-4020S-RGB CHIP
WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale
  • WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale
  • WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale
  • WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale
  • WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale
  • WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale

Select Specifications:

Select Quantity:

$54.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
2-4
$54.98
5-9
$53.88
10-14
$52.23
15+
$50.03
* Discounts may vary based on options above
Qty: -+Min:  2
*Mixed OFF

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    How does WS2812B LED works?

    WS2812 is a collection of control and luminous LED light source, the appearance of the LED chip is SMD4020, and each element is a pixel. Serial single-wire cascade interface, data protocol using single-wire zero code communication mode, after the pixel is reset at power on, the DIN side accepts the data transmitted from the SPI controller, and the bit in the transmission is the same as that of the LED after the pixel is reset at power-on, the DIN terminal accepts the data transmitted from the controller, the bit data is extracted from the first pixel and stored in the data latch, the remaining data is shaped and amplified by the internal shaping processing circuit and then forwarded to the next cascade pixel through the DO port, every time a pixel is transmitted, the bit signal is weakened, and the number of cascaded pixels is only limited by the signal transmission speed.



    Product Feature

    Top SMD integrates high-quality externally controlled single-wire serial cascaded constant current IC;

    The control circuit and chip are integrated into the SMD4020 components to form a complete external control pixel, with uniform color temperature effect and high consistency.

    Built-in data shaping circuit, any pixel point receives the signal after waveform shaping and then output, to ensure that the road waveform distortion will not accumulate.

    Built-in power-on reset and power-down reset, the light does not light up after power-on;

    Grayscale adjustment circuit (256 levels of grayscale can be adjusted),

    Red light drive special processing, the color matching is more balanced,

    Single wire data transmission, unlimited cascading.

    Reshaping and forwarding enhancement technology, the transmission distance between two points exceeds 10M.

    The data transmission frequency can reach 800Kbps. When the refresh rate is 30 frames per second, the cascade number is 1024 points.



    Standards and Certifications

    DC5V CE FCC RoHS ISA SGS ISO LIFETIME warranty led factory



    Product Specification

    LED Type:   SMD4020

    LED Chip:   WS2812B

    Lighting Direction:   Side Lighting

    Input Voltage:   DC5V

    Rated Current:   0.04A

    Rated Power:    0.2W/pcs

    Lighting Angle:    120degrees

    Material:    Copper

    Color Temperature:   RGB

    LED Quantity:   500pcs

    Prodect List

    1* 500pcs WS2812B SMD4020 LED chips

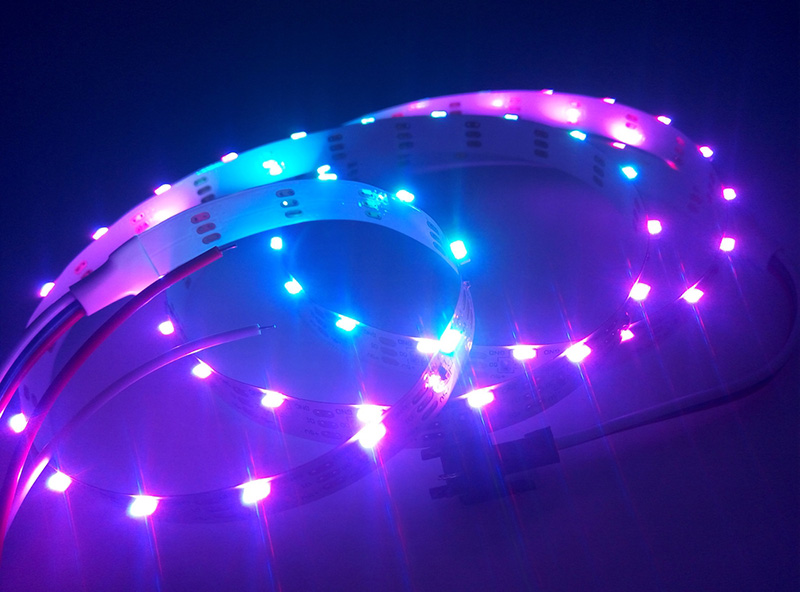

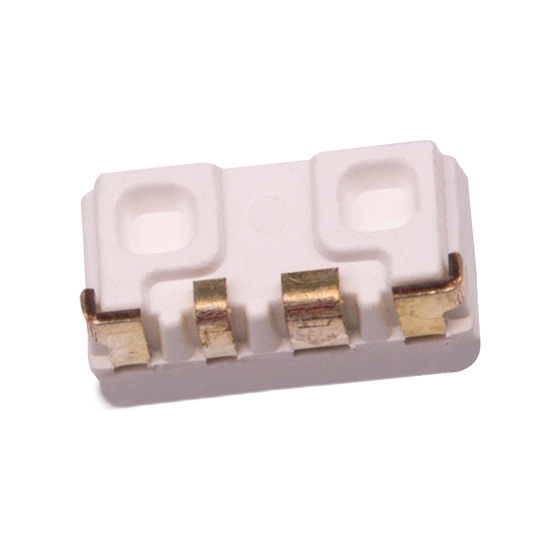

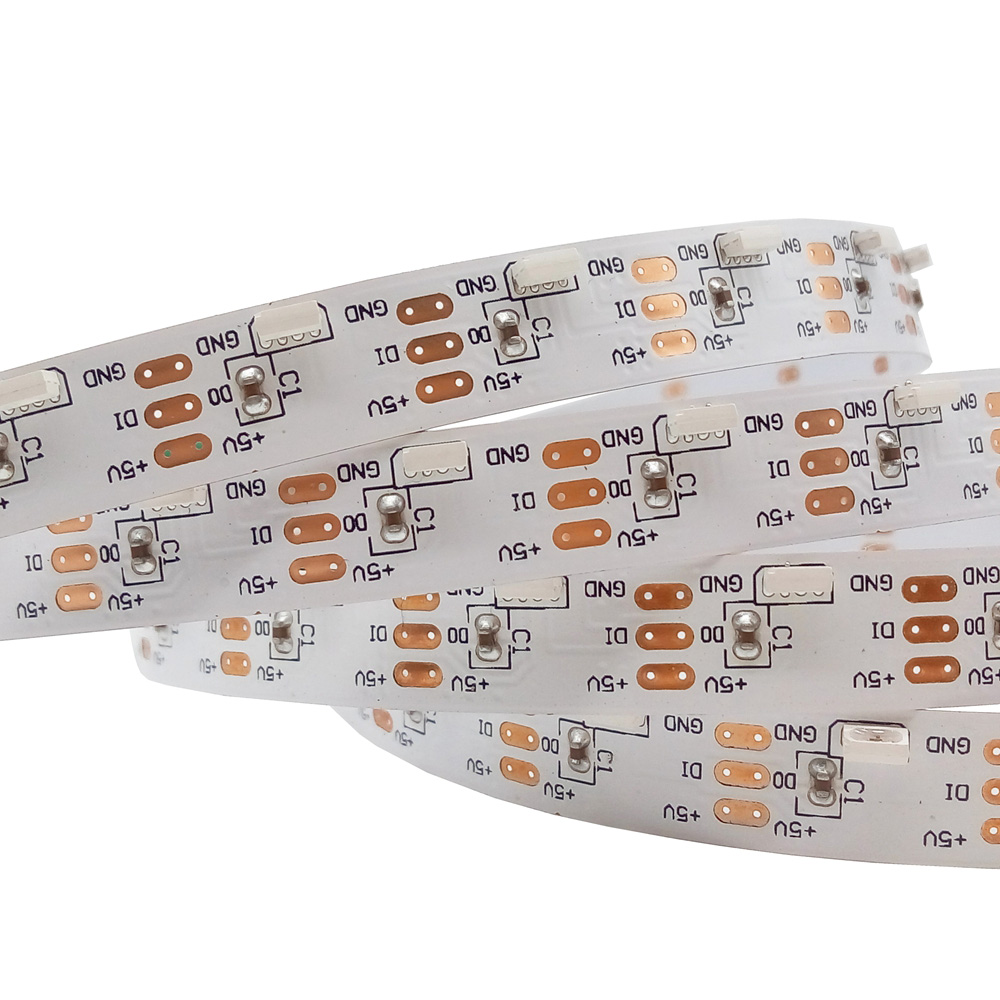

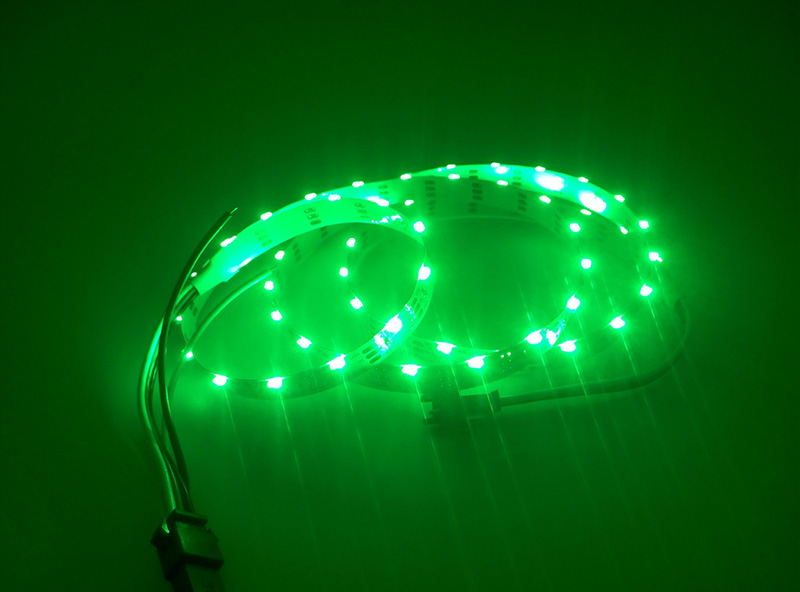

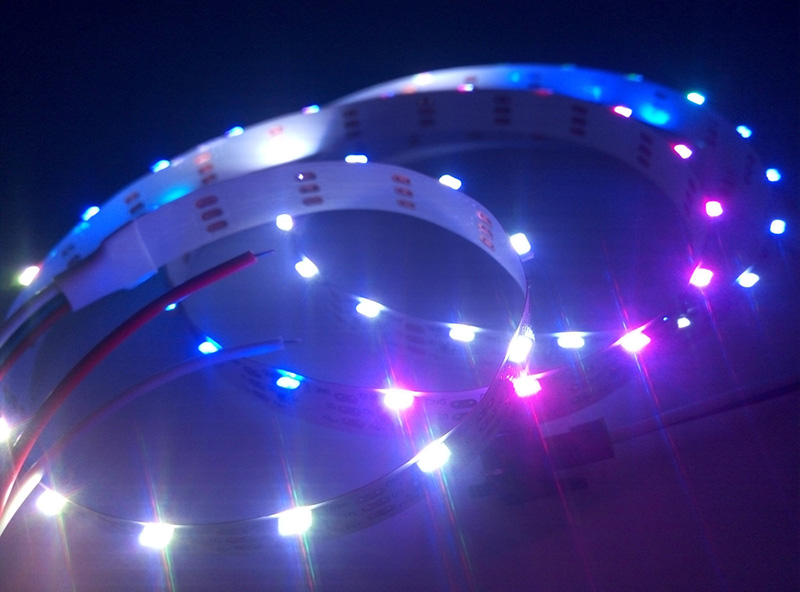

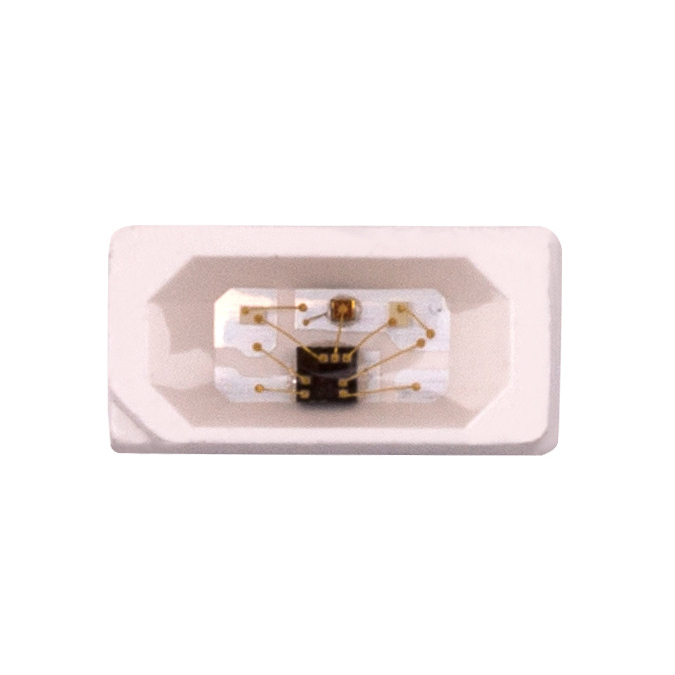

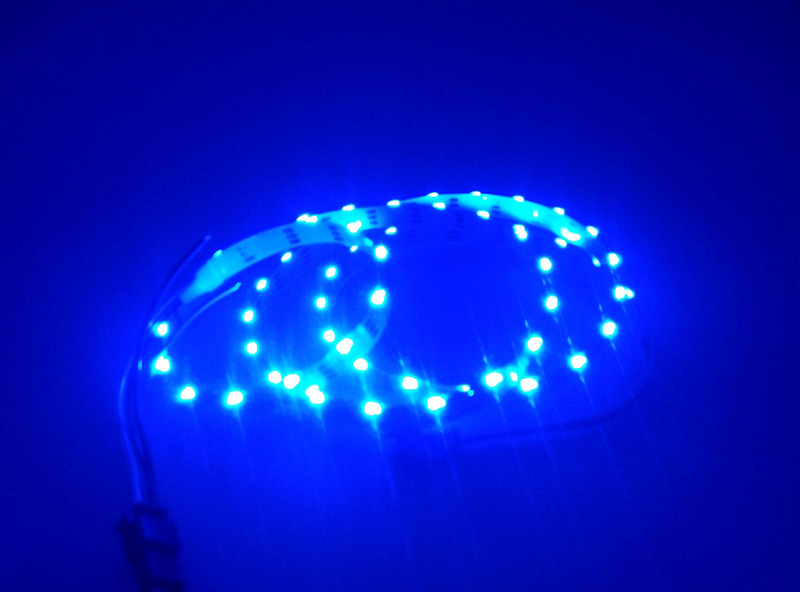

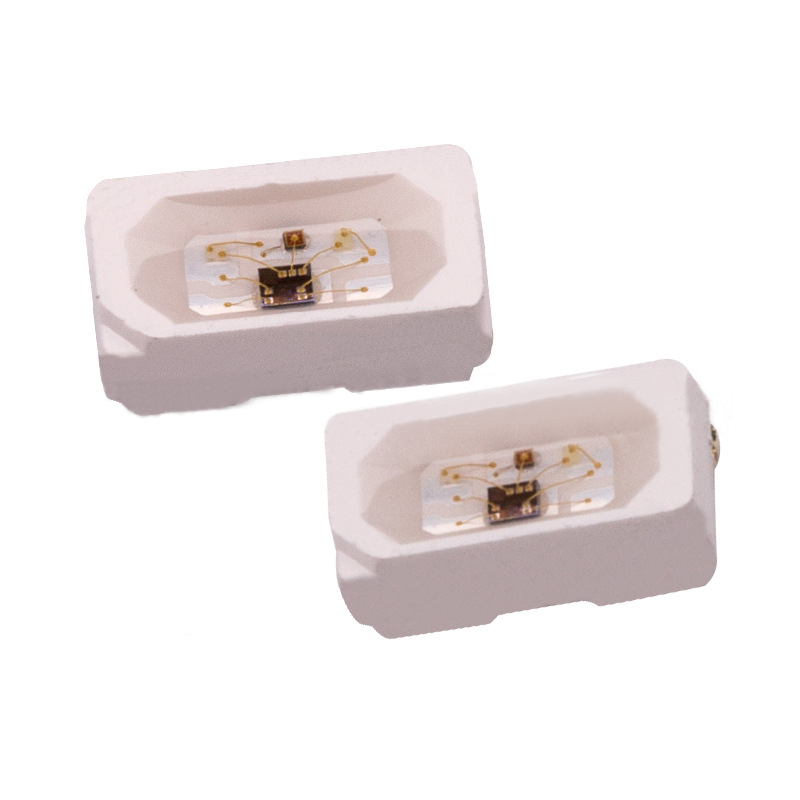

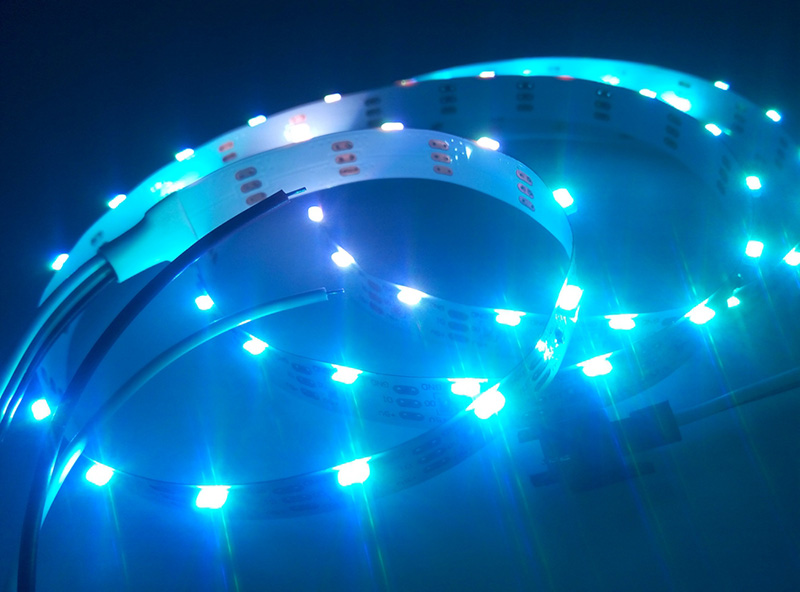

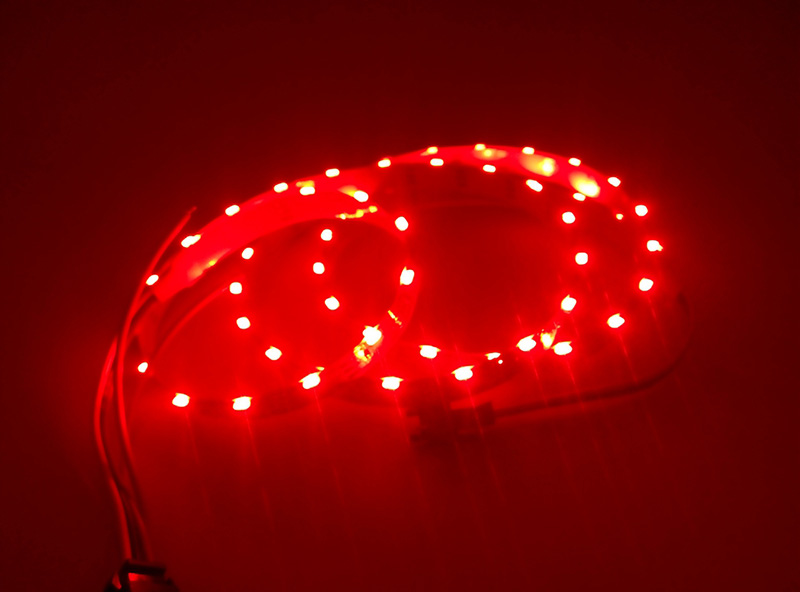

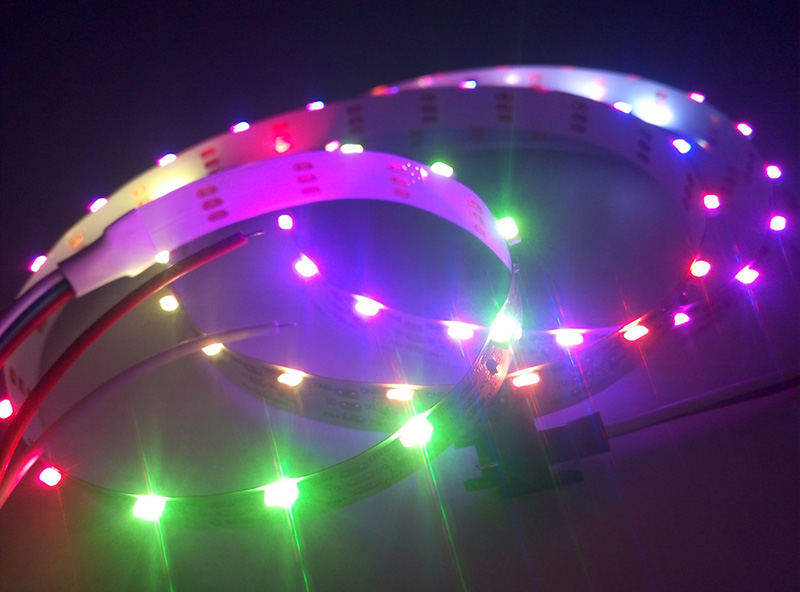

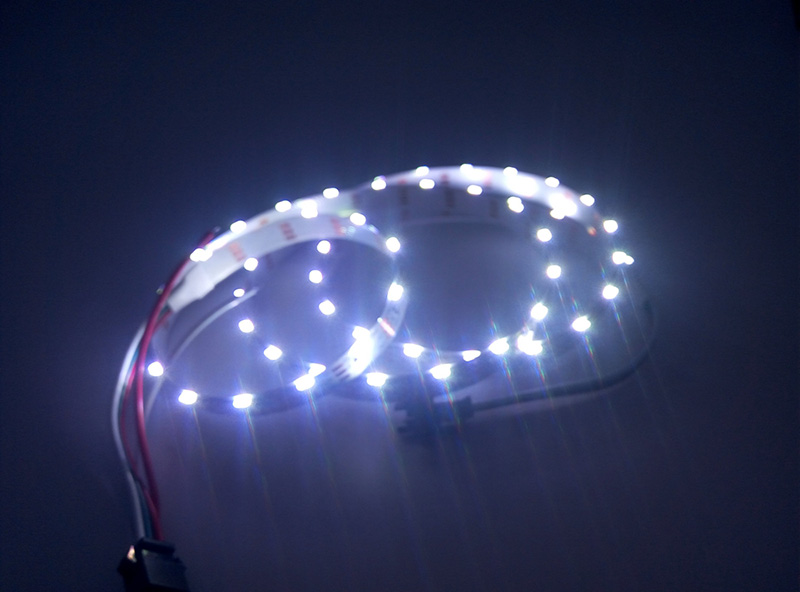

    Product Display



    WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    WS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By SaleWS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By SaleWS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By SaleWS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By SaleWS2812B RGB 4020SMD Side Lighting Individually Digital Addressable LED Chip, DIY LED Chip, 500PCS By Sale
