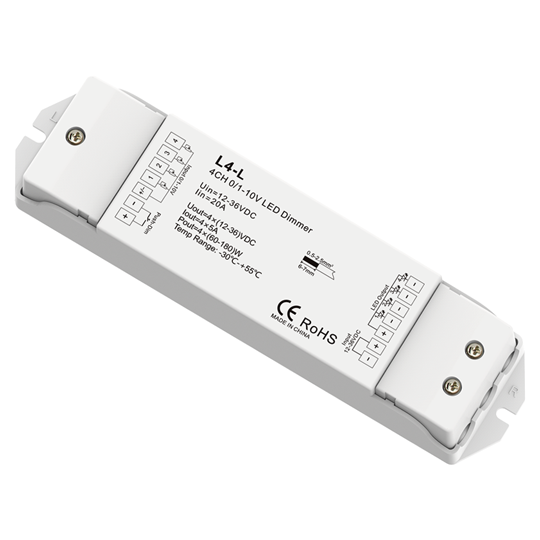

0/1-10V Constant Voltage LED Dimmer L4-L For small led strip lights
4 channel 0/1-10V LED dimming controller with push-dimming function.
4 channel 0/1-10V input, 4 channel PWM constant voltage output.
0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
Smooth dimming without any flickering.
Compatible with active or passive 0-10V, 1-10V access dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting.
0/1-10V CV LED dimming controller can connect unlimited number of CV or CC power repeaters in series or in parallel to expand output power, achieve synchronous control effect
Standards and Certifications
