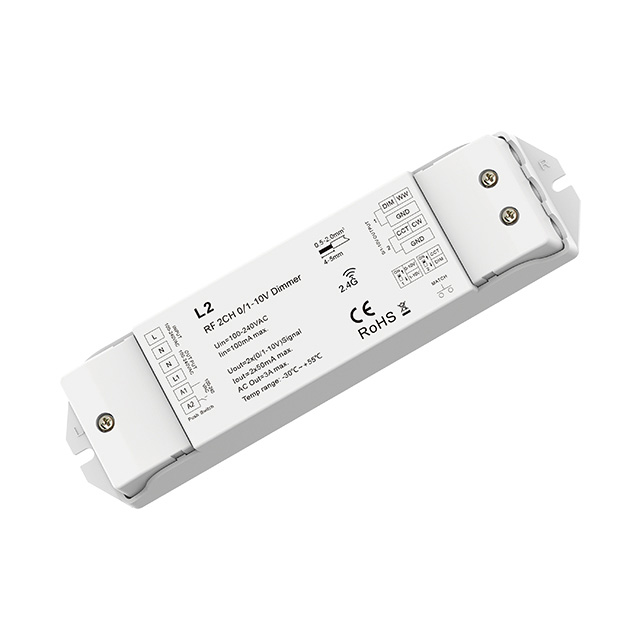

L2 RF to 2 Channel 0/1-10V Push Dimmable AC LED Dimmer
L2 RF to 2 Channel... $20.98
CCT White Light... $29.98 $24.9817% off
1 Zone RF 2.4G LED Color... $11.98
Tunable White SMD2216... $32.98
AC110V/220V DC24V 300W... $69.98
Color Temperature Pure... $24.98
2.4G Color Temperature... $13.98
L2 RF to 2 Channel...
CCT White Light...
1 Zone RF 2.4G LED Color...
Tunable White SMD2216...
AC110V/220V DC24V 300W...
Color Temperature Pure...
2.4G Color Temperature...

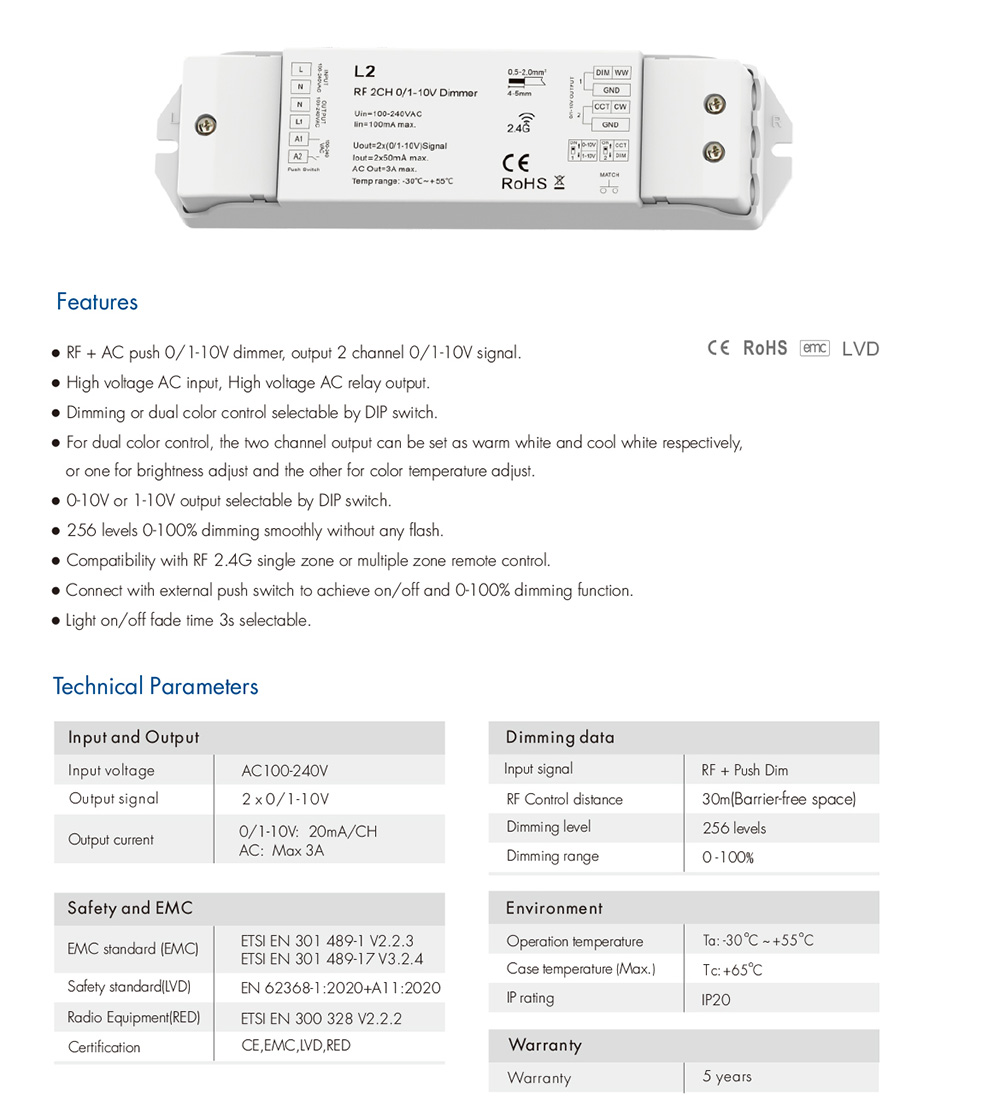

● RF + AC push 0/1-10V dimmer, output 2 channel 0/1-10V signal. LVD
● High voltage AC input, High voltage AC relay output.
● Dimming or dual color control selectable by DIP switch.
● For dual color control, the two channel output can be set as warm white and cool white respectively, or one for brightness adjust and the other for color temperature adjust.

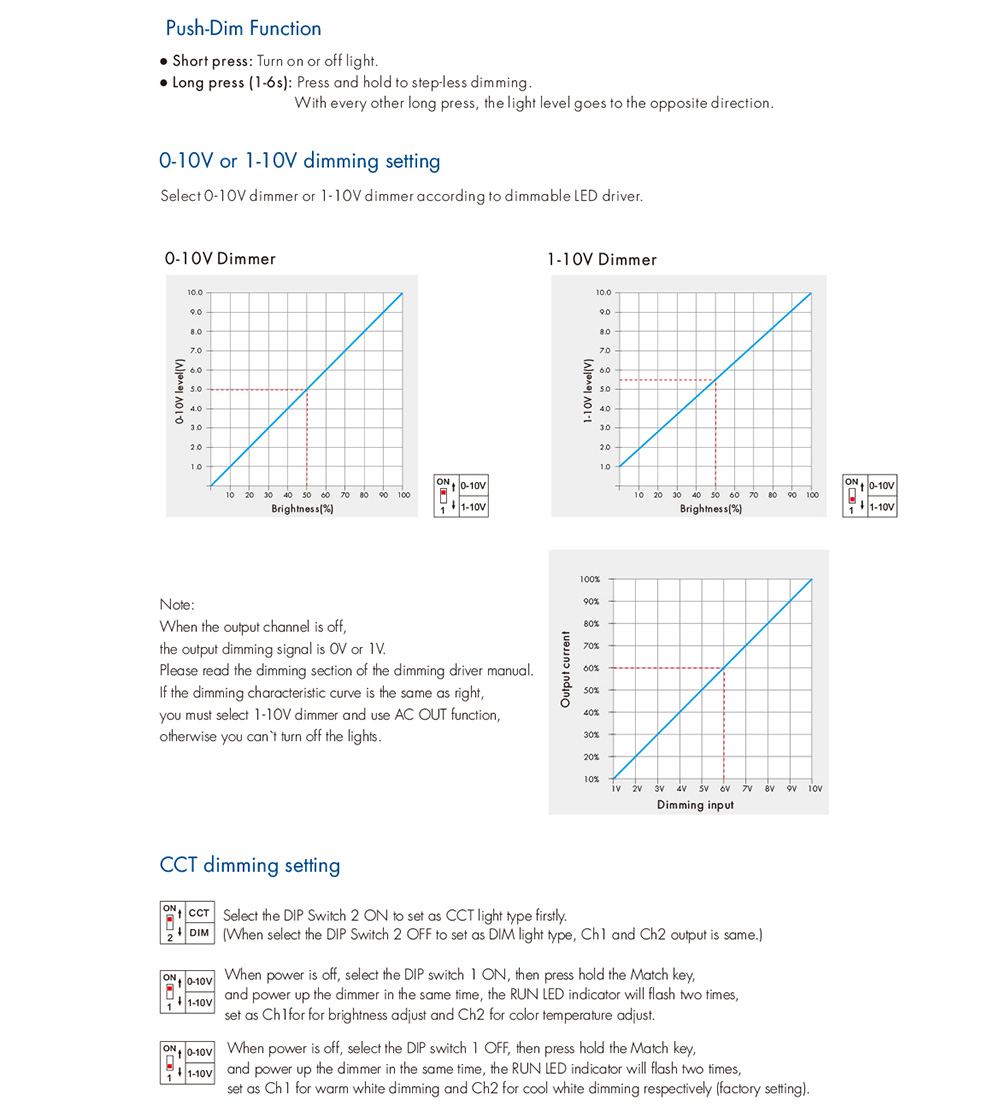

● 0-10V or 1-10V output selectable by DIP switch.
● 256 levels 0-100% dimming smoothly without any flash.
● Compatibility with RF 2.4G single zone or multiple zone remote control.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.
Input and Output
Input voltage: AC100-240V
Output signal: 2 x 0/1-10V
Output current: 0/1-10V: 20mA/CH
AC: Max 3A
Input signal: RF + Push Dim
RF Control distance: 30m(Barrier-free space)
Dimming level: 256 levels
Dimming range: 0 -100%
Operation Temperature: -30℃~+55℃
Case Temperature(MAX.): +85℃
Warranty: 5 years
