RF to 4 Channel 0-10V Dimmer L4-M For mini led strip lights
RF to 4 channel 0-10V converter, match with RF remote.
Output 4 channel 0-10V signal or 5V/10V PWM signal (need custom).

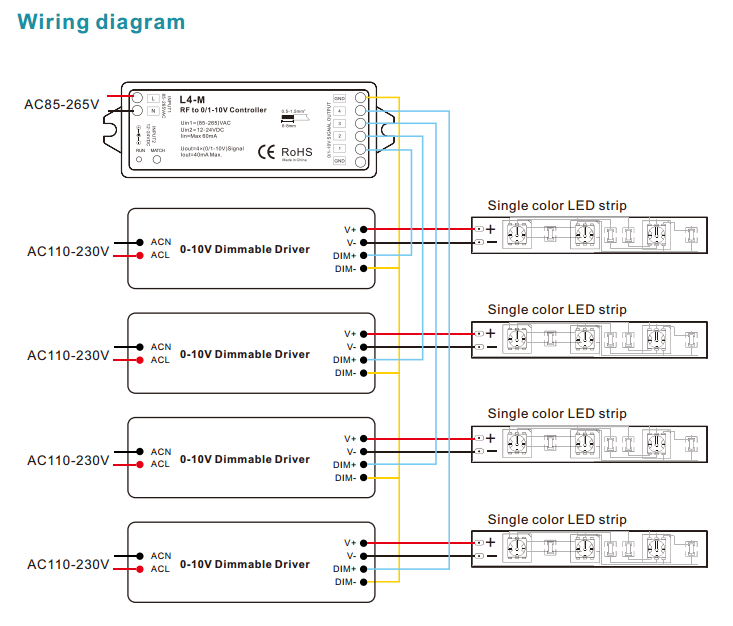

Output connect with 0/1-10V dimmable driver.
Reliable and stable switch and dimming control without flickering.
Compatibility with a variety of single color, dual color or RGB/RGBW remote.
Adopt 2.4GHz wireless technology, remote distance up to 30m, one receiver can accept up to 10 remote control.
Can be WiFi controlled by APP installed on IOS/Android mobile devices while working with WiFi-Relay controller.
Standards and Certifications
