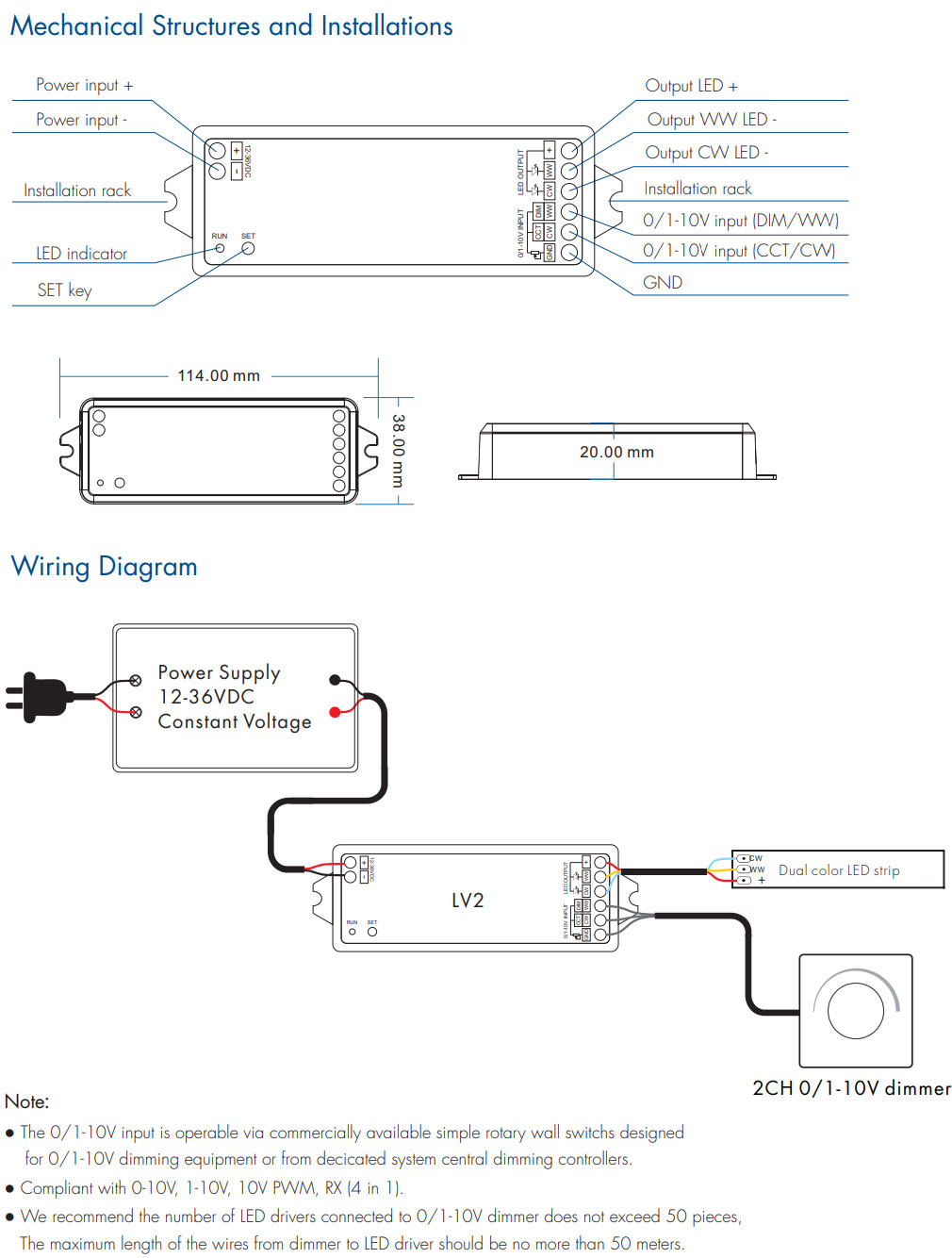

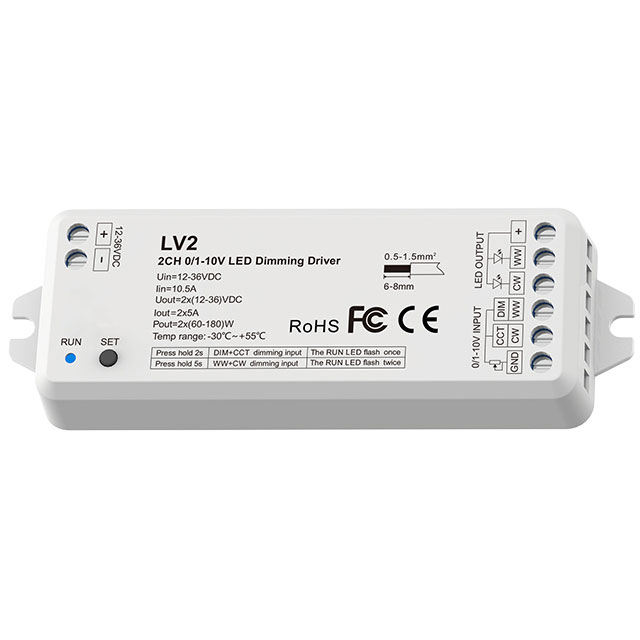

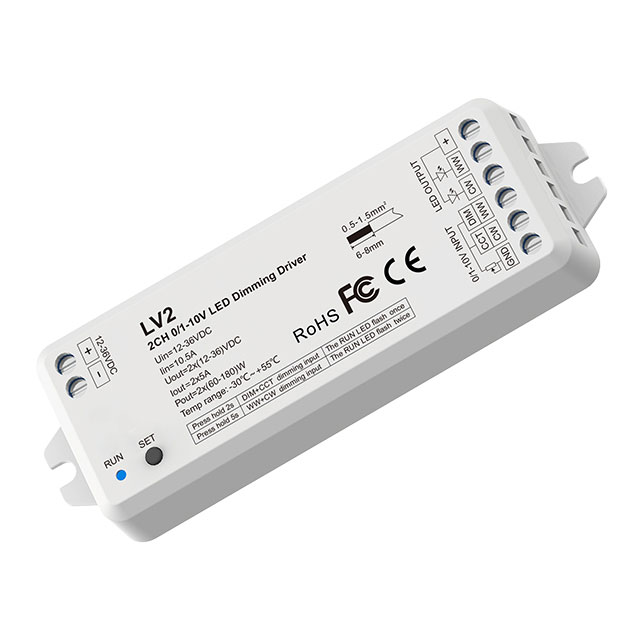

12-36VDC 10A*2CH 0/1-10V Constant Voltage Dimming Driver LV2 For CCT LED Strip Lights
2 Channel 0/1-10V LED Dimming Driver, to control CCT tunable white led strip lights by a 2CH 0/1-10V dimmer. 0/1-10V CCT dimming/2 channel/PWM Constant voltage output/Logarithmic dimming.
● 2 channel 0/1-10V LED dimming driver, 2 channel PWM constant voltage output.
● For dual color control, the two 0/1-10V input can be set as warm white and cool white respectively, or one for brightness adjust and the other for color temperature adjust.
● 0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
● Compatible with active or passive 0-10V, 1-10V dimmer, can solve the uorescent lamp dimming system compatible with LED lighting.
Standards and Certifications
|Output Power:||2 x (60-180)W|
|Output Type:||Constant voltage|
|Dimming Range:||0 -100%|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
