Product Information

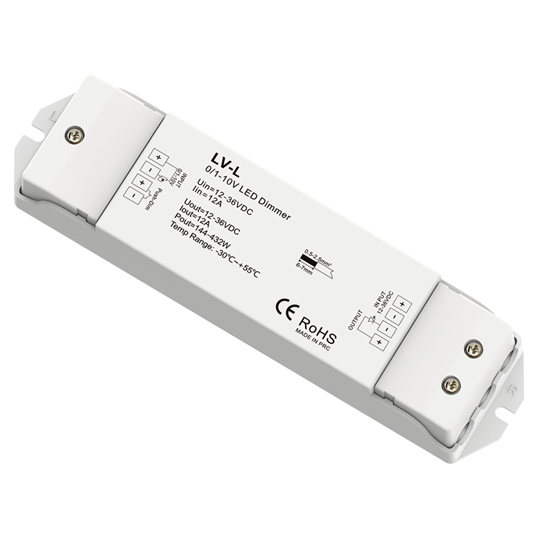

The SkyDance LV-L is a single-channel constant voltage led dimmer engineered for commercial and architectural LED strip installations. Operating on DC12-48V with a robust 12A output capacity, the LV-L interfaces seamlessly with active and passive 0-10V, 1-10V sourcing controls, as well as momentary push switches for flexible local dimming. Unlike compact 8A models such as the standard LV, the LV-L delivers expanded output power—driving up to 144W at 12V, 288W at 24V, and 432W at 36V—making it suitable for higher-wattage runs without immediate power repetition.


Core Capabilities & Performance
Dual 0/1-10V and Push-Dim Input
Accepts standard active or passive 0-10V and 1-10V analog signals, or a standard momentary push switch for dimming and switching.
Heavy-Duty 12A Output
Delivers up to 12A continuous output across a DC12-48V input range, supporting loads from 144W at 12V up to 576W at 48V.
Logarithmic Eye-Matched Dimming
Features 256 grey-scale levels with logarithmic dimming response calibrated to human visual perception from 0% to 100%.
Zero-Flicker PWM Technology
Prevents led dimmer flickering across the entire dimming spectrum, maintaining stable light output during slow fades.
Unlimited Scalability via Repeaters
Connects in series or parallel with constant voltage power repeaters to expand load capacity across large architectural zones.
Synchronized Multi-Unit Push Control
Supports continuous adjustment and multi-controller synchronization when sharing a single momentary push switch via a 10-second hold.
Engineering & Control Architecture
- Compatible with major commercial wall stations, building automation systems, and architectural 0-10V controls including systems wired to a Lutron LED dimmer or Lutron Diva LED+ dimmer switch.
- Solves fluorescent-to-LED retrofit challenges by utilizing existing 0-10V low-voltage control lines directly without replacing building wiring.
- Built-in momentary push-dim terminal allows single-switch operation: short tap for on/off, 1-5 second hold for dimming up or down, and 10 second hold for zone synchronization.

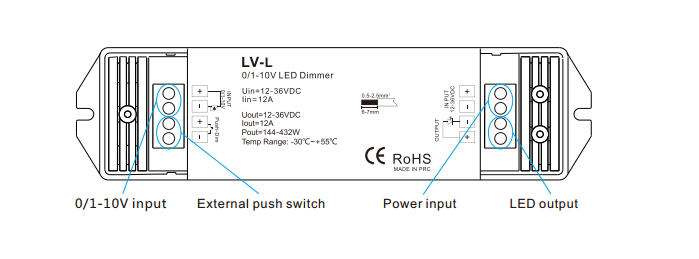

- Screw-terminal terminal block layout provides dedicated ports for DC power input, single-channel LED strip load, 0/1-10V signal lines, and push switch wiring.
- Wide ambient operating temperature of -30℃ to +55℃ accommodates ceiling plenums, electrical closets, and recessed cabinetry.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LV-L |
| Product Type | 0/1-10V & Push-Dim CV LED Dimming Driver |
| Input Voltage | DC12-48V |
| Output Voltage | DC12-48V (equal to input voltage) |
| Output Type | PWM Constant Voltage |
| Output Current | 1 Channel, 12A max |
| Output Power | 144W (12V), 288W (24V), 432W (36V), 576W (48V) |
| Control Signal | 0-10V, 1-10V (active/passive), Push-Dim |
| Dimming Range | 0-100% |
| Dimming Curve | Logarithmic characteristic |
| Grey Scale Levels | 256 levels |

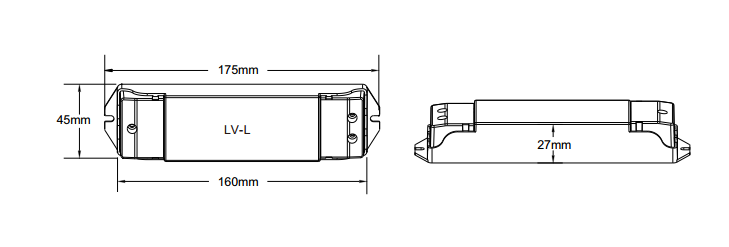

| Housing Dimensions | 175 mm × 45 mm × 27 mm |
| Mounting Hole Spacing | 160 mm center-to-center |
| Operating Temperature | -30℃ to +55℃ |
| IP Rating | IP20 (non-waterproof indoor) |
| Certification Standards | CE, RoHS, EMC, LVD |

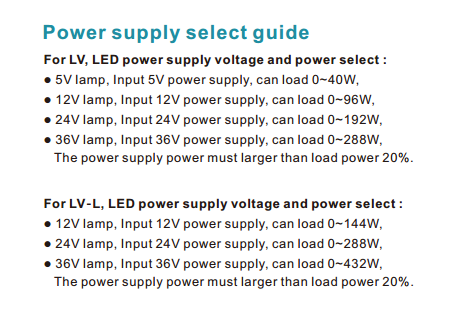

| Power Supply Margin Requirement | Power supply wattage must exceed load by ≥20% |
Application Scenarios

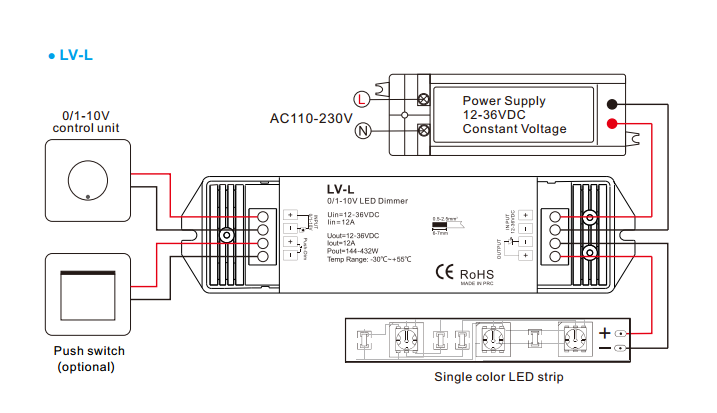

How to Control & Use This Controller
- 1. Verify that your constant voltage DC power supply output matches the LED strip voltage (12V, 24V, 36V, or 48V) and provides at least 20% wattage headroom above your total LED strip load.
- 2. Disconnect line power before wiring. Connect the DC power supply positive to INPUT + and negative to INPUT - on the terminal block.
- 3. Connect the single color LED strip positive lead to OUTPUT + and the negative lead to OUTPUT -.
- 4. For 0/1-10V control: Connect the positive signal wire from your 0-10V wall dimmer or building control panel to INPUT 0/1-10V + and the negative signal wire to -.
- 5. For Push-Dim control: Wire a standard non-latching momentary push switch between the INPUT Push terminal and the positive power terminal.
- 6. Power up the system. When using push control, tap briefly (<1s) to toggle on/off; press and hold (1-5s) to ramp brightness up or down continuously.
- 7. To synchronize multiple LV-L units connected to a shared push button, press and hold the push switch for 10 seconds until all connected fixtures align.
⚠ Precautions
- Install and service only through qualified electrical personnel.
- This unit carries an IP20 rating; avoid direct exposure to water, rain, condensation, and direct sunlight.
- Maintain adequate ventilation around the housing to avoid thermal throttling during continuous full 12A load operations.
- Ensure all wiring polarities are verified with a multimeter prior to energizing line power to prevent component damage.
- If you encounter a persistent wiring fault or hardware failure, do not disassemble the casing; return the unit for technical service.
What's in the Box
- ✓1 × SkyDance LV-L 0/1-10V & Push-Dim CV LED Dimmer
- ✓1 × Quick Installation & Wiring User Guide
⇩ Downloads & Documents
Frequently Asked Questions
Q: what is the best dimmer switch for led lights
A:For low-voltage single color LED strip lights integrated into commercial 0-10V or 1-10V systems, a dedicated constant voltage driver like the LV-L paired with a certified 0-10V wall control or momentary push switch provides smooth, flicker-free dimming from 0% to 100% without phase-cut buzzing.
Q: Can I connect the LV-L to a Lutron LED dimmer?
A:Yes, the LV-L accepts standard 0-10V or 1-10V sink and source signals produced by 0-10V architectural wall controls, such as a Lutron Diva 0-10V dimmer switch, to smoothly modulate low-voltage DC LED strip loads.
Q: What is the difference between the SkyDance LV and LV-L models?
A:The LV is a compact 8A unit (97 × 33 × 18 mm) supporting 40-288W, while the LV-L is an extended 12A unit (175 × 45 × 27 mm) capable of handling 144-432W (up to 576W at 48V) with built-in push-dim terminals for momentary wall switches.
Q: How do I prevent led dimmer flickering when dimming to low levels?
A:Ensure your DC power supply output voltage matches your LED strip rating, ensure wire gauges are sufficient to minimize voltage drop, and keep total wattage within 80% of the power supply rating. The LV-L utilizes 256-level logarithmic PWM control to eliminate step artifacts and low-end flicker.
Q: Can I use both 0-10V and a push switch simultaneously on the LV-L?
A:Both terminal sets exist on the driver, but they should not receive conflicting inputs at the same moment. You can install an external momentary push switch for local wall override or connect standard 0/1-10V control lines from an automated panel.
Q: How does the push switch synchronization function work across multiple units?
A:When multiple LV-L controllers are connected to the same momentary push switch, pressing and holding the switch for 10 seconds sends a reset sync command that brings all connected drivers to matching brightness levels.
Q: How can I expand output if my LED strip setup exceeds 12A?
A:You can connect constant voltage power repeaters in series or parallel to the output of the LV-L. This allows unlimited wattage expansion while maintaining unified 0-10V dimming response across all zones.
