0/1-10V Constant Voltage LED Dimmer LV For outdoor LED light strip
Mini style 0/1-10V LED dim driver.

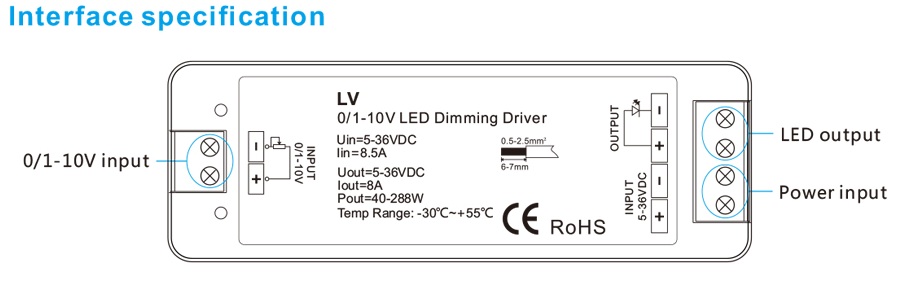

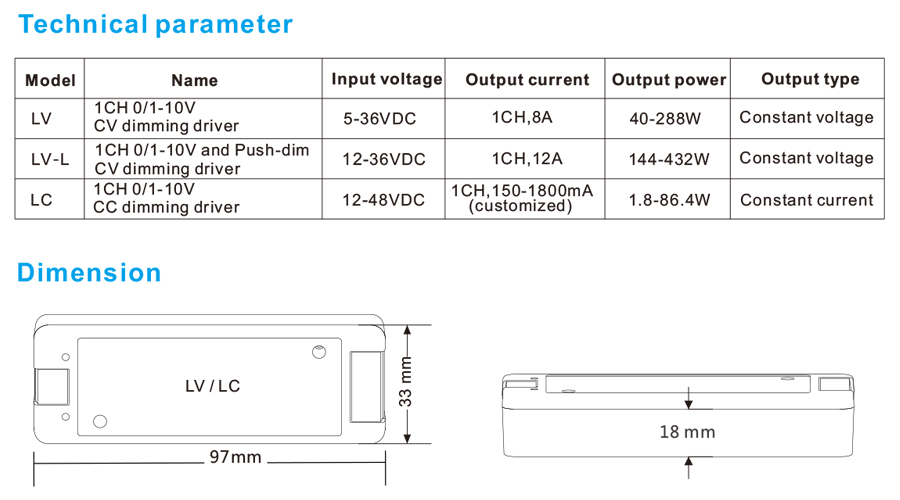

1 channel 0/1-10V input, 1 channel PWM constant voltage, 8A output.
0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
PWM achieve 4096 levels flicker-less dimming.

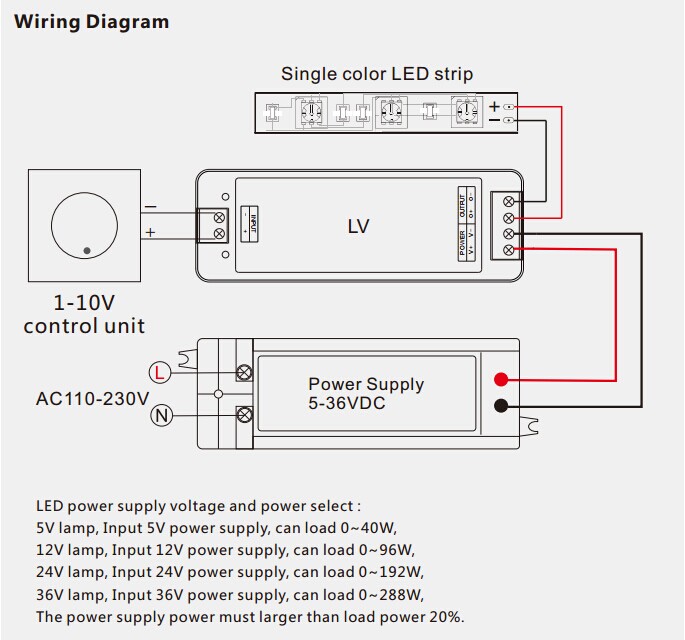

Compatible with active or passive 0-10V, 1-10V access dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
