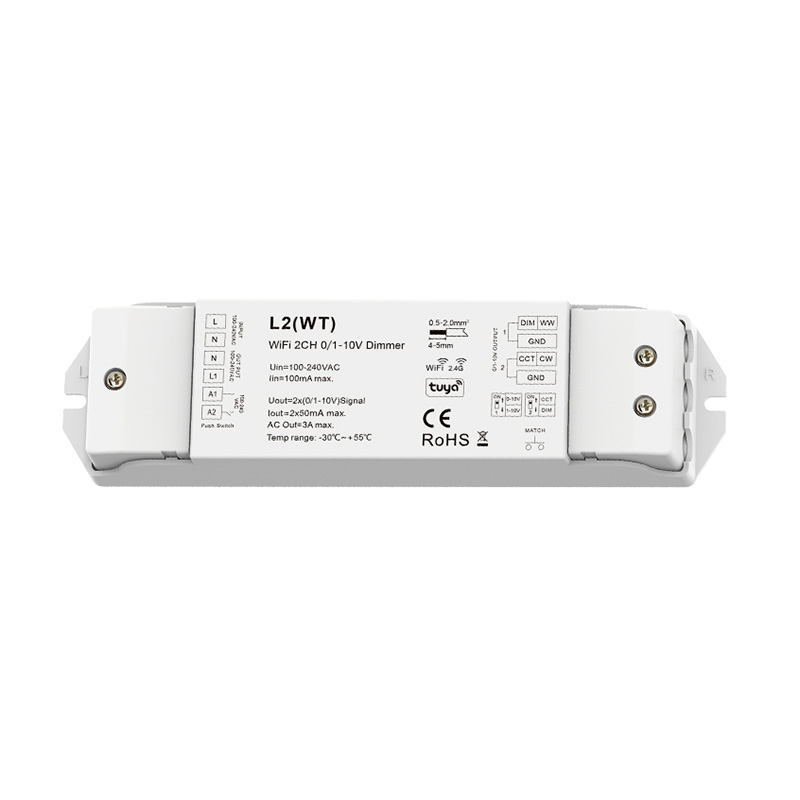

L2(WT) 100-240VAC 0/1-10V Tuya WiFi & RF Tunable White Push LED Dimmer

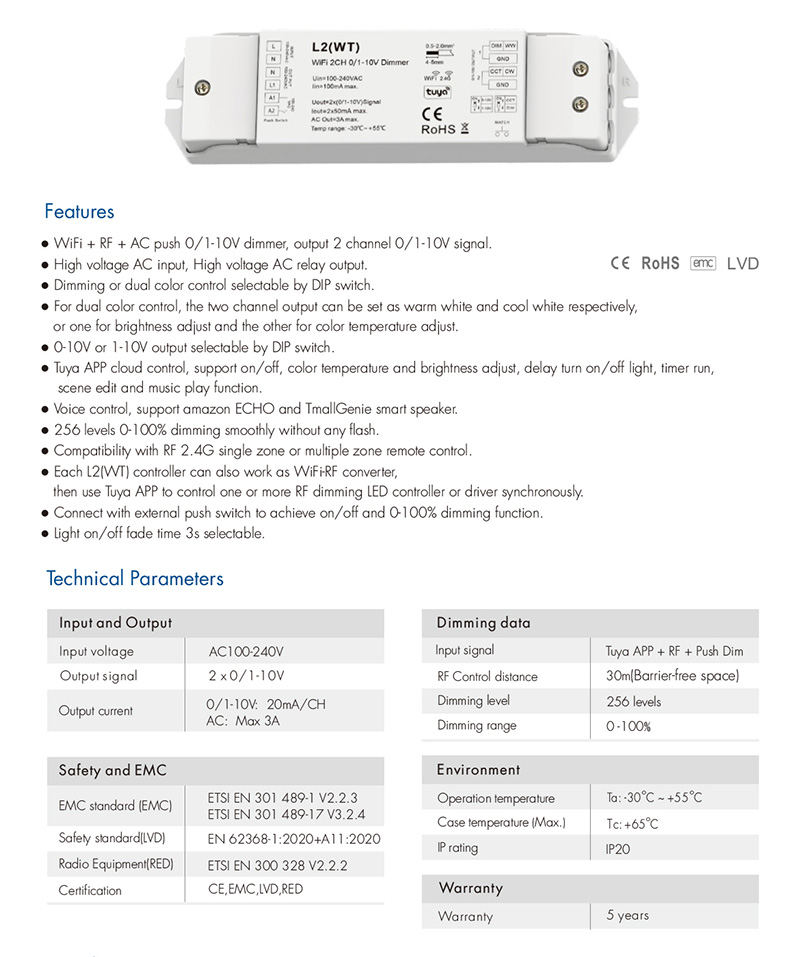

● WiFi + RF + AC push 0/1-10V dimmer, output 2 channel 0/1-10V signal.
● High voltage AC input, High voltage AC relay output.
● Dimming or dual color control selectable by DIP switch.
● For dual color control, the two channel output can be set as warm white and cool white respectively, or one for brightness adjust and the other for color temperature adjust.
● 0-10V or 1-10V output selectable by DIP switch.
● Tuya APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● 256 levels 0-100% dimming smoothly without any flash.
● Compatibility with RF 2.4G single zone or multiple zone remote control.

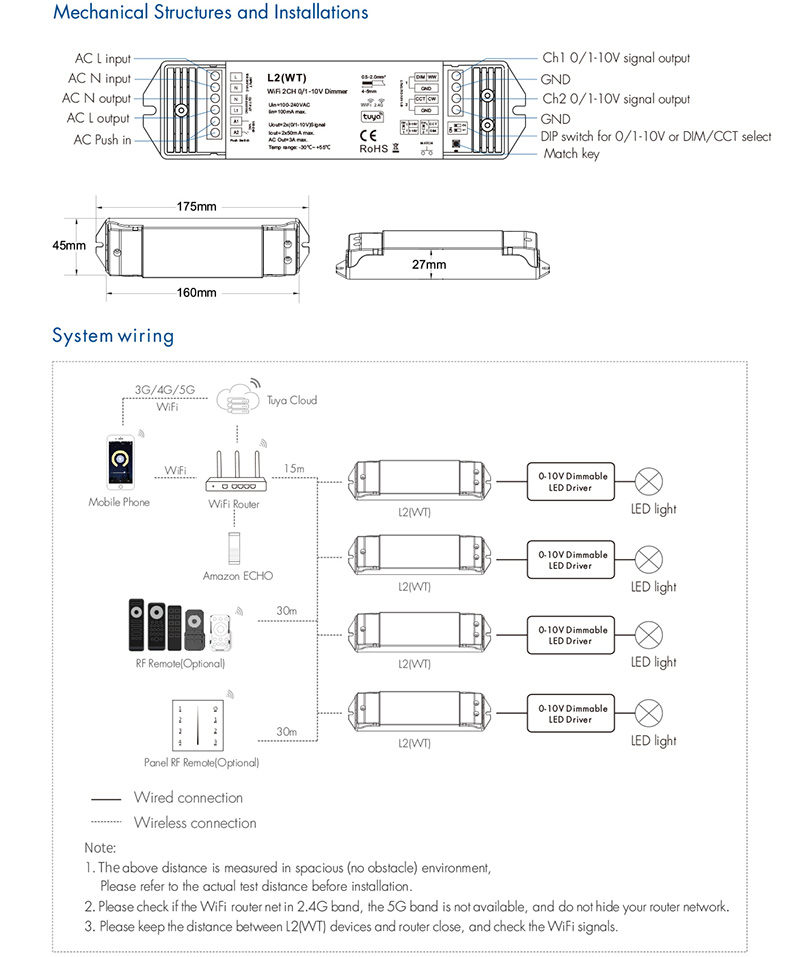

● Each L2(WT) controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF dimming LED controller or driver synchronously.

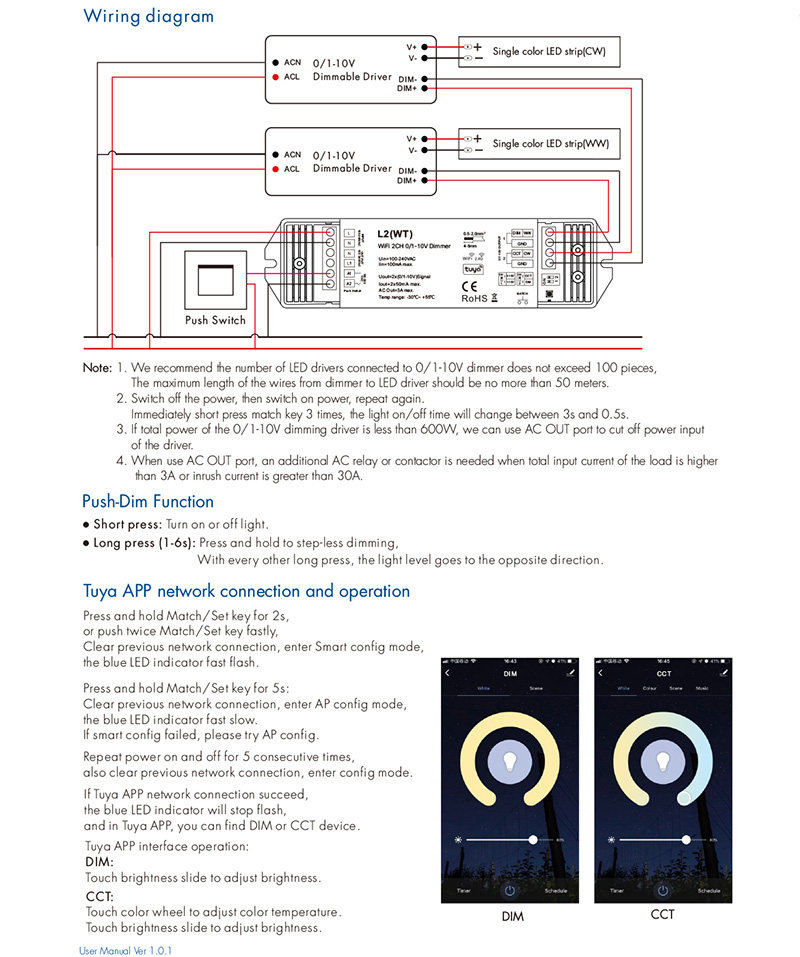

● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Light on/off fade time 3s selectable.
Input and Output
Input voltage: AC100-240V
Output signal: 2 x 0/1-10V
Output current: 0/1-10V: 20mA/CH
AC: Max 3A
Input signal: Tuya APP + RF + Push Dim
RF Control distance: 30m(Barrier-free space)
Dimming level: 256 levels
Dimming range: 0 -100%
Operation Temperature: -30℃~+55℃
Case Temperature(MAX.): +85℃
Warranty: 5 years
Standards and Certifications
