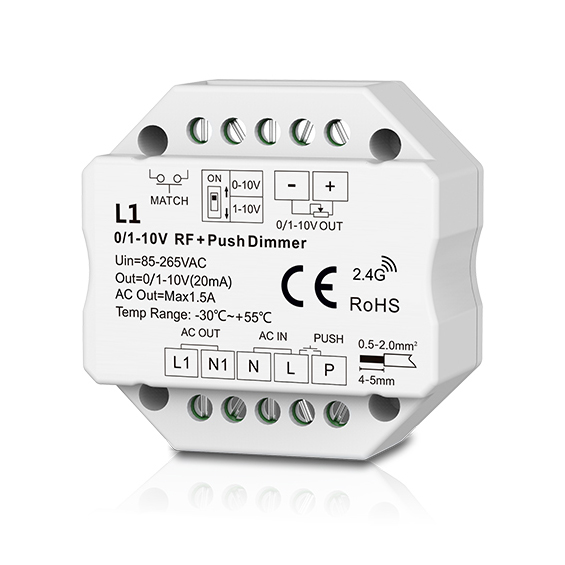

AC85-265V RF to 1 Channels 0-10V +Push Dimmer L1
RF dimming/0-10V or 1-10V/AC relay output/AC Push-Dim/Wall junction box mounting
0/1-10V RF or AC push dimmer, 1 channel output.
Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable driver.
High voltage AC input, High voltage AC relay output.
0-10V or 1-10V output selectable by DIP switch.
256 levels 0-100% dimming smoothly without any flash.
Compatibility with Skydance’s 2.4G single zone or multiple zones dimming remote control.

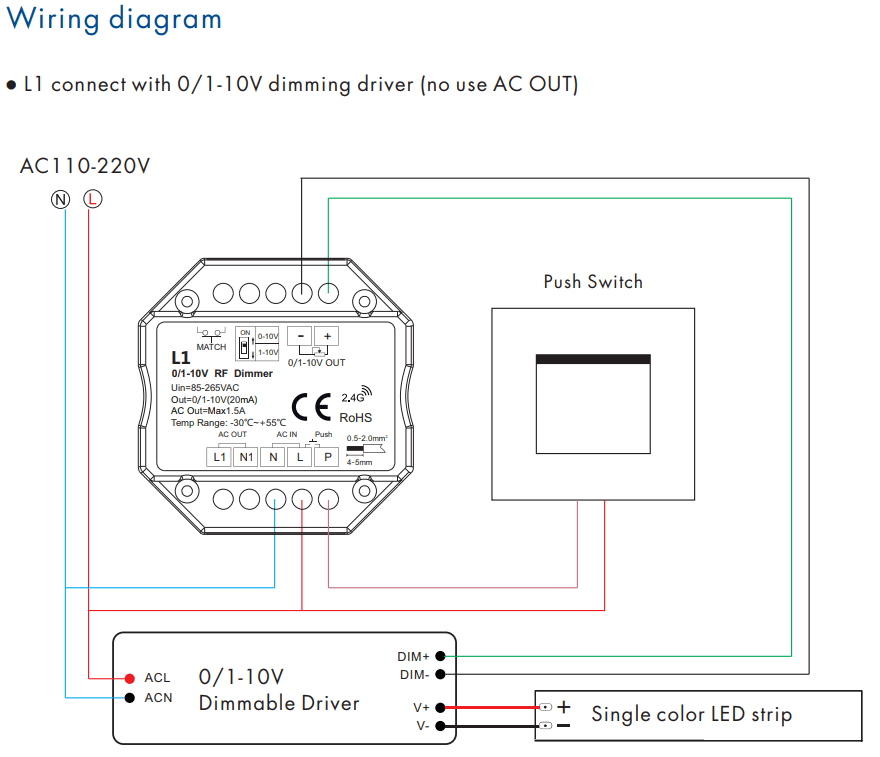

Connect with external push switch to achieve on/off and 0-100% dimming function.
Easy to be placed in a standard wall junction box behind a push switch.
Input and Output
Input voltage: AC85-265V
Output voltage: AC85-265V
Output signal: 0/1-10V (20mA)
Output current: Max 1.5A (AC)
Input signal: RF 2.4GHz + Push Dim
RF Control distance: 30m
Dimming level: 256 levels
Dimming range: 0 -100%
Standards and Certifications
