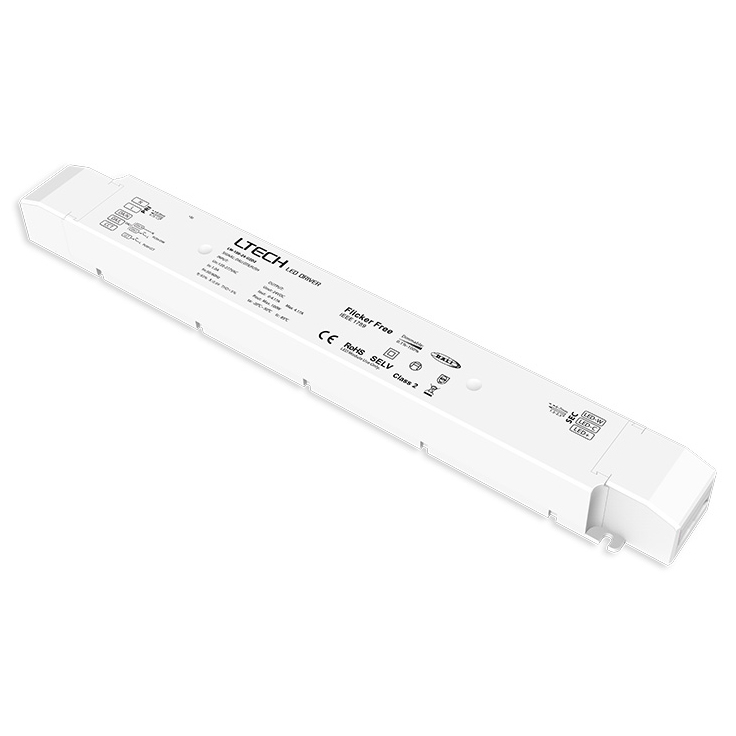

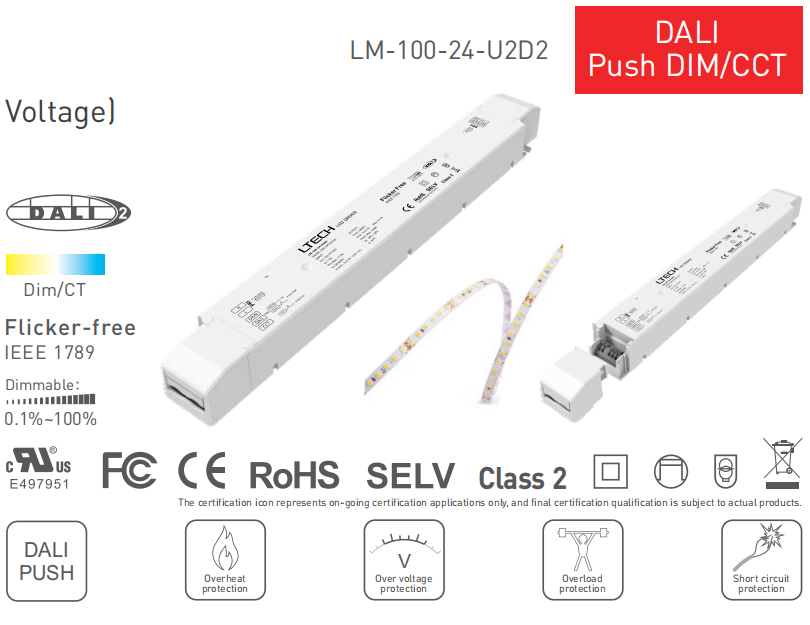

100W 24VDC CV DALI-2 DT6/DT8 DIM&CT Driver LM-100-24-U2D2
Intelligent Tunable White LED Driver (Constant Voltage)
Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.

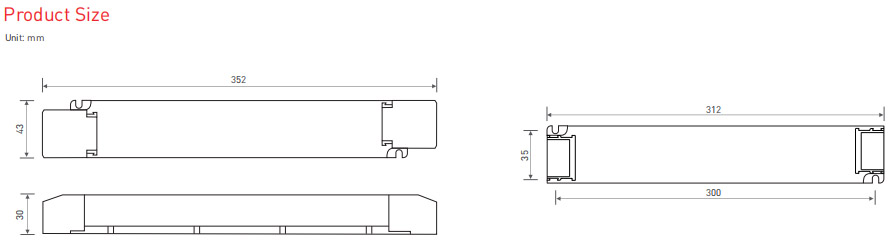

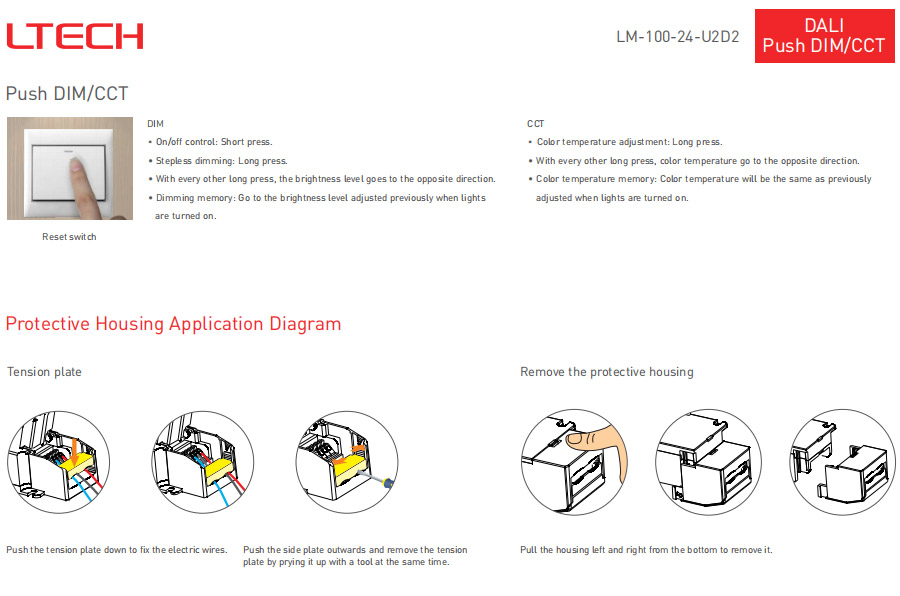

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test, and complies with the tensile test standard GB7000.1-2015/IEC60598-1:2014.
Adopt constant power program design and it keeps the same brightness in color temperature adjustment.
With soft-on and fade-in dimming function, enhancing your visual comfort.

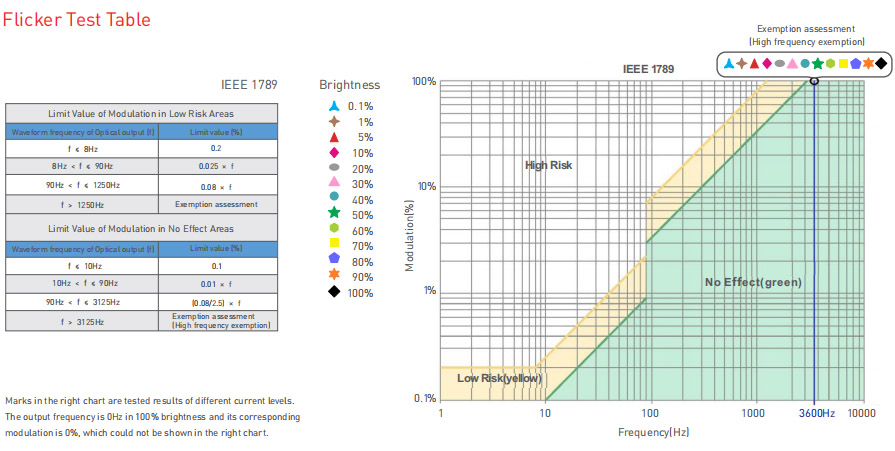

The whole dimming process is flicker-free with high-frequency exemption level.
Dimming from 0~100%, down to 0.1%.
2-CH SELV output channel with common anode.
DALI bus standard IEC62386-101, 102, 209.
Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the power life.
Overheat, over voltage , overload, short circuit protection and automatic recovery.
Suitable for indoor light applications ofⅠ /Ⅱ/Ⅲ type.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Products shall be installed by qualified professionals.
LTECH products are non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
Good heat dissipation will extend the working life of products. Please ensure good ventilation.
Please check if the working voltage used complies with the parameter requirements of products.
The diameter of wire used must be able to load the light fixtures you connect and ensure the firm wiring.
Before you power on products, please make sure all the wiring is correct in case of incorrect connection that causes damage to light fixtures.
If a fault occurs, please do not attempt to fix products by yourself. If you have any question, please contact your suppliers.
This manual is subject to changes without further notice. Product functions depend on the goods. Please feel free to contact our official distributors if you have any question.
Warranty periods from the date of delivery: 5 years.
Free repair or replacement services for quality problems are provided within warranty periods.
Warranty exclusions below:
Beyond warranty periods.
Any artificial damage caused by high voltage, overload, or improper operations.
Products with severe physical damage.
Damage caused by natural disasters and force majeure.
Warranty labels and barcodes have been damaged.
No any contract signed by LTECH.
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
