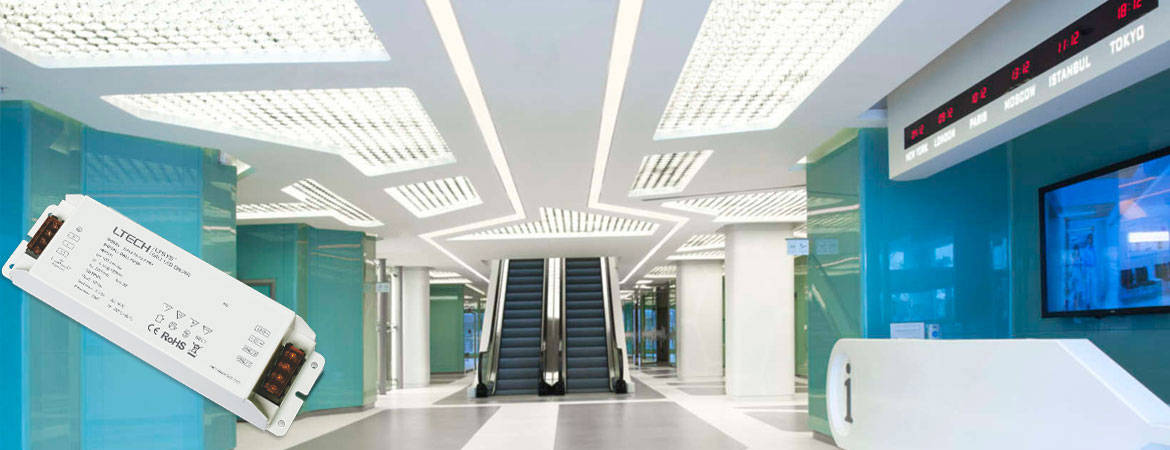

75W 12VDC CV DALI Driver DALI-75-12-F1M1(Replacement by LM-75-12-G1D2 LED Driver)
1、Dimming interface: DALI, Push Dim.
2、PWM digital dimming, no alter LED color rendering index.
3、Standard DALI logarithmic dimming curve.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Power factor > 0.99, Efficiency > 85%.
6、Short circuit / Over-heat / Overload / Over voltage protection.
7、DALI bus standard: IEC62386-101, 102, 207.
8、Compliant with Safety Extra Low Voltage standard.
9、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Please note: DALI-75-12-F1M1 LED driver has been discontinued, we will send you the LM-75-12-G1D2 LED driver to replace it.
Dimming interface: DALI (IEC62386), Push Dim
Dimming range: 0~100%, LED start at 0.1% possible.
Input voltage: 100-240Vac ±10%
Power factor : PF>0.99/115Vac , PF>0.95/230Vac, at full load
Output voltage :12Vdc
Output power: 1~75W
Output current :Max. 6.25A
Working temperature ta: -30°C ~ 60°C tc: 85°C
Package Size: 206×64×39mm(L×W×H)
Weight (G.W) :490g±10g
