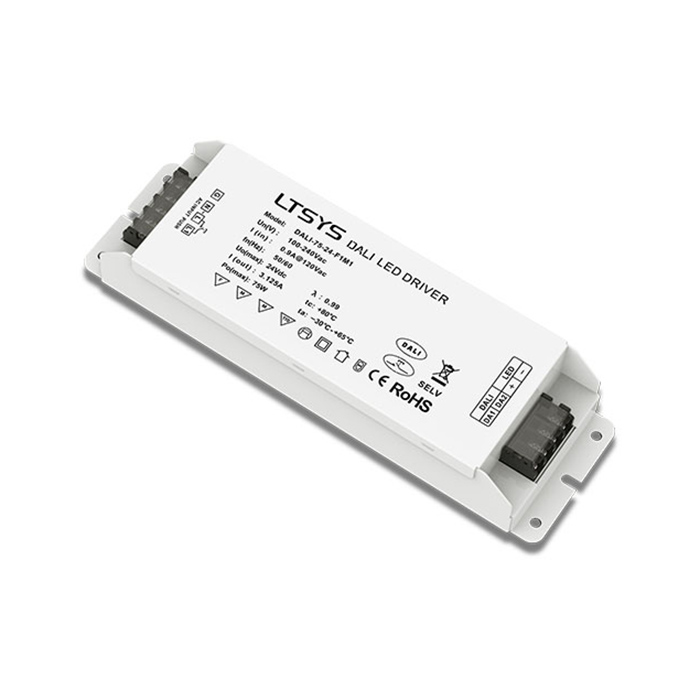

75W 24VDC CV DALI Driver DALI-75-24-F1M1
1、Dimming interface: DALI, Push Dim.
2、PWM digital dimming, no alter LED color rendering index.
3、Standard DALI logarithmic dimming curve.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Power factor > 0.99, Efficiency > 87%.
6、Short circuit / Over-heat / Overload / Over voltage protection.
7、DALI bus standard: IEC62386-101, 102, 207.
8、Compliant with Safety Extra Low Voltage standard.
9、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

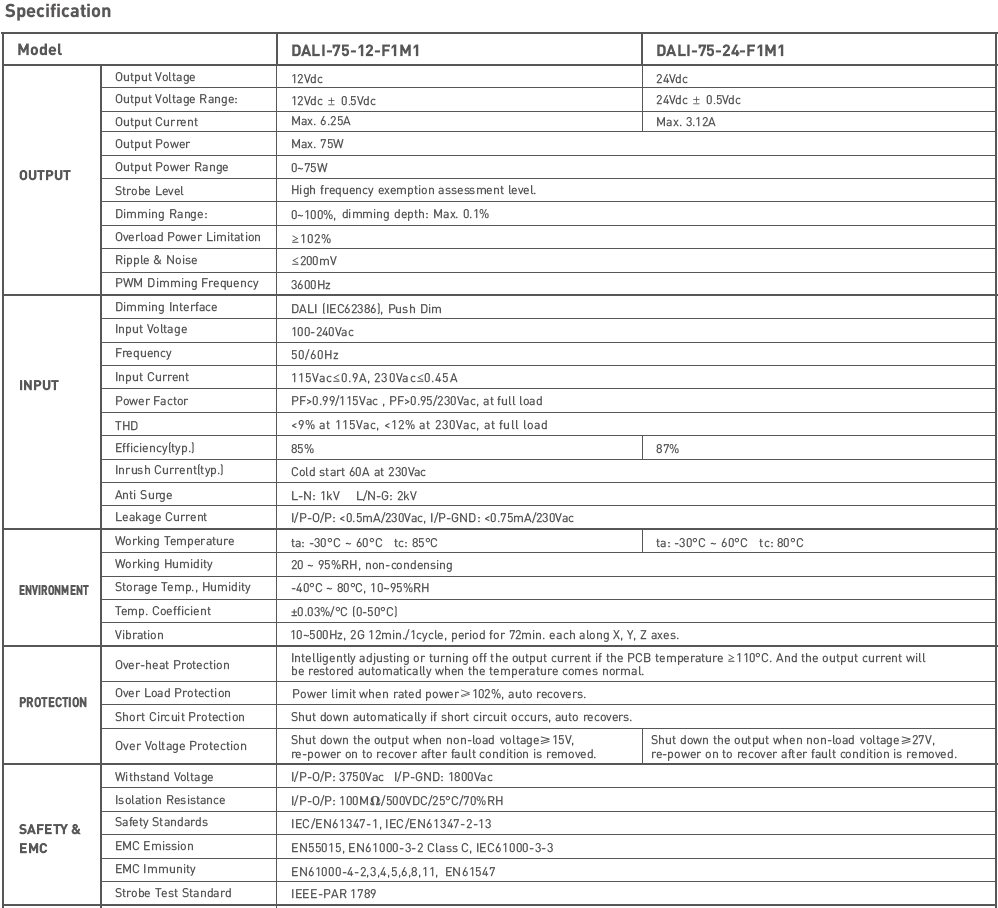

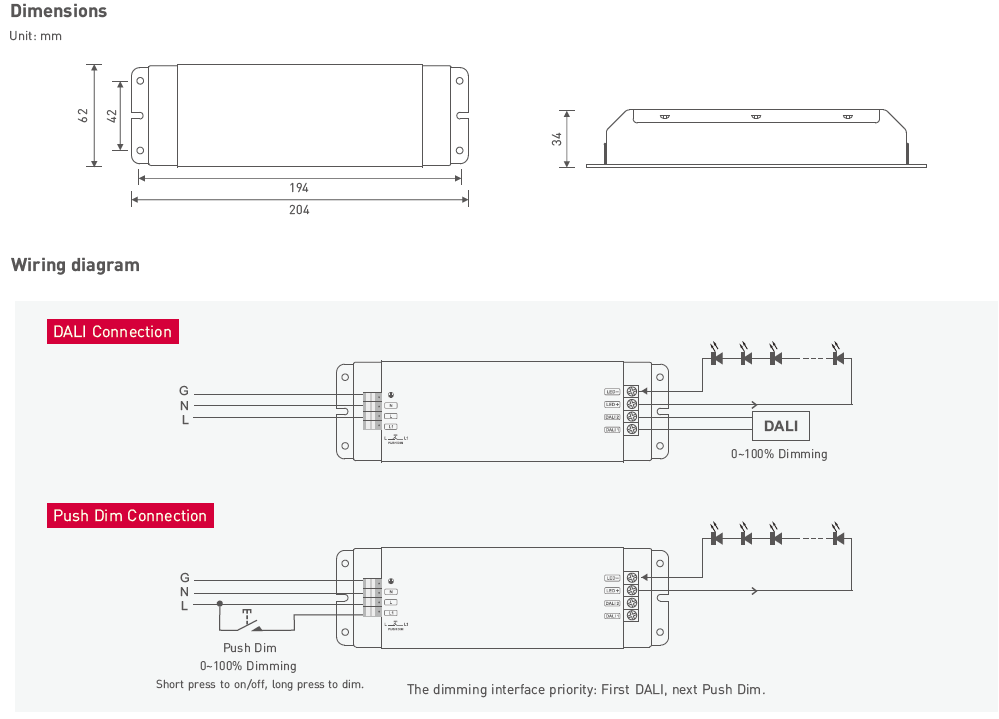

Dimming interface : DALI (IEC62386), Push Dim
Dimming range: 0~100%, LED start at 0.1% possible.
Input voltage: 100-240Vac ±10%
Power factor: PF>0.99/115Vac , PF>0.95/230Vac, at full load
Output voltage: 24Vdc
Output power: Max. 75W
Output current : Max. 3.12A
Working temperature ta: -30°C ~ 60°C tc: 80°C

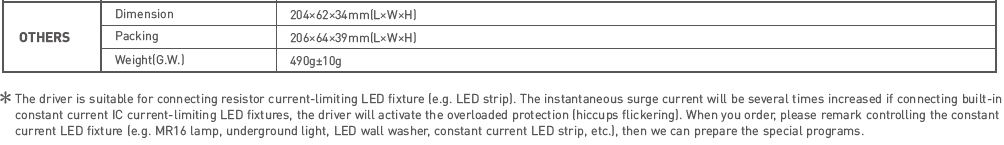

Package Size: 206×64×39mm(L×W×H)
Weight (G.W): 490g±10g
