75W 12VDC CV DALI Driver (200-240VDC) LM-75-12-G1D2

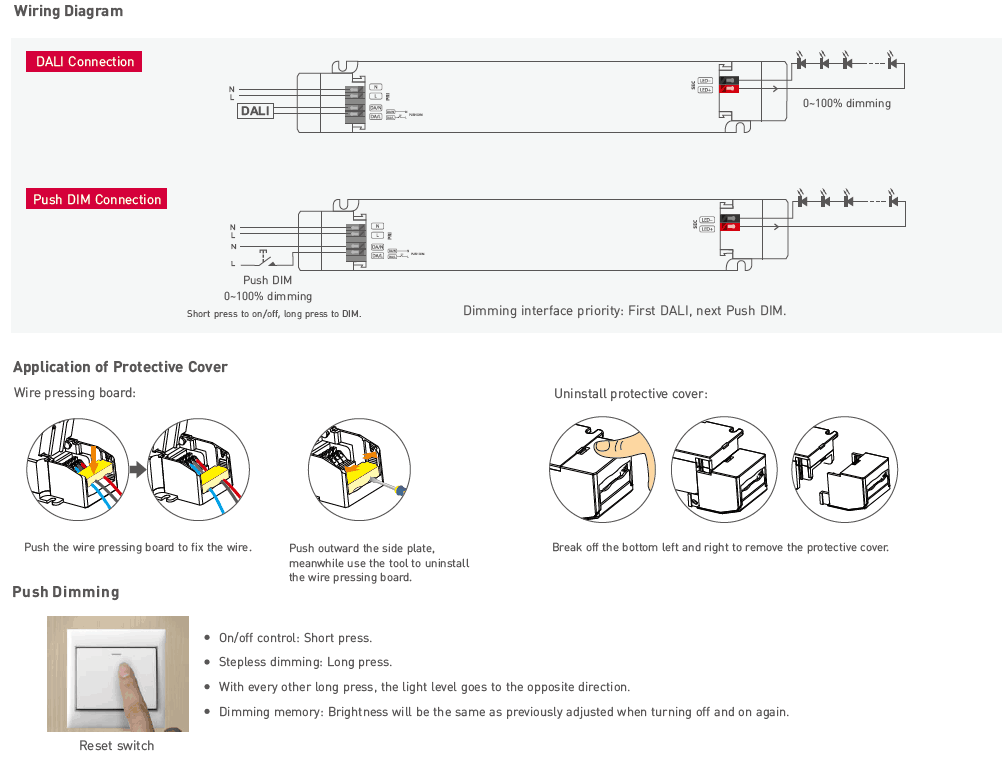

1、Dimming interface: DALI, Push Dim.
2、Dimming range: 0~100%, LED start at 0.1% possible.
3、DALI dimming curve: Liner curve or logarithmic curve.
4、Short circuit / Over-heat / Overload / Over voltage protection.
5、Class 2 power supply. Full protective plastic housing.
6、DALI bus standard: IEC62386-101,102, 207.
7、Compliant with Safety Extra Low Voltage standard.
8、Suitable for indoorⅠ/Ⅱ/Ⅲ type lamps application.
Dimming Interface: DALI/PUSH DIM
Dimming Range: 0~100%, LED start at 0.1% possible.
Input Voltage Range: 200-240Vac ±10%, 277Vac
Power Factor: PF>0.96/230Vac , PF>0.95/277Vac
Output Voltage Range: 12Vdc ± 0.5Vdc
Output Power Range: 1~75W
Output Current: Max. 6.25A
Working Temperature.: tc: 80℃ ta: -30 ~ 55℃
