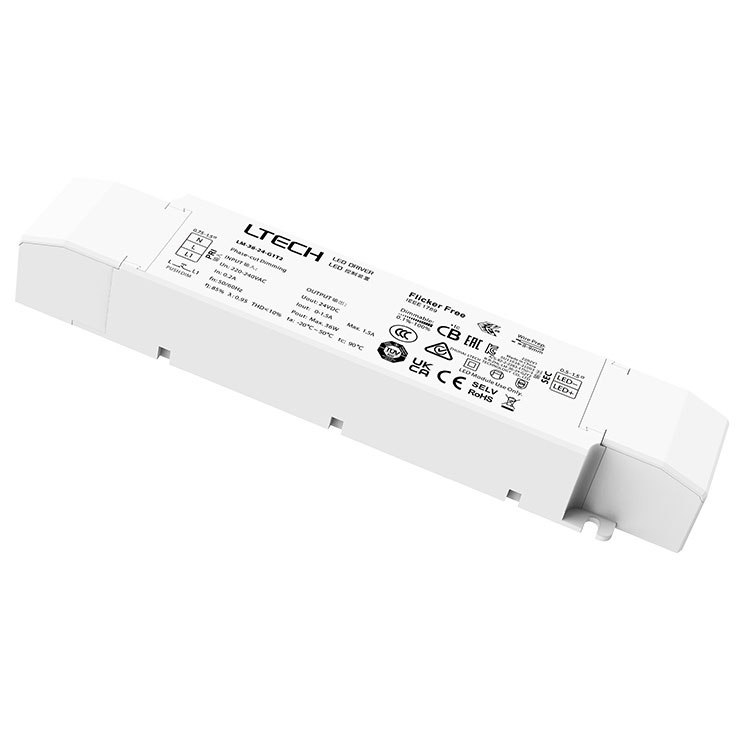

LM-36-24-G1T2 36W 24VDC Triac Dimming LED Driver
Constant Voltage 220-240VAV input 24VDC output Max 36W 1.5A Intelligent LED Triac Dimming Driver (Repalce TD-36-24-E1P1):
Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame
resistant polycarbonate protective housings.

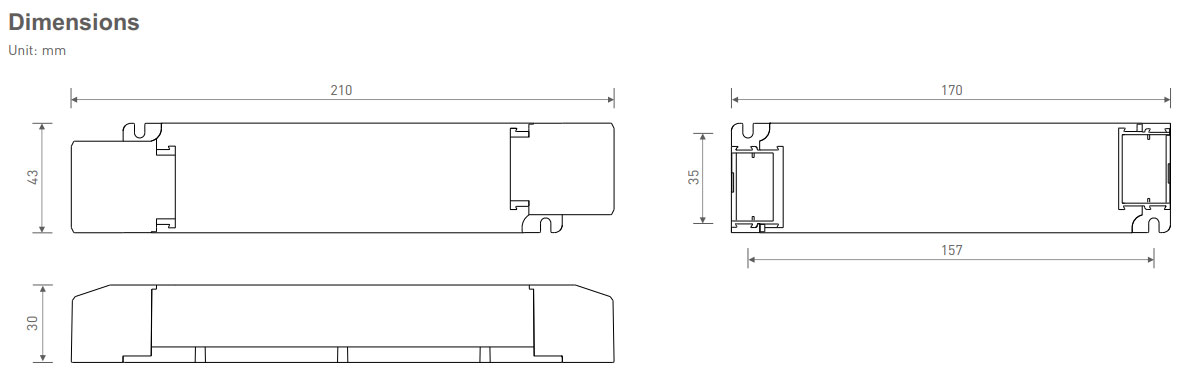

The design of dismountable end cap allows you to adjust the length
of housing depending on your needs.
With soft-on and fade in function, visual more comfortable.
Dimming range: 0~100%, dimming down to 0.1%.
0-100% flicker-free, High frequency exemption level.

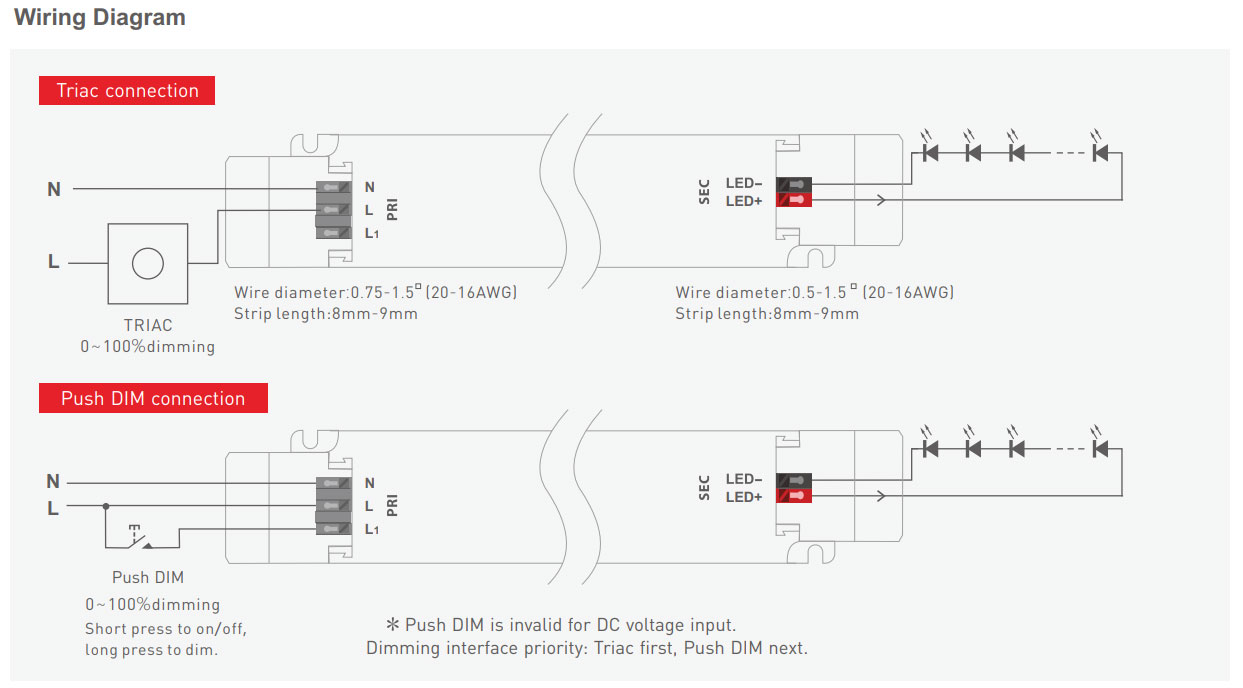

Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the lifetime the driver.
Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.

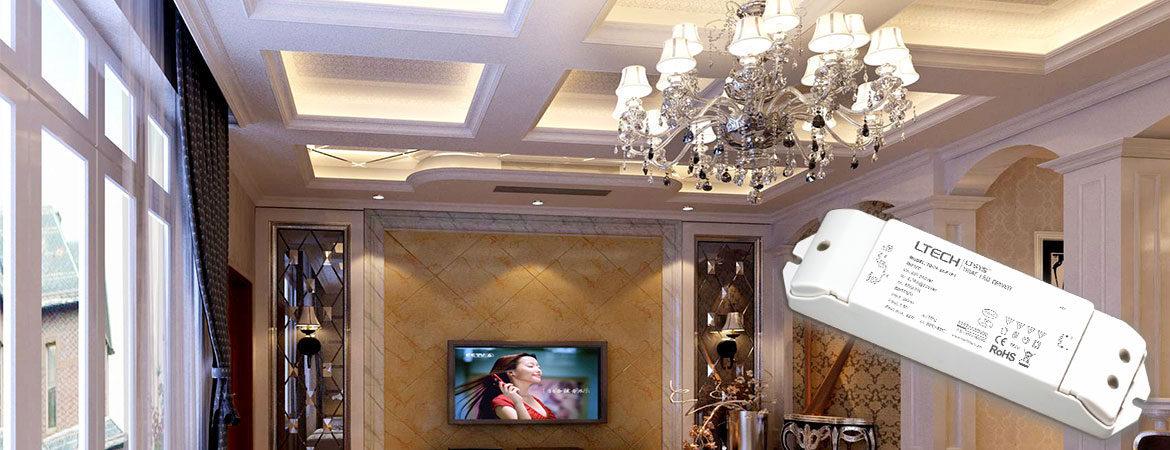

Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 year warranty (Rubycon capacitor).
