150W 24V CV DMX,DALI-2 DT6/DT8 Full Color RGBW LED Driver LM-150-24-G4K3
- $39.98 $29.9825% off
- $37.98 $34.988% off
- $80.00 $64.9819% off
- $60.00 $42.9828% off
- $37.98 $34.988% off

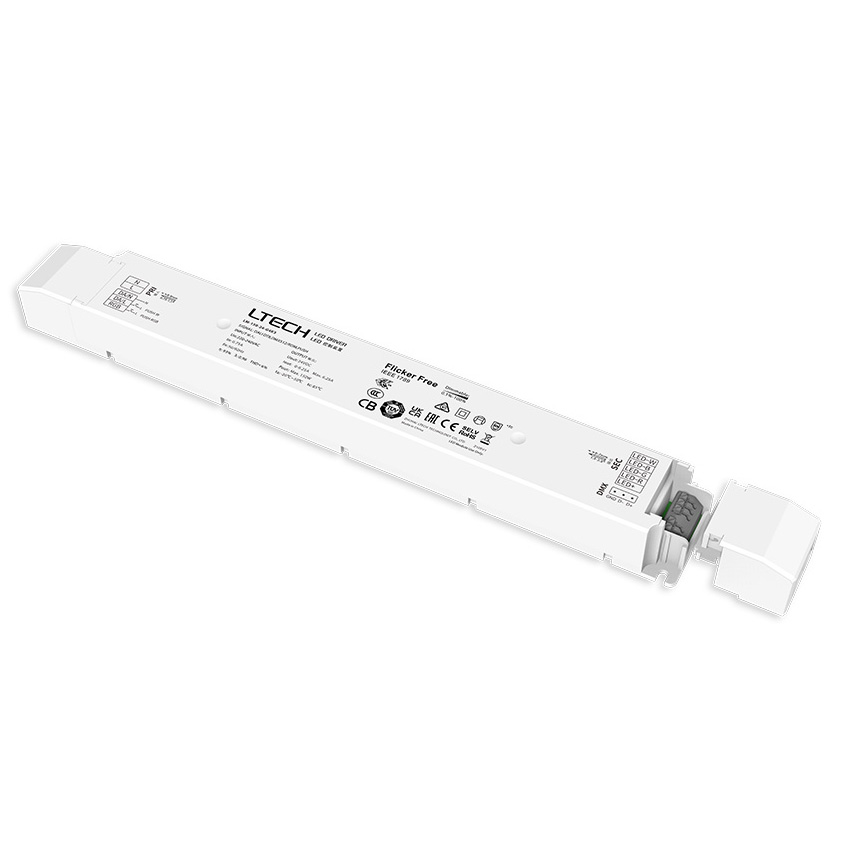

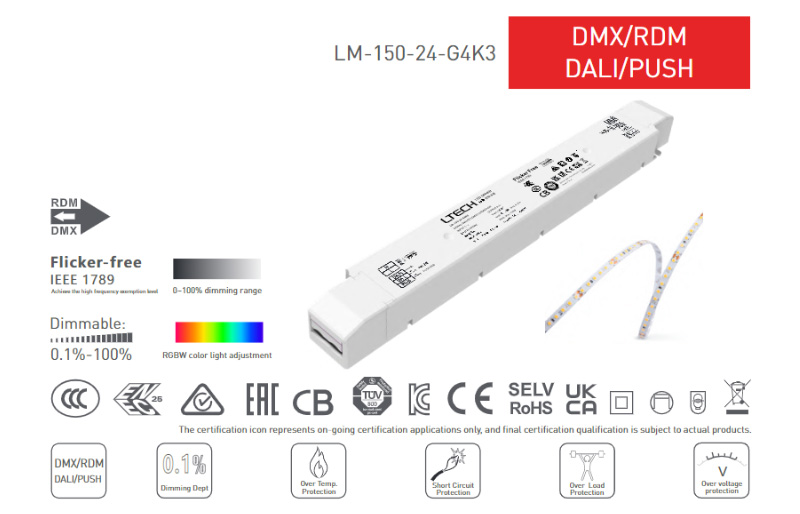

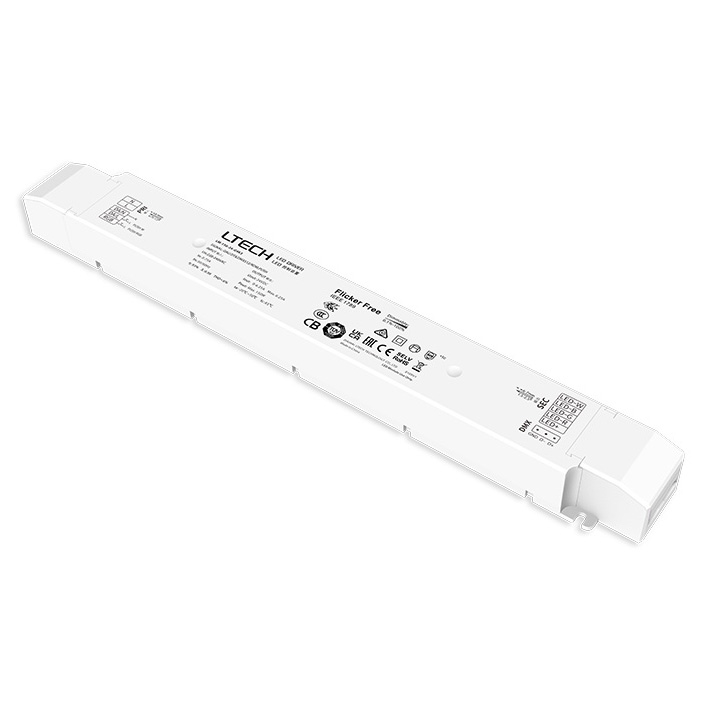

Intelligent Full Color RGBW LED Driver (Constant Voltage)
Small size and light weight. The housing is made from V0 flame-retardant PC materials that SAMSUNG/COVESTRO uses.
The clamshell design and screwless type for strain relief. The design of a dismountable end cap allows you to adjust the length of housing depending on your needs.
Dimming from 0~100%, down to 0.1%.

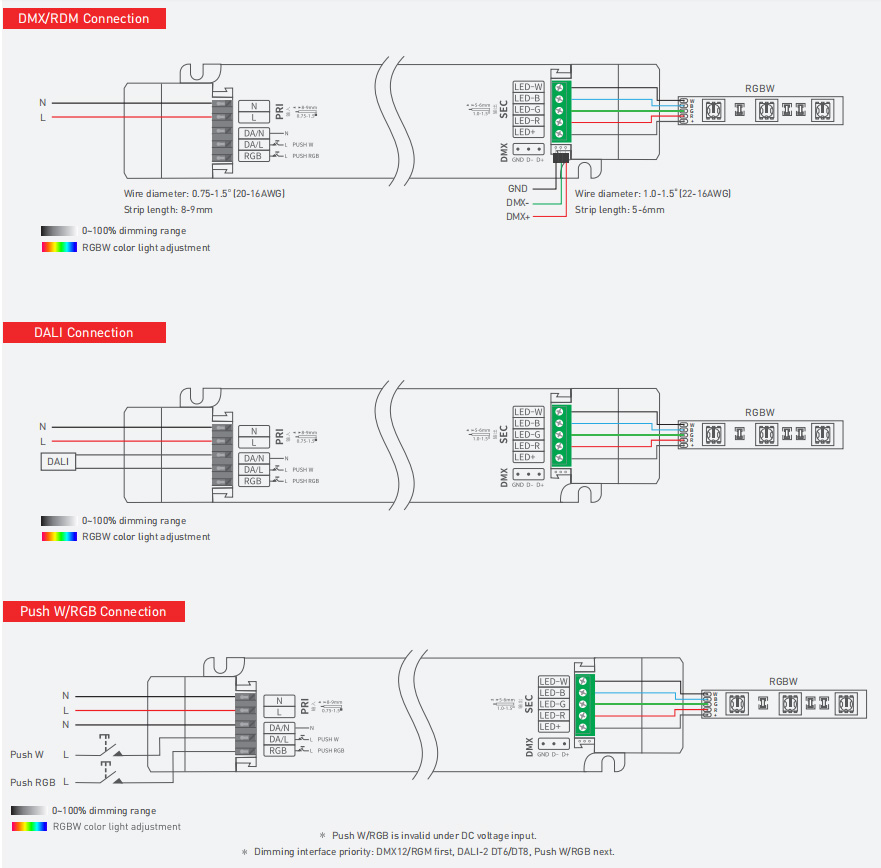

Dimming interface: DMX512/RDM, DALI-2 DT6/DT8, Push.
Energy-efficient driver: Efficiency 93%, PF>0.98, THD<6%.
Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, overvoltage, overload, short circuit protection, and automatic recovery.
Up to 50,000-hour lifetime.
