2835 2-In-1 CCT LED Bright Tunable White Lighting Strip 180 Per Meter

Name: 2835 2-In-1 CCT LED Bright Tunable White Lighting Strip 180 Per Meter
Brand: SuperLightingLED
SKU: CCT-2835-2IN1-900W10
Price: 15.98 USD
Availability: InStock

Model: CCT-2835-2IN1-900W10 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $15.98

Qty Discounts Off Price
1-19 $15.98	20-49 $15.66	50-99 $15.34	100+ $15.02
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

10mm (0.39in)

Select Input Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

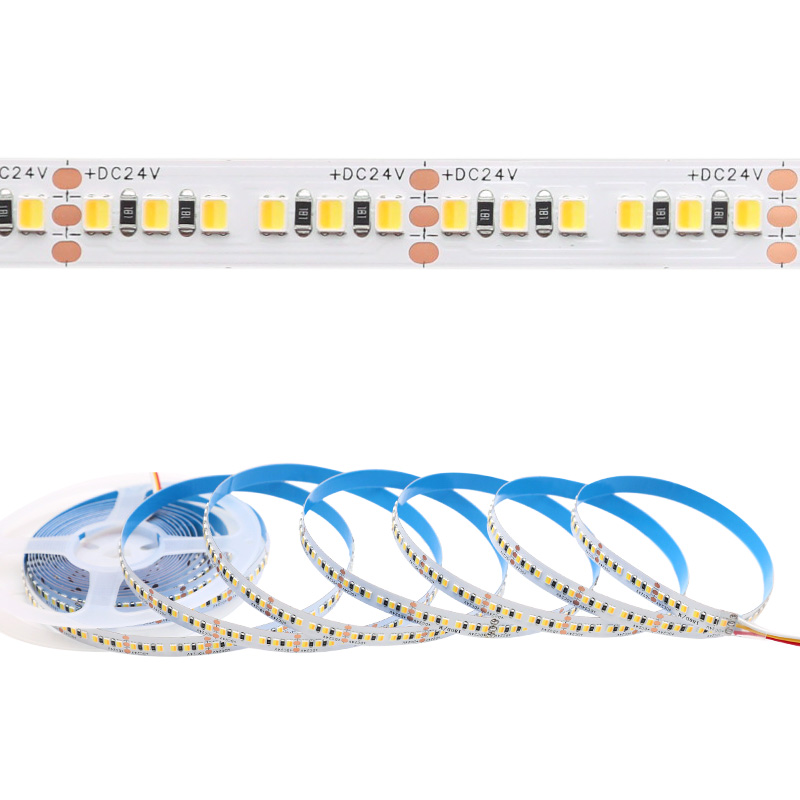

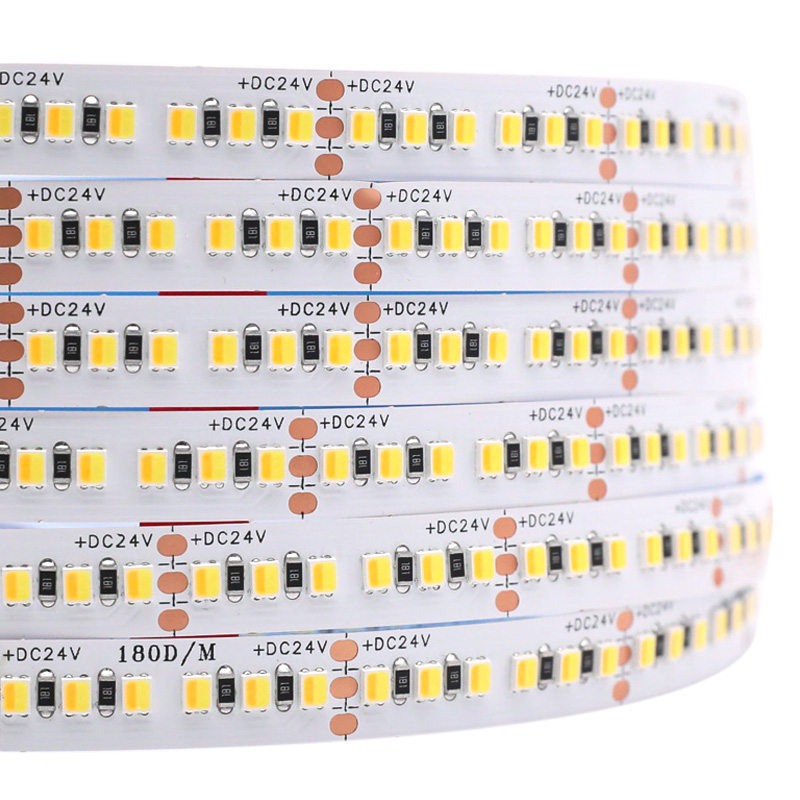

A warm white to cool white color temperature adjustable led light strip with 180 SMD2835 2-in-1 CCT LED lights per meter. The design of five meters with 900 LEDs allows the small size 2835 SMD to bring bright lighting to your room.

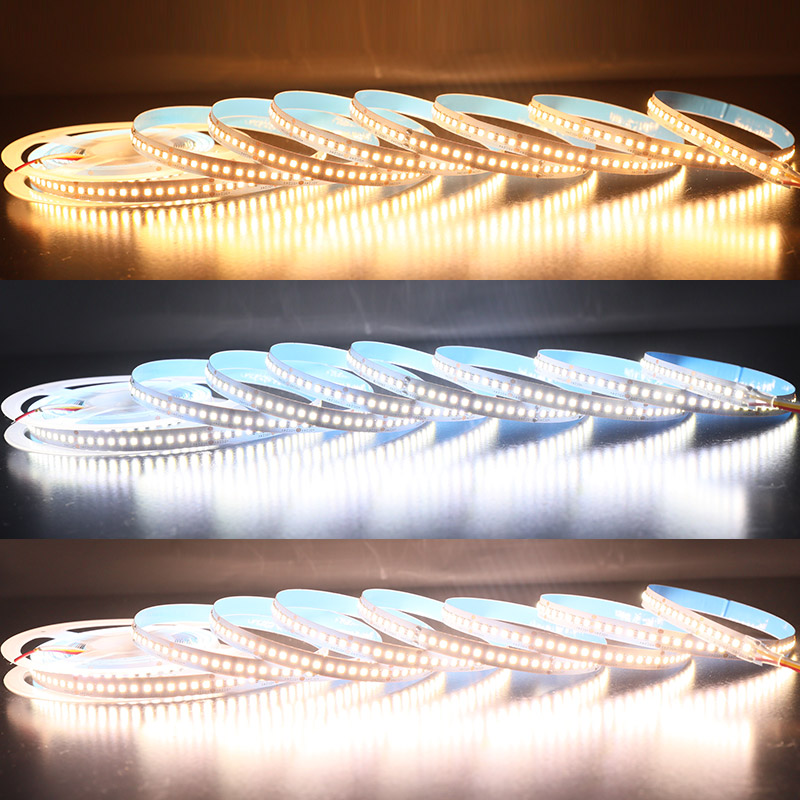

This tunable white led strip is very bright whether lit with a single warm white light or a single cool white light, or a neutralized natural white light. The 2-in-1 CCT LED design achieves a higher LED density in a single color temperature.

12 or 24 volt input, 5-meter normal operation. There is no connector available, please connect the cut CCT led strip by soldering.

Kit: PWM-CCT-SP632E Bluetooth adjustable color temperature led controller, LRS-100-12 or LRS-100-24 Mean Well led power supply.

Product Specification

LED Strip Type:	2835 Bright Tunable White Lighting LED Strip
CRI:	Ra>80
Input Voltage:	DC24V/DC12V
Power:	18W/m max
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃
LED Color:	CCT Tunable, 2800K-6500K color temp
Dimension:	L5,000mmW10mmH1.3mm
LED Quantity:	180 LEDs/m, 900 LEDs/16.4ft
Waterproof Rating:	Non-waterproof IP20 / Indoor Waterproof IP65

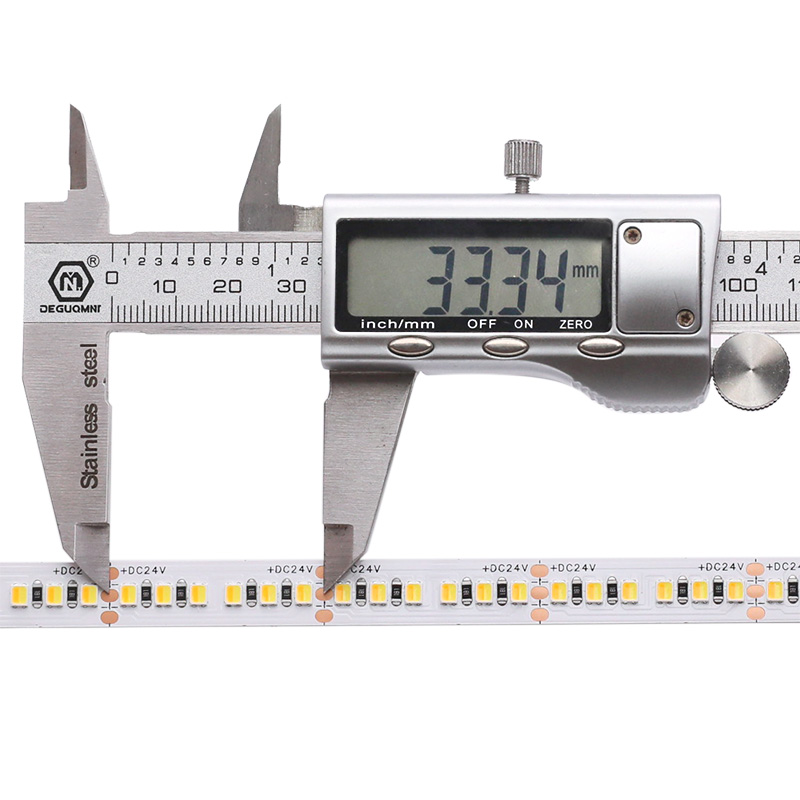

Cuttable:	DC24V - 33.33mm/1.3" 6LED DC12V - 16.66mm/0.64" 3LED
Beam Angle:	120°
Lifespan:	50,000 hours +

CCT led strip wiring diagram

2835 2-In-1 CCT LED Bright Tunable White Lighting Strip 180 Per Meter

2835 2-In-1 CCT LED Bright Tunable White Lighting Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for CCT-2835-2IN1-900W10

PDFCCT-2835-2IN1-900W10 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in DC12V · DC24V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

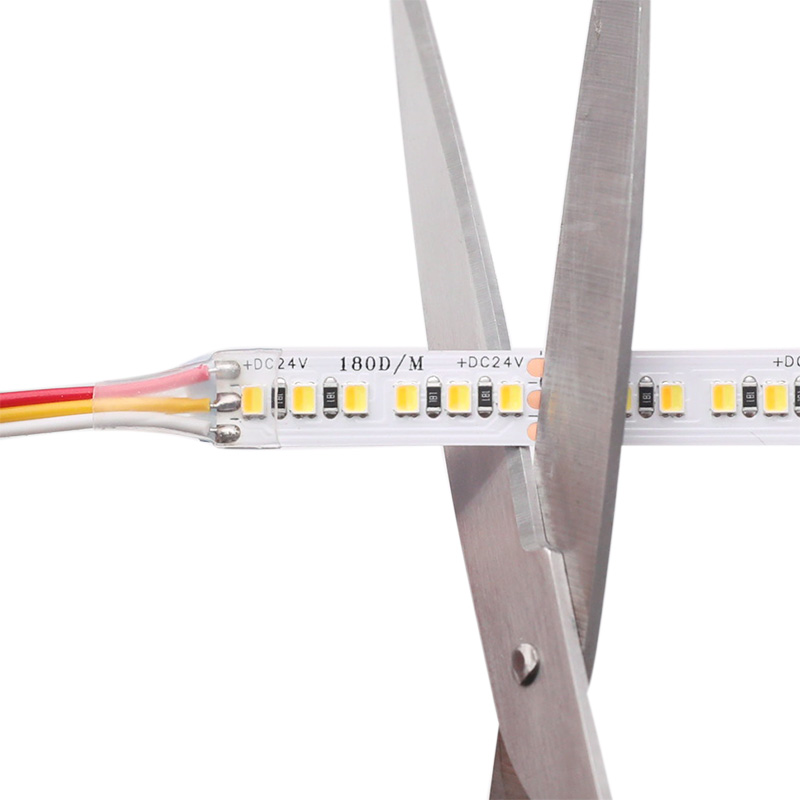

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
