Product Information

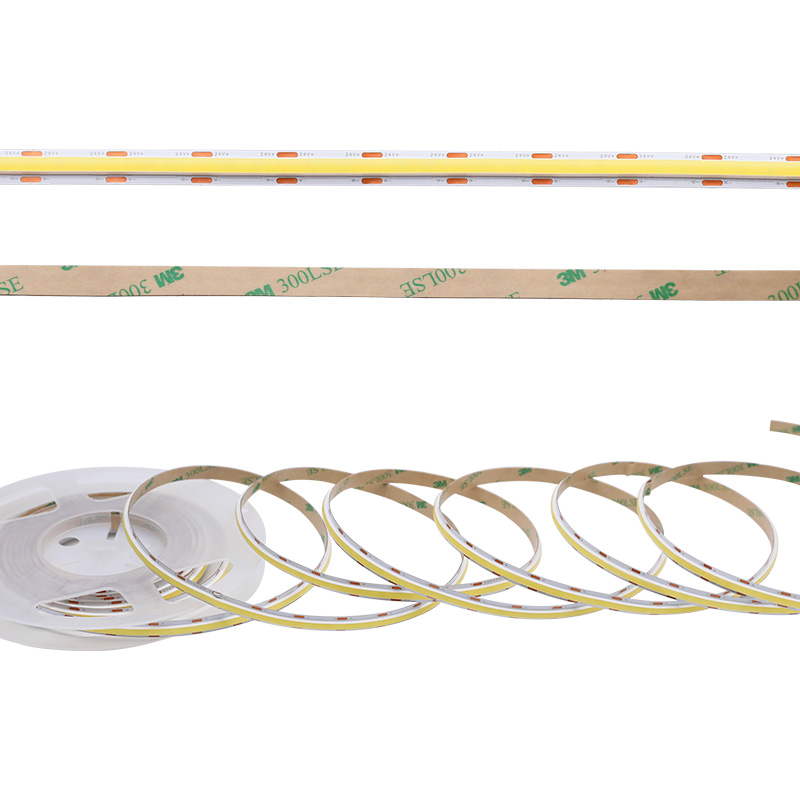

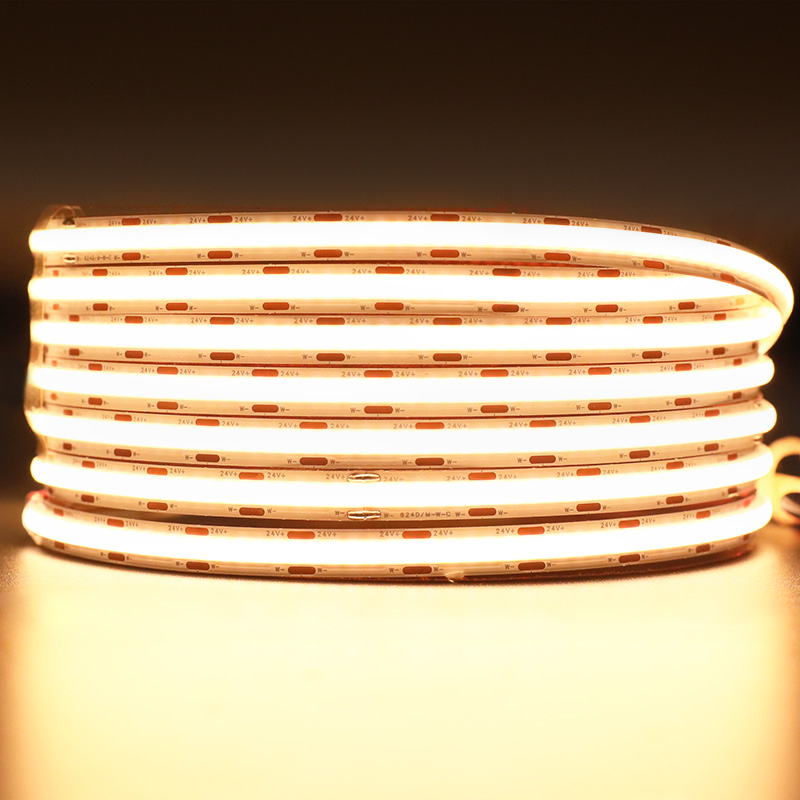

This tunable white COB LED strip has an adjustable color temperature between 2700k and 6500k, and is capable of running up to 10 meters with a single-ended 24V power supply. The color and brightness of 10m COB LED strip are consistent from start to finish, without voltage drop. Yellow COB coating layer is specially designed, higher than standard COB tape light, with white sealing glue on both sides of the layer to concentrate light. It changes the beam angle from the original 180° to 120°, providing a COB brighter lighting effect.
With a high density of 624 LEDs per meter, this COB CCT LED strip can emit a soft and even light without light spots. Excellent COB CCT LED light tape can meet the requirements of long-distance lighting, high brightness and smooth illumination effect at the same time, perfect for contour lighting. The COB LED flexible strip is 8mm/0.31” wide, very soft and easy to form different shapes. The back of the long COB LED light strip has a 3M adhesive backing that can be easily removed and attached to the aluminum channel. Using a compatible controller, you can switch between warm white light, natural white light and daylight white light, and the brightness can be easily adjusted to create different atmospheres.
Features:
1. CCT COB LED tape light, tunable from 2700k warm light to 6500k daylight white.
2. Able to run 10m/32.08ft with single-ended power supply, no voltage drop.
3. White sealing glue on both sides of the COB coating layer to concentrate light, brighter and dotless illumination.

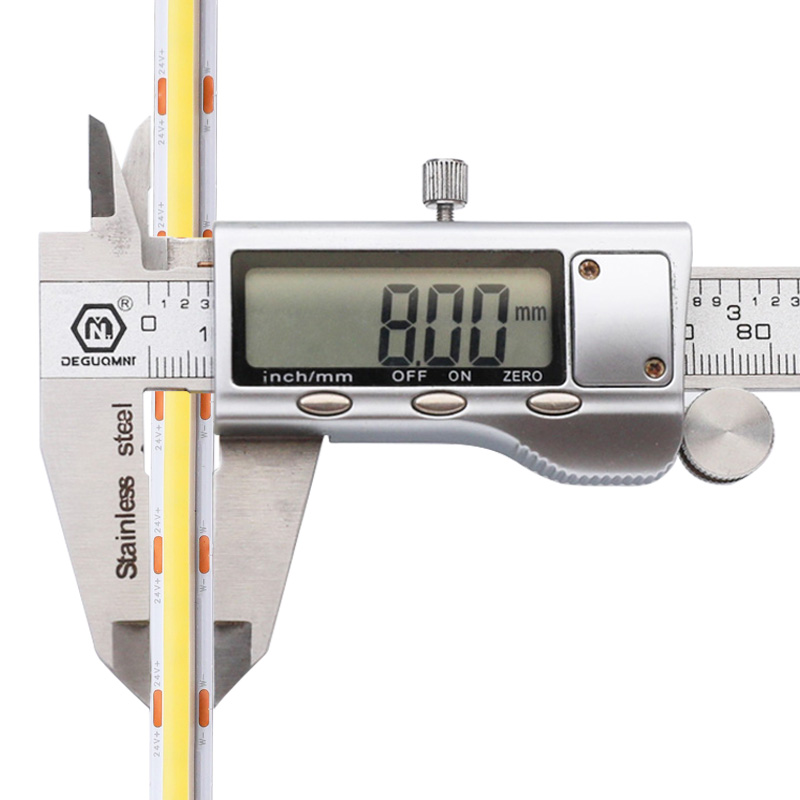

5. 8mm/0.31" width, high density of 624 LEDs across each meter.
4. Flexible, bendable and fully dimmable with controller, with 3M adhesive backing.

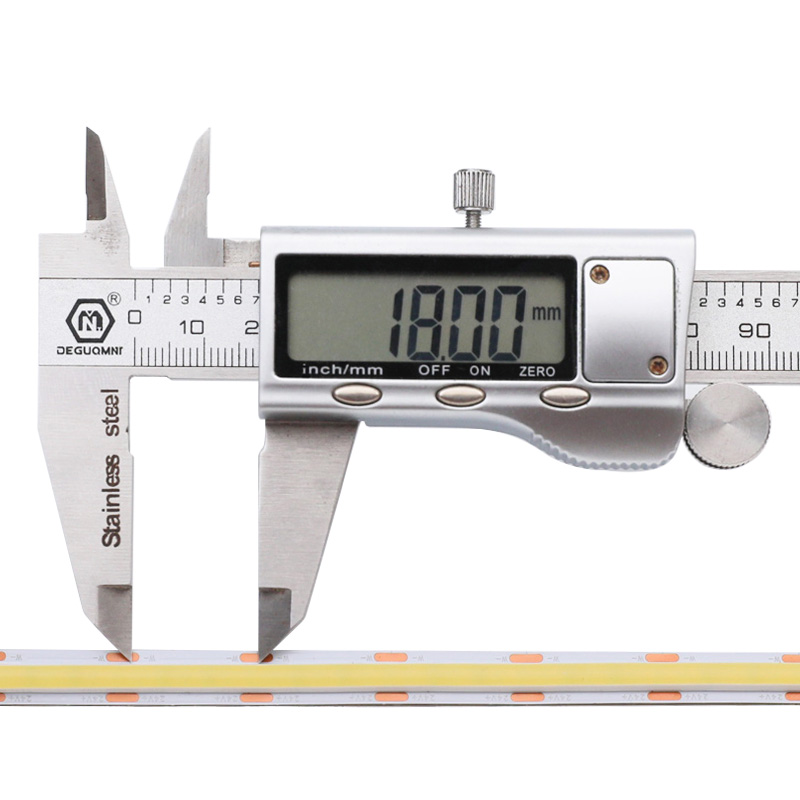

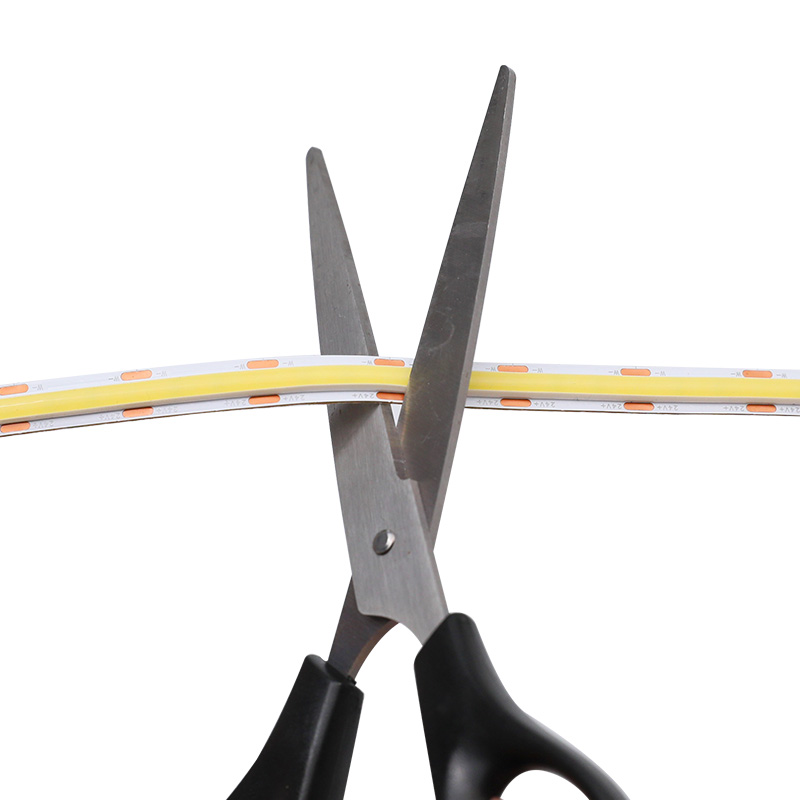

5. Every 19.23mm/ 0.76" can be cut for length control.
If select kit, you will receive a CON-CCT-C02W WIFI controller (without remote) , a LRS-200-24 power supply and an AC plug.
No available 3-pin COB connector to use because of its solder joint design with only 2 pins on the light side.
Standards and Certifications
Product Specification
| LED Strip Type: | 10m Long CCT COB LED Strip Narrow Beam Spread |
| CRI: | 90+ (High) |
| Input Voltage: | DC24V |
| Power: | 14W/m, 70W/16.4ft, 140W/33ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | CCT Tunable White, 2700K-6500K color temp |
| PCB Width: | 8mm/0.3" |
| LED Quantity: | 624Chips/m, 3120Chips/16.4ft, 6240Chips/33ft |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |
| Cuttable: | 19.23mm/0.76" |
| Lumen: | 1-2lm/LED, 1000lm/m |
| Lifespan: | 750,000 hours + |
| Beam Angle: | 120° |
| Strip Length: | 5m/16.4Ft, 10m/33ft |
How to Wire CCT COB LED Strip?
