Product Information

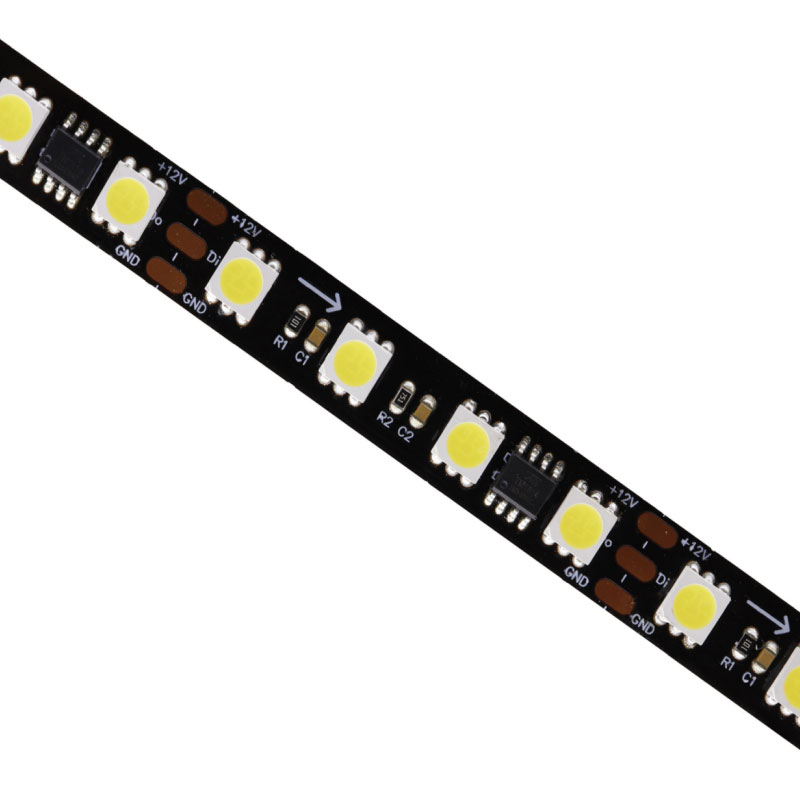

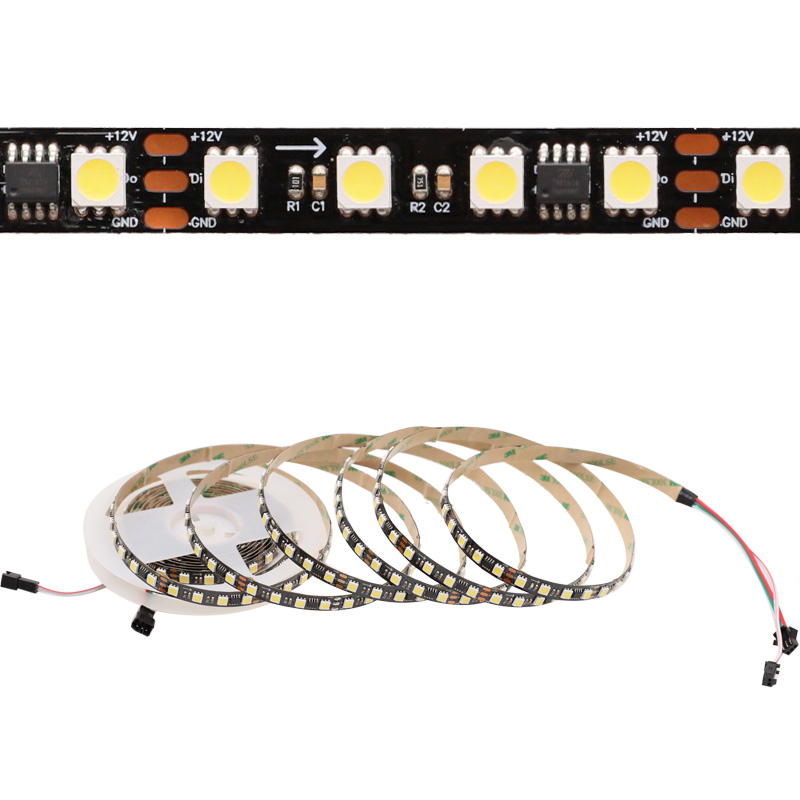

If you are looking to add some dynamic ambiance to simple warm white lighting or daylight lighting, addressable white led strip lights are a good choice. Check our high density 80LEDs/m 5050 TM1814 led addressable white strip, the white light with the black PCB board creates a high contrast.
Addressable white led strip provides adjustable white light so you can adjust the light brightness and pattern as needed. Switching different light modes such as running water, fading, blinking, breathing through programming or an SPI Bluetooth music controller SP107E (controller in the kit), this TM1814 white led strip will bring a rich and dynamic atmosphere to your space.

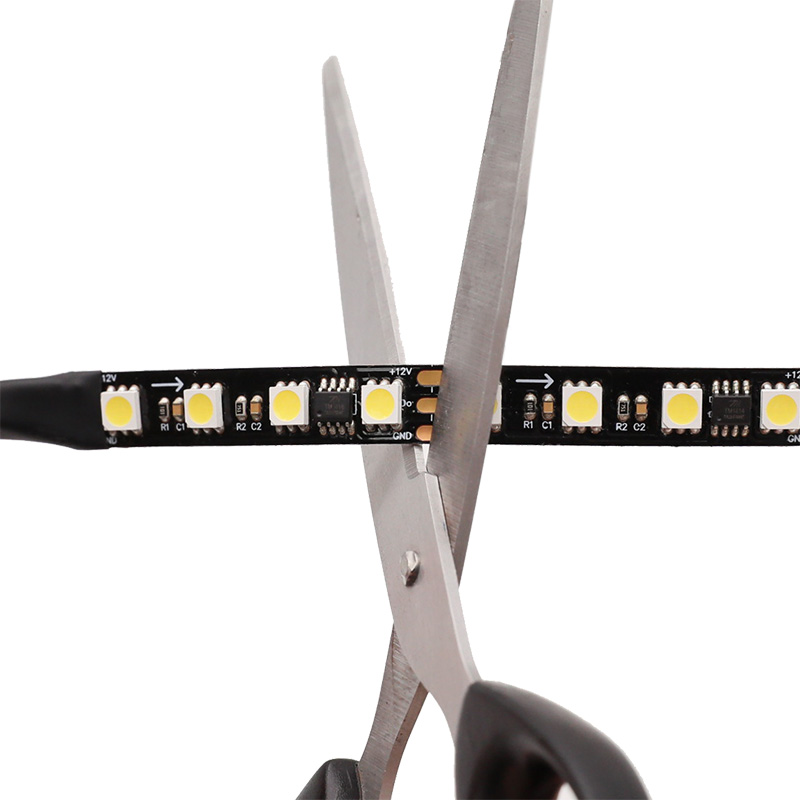

20 pixels per meter, one TM1814 IC chip controls four 5050 LEDs, 50mm cut segment.
Note: SP636E, SP108E, and SP105E are not compatible with TM1814 white IC chip.
TM1814 Datasheet Download
Product Specifications
| Item Type: | TM1814 Addressable White LED Strip |
| LED Chip: | TM1814 + SMD5050 |
| Input Voltage: | DC12V |
| Power: | 18W/m, 90W/Roll |
| LED Color Temperature: | Addressable Daylight 6000K |

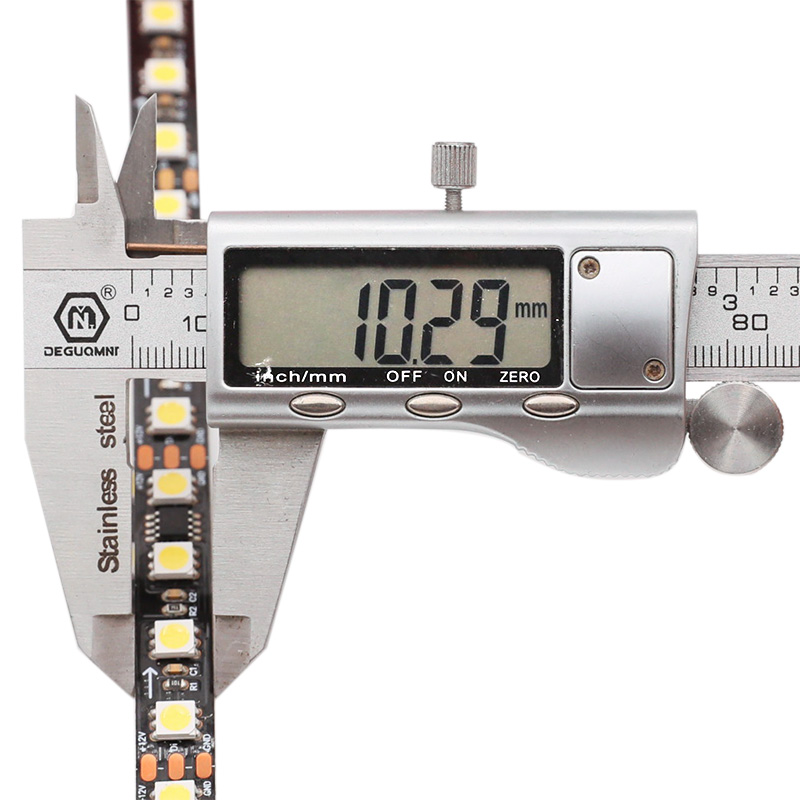

| PCB Width: | 10mm/0.4in |
| LED Quantity: | 80LEDs/m, 400LEDs/Roll |

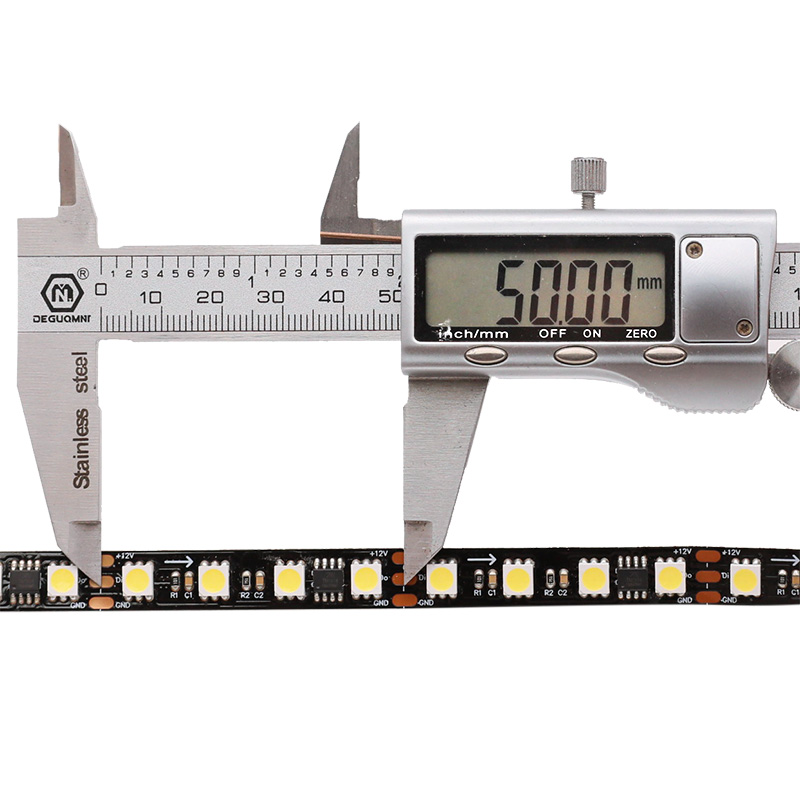

| Cut Segment: | 4 LEDs (50mm/2in) |
| IC Pixel: | 20 ICs/m, 100 ICs/Roll |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |
| Lumen: | 20-22 lm/LED |
| Beam Angle: | 120° |
| Strip Length: | 5m/16.4ft |
How to Wire TM1814 White LED Strip?
