This is a RGBW led strip lighitng controlled by the TM1812 smart IC. It allows each RGBW LED area to be an individual color and brightness. Thus to produce multiple colors on a single RGBW strip.

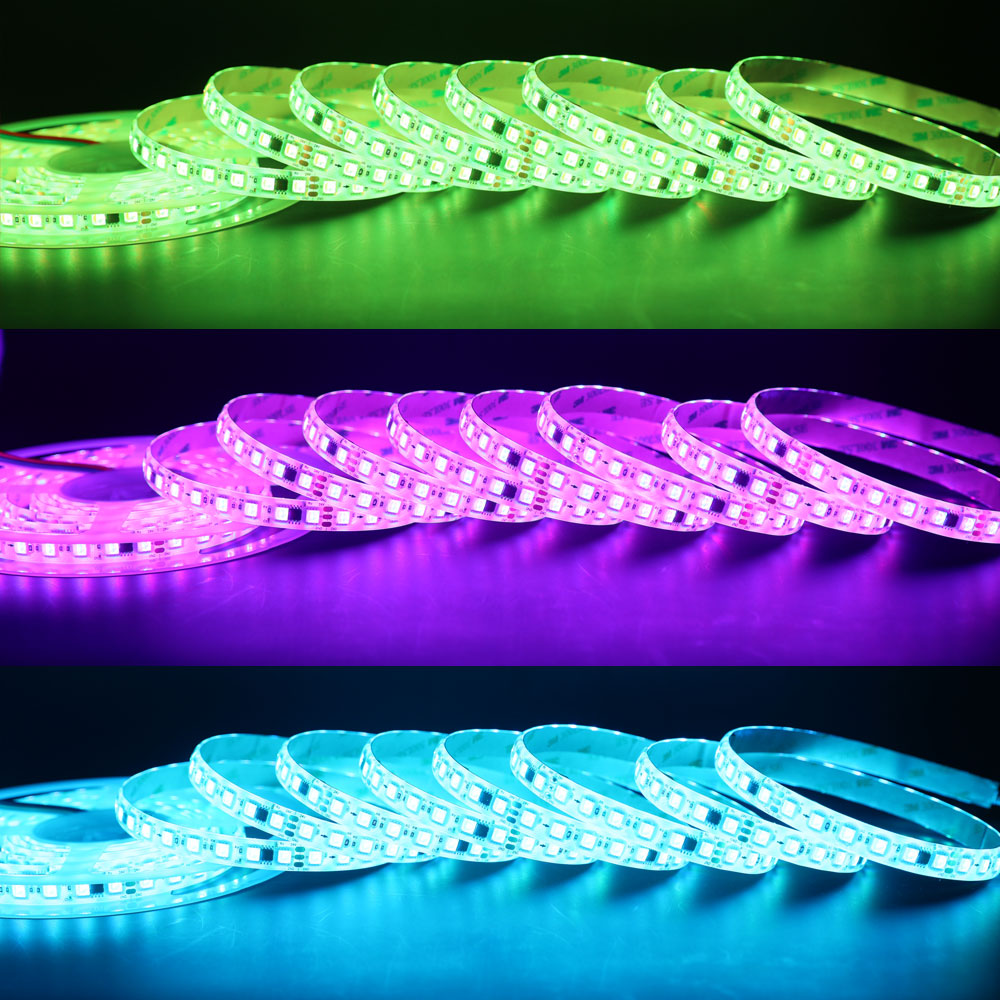

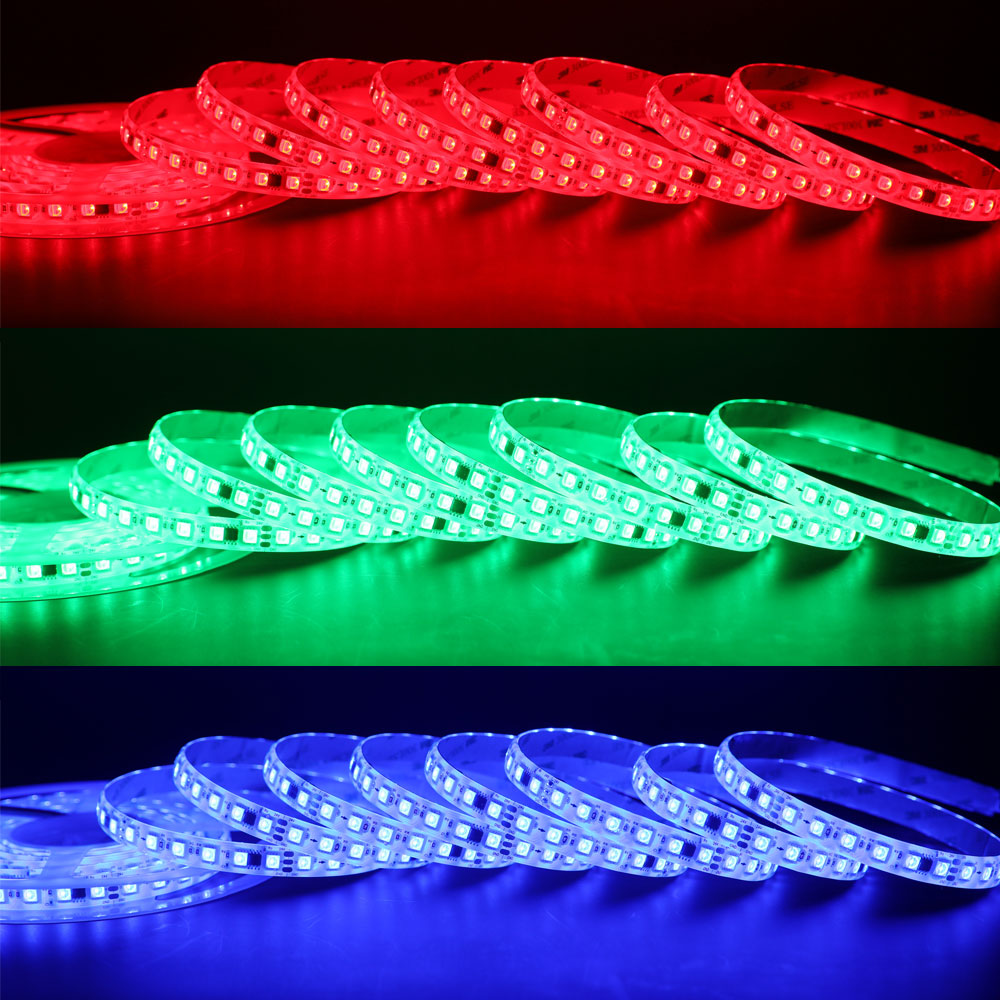

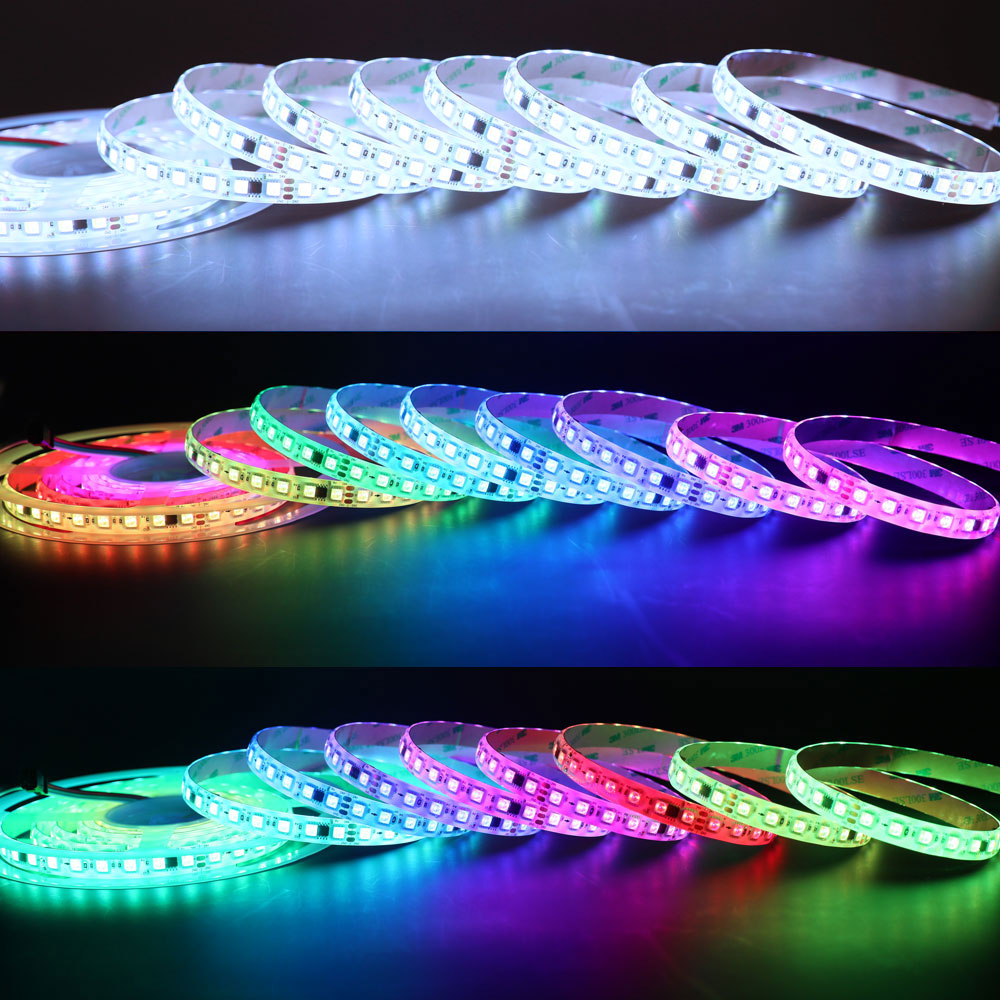

The RGBW led strip lights have 7 static color modes (red, green, blue, yellow, purple, ice blue and white), and multiple dynamic effects. Since it uses a separate white chip channel, its white color is pure white, unlike RGB white which is bluish or purplish.
The separate white channel also allows mixing with other color channels to create a variety of color effects.
Addressable RGBW strip lights should be controlled by a pixel RGBW controller.
For LED power supply, we recommend the following:
Note: the IP65 and IP68 waterproof led strip lights will increase the color temperature of 1000K, so the RGB+3000K will be like the RGB+4000K. You can see the following image, the left is 3000K IP65, the right is IP20.
TM1814 Chips Specifications Download
Standards and Certifications
|LED Strip Type:||SMD5050 TM1814 RGBW 420LEDs/16.4ft|
|LED Chip:||TM1814 IC super brights Chip|
|LED Color Temperature:||Addressable RGB + 6000K Daylight White / 4000K Natural White / 3000K Warm White|

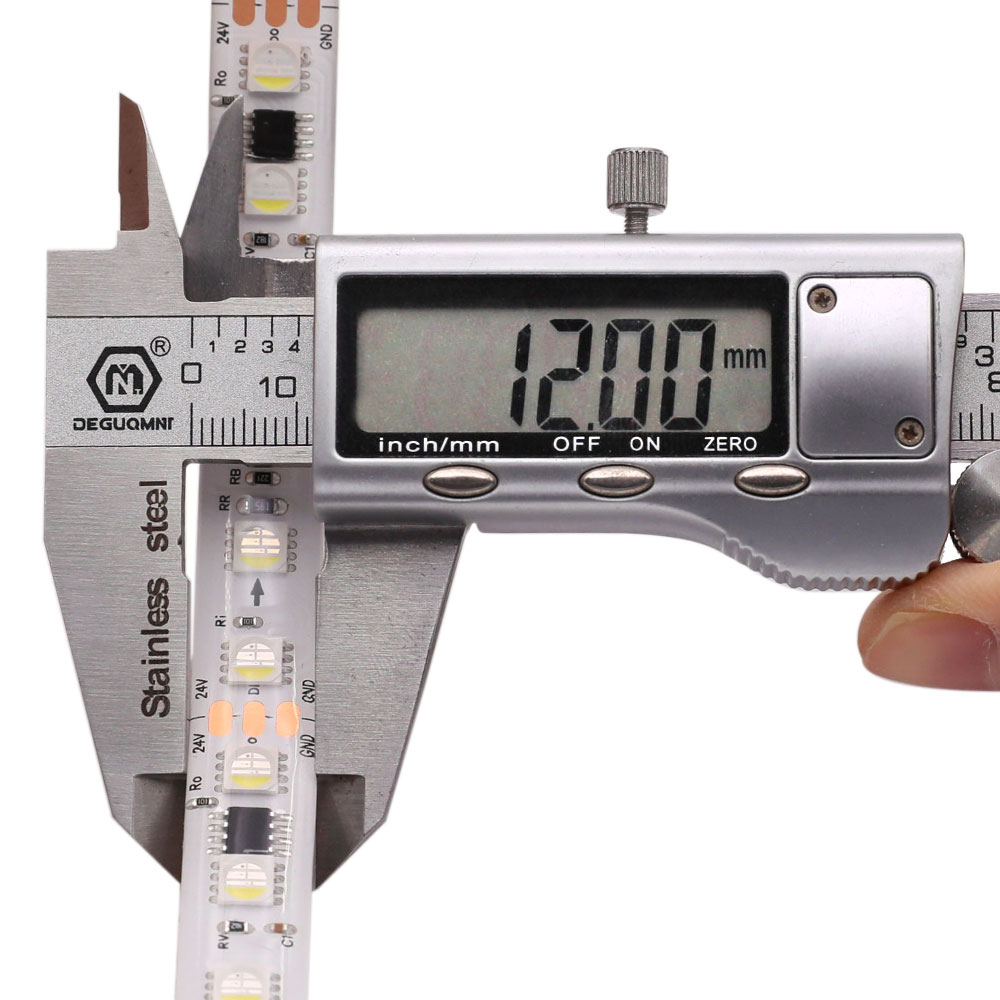

|PCB Width:||12mm / 0.47"|
|LED Quantity:||84 LEDs/m|
|Quantity of IC:||14 ICs/m, 70 pixels per roll|

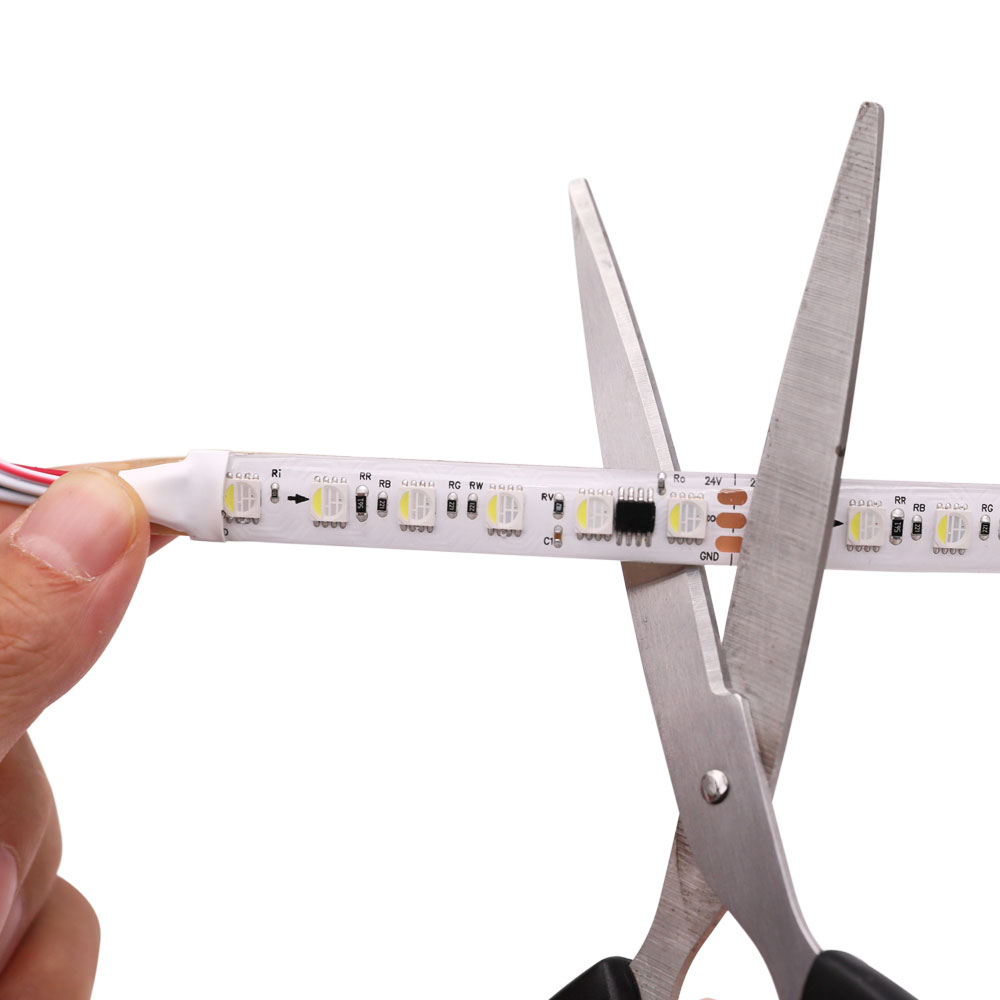

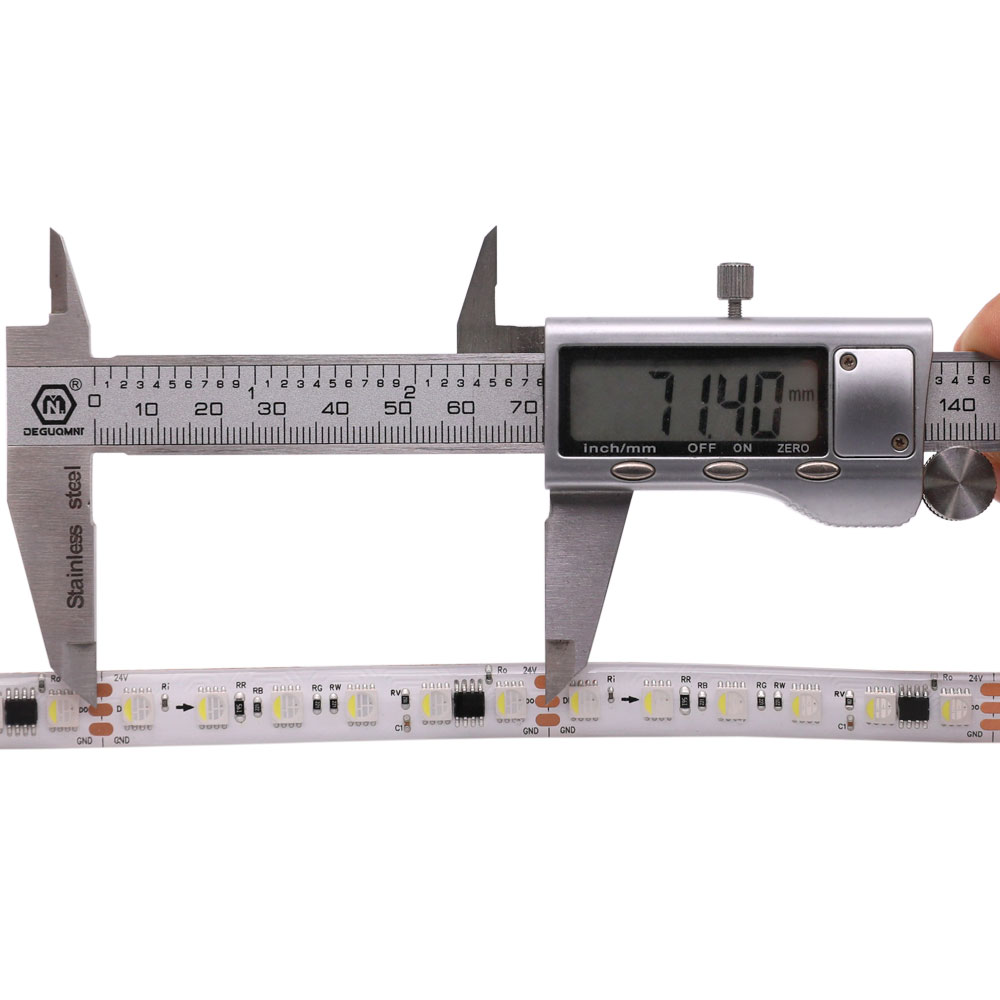

|Cuttable:||6 LEDs / 71.4mm (2.8")|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
How to Wire Addressable LED Strip Lights?
3-pin single signal addressable LED strip wiring diagram:
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Show exhibition decorations
