Bendable LED Aluminum Profile S Shape For 10mm Flexible LED Light Strips

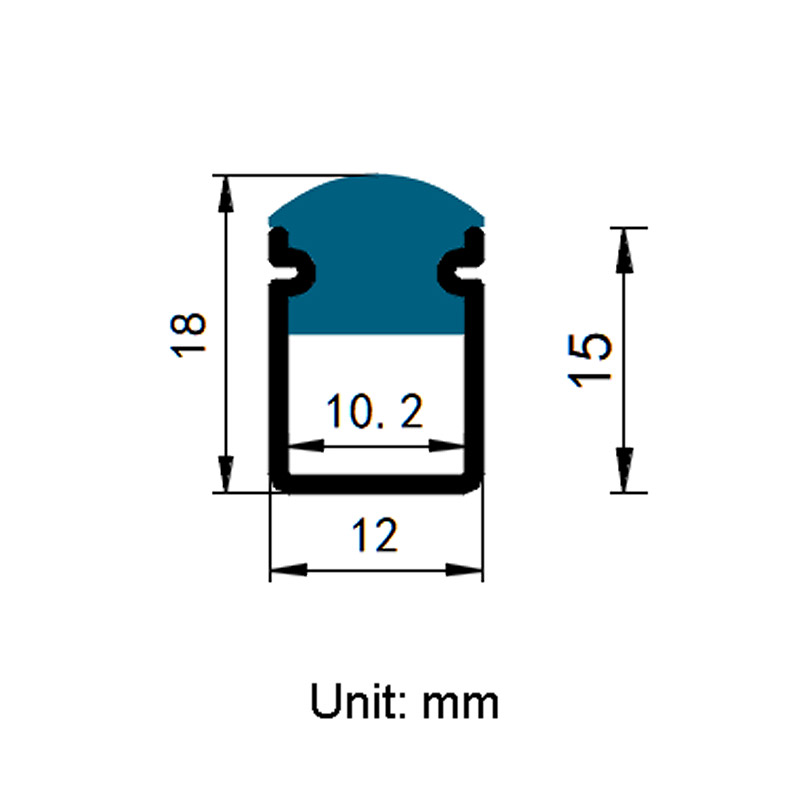

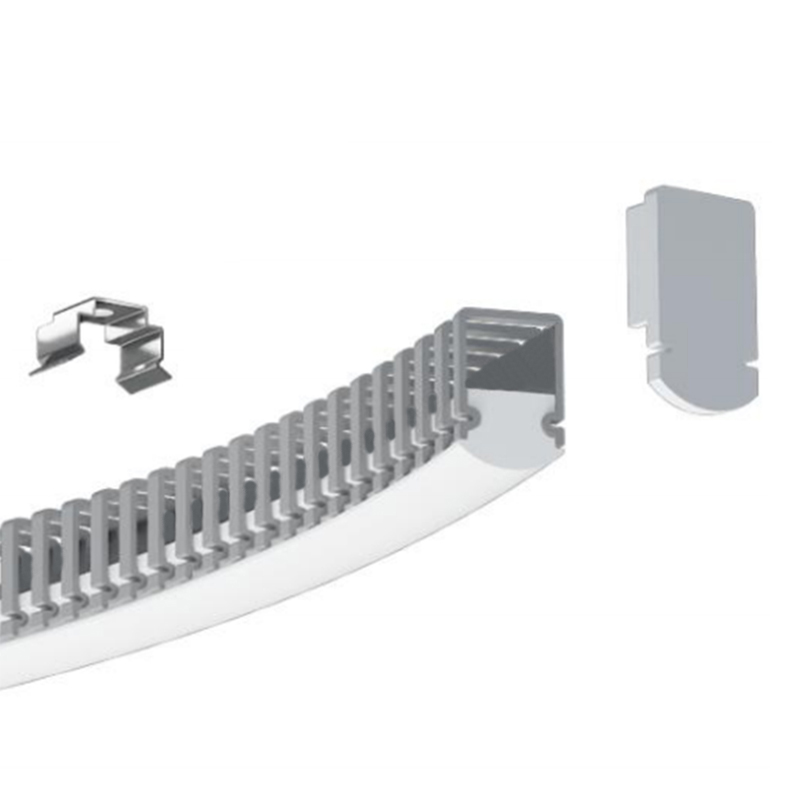

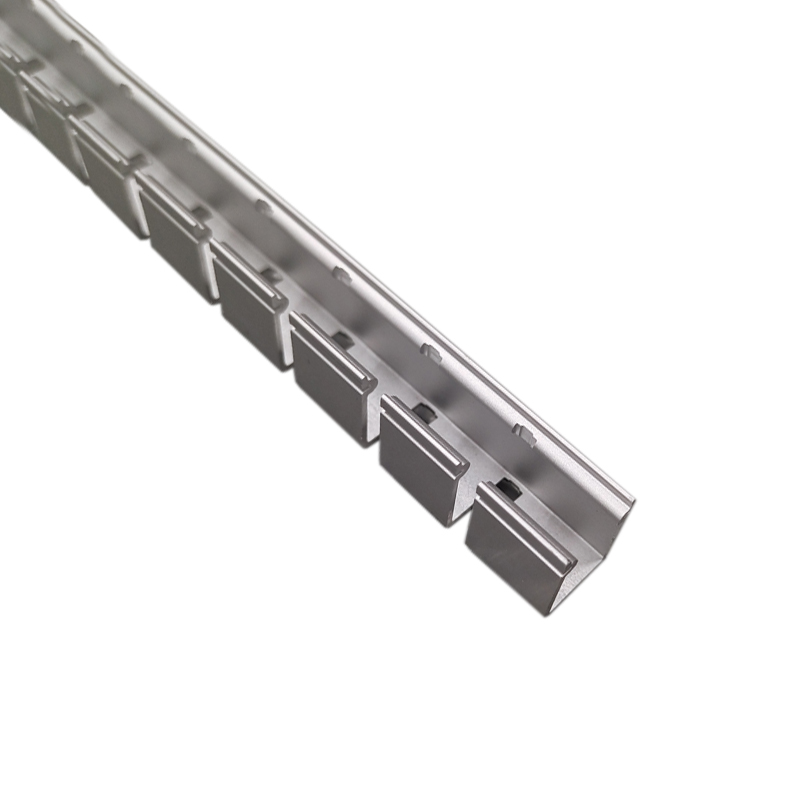

Check this S-shaped flexible led channel with 10.2mm/0.39in inner width, the 8mm led light strip is attached to the side of the dragon skeleton, comes with a silicone LED diffuser, two end caps, and fixing clips to complete the look. The LED diffusion light effect of each soft silicone led strip diffuser is different. The bendable LED channel diffuser can smooth the LED light to obtain a linear and spotless lighting effect. You can choose a silver, white, or black aluminum housing to suit your fashion style. 1m and 2m bendable LED aluminum channels are available.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||Opal matte diffuser /semi-clear matte diffuser /clear diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||10mm 5050/2216/3014/2835/3528 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel

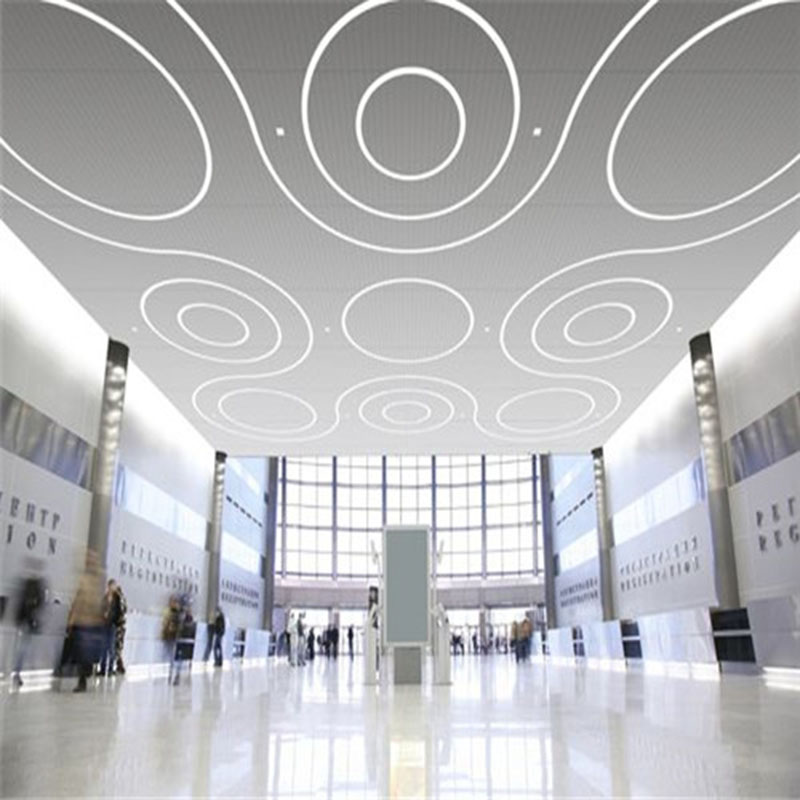

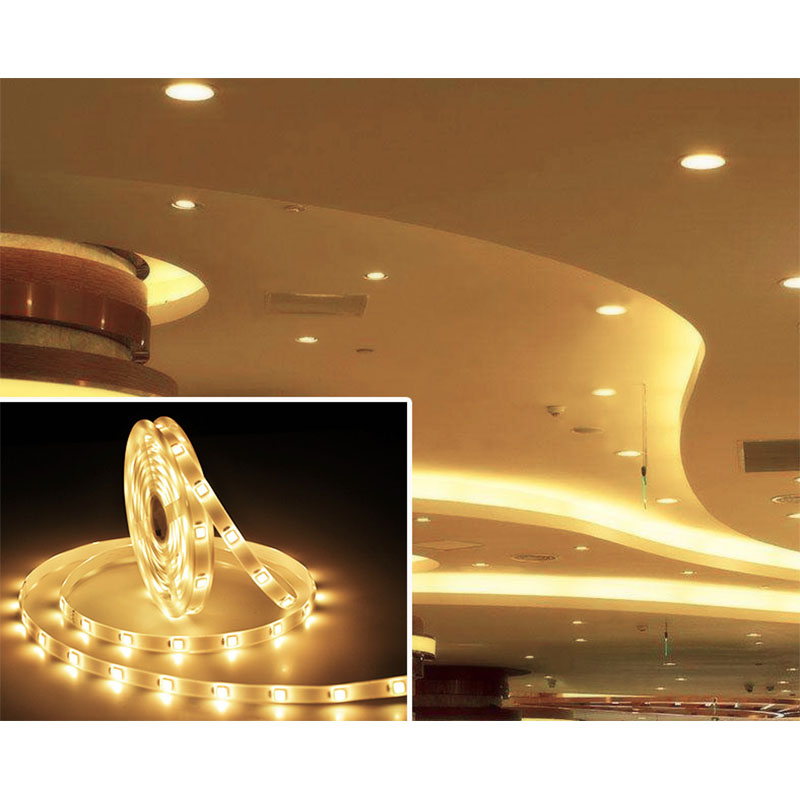

Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
