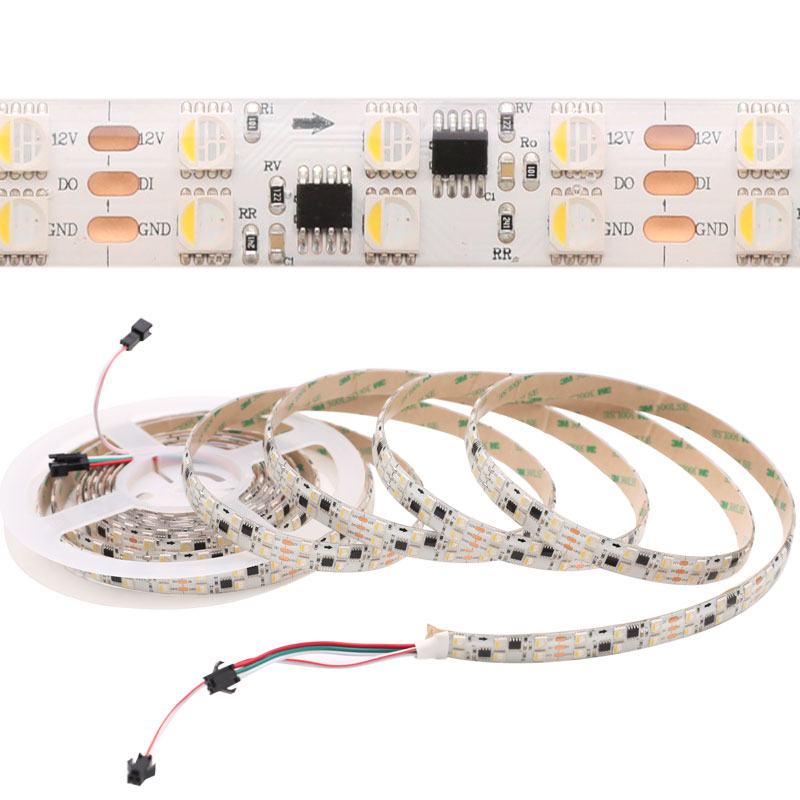

DC12V Double Row High-Density 120LEDs/m Addressable RGBW TM1814 LED Strip Light 16.4FT

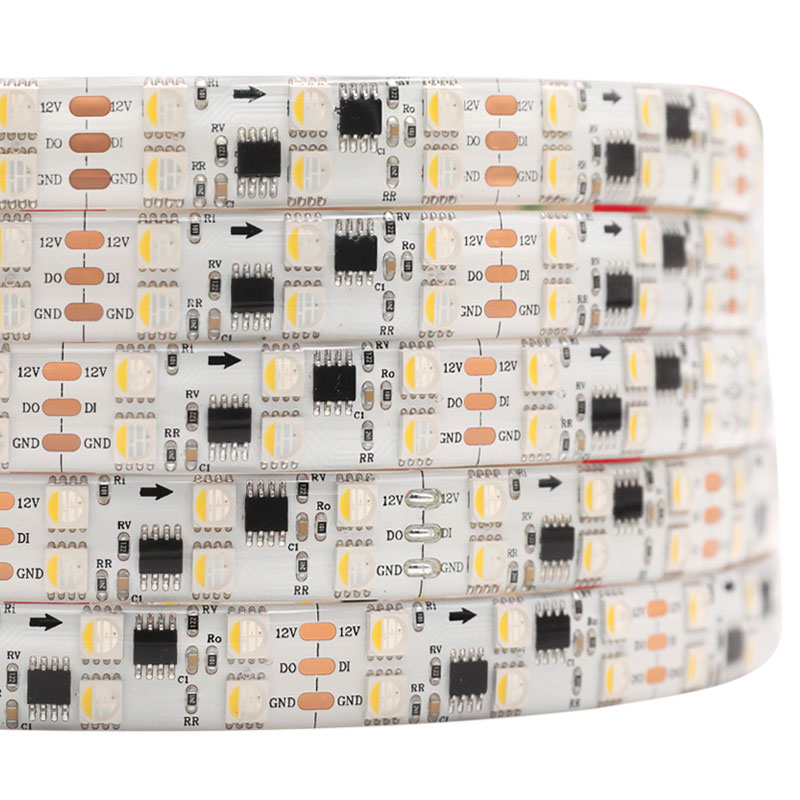

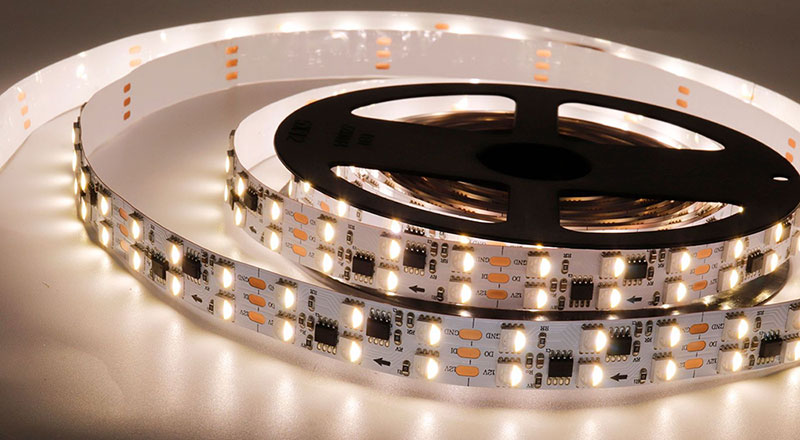

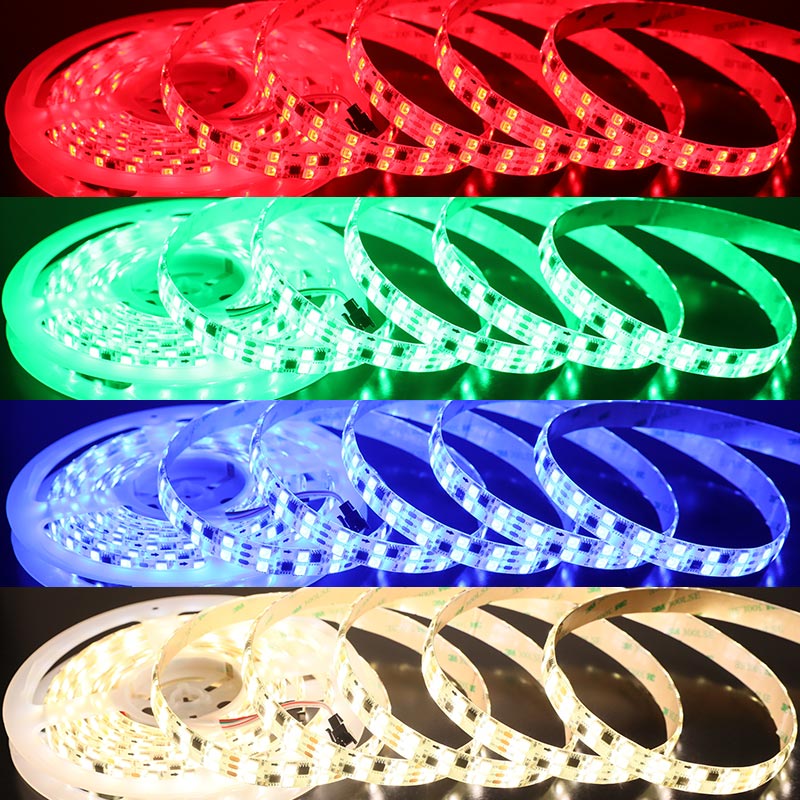

Check this Double Row TM1814 LED Strip for your lighting project, it uses 5050 4-in-1 SMD LEDs as the light source, each LED has four channels, R, G, B, WW/CW/NW, to mix color, providing more options than standard RGB LED. You can choose the RGB+CW type, or RGB+WW, or RGB+NW. The dream color light effects are achieved by a compatible addressable RGBW LED controller.

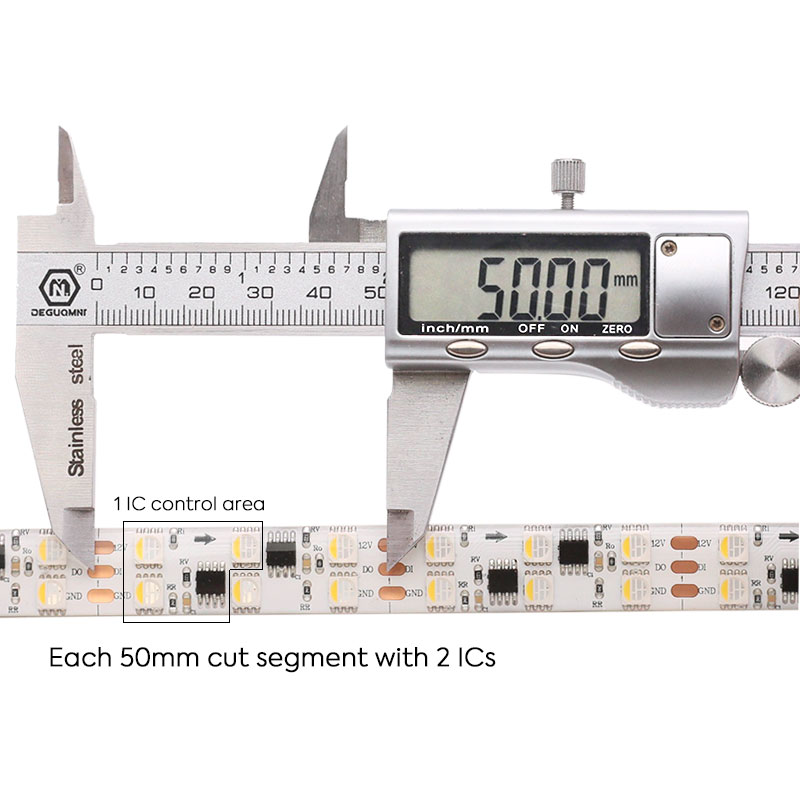

Every six lights (50mm segment) of this TM1814 RGBW LED Strip are a TM1814 IC control area, each area can be its own color and brightness. The High-Density TM1814 RGBW LED Strip has 120 RGBW lights per meter, with higher visual brightness and smaller LED pitches.
This Addressable TM1814 LED Strip is only 13mm/0.51inches wide, you can apply it to any place with such a tight design. If you want a neat and tidy look, please look for our Silicone Neon LED Diffuser Series and LED Aluminum Profile Series.
About Color Temperature Changes Of Waterproof LED Strip Lights:

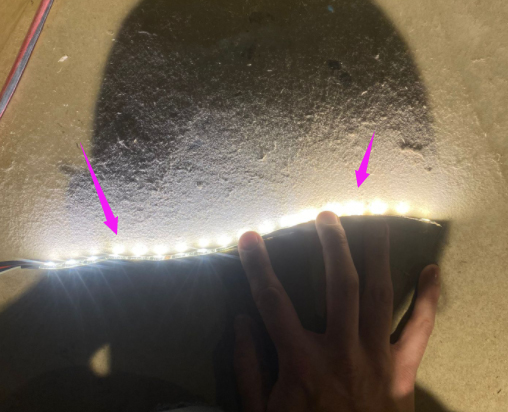

IP65 and IP68 LED strip lights will increase the color temperature of 1000K, so the RGB+3000K will be like the RGB+4000K. You can see the following image, the left is 3000K IP65, the right is 3000K IP20.
Standards and Certifications
|LED Strip Type:||SMD5050 TM1814 RGBW LED Strip 600LEDs/16.4ft|
|LED Chip:||TM1814 IC|
|Power:||18.72W/m, 93.6W/16.4ft Max|
|LED Color Temperature:||Addressable RGB + 6000K Daylight White / 4000K Natural White / 3000K Warm White|
|PCB Width:||13mm / 0.51"|
|LED Quantity:||120 LEDs/m|
|Quantity of IC:||20 ICs/m, 100 pixels per roll|

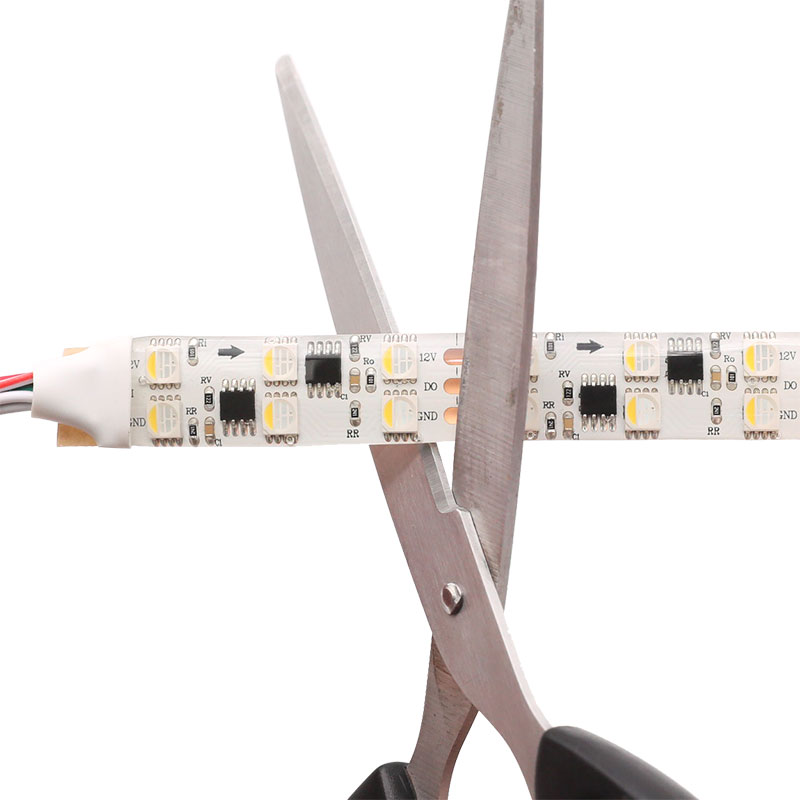

|Cuttable:||6 LEDs / 50mm (1.96in)|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
TM1814 LED strip wiring diagram:
