Product Information

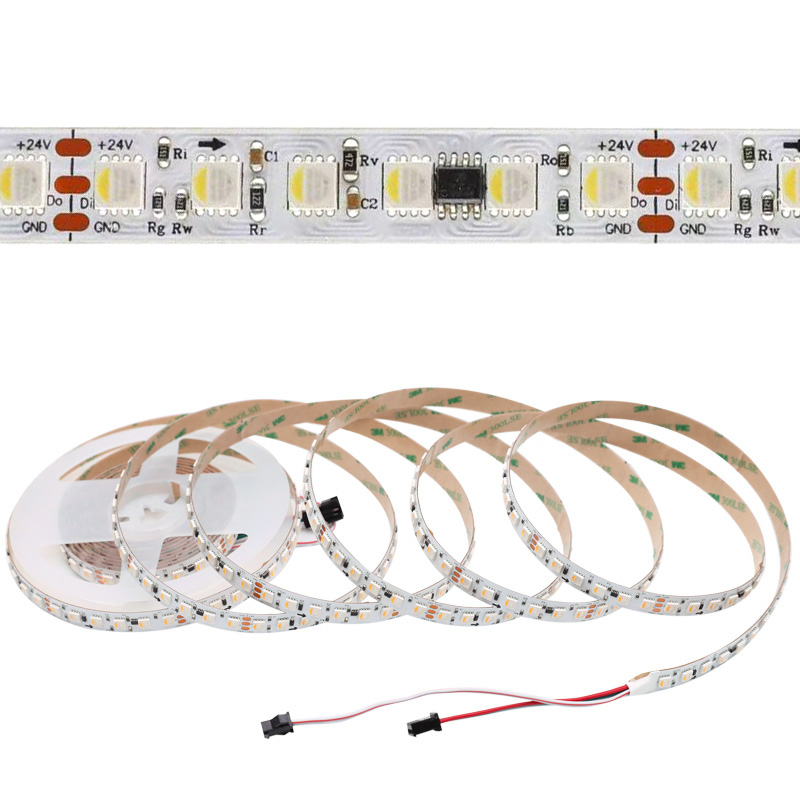

Check our TM1824 RGBW led strip addressable with higher density SMD5050 96LEDs/m. TM1824 RGBW is similar to SK6812 RGBW, R/G/B/W port 18mA constant current output, data transmission rate 800KHz.
LED RGBW digital addressable strip combines red (R), green (G), blue (B), and white (W) into one SMD LED, by controlling each color independently through a simple CONFULL-SP639E Bluetooth SPI controller, a variety of colorful lighting effects can be achieved. LRS-100-24 power supply in the kit.
PLEASE NOTE: The smaller FW1824 IC version has been discontinued, so we will ship the larger TM1824 IC version instead.
• TM1824 SMD5050 96LEDs/m RGBW type: 24V input; 12mm wide; 16 pixels per meter; 16.4W/m; 6-LED/2.5in cut segment, white PCB, 5 meters per roll. For customers requiring RGBA (Red + Green + Blue + Amber) dynamic color capabilities, this LED strip requires a minimum order quantity of 200 meters for production.
• TM1824 SMD4040 100LEDs/m RGBW type (Model TM1824-4040RGBW-100D, please click to buy): 24V input; 10mm wide; 10 pixels per meter; 18W/m; 10-LED/4in cut segment, white or black PCB, up to 20 meters long.
Product Specifications
| Item Type: | SuperLightingLED TM1824 RGBW 24V LED Strip Addressable |
| Chip: | TM1824 IC + SMD5050 LED |
| Input Voltage: | DC24V |
| Dimensions: |

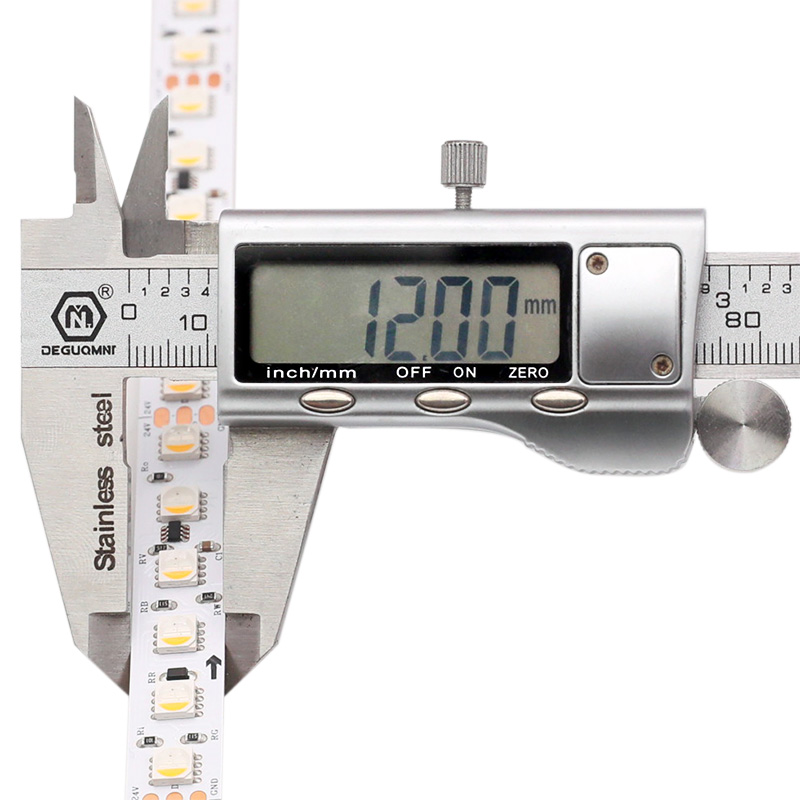

L5m/16.4ft x W12mm x H2mm (IP20); W12mm x H3-4mm (IP65); W14mm x H6mm (IP67 IP68) |
| Light Color: | RGB+White 2300-2500K / 3000K / 4000K / 6000K |
| PCB Color: | White only |
| LED Density: | 96 per meter, 29 per foot |
| IC Pixel: | 16 per meter, 80 per roll |

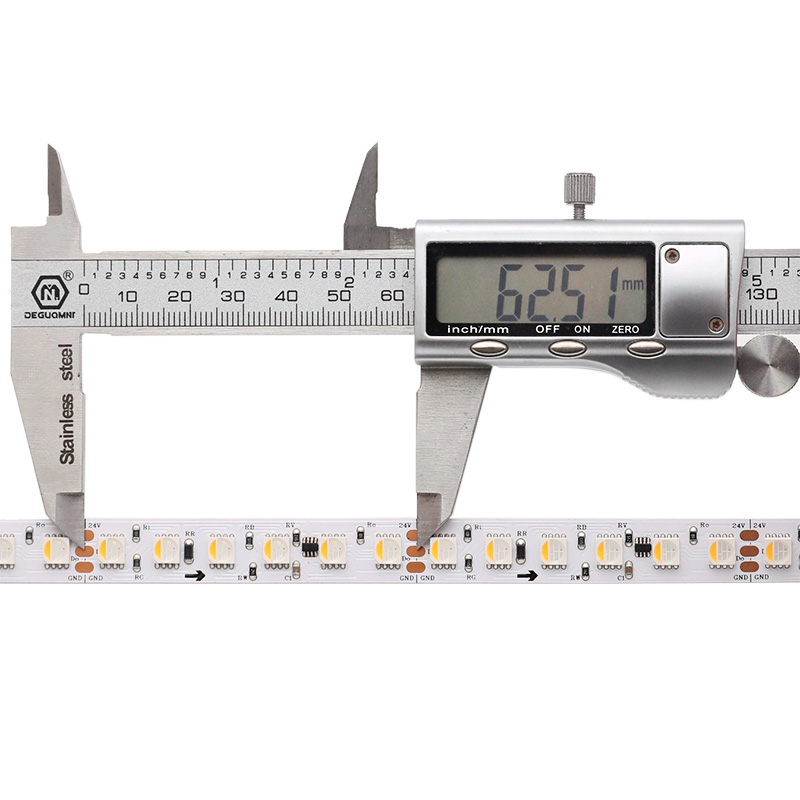

| Cut Segment: | 6 LEDs, 62.5mm (2.5in) |
| Power: | 16.4W/m, 5W/ft, 82W/roll |
| Working Temperature: | -20℃ ~ +45℃ |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP65 IP67 IP68 |
| Beam Angle: | 120° |
| Connector: | JST SM female male 3-pin connectors + 2-pin connectors |
| Dimming & Control: | Via TM1824 controlers (sold separately) |

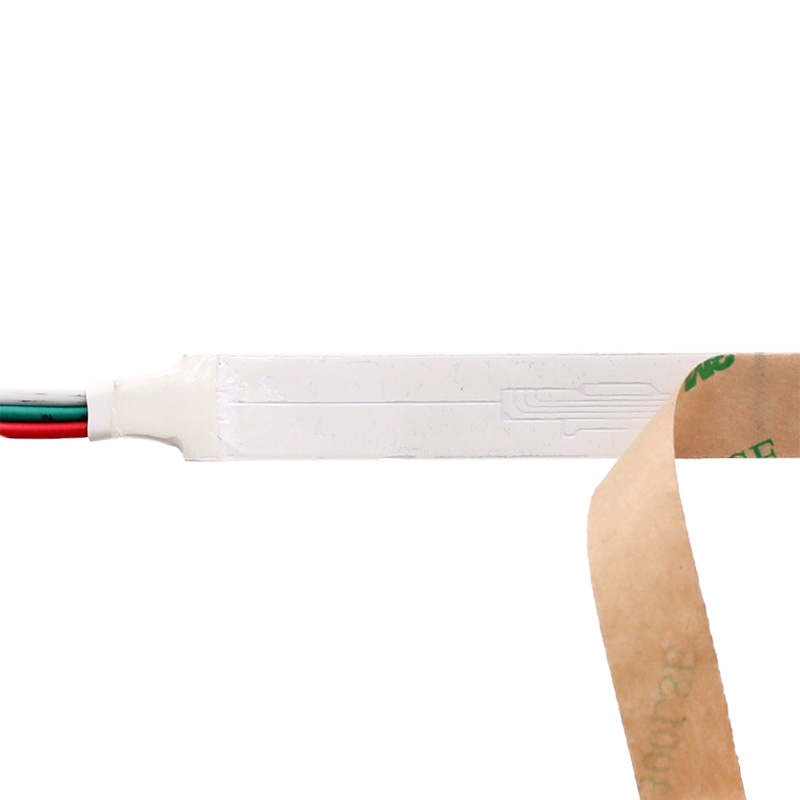

| Installation: | Adhesive backing |
| Lead Time (excluding shipping): | 3-4 workdays (IP20 IP67), 5-6 workdays (IP65 IP68) |
| Applications: | Entertainment spaces like bars, nightclubs, KTV venues, live music venues, game rooms |
| Available Accessory: | 3-pin SMD solderss connectors (12mm PCB) |
TM1824 RGBW Led Strip Wiring Diagram
