24 Volts 84 Light/m Higher Density 5050 RGB Led DMX Enabled Lighting Tape

Model: DMXRGB-UCS512-24V5050X84 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $48.98
Qty Discounts Off Price
1-9
$48.98		 10-19
$48.25		 20-39
$48.00		 40+
$47.51
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

82 Lights/Meter LED UCS512 Strip | Reliable Standard for Professional-Level Atmosphere Light Effects

In commercial and professional environments where superior lighting effects are sought after, the 82-led/m rgb led tape dmx is undoubtedly the ideal choice for you. With its high-density LED layout and direct DMX control technology, this flexible lighting strip brings unparalleled dynamic effects to your project.

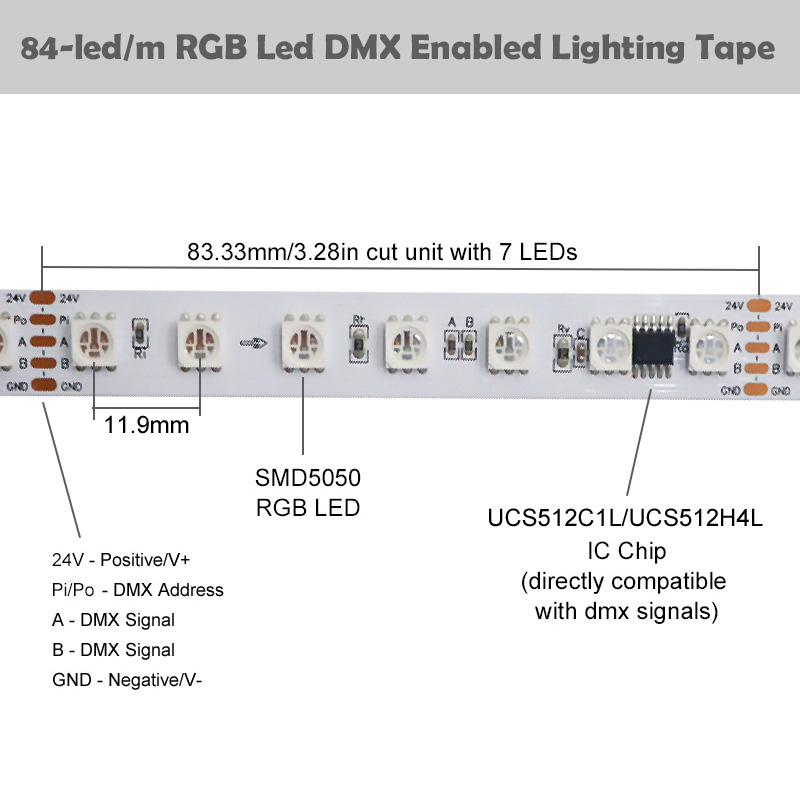

Every two LEDs are spaced 11.9mm apart, providing higher brightness and more even light distribution than standard densities for scenes with high demands on lighting effects. Every 7 LEDs form a UCS512 IC control unit with a total of 12 independent color intervals per reel for fine color control.

Strips with integrated UCS512H4LB or UCS512C1L IC chips are directly compatible with DMX control signals without the need for an additional decoder, simplifying the installation and commissioning of DMX systems.

Click Here For Professional DMX Controller
Click Here For XLR DMX Connectors



How to control RGB DMX lights with smart DMX 512 controller?

This 24V 82-Light DMX RGB Model has 60 DMX IC pixels or 180 DMX address channels over a length of five meters.

Our WiFi dmx led controller SPIW5 Model (controller in the kit) supports the control of 512 channels, can directly connect to dmx RGB or RGBW or RGBCCT led tape strips, and switch the color modes via Tuya APP and wireless RF remote control. This wireless control method will be more convenient for home users. LRS-150-24 power supply in the kit to provide constant dc 24V voltage.



Product Specifications

Item Type:  Higher Density 5050 RGB Led DMX Enabled Lighting Tape
LED Chip:
SMD5050
Input Voltage:  DC24V
Power:
18w/m, 90w 5m-roll
LED Color:  Addressable RGB (DMX512 directly compatible)
PCB Width:  12mm
LED Quantity:  84LEDs/m, 420/roll
IC Type:  SOP10 UCS512H4LB or UCS512C1L
IC Quantity:

12 ICs/m ( 1 IC controls 7 LEDs),

60 for 5m, 180 addresses.
Cut Unit:
83.33mm/3.28'', 7 LEDs can be cut
Waterproof Rating:  Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68
Length:  5m/16.4ft
Working Temperature:  -20℃ ~ +45℃
Lifespan: 50,000+ hours
Beam Angle:  120°
Lumen: 20-22 lm/LED



Higher Density 5050 RGB Led DMX Enabled Lighting Tape



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DMXRGB-UCS512-24V5050X84
PDFDMXRGB-UCS512-24V5050X84 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

24 Volts 84 Light/m Higher Density 5050 RGB Led DMX Enabled Lighting Tape24 Volts 84 Light/m Higher Density 5050 RGB Led DMX Enabled Lighting Tape24 Volts 84 Light/m Higher Density 5050 RGB Led DMX Enabled Lighting Tape

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
IC on this model: UCS512H4L · UCS512C1L. Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Connector options on this model: 5-pin XLR Connectors · JST Fast Connectors. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 12mm (0.47in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
