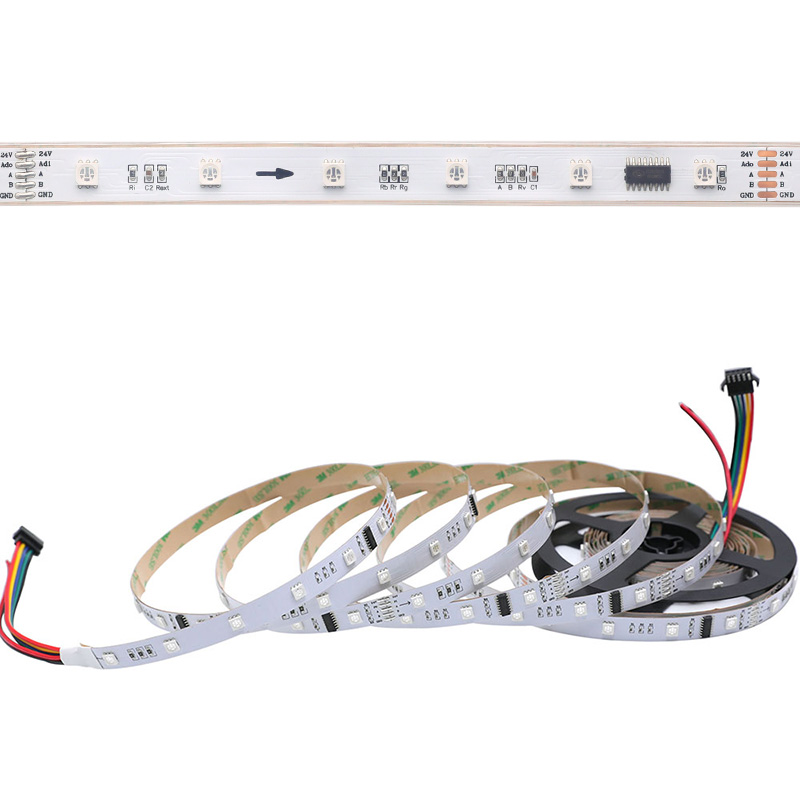

DMX512 RGB DC24V 180 LEDs Full Color Digital LED Strip Light-16.4Ft/Roll
1. Using FPC with better flexibility as the base material, FPC has good electrical conductivity, fast heat dissipation, bending resistance, and can be bent into any shape at will
2. Adopt SMD5050RGB LEDs and use external driver chip DMX512 to realize the addressable and programmable digital light strip
3. Compatible and extended DMX512 (1990) signal protocol, the control method is the differential parallel connection, built-in 485 decoding module, strong anti-interference ability
4. Support the operation mode of the first installation and then writing code, and any animation effect of the product can be realized through controller programming
5. Using a low-voltage DC24V power supply, it is safer for users to use
6. Can be made into a variety of waterproof levels, non-waterproof IP20/waterproof IP65/67/68
Standards and Certifications
LED Chip: DMX512 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

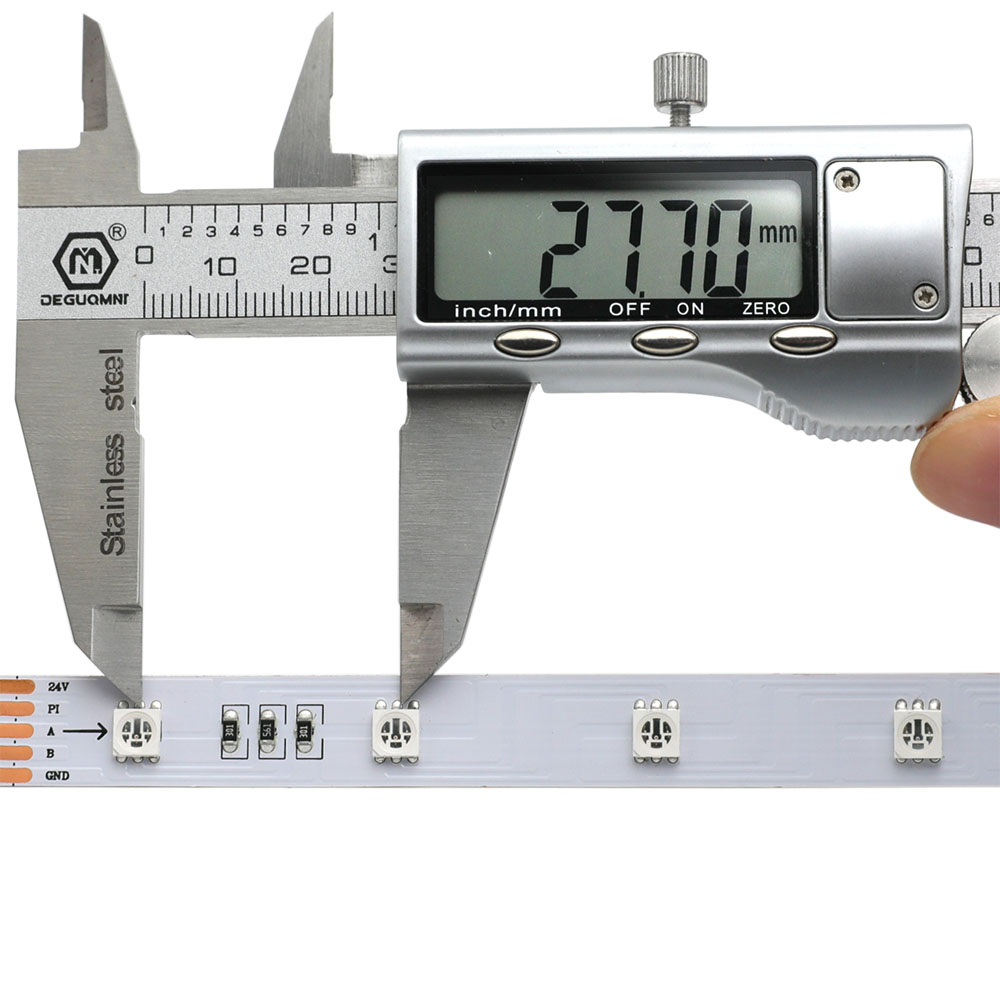

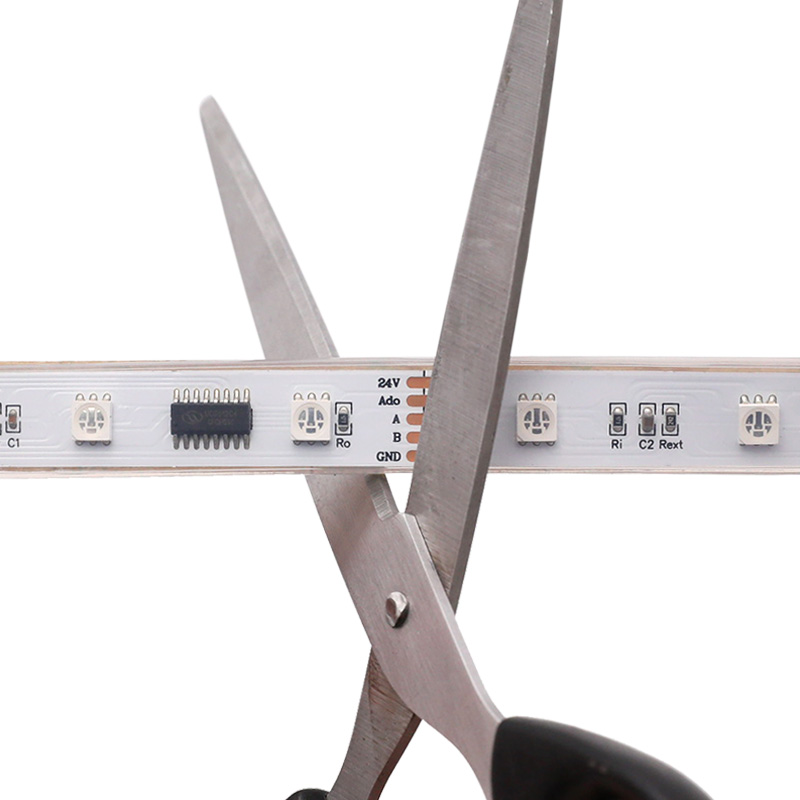

Dimension: 16.4ft/roll, six LEDs can be cut
LED Quantity: 36 LEDs per 1meter (3.28 ft)
IC Quantity: 6 ICs per 1meter (3.28 ft)

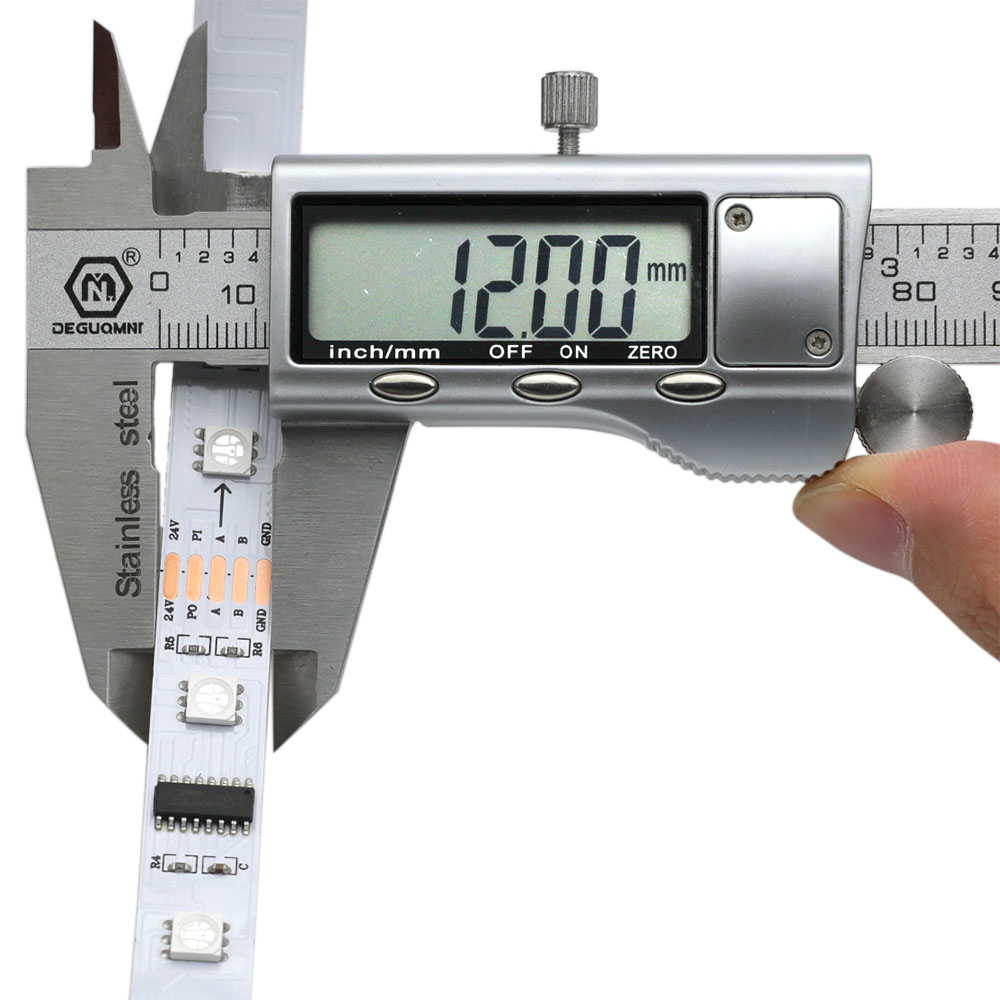

PCB Width: 12mm/ 0.47in
Warantty: 3 years
Input Voltage(V): 24VDC
Working Power: 8.4W/m 42W/16.4ft/Roll Max
Beam Pattern: 120 degrees
Water Proof: Waterproof IP20/IP65/IP67/IP68
Lighting Color: Full Color RGB
1*5M DMX512 LED strip light
1. Please read the specification carefully before using the product
2. The power supply must be DC24V
3. Live work is strictly prohibited
4. It is forbidden to use any acidic or alkaline adhesive glue to contact this product
5. It is forbidden to press hard on the surface of the LED
6. Installation, repair, and maintenance must be performed by professionals, and non-professional operations are prohibited
7. Make sure there is no error in the connection line before powering
Applicable places: This product is suitable for the lighting project of advertising signs, hotels, bars, KTV, nightclubs, bridges and other building exterior walls and interiors
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
