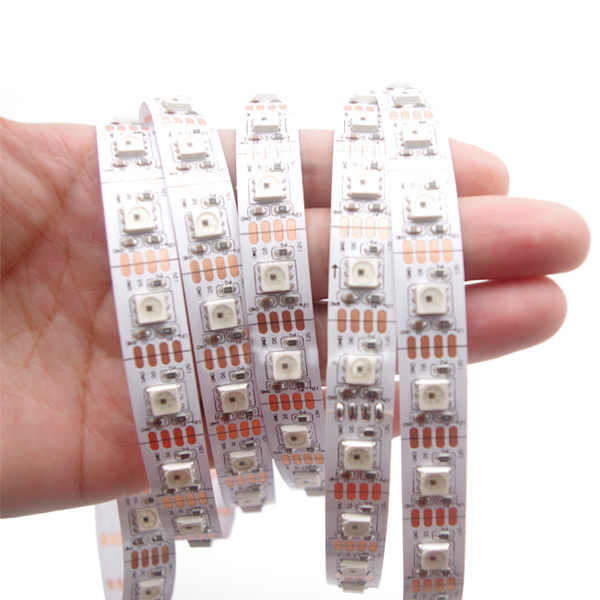

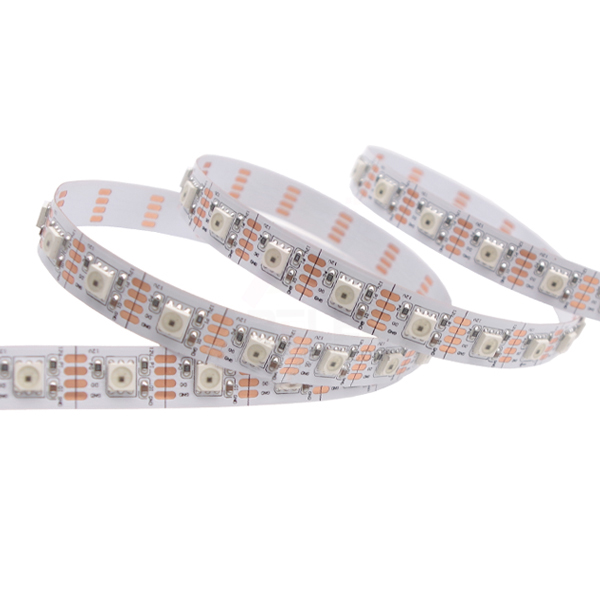

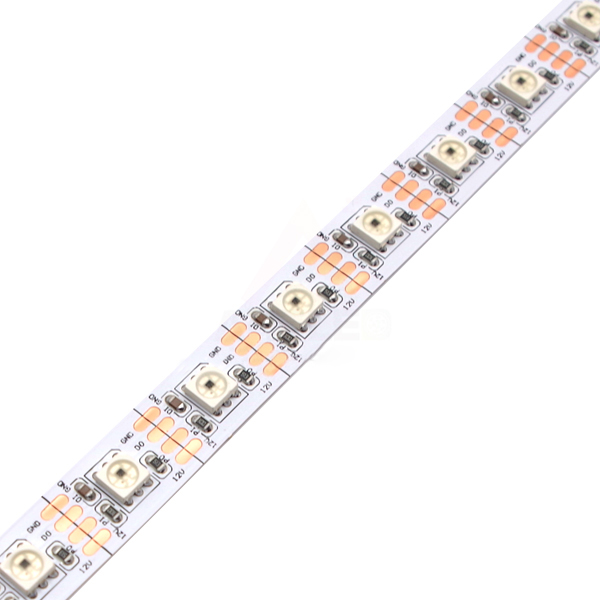

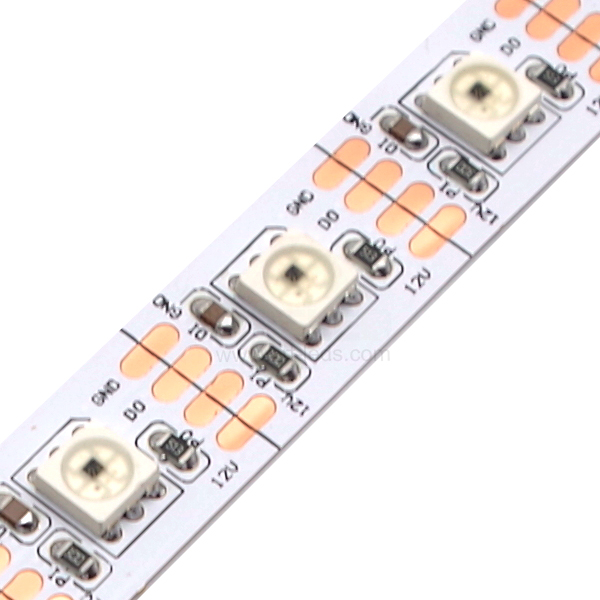

DMX512 RGB DC12V 300LEDs Individually Addressable Programmable Flex LED Strip Lights, 16.4feet/roll
1. This 12v 60 LEDs DMX RGB Addressable Programmable Flex LED Strip Lights!
2. Its advantage is parallel DMX512 signal could avoid LEDs color influenced by the failure of one light in serial connection.
3. The entire strip has 300 pixels, 300 LEDs in a meter with 10mm width PCB board.
4. Addressable 12v DMX512 RGB LED Pixel tape is flexible , bright, durable and easy for installation.
It comes with 4-PIN connectors and separated power/ground wires on both ends.
For bare board strip, you can use the 3M adhesive tape on the back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.
Pls Note: Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system. Otherwise,it will affect the brightness of the LEDs and the service life of the power supply.
This is our recommended T-1000S Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications
LED Strip Type: SMD 5050 300LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 30 per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(127 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 78W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm/16.4ft 402lm/ft 91.7lm/watt Max
Beam Pattern: 120 degree
Water Proof: Non-waterproof IP20 or Waterproof IP67/IP65/IP68
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Light strip size
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
