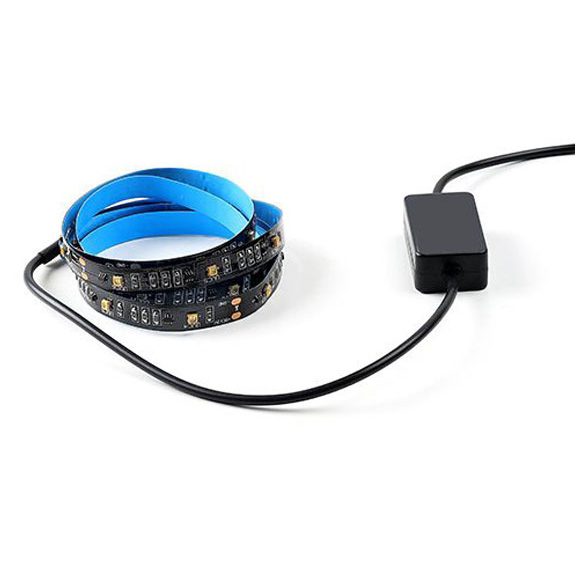

270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft

Model: FSLSR-USB-3535X30UVC Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $34.98
Qty Discounts Off Price
1-4
$34.98
5-14
$34.28
15-24
$33.58
25+
$32.88
* Discounts may vary based on options below
Select Specifications:
Select Kit:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Our UV-C Plug-In LED Light Strip is a compact, high-performance deep ultraviolet light source. It is powered by a power adapter, designed for easy installation, and can be conveniently used in various applications. Equipped with 30 LEDs per meter, and a cuttable length of 3.28ft (1m), 6.56ft (2 meters), 16.4ft (5 meters), it offers high flexibility. (Due to the high voltage and power of the UV LEDs, USB is not recommended, so we switch USB to plug in power adapter.)

The primary application of this UV C LED light strip is sterilization, which can effectively kill or inhibit the growth of bacteria, viruses, and other microbes. It is suitable for homes, offices, hotels, hospitals, and other public places, providing you with a cleaner, safer environment.

260nm, 265nm, 270nm, 275nm, 280nm UVC light has strong bactericidal power, suitable for hospitals, laboratories and other environments that require high-intensity sterilization, as well as daily life and work environments, such as homes and offices.



UVC vs. UVC+UVA

Single-wave UVC light (260-270nm / 270-280nm) with low brightness is invisible to the naked eye; Double-wave (UVC+UVA light, 260-270nm+395-400nm and 270-280nm+395-400nm) can be seen with the naked eye if lit.

Please note that UV C light can be harmful. Direct exposure to the skin and eyes may cause injury. Ensure it is used in the absence of people and pets.



Product Package

This is a complete set that includes a power adapter, a UVC light strip, and a plug. Upon purchase, we will automatically select the suitable adapter to match the voltage and specifications of the light strip you've chosen.

Strip Length Voltage Power Adapter
1m/3.28ft 12V 12V 3A wall plug power adapter
24V 24V 2A wall plug power adapter
2m/6.56ft 12V 12V 6A power adapter
24V 24V 4A power adapter
5m/16.4ft 12V 12V 150W power supply
24V 24V 200W power supply



UVA+UVC LED Strip Datasheet PDF



Product Specifications

CE FCC RoHS ISA SGS ISO LIFETIME

Product Type: Black UV LED Light Strip Kit - Plug In
Input Voltage: DC12/24V
Working Power:

12V - 20W/m, 5.5W/ft - 3LEDs cut (100mm/3.94in)

24V - 32W/m, 9.76W/ft - 3LEDs cut (100mm/3.94in)

Light Color: Unvisible ultraviolet / Blacklight
Wavelength: 260-270nm 270-280nm UVC, UVC+UVA 390-400nm
Strip Length: 3.28ft (1m), 6.56ft (2m), 16.4ft (5m)
LED Quantity:  30 LEDs per meter, 9 LEDs per foot
Lifespan: 50,000+ hours
Dimensions: 10mm width
Luminous efficiency: 90
Beam Pattern:  120 degree
Waterproof Rating: Non-Waterproof IP20
Package:  LED Strip + Power Adapter + AC plug



270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLSR-USB-3535X30UVC
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft270nm/275nm/280nm USB-Powered SMD3535 LED UVC Light Strip 30LEDs/m 3.28ft~16.4ft

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?
This model is offered in DC24V · DC12V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
