Product Information

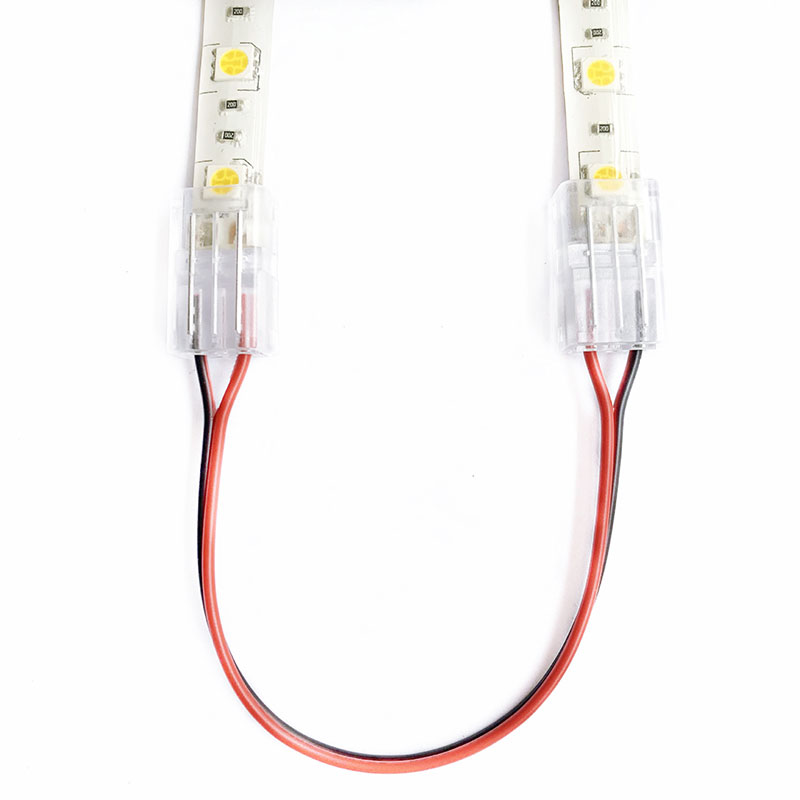

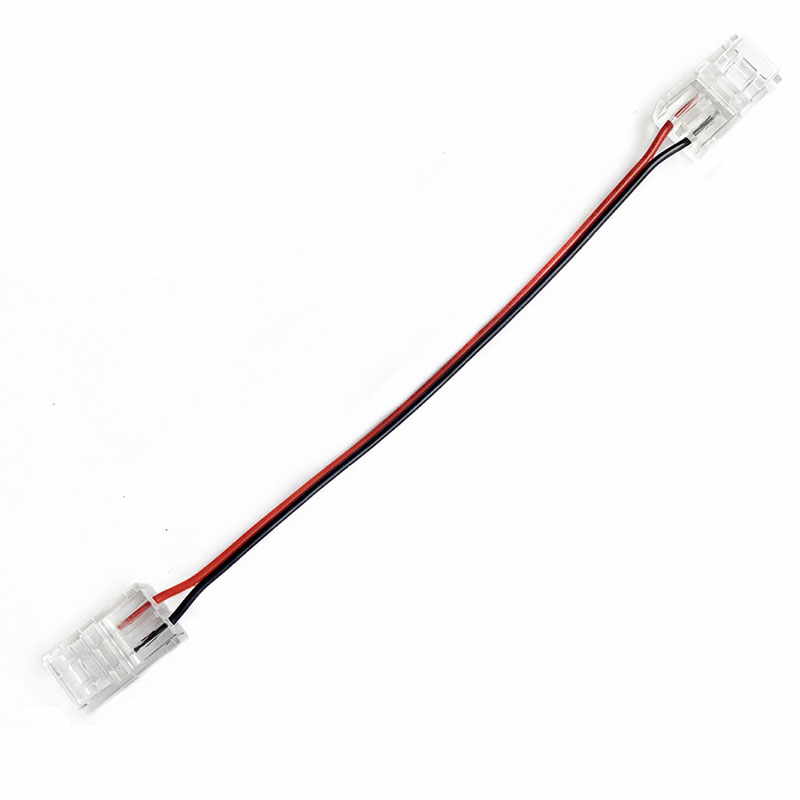

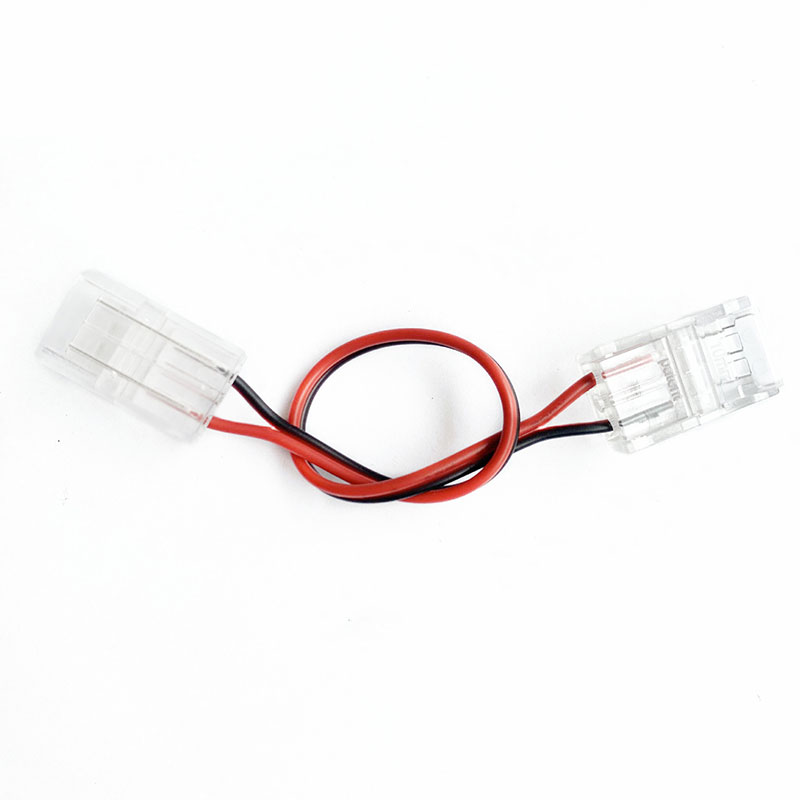

Bridge gaps and navigate obstacles in your lighting layout with the SC-ACCESSORIE-2PIN-E Strip-to-Strip LED Extension Cable. This 2-pin connector is engineered to join two separate sections of single-color LED strip, providing a flexible 140mm (5.5-inch) link perfect for making clean turns around corners or jumping over obstructions in under-cabinet and cove lighting installations. Its solderless design ensures a quick, reliable connection without any special tools. Available for both 8mm and 10mm wide PCBs, this connector features a transparent housing that minimizes light blockage, helping to reduce dark spots and maintain a uniform glow across your entire lighting run. It's an essential accessory for creating custom, continuous lighting arrays with professional results.
Key Features
Solderless Strip-to-Strip Connection
Quickly link two LED strip segments using a secure clamp-down mechanism, no soldering required.
Dual Width Compatibility
Available in two sizes to perfectly fit standard 8mm and 10mm wide 2-pin single color LED strips.
Flexible 140mm Extension
The 5.5-inch cable provides ample length to cleanly navigate 90-degree corners and bridge gaps between surfaces.
High-Clarity Transparent Housing
The clear connector body allows light to pass through, effectively reducing shadows at connection points for a seamless look.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | SC-ACCESSORIE-2PIN-E |
| Product Type | 2-Pin Strip-to-Strip Extension Connector |
| Cable Length | 140mm / 5.5 inches |
| Compatible PCB Width | 8mm (0.31in) or 10mm (0.39in) |
| Pin Count | 2 |
| Compatible Strip Type | Single Color SMD LED Strips |
| Connection Method | Solderless, Clamp-down |
| Housing Material | Plastic |
| Housing Color | Transparent |
| Compatible IP Rating | IP20 (Non-waterproof), IP65 (Silicone Coated Top) |
Ideal for Custom LED Strip Layouts
How to Use This 2-Pin Extension Connector
- Ensure the power to your LED strip is completely turned off before installation.
- Choose the connector size (8mm or 10mm) that matches the PCB width of your single-color LED strip.
- Gently pry open the transparent hinged cover on one end of the connector.
- Slide the cut end of your LED strip into the connector, making sure the copper contact pads are positioned directly under the two metal prongs.
- Verify that the '+' and '-' polarity markings on the LED strip align with the corresponding side of the connector.
- Press the transparent cover down firmly until it snaps shut. This action pierces the contacts and secures the strip.
- Repeat the process for the second LED strip section at the other end of the cable.
- Briefly restore power to test the connection. If it works, disconnect power and complete your installation.
- This connector is designed exclusively for 2-pin single color LED strips. It will not work with RGB, RGBW, or other multi-pin strips.
- Using an 8mm connector on a 10mm strip (or vice versa) will result in a failed connection. Always match the connector to your strip's PCB width.
- If using with IP65 silicone-coated strips, you must carefully remove the silicone layer from the copper contact points before inserting the strip into the connector.
What's in the Box
- ✓1 x Strip-to-Strip LED Connector 2 Pin Extension Cable
Frequently Asked Questions
Q: How do I fix an LED light strip connector if it's not working?
A:First, ensure power is off. Re-open the clasp and check that the strip's copper pads are clean and directly under the metal prongs. Also, confirm the polarity (+ to +) is correctly aligned. A secure, firm snap when closing the cover is essential for a good connection.
Q: How do you connect LED light strips with connectors like this?
A:It's a simple, solder-free process. You open the connector's clasp, slide the end of your LED strip in (aligning the + and - marks), and snap the clasp shut. This extension cable allows you to do this on both ends to join two separate strips.
Q: Are LED strip light connectors universal?
A:No, they are not. This specific connector is for 2-pin single color LED strips and comes in 8mm and 10mm widths. You must match the pin count and PCB width of your strip for the connector to work.
Q: Can I use this LED strip extension cable for a 90-degree corner?
A:Absolutely. The flexible 140mm cable is ideal for making clean turns around corners without needing to fold or potentially damage the LED strip itself.
Q: Will this work with waterproof (IP65) LED strips?
A:Yes, it is compatible with strips that have a top silicone coating (IP65). However, you must first carefully peel or scrape away the silicone from the copper contact points to ensure the metal prongs can make a direct connection.
Q: What is the total length of this connector?
A:The total length, including the connectors at both ends, is approximately 140mm or 5.5 inches, providing a flexible bridge between two strip sections.
