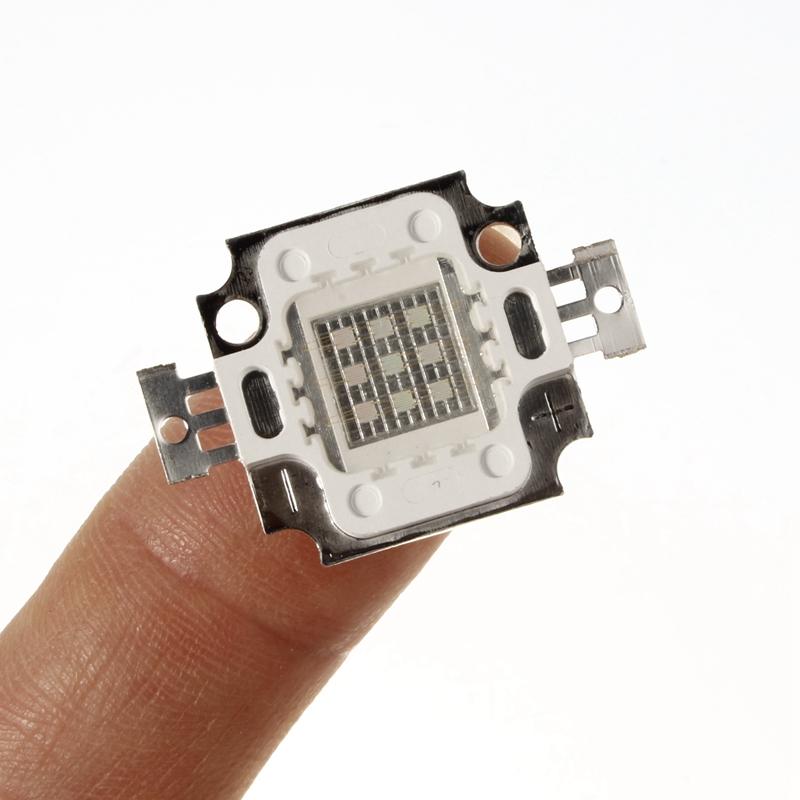

10W/20W/30W/50W/100W UV LED COB Chip, High Power Ultraviolet DIY Light Chip
What are the advantages of UV LEDs? UV LED combines long life, clear line spectrum, impact resistance, environmental protection (lead-free mercury welding), power can be adjusted by current, open circuit and instant shutdown, etc., and there is no infrared radiation (for heat-sensitive materials). Used under vacuum and low-temperature conditions, and in UV processing, photocatalysts play a role in various fields.
Voltage: DC9-11V(10W), DC32-34V(20-100W)

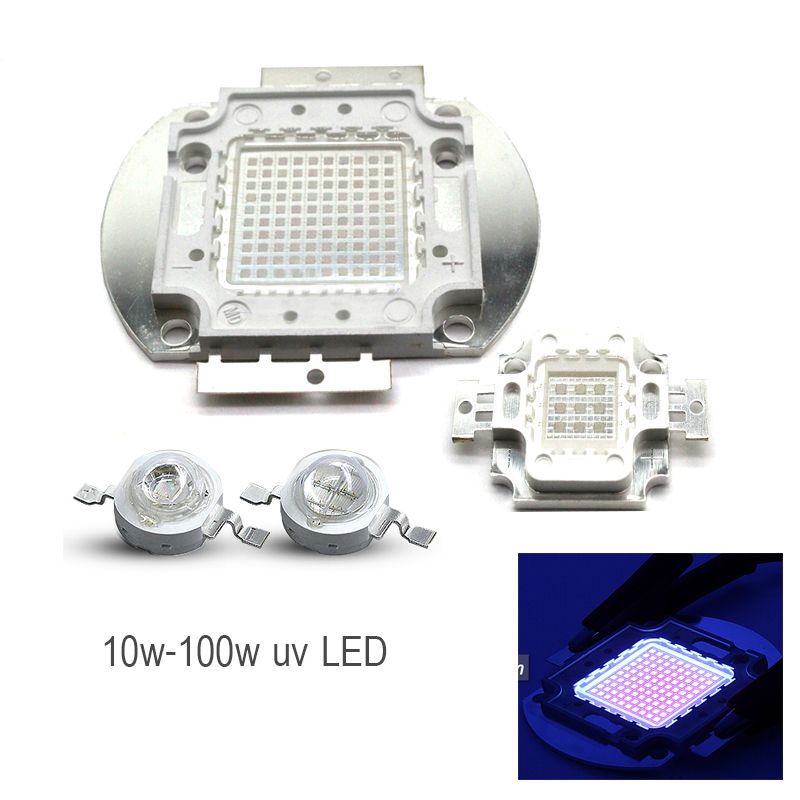

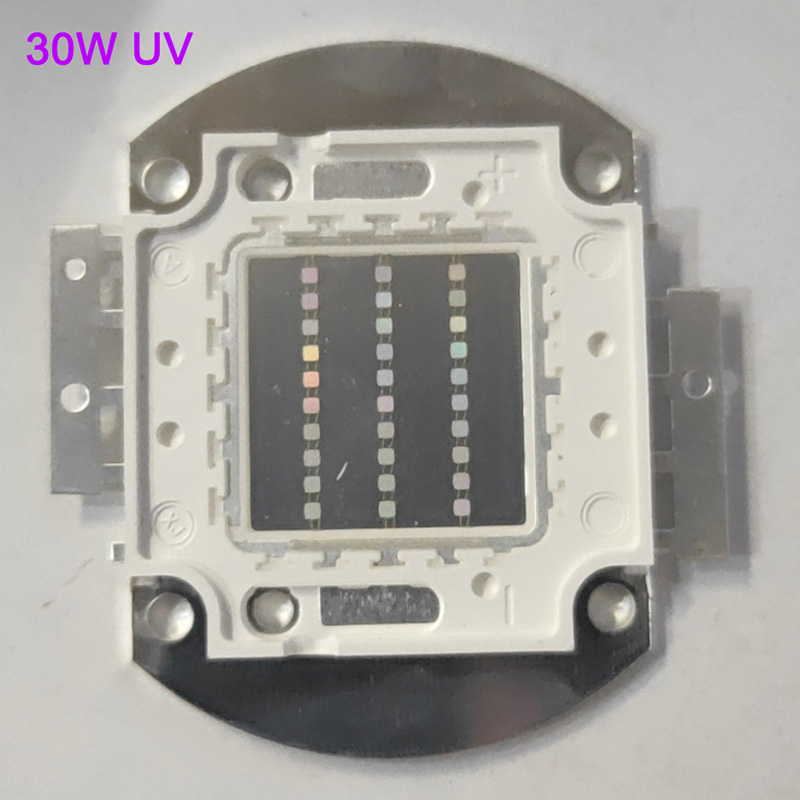

Rated Power: 10W/20W/30W/50W/100W
Chip Brand: Epistar
Chip Size: 45MIL
Illumination Color: violet

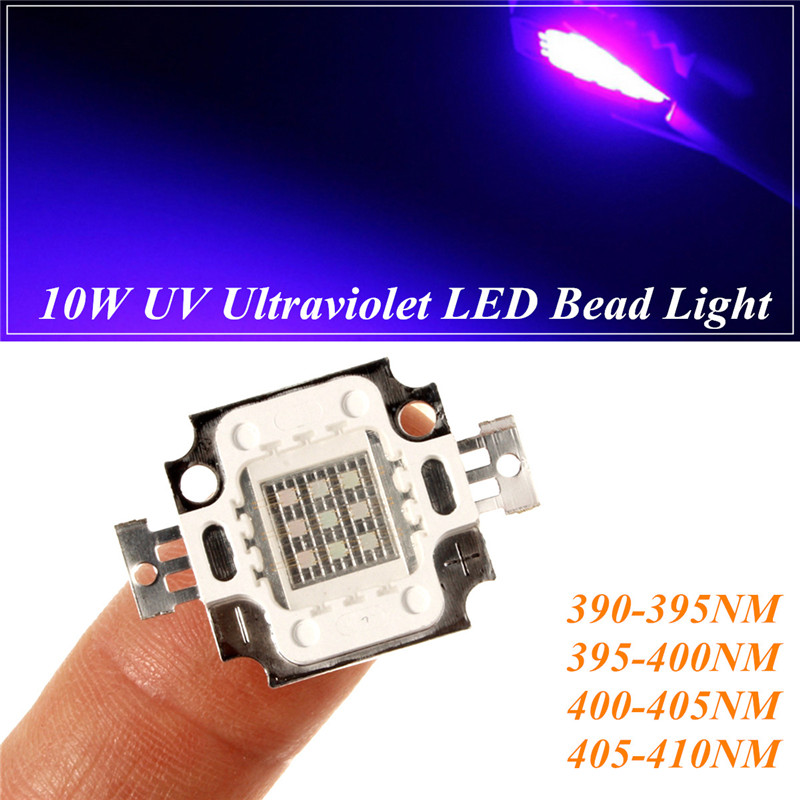

Color Wavelength: 360Nm / 375Nm / 385Nm / 395Nm / 400Nm / 405Nm / 410Nm / 415Nm / 425Nm
Current: 600-700mA (20W), 900-1000mA (10W / 30W), 1600-1700mA (50W), 3200-3500mA (100W)
Voltage: 9V-11V (10W), 30V-34V (20W / 30W / 50W / 100W)
Beam Angle: 120°

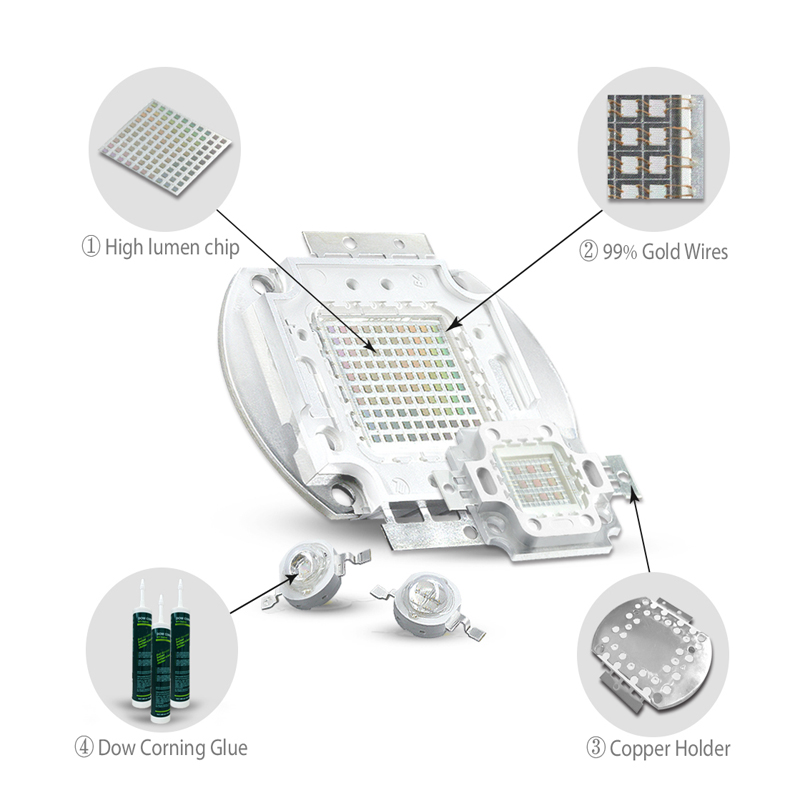

Sealing Material: 2-99% gold wire, copper lining.
Working Life: 50,000 hours
Working Temperature: -30+ 85℃
Welding Temperature: 120℃ within 5 seconds

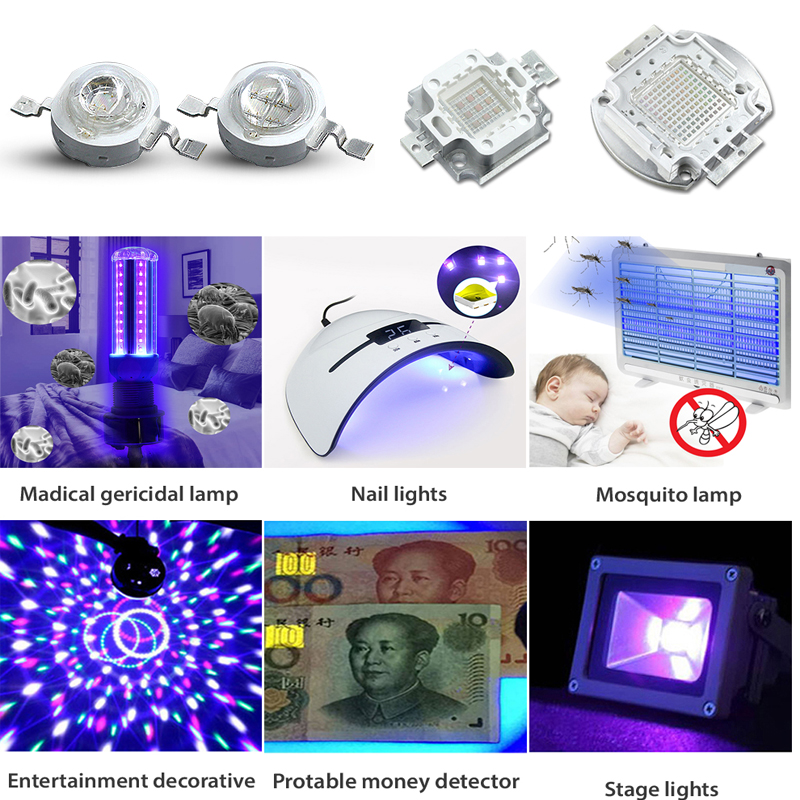

Application: curing, inspection, disinfection, scanning, printer, anti-counterfeiting, investigation
UV can be mainly applied
The blue surface with 395nm~430nm UV wavelength stripes is suitable for fishing, reflecting light and low brightness; 385nm energy can sterilize 400 joules of baking glue, which is purple; 375nm light energy is 1000 joules, suitable for baking glue; yellow 2000 joules above 365nm, Special industrial UV curing.
UV glue polymerization (ink polymerization)
Air-conditioning system leak check and automatic circulation

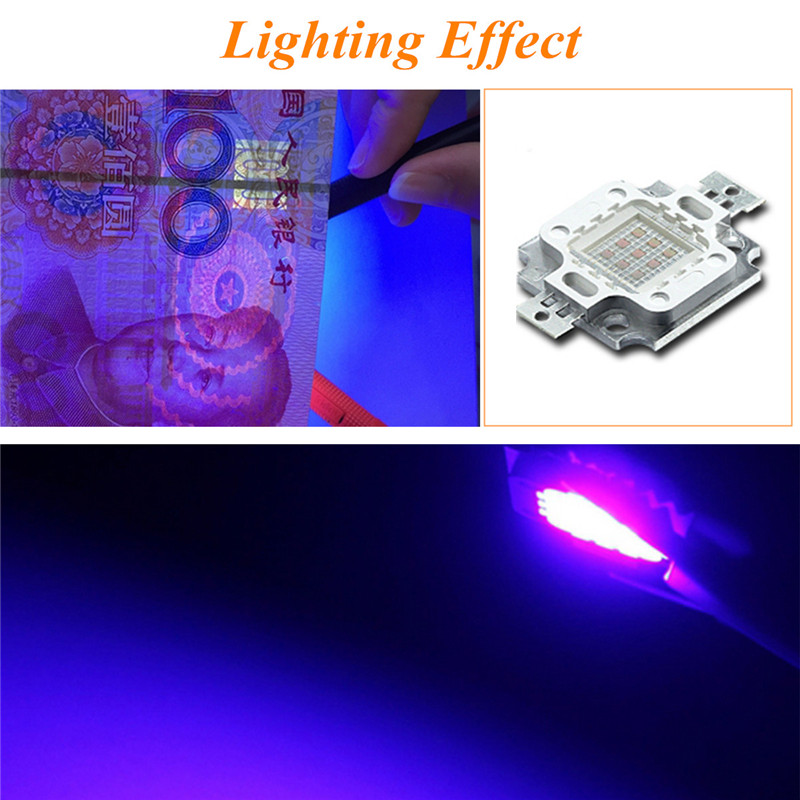

Currency Security Assessment (RMB USD HKD EUR GBP)
Special inspection for gas and oil and gas leaks
Search for novel treasures and find ore and land finder tools
Fluorescence reflection of special materials
