3528SMD DC12/24V 48W Infrared 940nm/850nm IR LED Light Strip - 600LEDs Flexible Night LED lighting
Related Products
3528SMD DC12/24V 48W...
$70.00 $24.9864% off
Mean Well LRS-50-12 DC12V...
$19.99
60W5A DC12V Plastic Shell...
$14.99 $12.9913% off
Mean Well LRS-50-24 DC24V...
$23.98
72W3A DC24V Plastic Shell...
$21.99
100W8.3A DC12V Constant...
$35.98
100W4.2A DC24V Constant...
$35.98 $20.9842% off- Special Price: $70.00 $24.9864% off

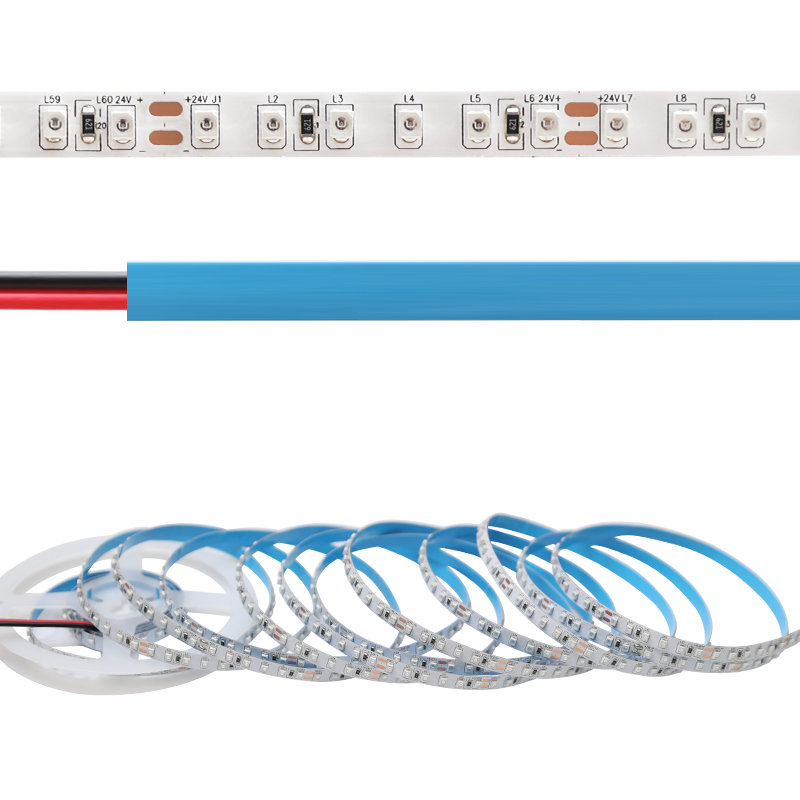

The SMD3528 illuminated 850nm LED strip is a flexible, linear infrared light source. This NIR light strip features a linear array of low-power 850nm LEDs, preventing uneven light spots or overexposure issues. It ensures uniform light distribution within critical areas—such as surveillance camera fields of view or localized human treatment zones—while minimizing energy waste.
In surveillance night vision systems, 850nm and 940nm infrared light strips supplement environments with insufficient visible light, providing invisible illumination to activate night vision cameras' IR-sensitive sensors. The strip's uniform illumination ensures light covers focal points within monitored areas—such as doors, windows, passageways, or vehicle paths—rather than flooding the entire space, preventing light pollution or exposing light source locations. Compared to infrared panel light sources, infrared light strips minimize hotspots and shadows, ensuring cameras capture clear images.
♦ 850nm wavelength: This near-infrared light appears as a faint red glow in night vision devices (visible to the naked eye but not blinding).
♦ 940nm wavelength: Completely invisible (invisible to the naked eye), ideal for high-stealth applications such as high-end security or wildlife monitoring.

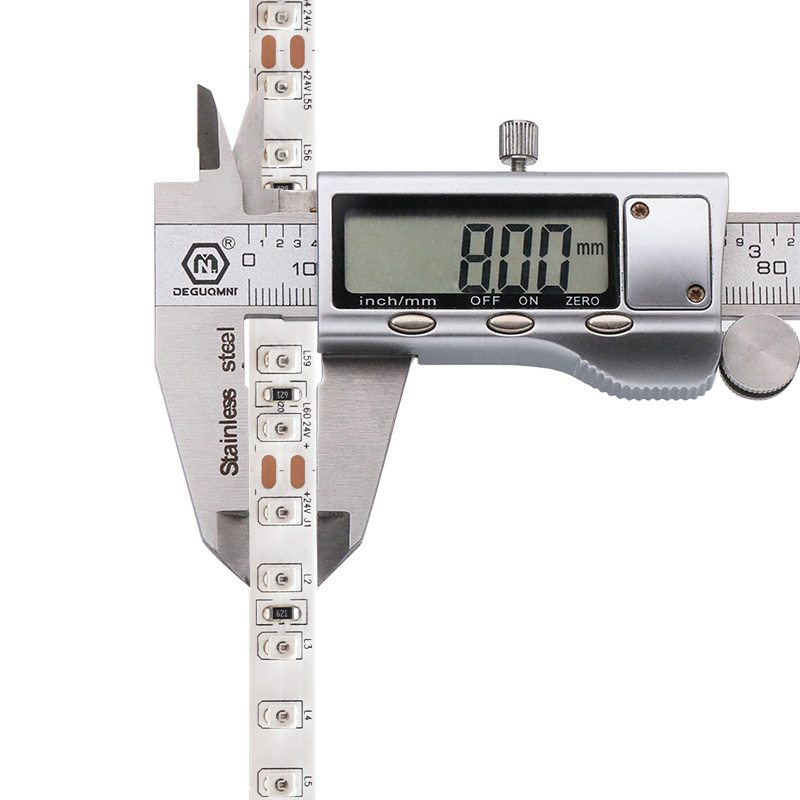

• PCB board width is 8mm, with 600pcs 3528SMD LED chips, apply for narrow places night version and light therapy LED lighting.

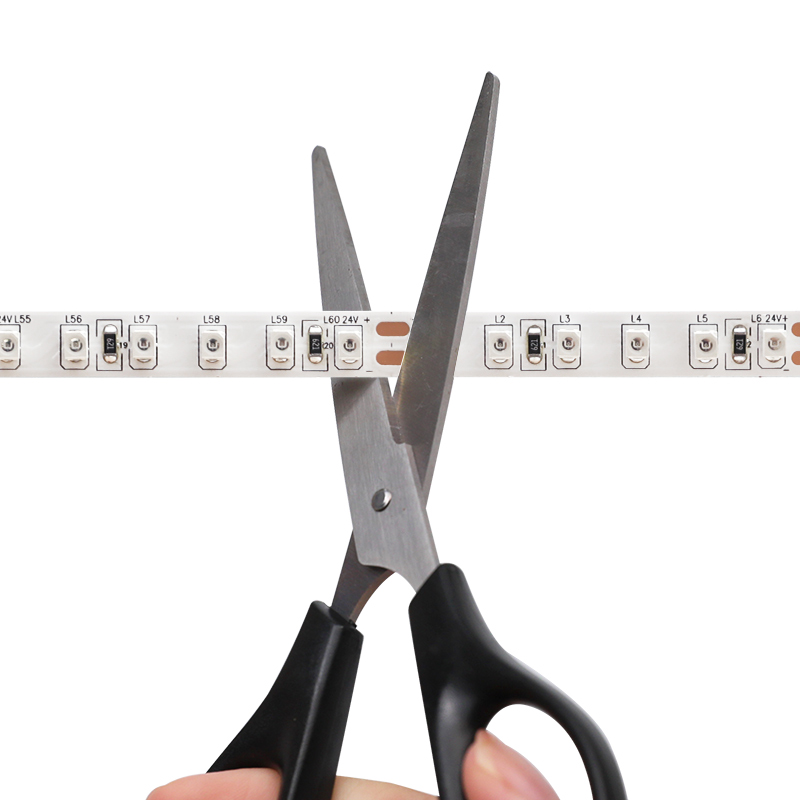

• DC12(24)V safe voltage, every 3(6) LEDs can be cut, convenient to get the length of the strips you need and do not damage the LED light.
• With 3M adhesive backing tape, can install the lights the places you prefer.

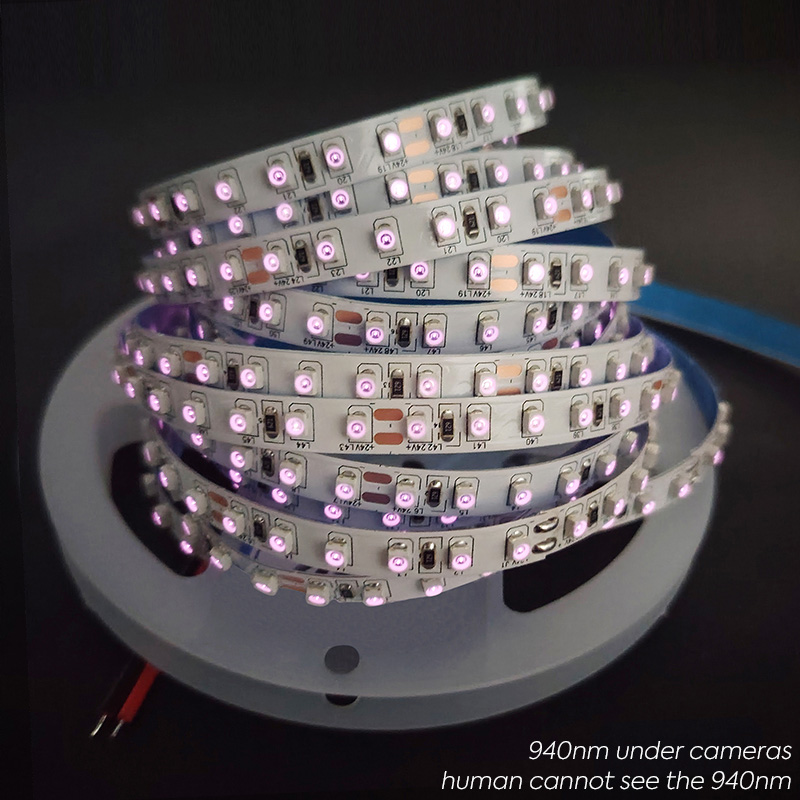

• The 850nm IR LED strips emit virtually invisible light to naked eye (red dot). The light emitted by 940-nanometer infrared LED strips is completely invisible to the naked eye.
• Be popular in various commercial applications, like the lights for security and surveillance, night vision lights, indoor/outdoor infrared light, and so on.
Product Specification
LED Strip Type: SMD 3528 Infrared LED Tape Light
Light Color: Invisible
Dimension: every 3/6 PCS LED can be cut
LED Quantity: 120 LEDs per meter (3.28ft)
Warantty: 1 years

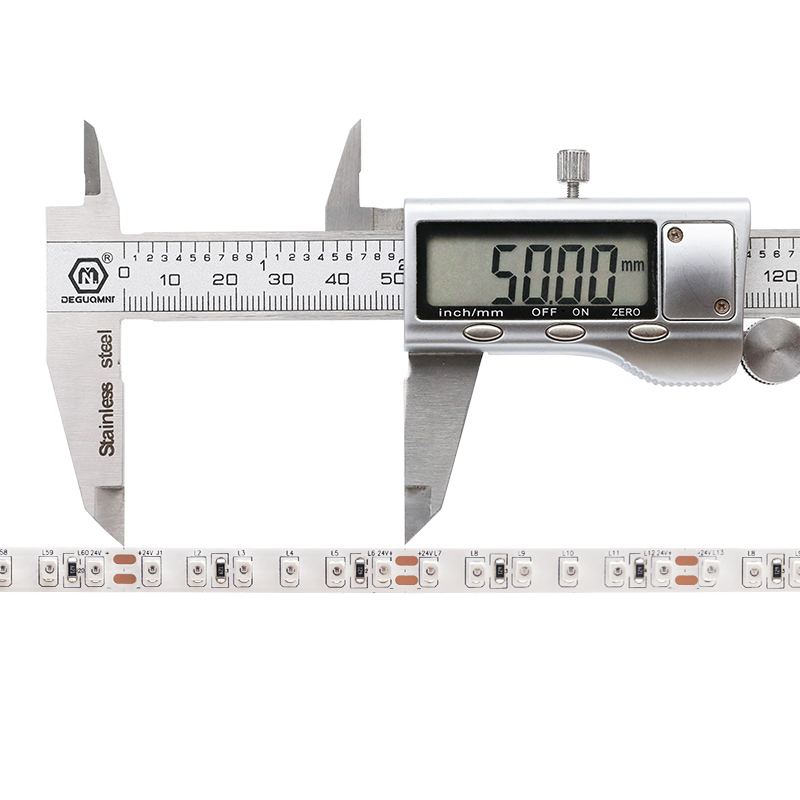

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.20cm(0.08 in )
Input Voltage(V): 12/24VDC
Working Power: 48W Max
Wavelength: 940nm infrared, 850nm near infrared
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65, IP67, IP68
Application
*For surveillance or security
*For Night Version Light
*For the multitouch display
*For infrared automatic inspection and detection light.
Key Differences Between NIR LED Near Infrared Light Wavelengths
Do LEDs Emit IR: Guide to Know Infrared Lights
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Perfect covert illumination for high-security areas
DATA SHEET
Click the link above to view the full product details, technical specifications, and wholesale pricing in a printable format.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
