Infrared (940nm/850nm) IR LED Strip Light With 300LEDs, 3528SMD DC12/24V 24W 8mm LED Tape light
Infrared (940nm/850nm) IR... $36.98
DC12/24V Max 2A 24-24W,... $6.99
Mean Well LRS-50-12 DC12V... $19.99
LN-SPIR-1CH-LV 1 Channel... $6.98
Mean Well LRS-50-24 DC24V... $23.98
Infrared (940nm/850nm) IR...
DC12/24V Max 2A 24-24W,...
Mean Well LRS-50-12 DC12V...
LN-SPIR-1CH-LV 1 Channel...
Mean Well LRS-50-24 DC24V...

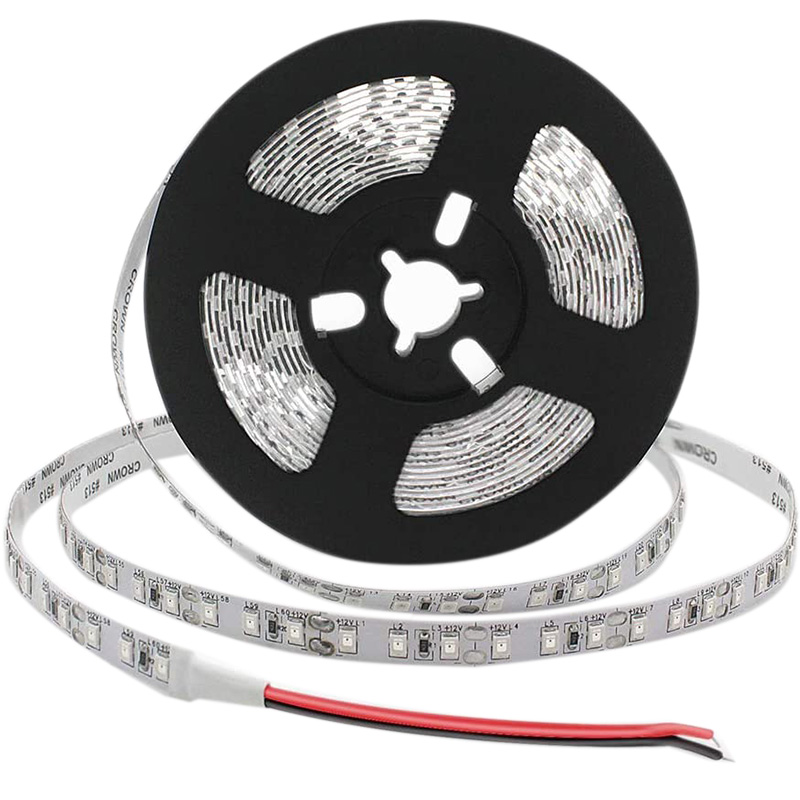

1. The 940nm/850nm/810nm/730nm/660nm infrared IR LED strip light using 300 pcs 3528SMD LED chips, 8mm wide PCB board, suitable for narrow place LED lighting.

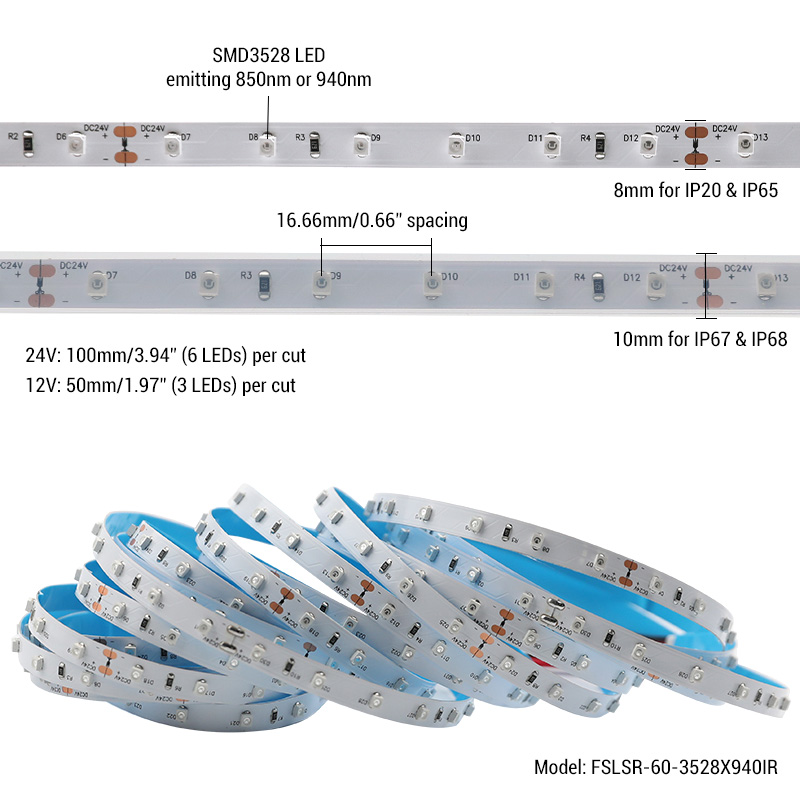

2. DC12/24V, every 3/6 LEDs be cuttable, easy to cut the length of the LED strips you need and it won't damage the LED strips. With peel-and-stick 3M adhesive backing tape, able to install the lights anywhere according to your ideas.

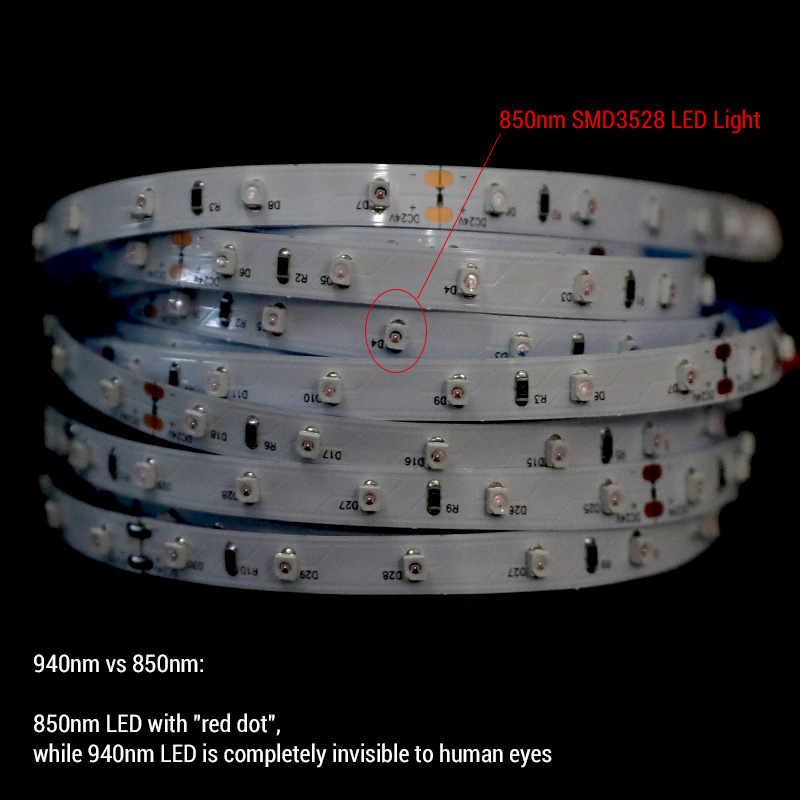

3. The 940nm IR LED strips emit the light that is virtually invisible to the naked eye, can dimmer the brightness via using the LED controller.
4. Widely used for many commercial applications, such as security and surveillance, night vision lights, indoor/outdoor infrared light, multi-touch display, and so on.
Standards and Certifications
LED Strip Type: SMD 3528
Light Color: Pink
Dimension: every 3/6 PCS LED can be cut
LED Quantity: 60 LEDs per meter (3.28ft)
Warantty: 1 years
Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.20cm(0.08 in )
Input Voltage(V): 12/24VDC
Working Power: 24 Max
Lamp Luminous Flux(lm): 7-8lm/LEDs 2400lm/16.4ft 146lm/ft
Wavelength NM(RGBY): 940NM/850NM Infrared
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65, IP67
*For surveillance or security
*For Night Version Light
*For the multitouch display
*For infrared automatic inspection and detection light.
