2 Pin 5/8/10mm Double Heads Solderless LED Fast Conector For Single Color LED Light Strips
1.For use with SMD 3528 single color led light strips. Compatible with both non-waterproof and waterproof light strips without any soldering to be required.
2. The LED strip light must be 8mm wide in order to use this connector.
3. We do suggest using this led fast connector for powering up to 5m of LED strip. To power, longer runs a soldered connection is suggested.

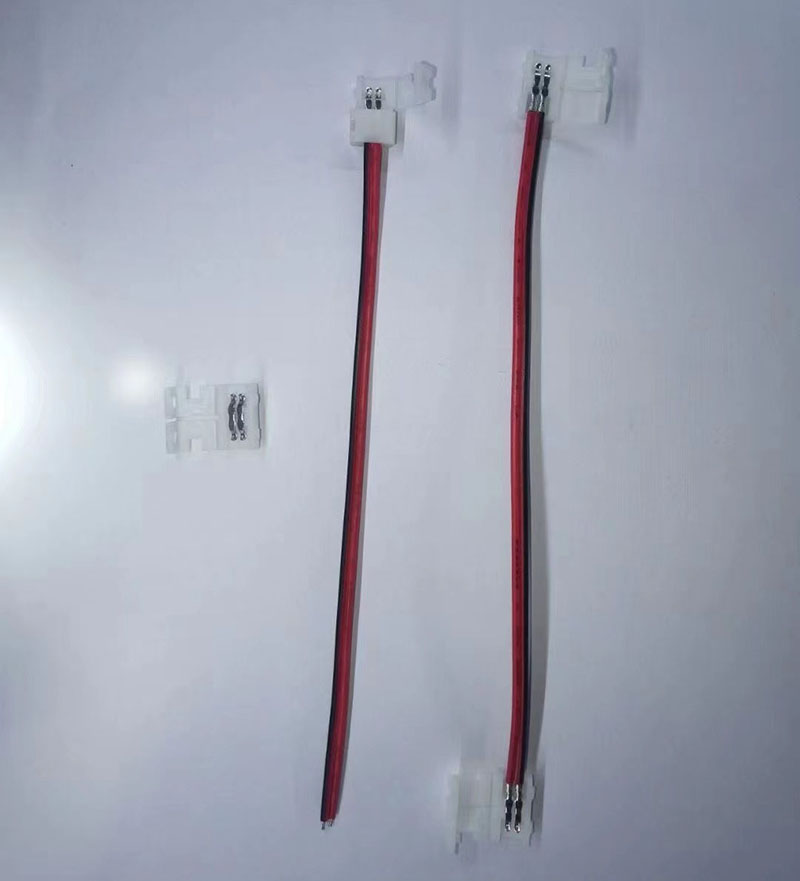

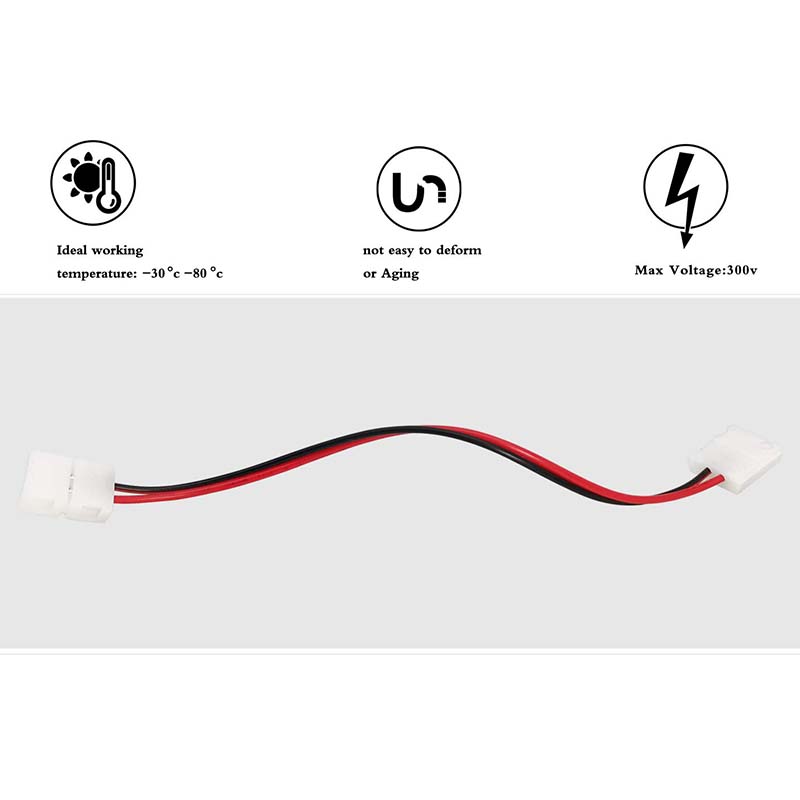

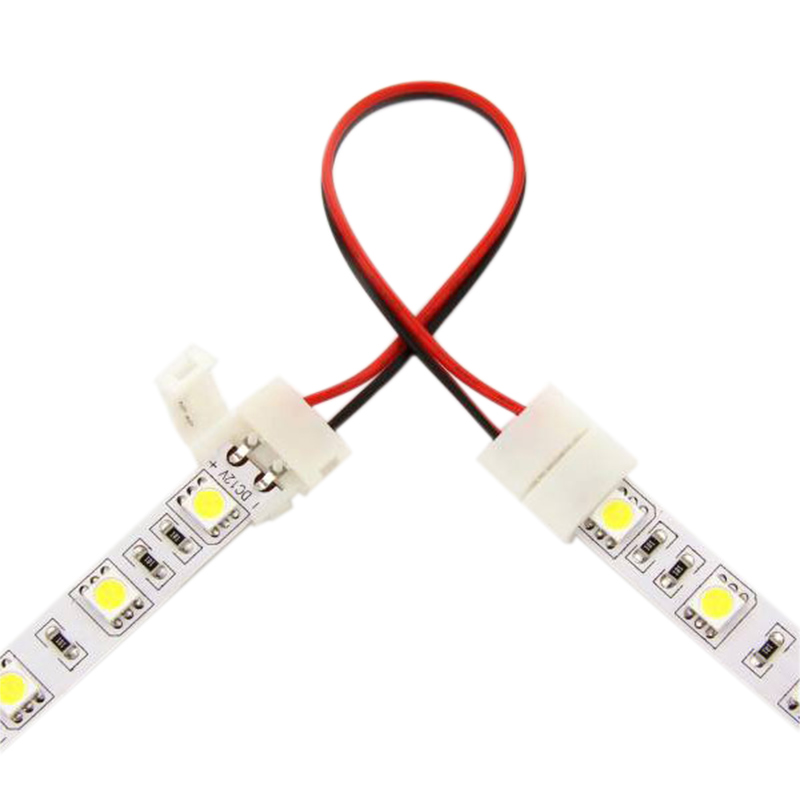

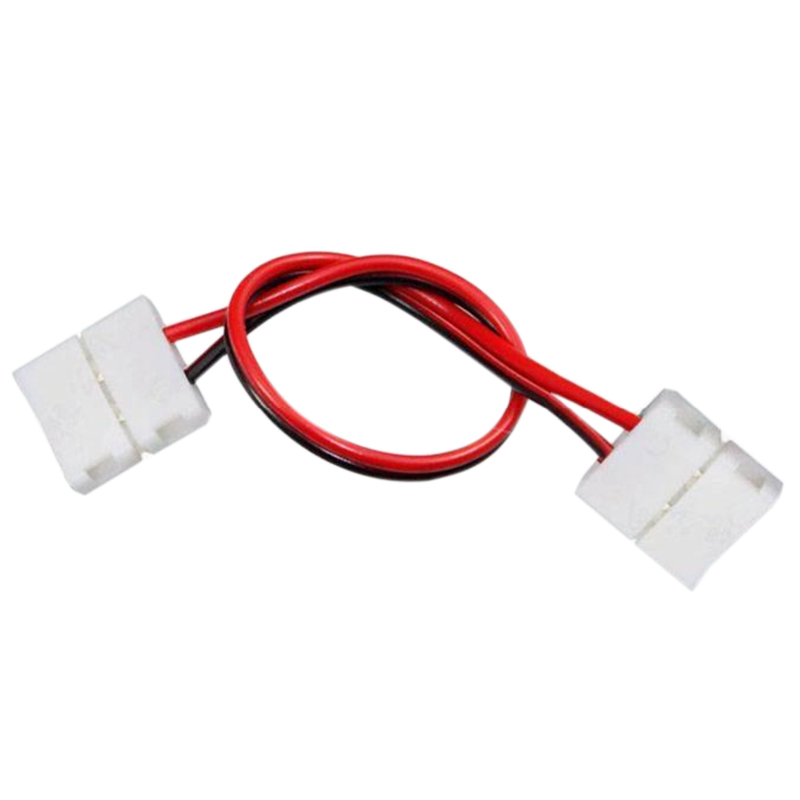

4. These extension wires come with 2 easy-clasp connectors on either end, which ensures a plug & plays easy reattachment of light strips.
Helps to save your time and eliminate the trouble and mass of wielding.

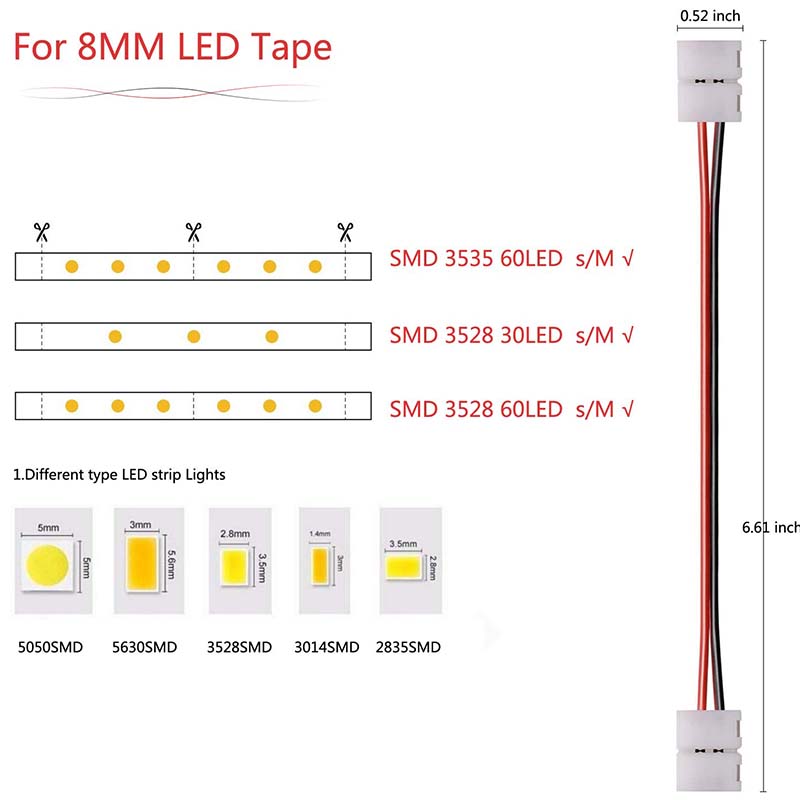

5. The 6.61in long, 360 degrees any angle twistable wires make it possible to connect your light strips around any corners and over obstacles.
Application: The LED strip connector is for extending 2 pins 8 mm 3528 single color LED light strip, not for 3528 RGB LED strip and 10mm width led strip lights.
★Flexible strand: The 8mm 2-pin Connector wire allows you to connect LED strip lights freely so you can run super long light bars according to your needs. And 6.61 inches flexible wires can be bent around the corner and over the obstacle.
★Durable: Crafted with high-grade PC materials and fine workmanship, it is solid and durable for long-lasting use.
★Quick & Solderless connection: It will help you to save time and get rid of the headache of soldering. Just clasp your prepared led strip section into the connector to get connected.
Metal Material: Copper

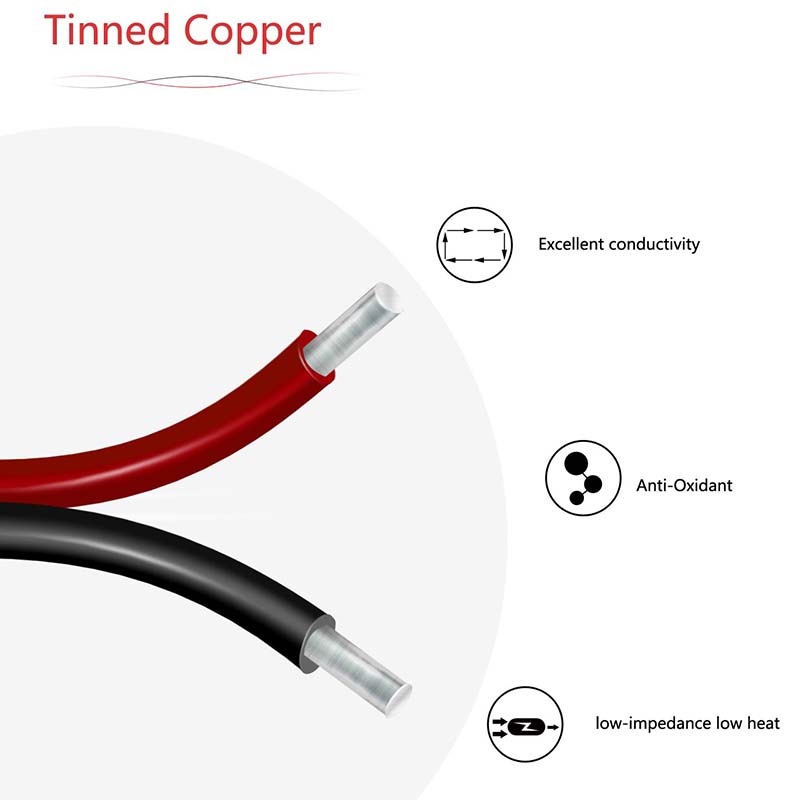

Surface Treatment: Tinned
Plastic Material: PBT&PVC
Wire Range: AWG#22
Board Thickness: 0.2-0.4mm / Width: 8mm
Applicable Specifications: 120/60/30leds per meter SMD3528 strips
Working Voltage: 0-24V
1. In order to use that with IP rated LED strips, waterproof coating (resin) must be removed from the end of both LED strips.
You can use on the top of the connection heat shrinkable tubing to maintain IP rating.

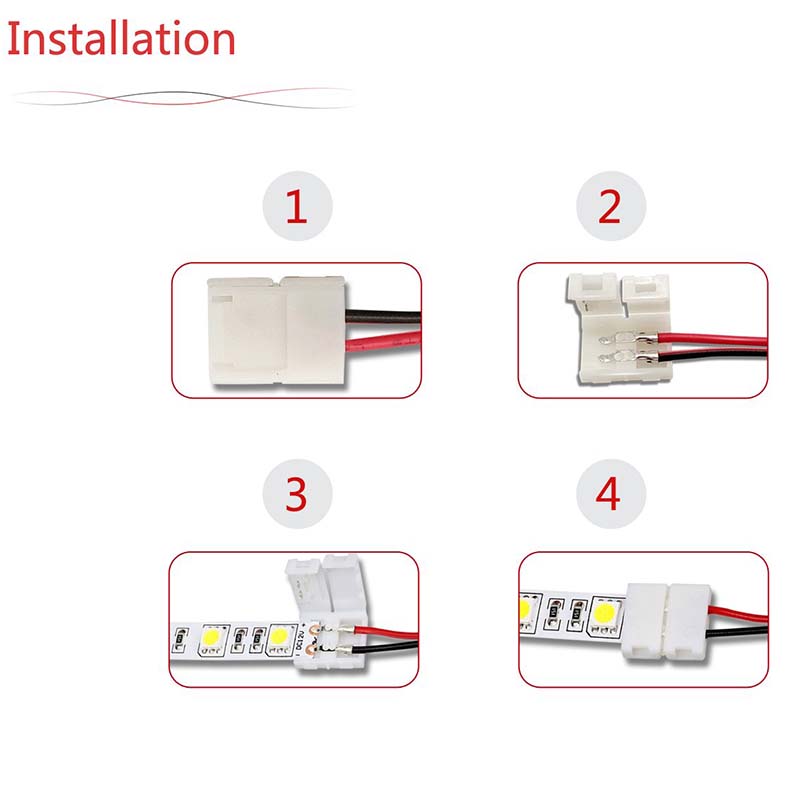

2. Please ensure connector clips are aligned with the copper contacts of the LED Strip and notice the polarity.
Safety Notice: To avoid electric shock and burn, turn off the power before cutting and reattaching light strips.
