Special Price: $52.98

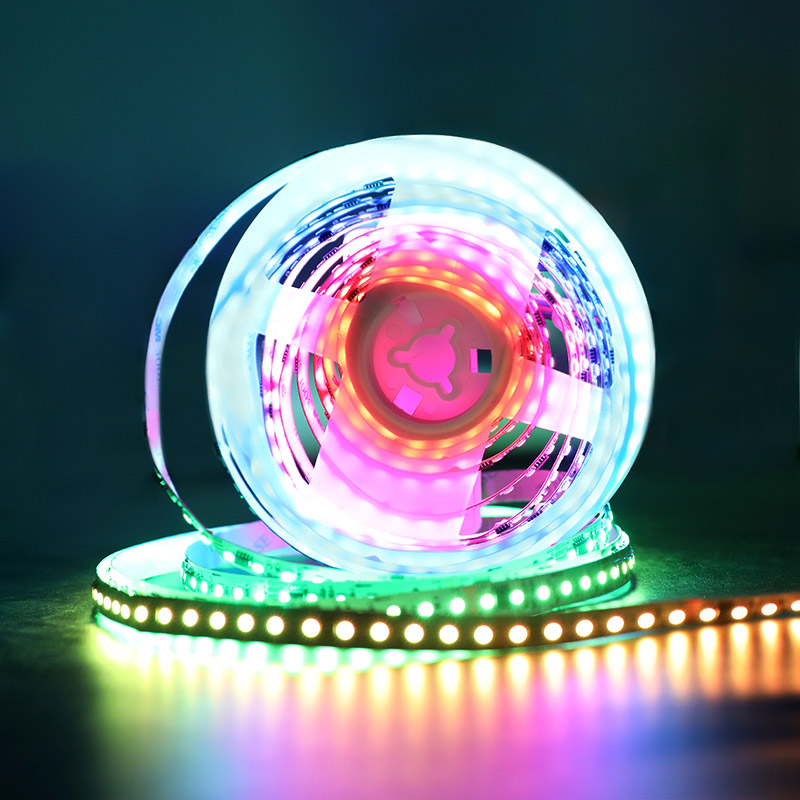

The narrowest dense dmx led tape, with 480 lamp beads evenly spaced on an 8mm wide flexible circuit board, providing compact and dense illumination. 96 led per meter, 29 per foot. This narrow and dense led design is ideal for use in a variety of DIY neon ribbon applications that require direct DMX control. It is able to fit through smaller size neon silicone tubing to fit where space is limited.
Powered by a DC24V input, one UCS512 IC controls 12 SMD2835 LEDs in a 125mm/5" length. There are 8 ICs per meter and 40 pixels on a roll. Inputs and outputs come with 5-wire JST quick connectors, VCC, GND, A (signal), B (alternate signal), P (address), for easy installation and connection. Dual-signal DMX rgb led strip uses A/B parallel signal transmission to provide extra redundancy and reliability, stable signal, strong anti-interference ability, with breakpoint continuous transmission function, suitable for engineering use.
This digital rgb led strip responds directly to DMX control signals and does not require any DMX pixel decoder. You can program the lights with a professional DMX controller or through a simple mobile app via WT-DMX-S smart dmx controller (controller in the kit).
UCS512H Series IC Chips Datasheet
Product Specifications
Item Type: | Narrow Dense DMX Led Tape |
LED Chip: | SMD2835 + 10-pin UCS512 IC |
Input Voltage: | DC24V |
Power: |
96LEDs/m - 13.2W/m, 4W/ft, 66W/roll 120LEDs/m (12LEDs cut) - 20.88W/m, 6.4W/ft, 105W/roll 120LEDs/m (6LEDs cut) - 14.4W/m, 4.4W/ft, 72W/roll LRS-150-24 power supply in the kit |
LED Color: | Addressable RGB (DMX directly control) |
PCB Width: |
96LEDs/m - 8mm 120LEDs/m - 10mm |
LED Quantity: | 96 LEDs/m, 120 LEDs/m |
IC Quantity: |
96LEDs/m - 8 ICs/m (1 IC controls 12 LED lights) 120LEDs/m - 10 ICs/m (1 IC controls 12 LED lights) 120LEDs/m - 20 ICs/m (1 IC controls 6 LED lights) |
Cut Unit: |

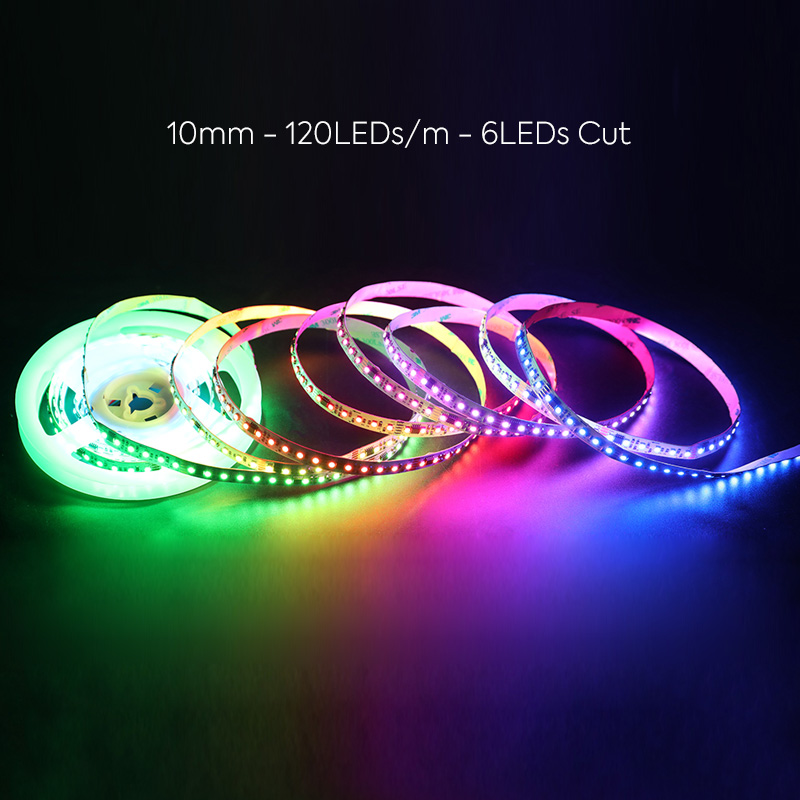

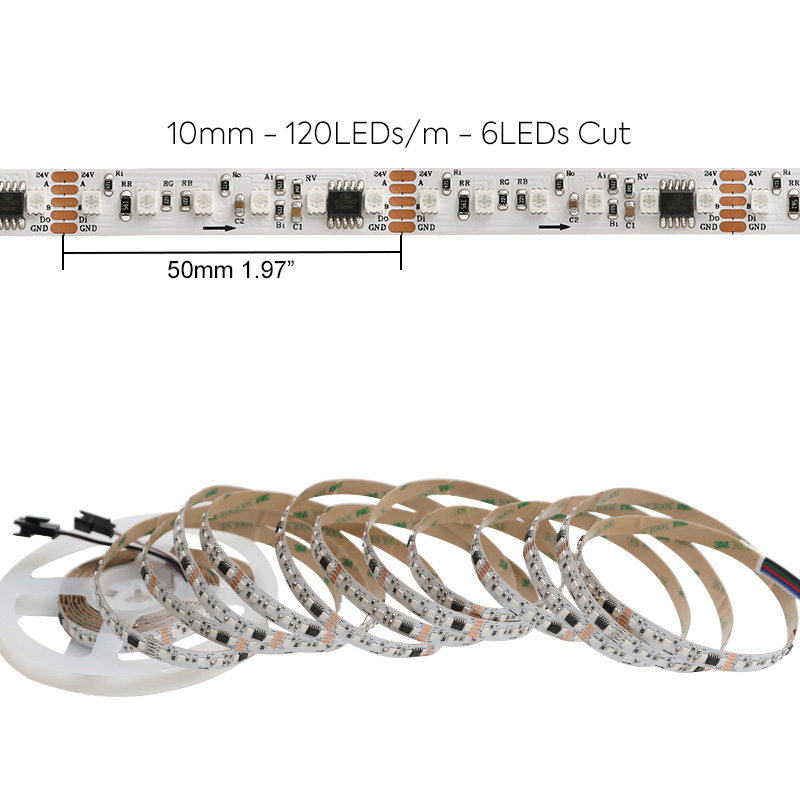

96LEDs/m - 125mm/5in, 12 LEDs can be cut 120LEDs/m - 100mm/4in, 12 LEDs can be cut 120LEDs/m - 50mm/2in, 6 LEDs can be cut |
Waterproof Rating: | Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68 |
Strip Length: | 5m/16.4ft |
Working Temperature: | -20℃~+45℃ |
Lifespan: | 50,000+hours |
Beam Angle: | 120° |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
