DC12V 24V Black PCB COB LED Strip Lights 320 LEDs Per Meter

Name: DC12V 24V Black PCB COB LED Strip Lights 320 LEDs Per Meter
Brand: SuperLightingLED
SKU: FSLCOB-B-320X8
Price: 10.98 CAD
Availability: InStock

Model: FSLCOB-B-320X8 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$15.51

Qty Discounts Off Price
1-19 Can.$15.51	20-49 Can.$15.20	50-79 Can.$14.89	80+ Can.$14.58
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select Light Color :

Select Input Voltage:

DC12V

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Adopting chip on board technology, this best COB led tape can provide a long stretch of illumination without any spots or dark zones, making them ideal for aesthetic lighting projects. With 320 COB LED chips closely packed per meter on an 8mm/0.3" wide PCB, flexible and dimmable COB led strip lights ensure uniform and bright light emission with high efficiency.

Features

1. High density of 320 LEDs per meter for intense light emission, able to adjust brightness with controller.

2. Multiple color temperatures available in warm white 3000K, natural white 4000K and daylight white 6000K.

3. 8mm/0.3" wide black PCB, fashionable design, suitable for installations where space is at a premium.

4. These 12V COB LED strip lights can be cut every 25mm/0.98", convenient to custom length.

5. Yellow protective layer covering on the chips allow led strip to emit smooth and clean light.

6. CRI 90+, helps to differentiate accurate color, making color pop out.

For customers seeking to determine correct amps power supply for COB LED lights on their own, our kit offers a user-friendly solution. If select kit, you will receive DIM-PWM-SP631E controller, PSPS-12V-48W driver for 12V COB strip lights.

Product Specification

LED Strip Type:	Single Color White Cob Led Strip Lights
LED Chip:	Epistar Chip (COB Chip)
Input Voltage:	DC12V
Power:	8W/m, 40W/16.4ft
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃
LED Color:	Warm White(3000k), Nature White(4000K), Daylight White(6000K)

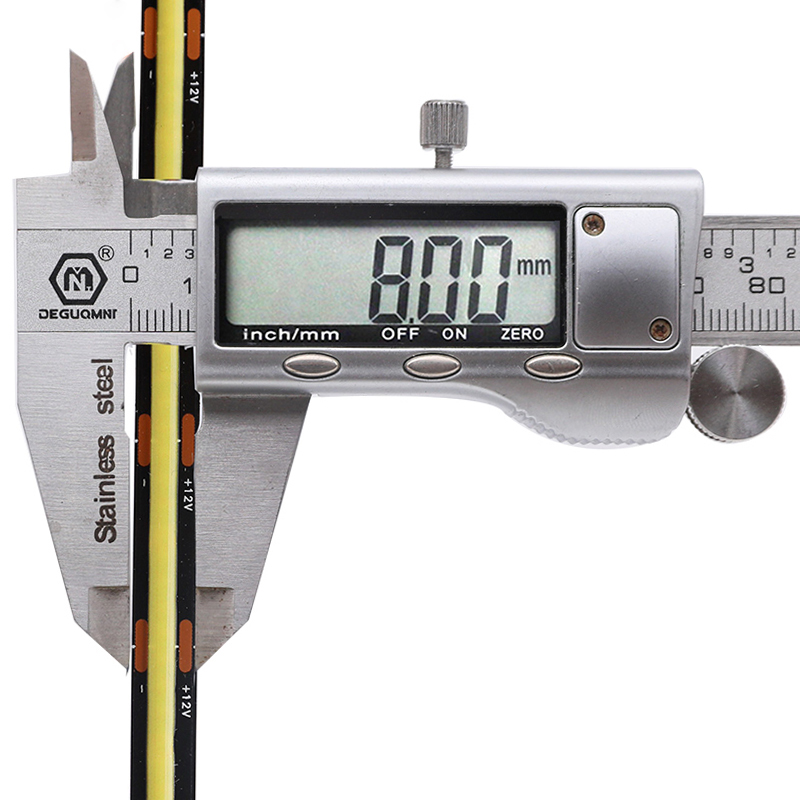

PCB Width:	8mm/0.3"
LED Quantity:	320 Chips/m, 1600 Chips/16.4ft
Waterproof Rating:	IP20 / IP67

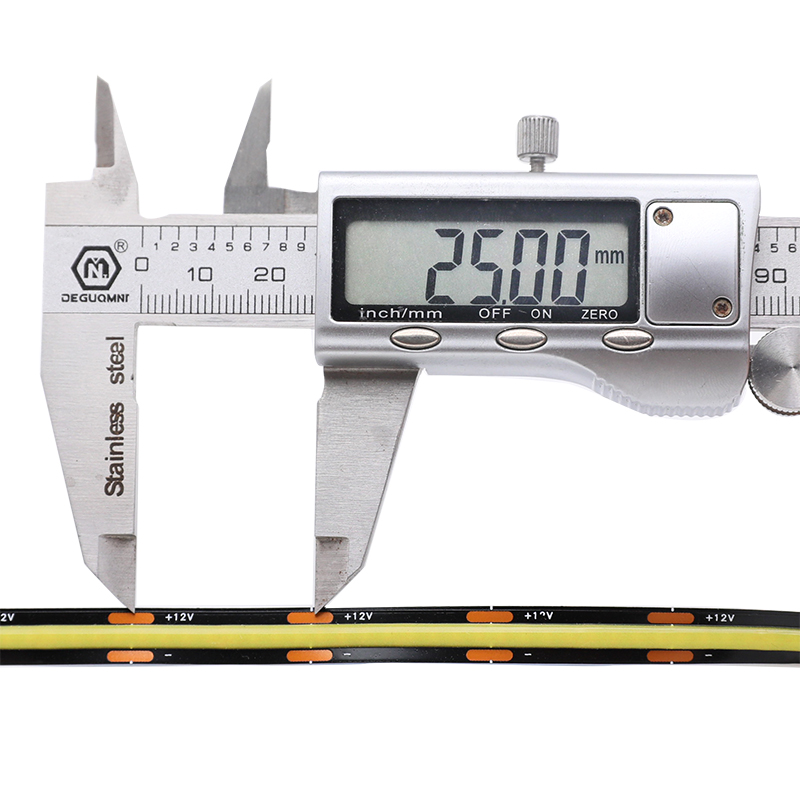

Cut Length:	25mm/0.98"
PCB Color:	Black
Color Rendering Index:	Ra>90
Beam Angle:	180°
Length:	5m/16.4ft
Lumen:	480lm /m

6000K daylight, 4000K natural white, and 3000K warm white, which one should you choose?

Refer to the color temperature lighting in the chart below to choose the right color temperature for your bedroom, living room, work spaces, and more. Or you can read our blog article to know the difference.

Color Temperature Reference

Don't know how to wire? please read the following article: How to wire the white cob LED strip light

White COB Led Strip Lights 320 LEDs Per Meter

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLCOB-B-320X8

PDFFSLCOB-B-320X8 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

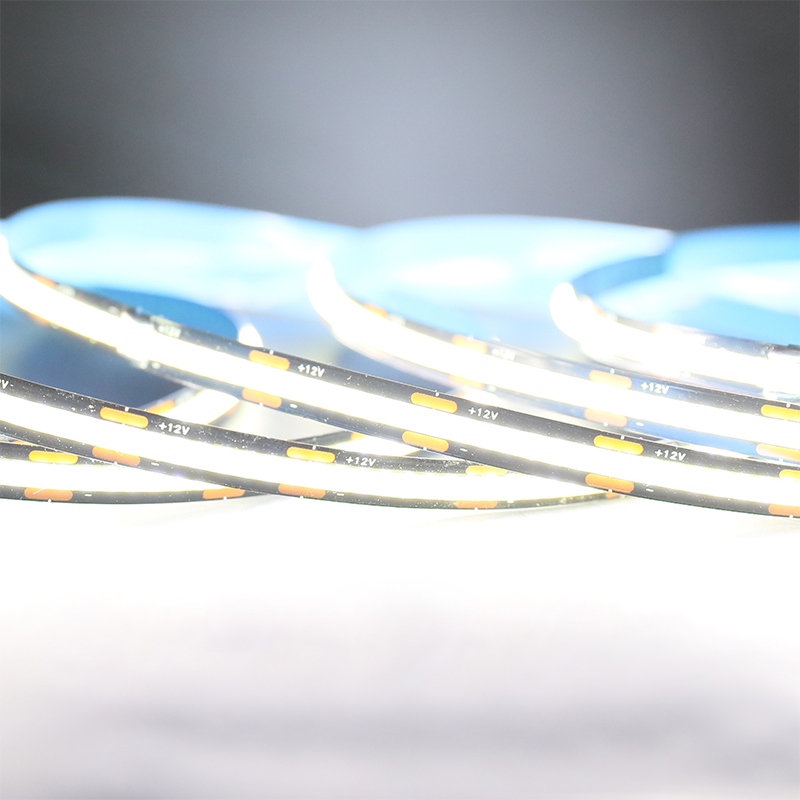

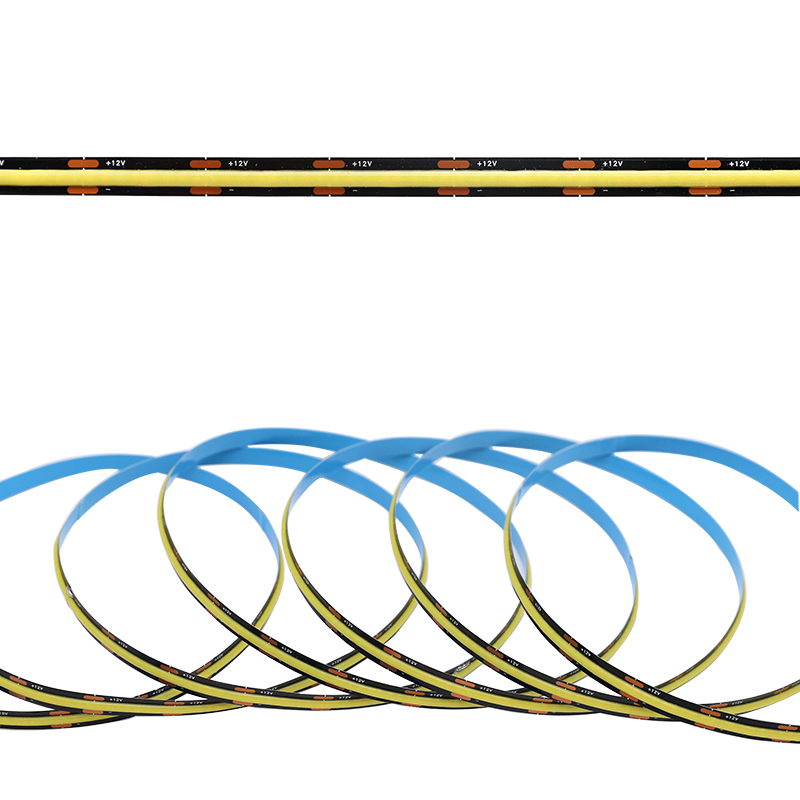

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in DC12V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - With Brackets · Underwater IP68 - Adhesive Back · Waterproof IP67 - With Brackets · Waterproof IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

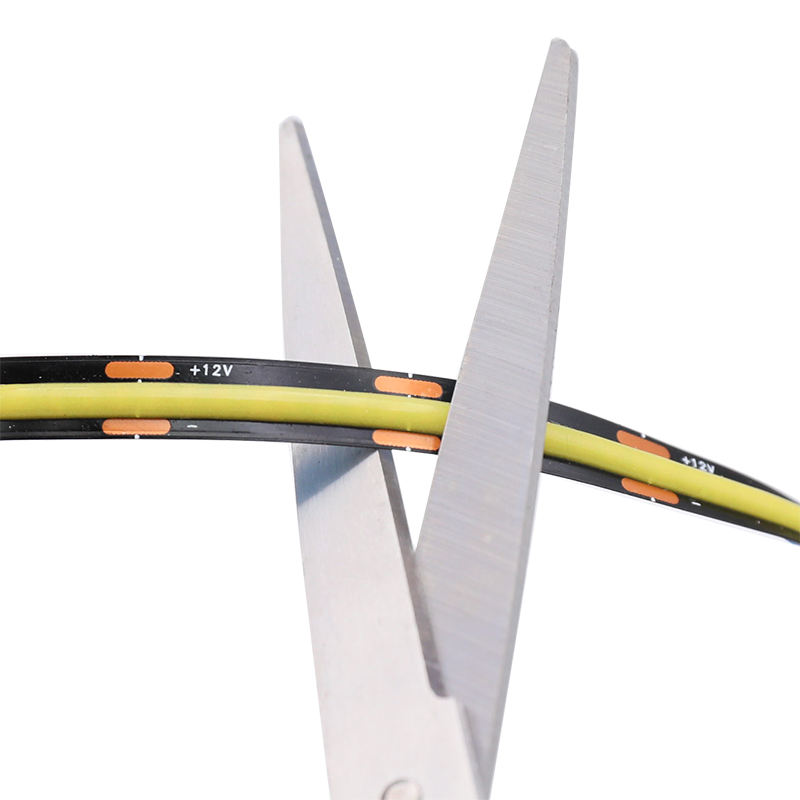

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Which colour is right?

This model comes in Warm White(3000K) · Natural White(4000K) · Daylight White(6000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
