High CRI 90 White Color Light Flexible COB LED Strip Lights - DC12/24V - 16.4ft/5m Roll
Product Description: What is COB LED strip light?
COB stands for chip-on-board, the LED chip is placed directly on the PCB board, sealed by a sealing layer, and showing different colors through different sealing layers, which is our super density series LED product, before you purchase it, you can read the article firstly: What is COB led strip lights?
This flexible FOB LED Strip Lights is the newest production in 2020. This versatile LED Strip Light is in 14.4W/M (4.39Watts foot). This LED Strip has very High-Density Lighting with 384/512 diodes per meter or (195/ft). It is cuttable every 0.98"(25mm) for 12/24VDC. The FPCB width of this led strip light is 10/8mm. And the COB width is 6mm. It is very suitable for aluminum profiles in a smaller size. Because of LED high density, the light through PC cover is fairly uniform without spot. If you seek a higher density, we can customize for you. We PCB factory will make a quick response.
Standards and Certifications
|LED Strip Type||COB LED (COB Flexible led strip light specification )|
|LED Chip||Epistar Chip|
|Color Temperature CCT(White)||Warm White(2700-3200k), Daylight White(4000-5000k), Daylight White(5500-6500k)|
|Wavelength NM(RGBY)||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|LED Quantity||384/512 LEDs per 1meter (3.28 ft)|
|Light Color||Warm White, Daylight White,Cool White, Red, Green, Blue, Yellow(optional)|
|Color Rendering Index||Ra＞90|
|Dimensions||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.12cm(0.05 in )|
|COB Dimension||L500cm(196.8 in ) x W0.6cm(0.24 in )|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Lamp Luminous Flux(lm):
|Color Temperature/LED Density||
Warm white 2700K
Warm white 3000K
Nature white 4000K
Daylight white 6500K
14-16W/m, 10 mm
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|5m/16.4Ft COB Strip||40-60W / Roll||DC12V||
Controller: V1 + RT1
Controller: V1 + RT1
Power supply: 24V 72W power supply adapter
if you have any requirements for other types of the LED Controller, you can visit our Single Color Dimmer Series.
Don't know how to choose the correct LED power supply, please read the following article: How to calculate power for led strip lights?
When you purchase the LED power supply, please read the following article: How to choose led strip light power supply?
Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Installation Instruction: How to Install LED Strip Lights?

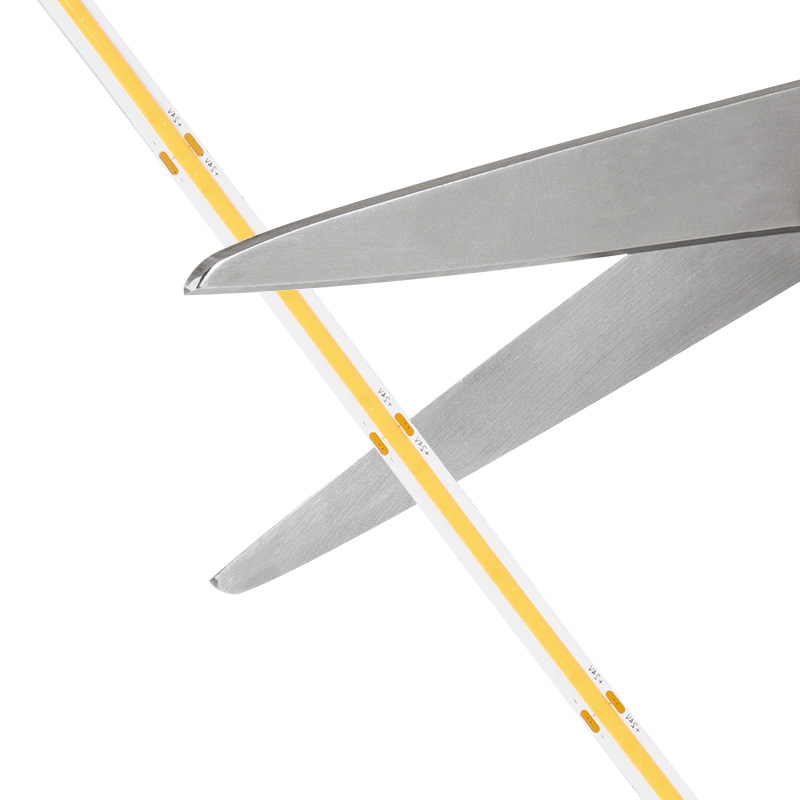

You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.
The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with a two-way connecting diagram
|Trademark lighting||Logo lighting|
|Channel letters lighting||Lightboxes lighting|
|Sign cabinets||Channel lights|
|Cove LED lighting||Edge lit signs|
|Canopy illumination||Off-grid lighting|
|By : NAPHTALI DEUTSCH Date Added: 10/29/2021|
|The color temperature is very standard, no light spots, very comfortable color, I will purchase again!|
