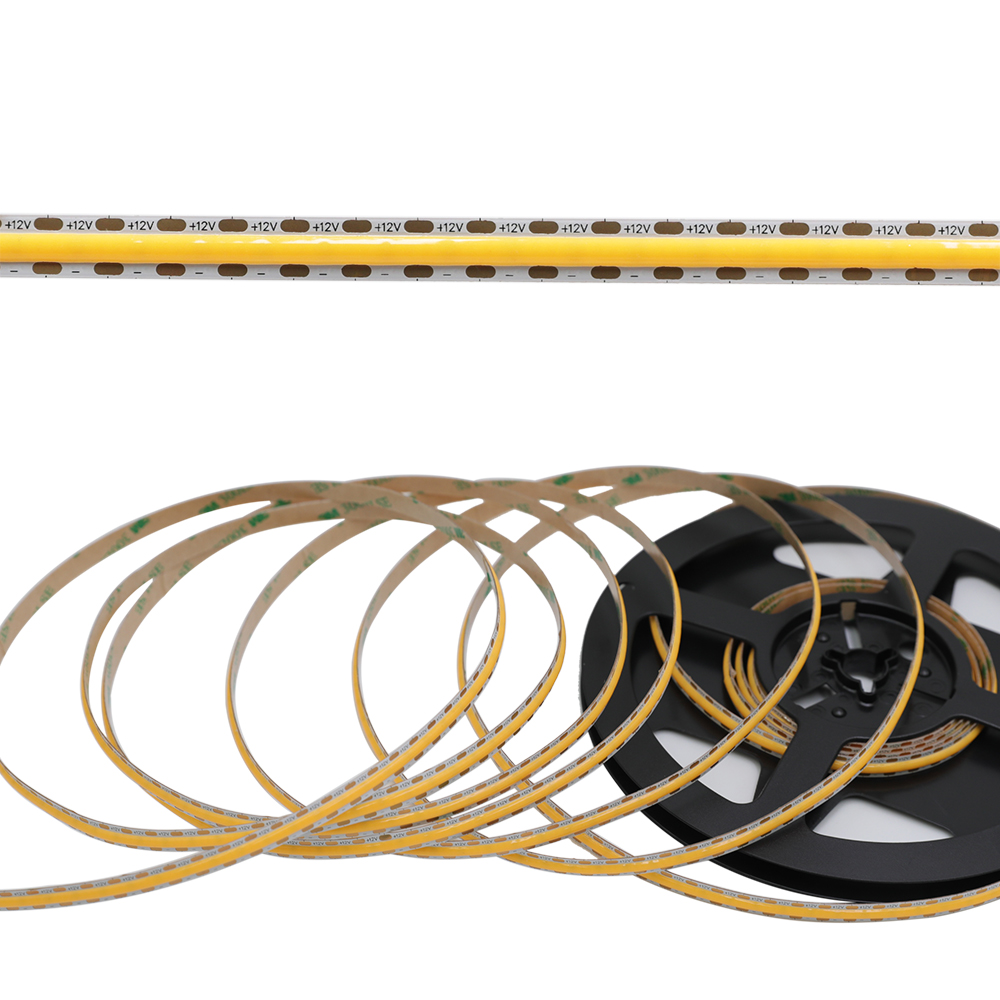

DC12V 8mm Width 512Chips/m Flexible COB High CRI 90+ LED Strip Light 5m/16.4ft Per Roll
Related Products
DC12V 8mm Width...
$33.98 $18.9844% off
Single Color LED...
$19.98
FUT041 Upgraded 433MHz...
$13.99
96W8A DC12V Plastic Shell...
$21.99 $19.999% off
15A*1CH Brightness LED...
$22.98
8/10mm Wide 2-Pin Single...
$0.99
DC12/24V 4MM Super Narrow...
$49.98 $14.9870% off- Special Price: $33.98 $18.9844% off
PCB widths of 400chips/m and 528 chips/m are all 8mm.
For 400chips/m (10mm cut for 12V, 20mm cut for 24V), there is only 4000K in stock, other strip light colors need to produce about 10+ days.
1. Our COB LED strip adopts the Chip-on-board tech, according to package the LED chips on the high quality copper PCB, total 400/528 chips per meter, super density and high brightness, can output 700 lumens per meter, the distance between two LED chips is so slim that it likes seamless connection, so the whole COB LED strip is without light spot.
2. Compared with the 3/4/5mm super slim LED strip light, 8mm/0.31 use the high quality flexible PCB, with double-side FPC board as the basement, pure gold pure copper wire design, high Oxidation resistance and high-temperature resistance, with a better heat dissipation, high lifespan over 30000 hours.

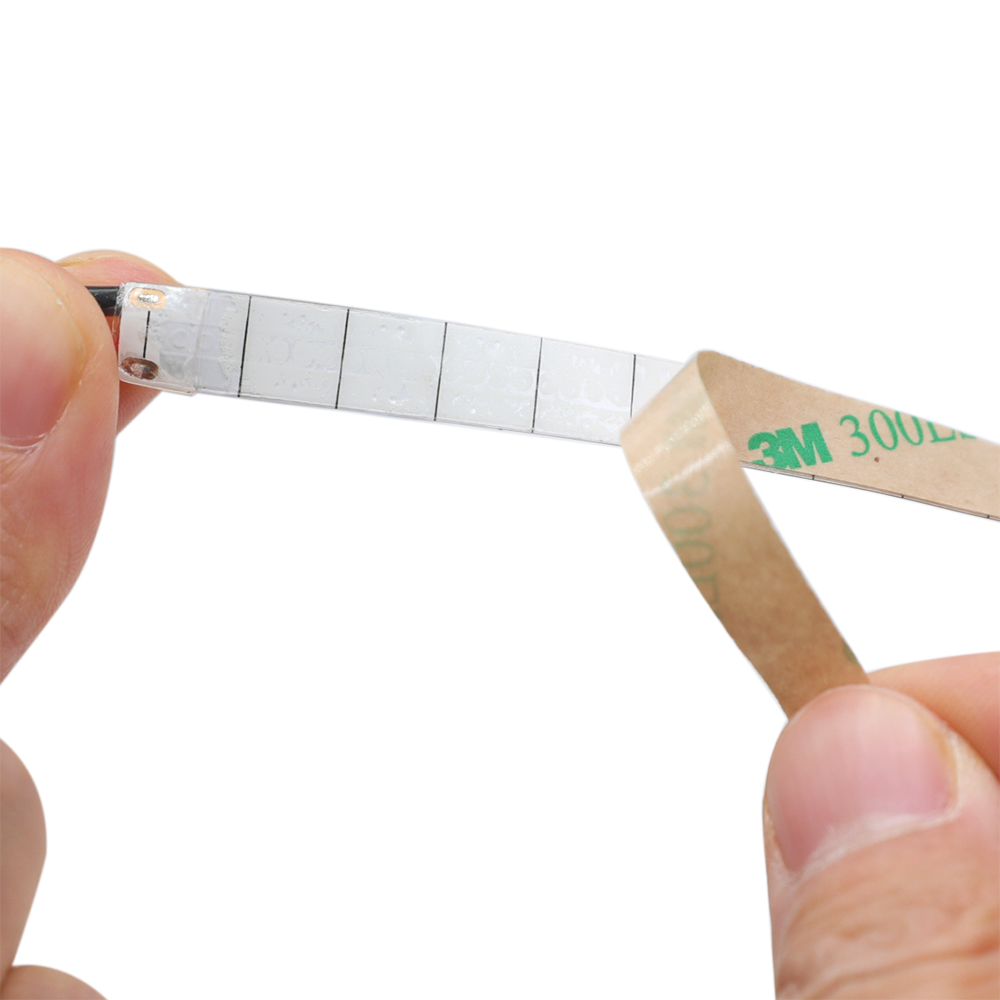

3. Low light decay, high CRI up to 90+, strong light transmission, provide a better lighting effect, and higher color consistency, flexible LED strip light, so you can bend it at any angles, back with the high quality 3M tape, easy to install, you can also choose our LED mounting bracket to intall them by the scraw.

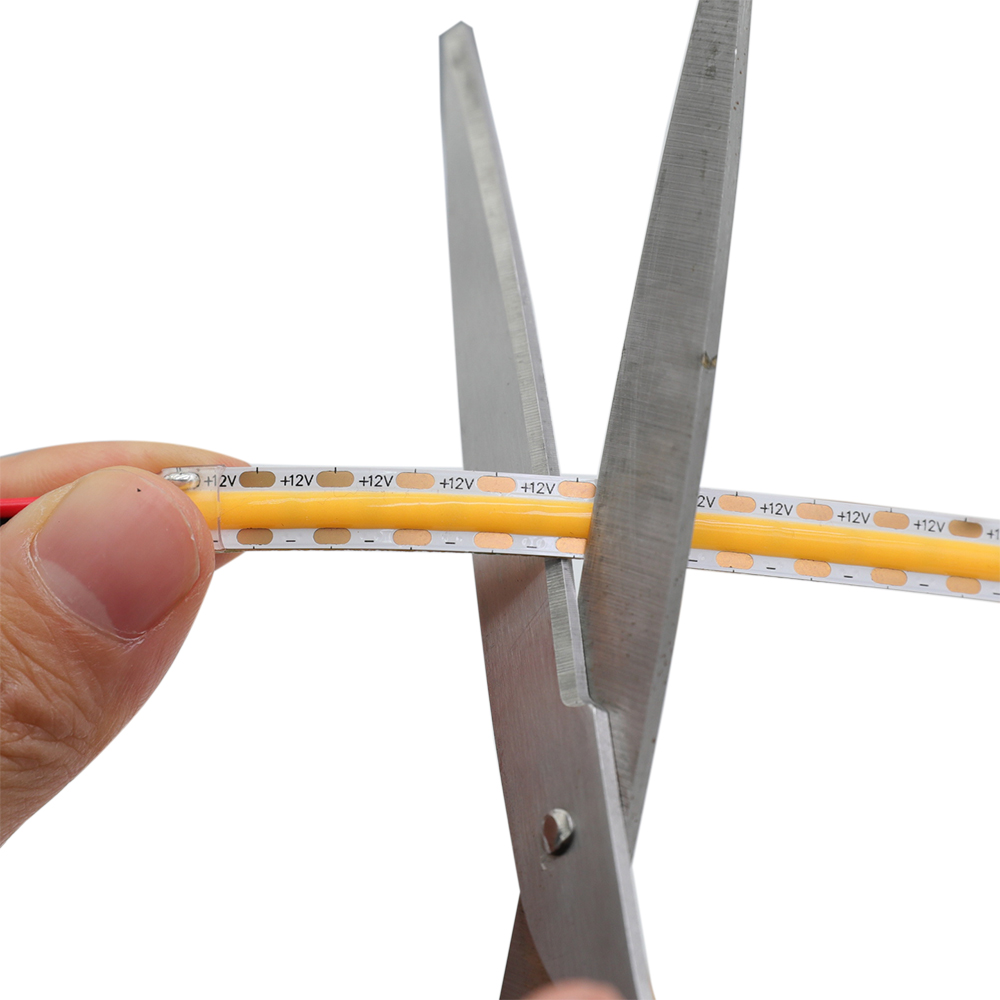

4. DC12V safety voltage input, every 10mm/0.4in cuttable, you can customize the length by yourself, please cut the LED strip light along the cuttable line.
5. For outdoor use, we provide the IP67 waterproof LED strip light, IP20 non-waterproof works with the silicone tube, increasing about 2mm/0.08in wide, you can fix the waterproof LED light strip by using the Tape or LED mounting bracket.
Product Specification
| LED Strip Type | COB LED Strip |
| LED Brand | SuperLightingLED |
| Input Voltage | DC12V, DC24V |

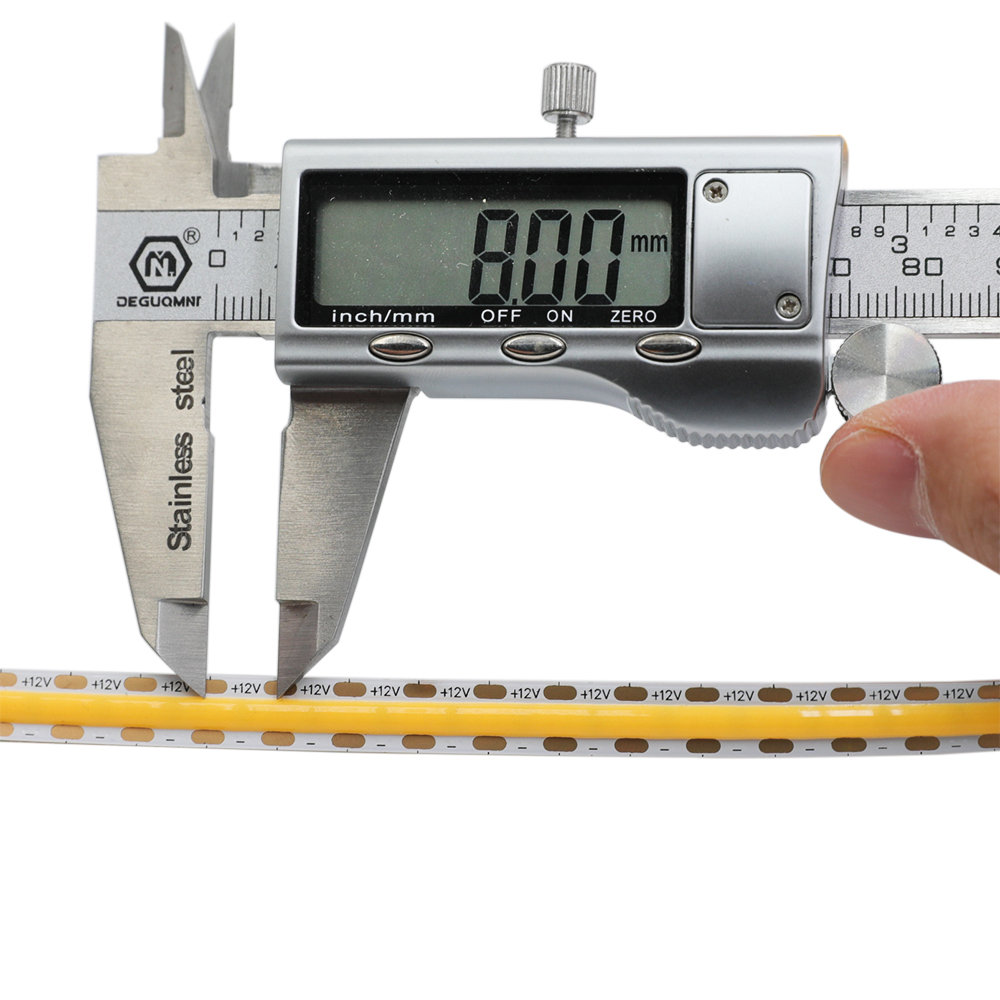

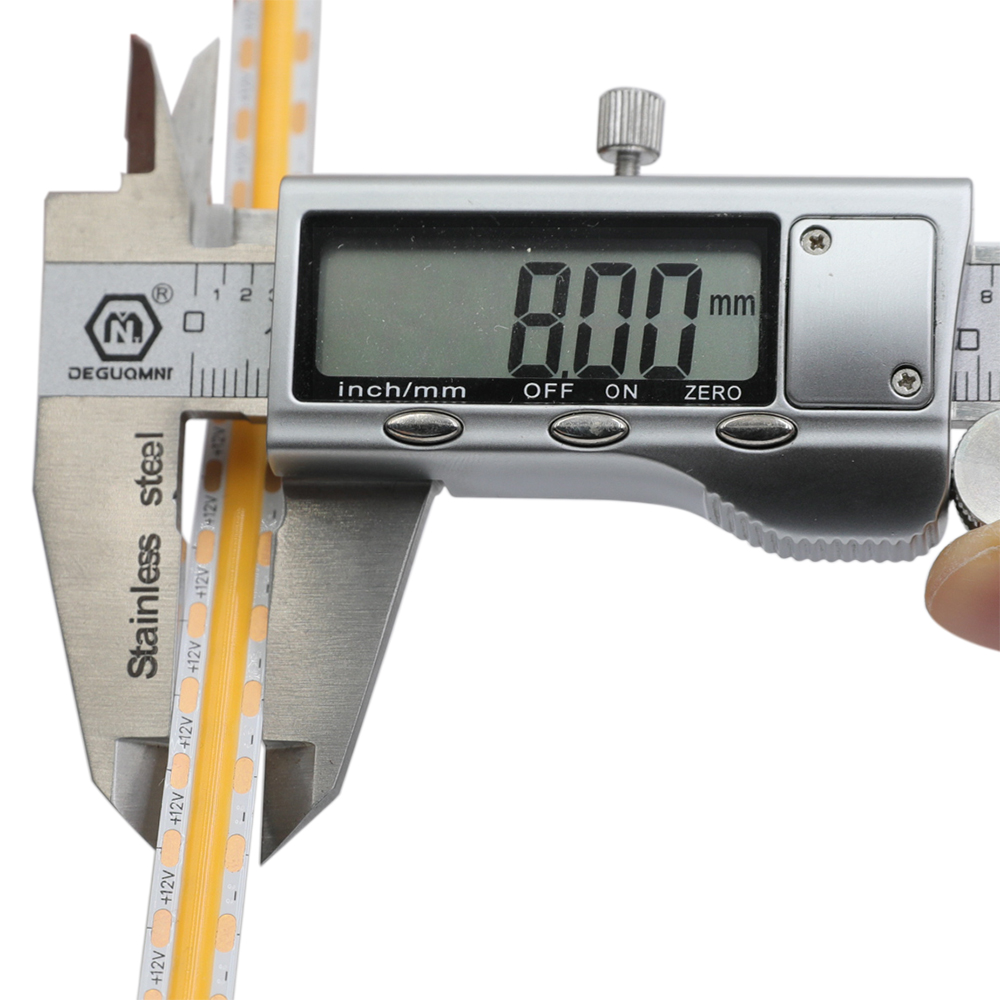

| PCB Width | 8mm/0.31 in |
| Working Temperature | -20℃~+45℃ |
| Lumen | 700lm/m |
|
Power
|
528LEDs/m - 14W/m; 70W/Roll
|
| Dimensions | L100cm(39.4 in ) x W8cm(0.31 in ) x H0.12cm(0.05 in ) |
| LED Quantity | 528/400 Chips per meter (3.28 ft) |
| White Color | Warm White(3000k), Nature Whtie(4000K), Daylight White(6000K) |
| Cut Length | 10mm for 12V, 20mm for 24V - 400Chips/m |
| PCB color | White |
| CRI | 90+ |
| Beam Angle | 180° |
|
Waterproof Rating
|
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|
LED Strip |
Kit |
| 5m/16.4Ft COB LED Strip |
Controller: V1 + RT1 Power supply: 12V 96W power adapter |
Installation Diagram: How to wire the single color LED strip light?
