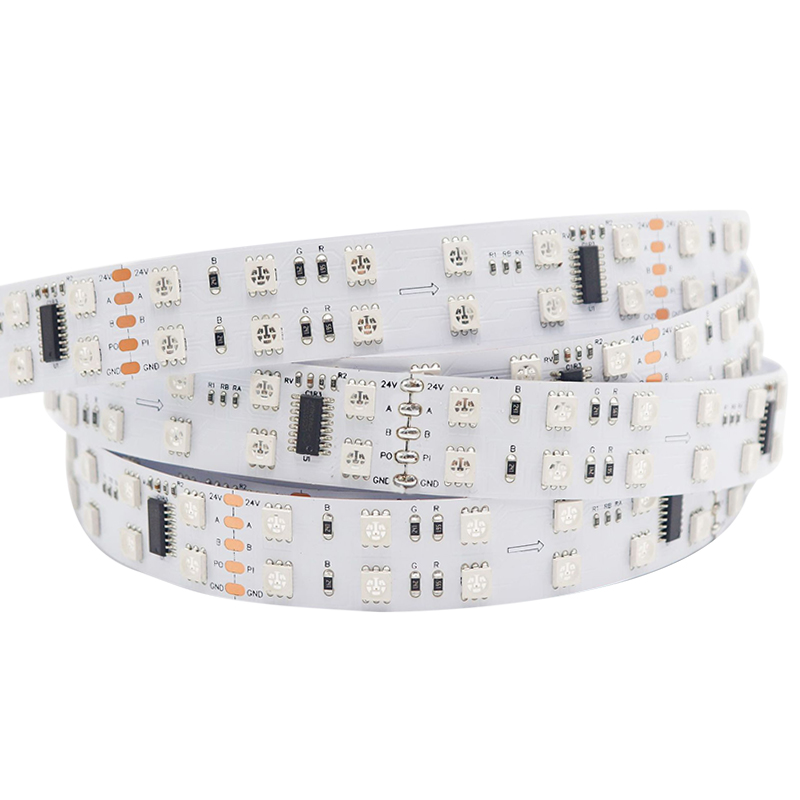

DC24V 20mm Bright Double Row DMX RGB LED Strip
Check this high brightness double row DMX RGB LED strip which enables complex lighting designs and scenic performances. By connecting a DMX controller, you can realize multi-channel control of this DMX LED strip, each channel corresponds to a different light attribute. This means that you can precisely control the brightness, color depth, color transition speed, etc. of each channel of the DMX light strip to achieve personalized lighting effects and scene changes.
DMX controlled LED light strip has good scalability and flexibility. You can extend the lighting range and create more complex lighting results by connecting multiple DMX LED strips. In addition, it can be used in conjunction with other DMX lighting devices to further increase the diversity and interactivity of the light show.
Kit: CONFULL-SD-1000B Synchronous Programmable DMX LED Light Controller and Mean Well LRS-200-24 switching power supply.
|LED Strip Type:||Bright Double Row DMX RGB LED Strip|
|LED Chip:||SMD5050 + 16-pin UCS512C4 IC|
20mm - 20W/m
15mm - 28W/m
|LED Color Temperature:||RGB Dream Color|

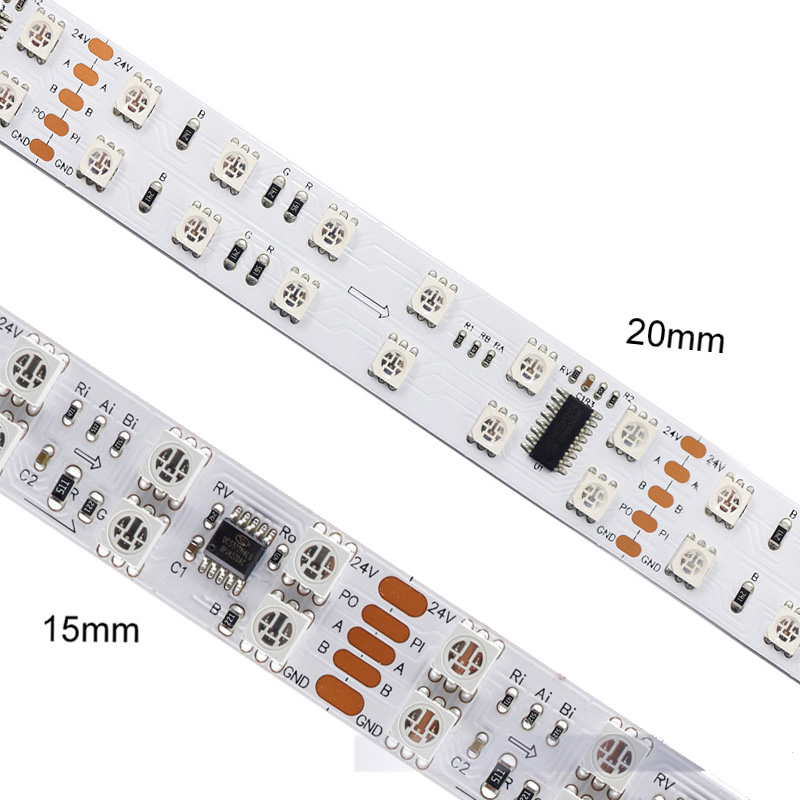

|PCB Width:||20mm/0.78", 15mm/0.6"|
|LED Quantity:||120 LEDs/m, 600 LEDs per roll|
20mm: 10 ICs/m, 50 ICs/roll (1 pixel controls 12 LEDs)
15mm: 20 ICs/m, 100 ICs/roll (1 pixel controls 6 LEDs)
20mm: 100mm - 12 LEDs can be cut
15mm: 50mm - 6 LEDs can be cut
|Waterproof Rating:||Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68|
1. Through ArtNet controller to control DMX led strips:
2. Through programmable led controller to control DMX led strip:

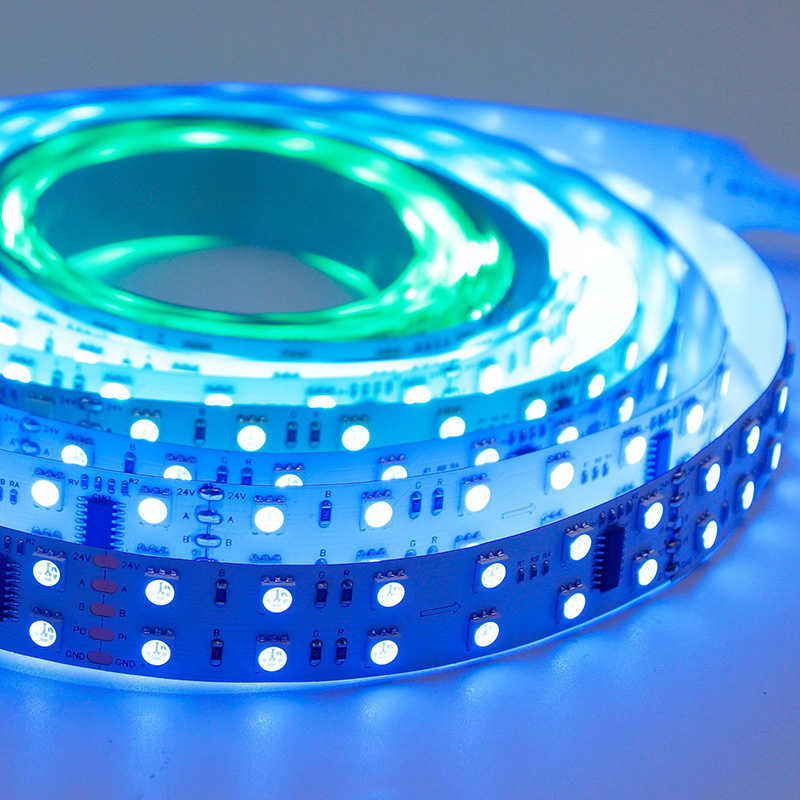

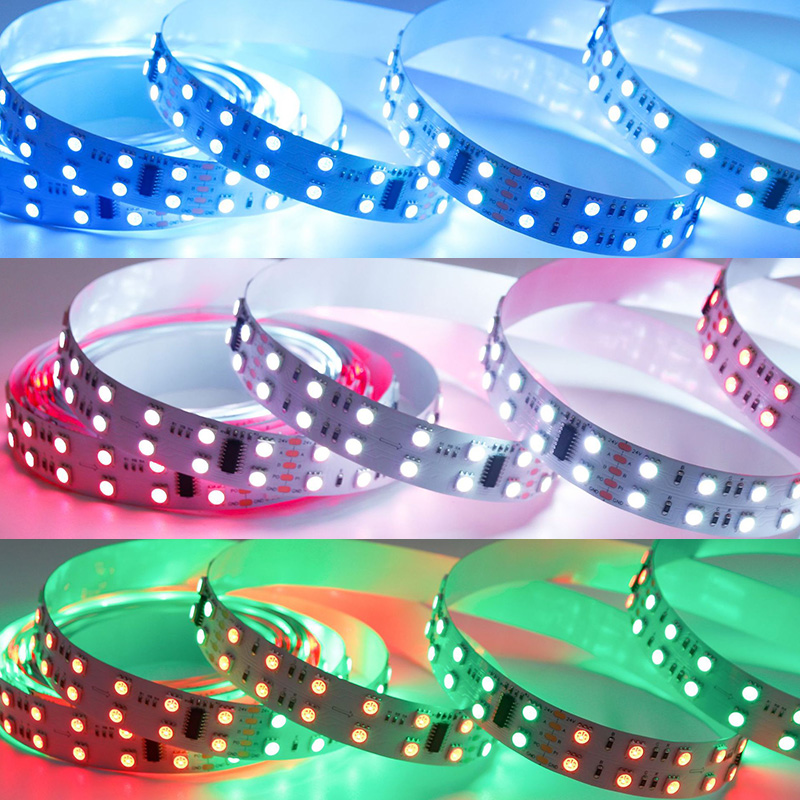

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
