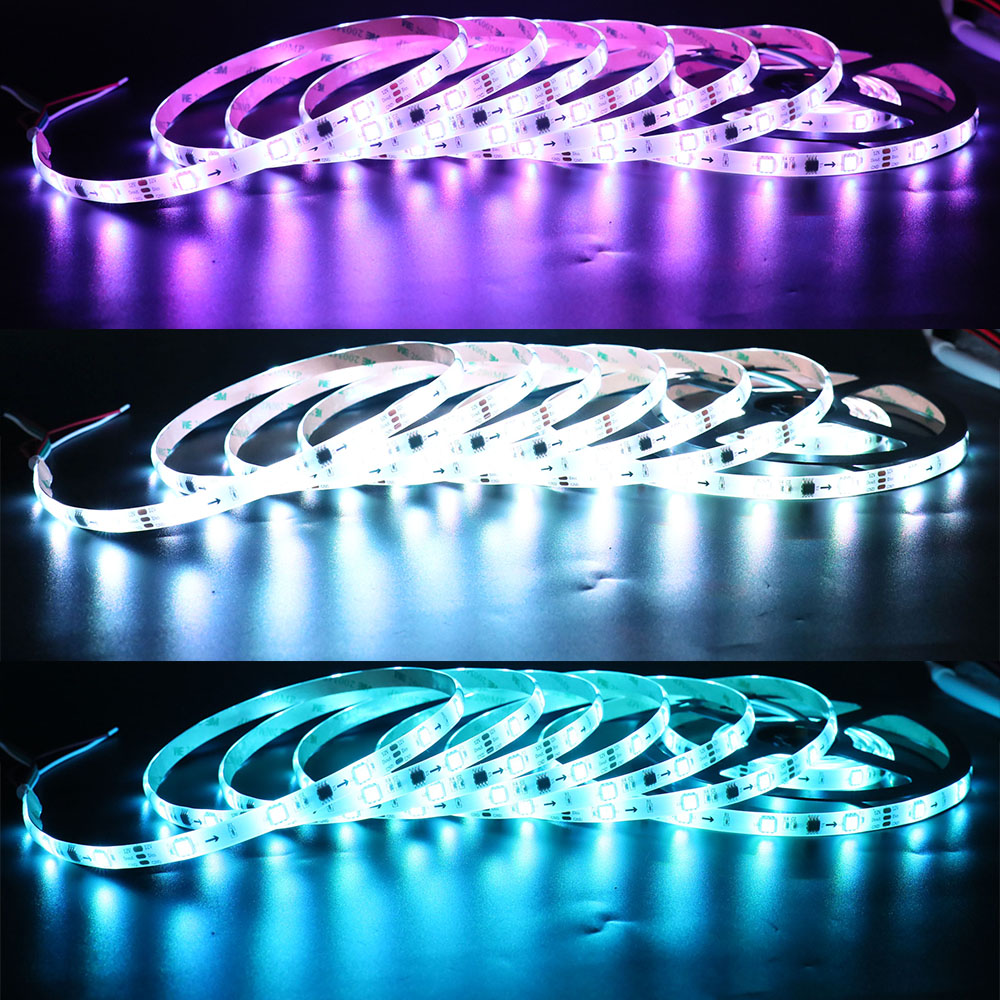

DC5V WS2812B IP65 Waterproof 9LEDs/ft Dream Color LED Strip Light
Dream color programmable WS2812B led light strip has a variety of dynamic eviction, sorting, dynamic and static modes. A collection of 30 high-efficiency RGB LEDs per meter, DC5V input voltage, low power consumption, and high safety.
Single led is individually addressable, which is suitable for engineering lighting. The intelligent control LED light source that integrates the control circuit and RGB chip into a package of 5050 components.
It contains an intelligent digital port data latch and signal shaping and amplifying drive circuit. The exterior adopts glue IP65 waterproof, which can be applied to the indoor lighting environment to prevent wind and dust.
10mm width ensures the effective use of the narrow space. 3M tape is attached to the back to ensure the convenience of installation.
The JST connector is attached to the tail, which can be used in conjunction with the LED controller to maximize the color effect of the light strip.
Each roll sells 0.5/1/2/5m (1.64-16.45ft), length can be customized
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Standards and Certifications
Dream color programmable led strip light
WS2812B IC color chasing effect
Waterproof IP65 indoor windproof and dustproof
30 High-efficiency SMD5050 RGB LEDs per meter

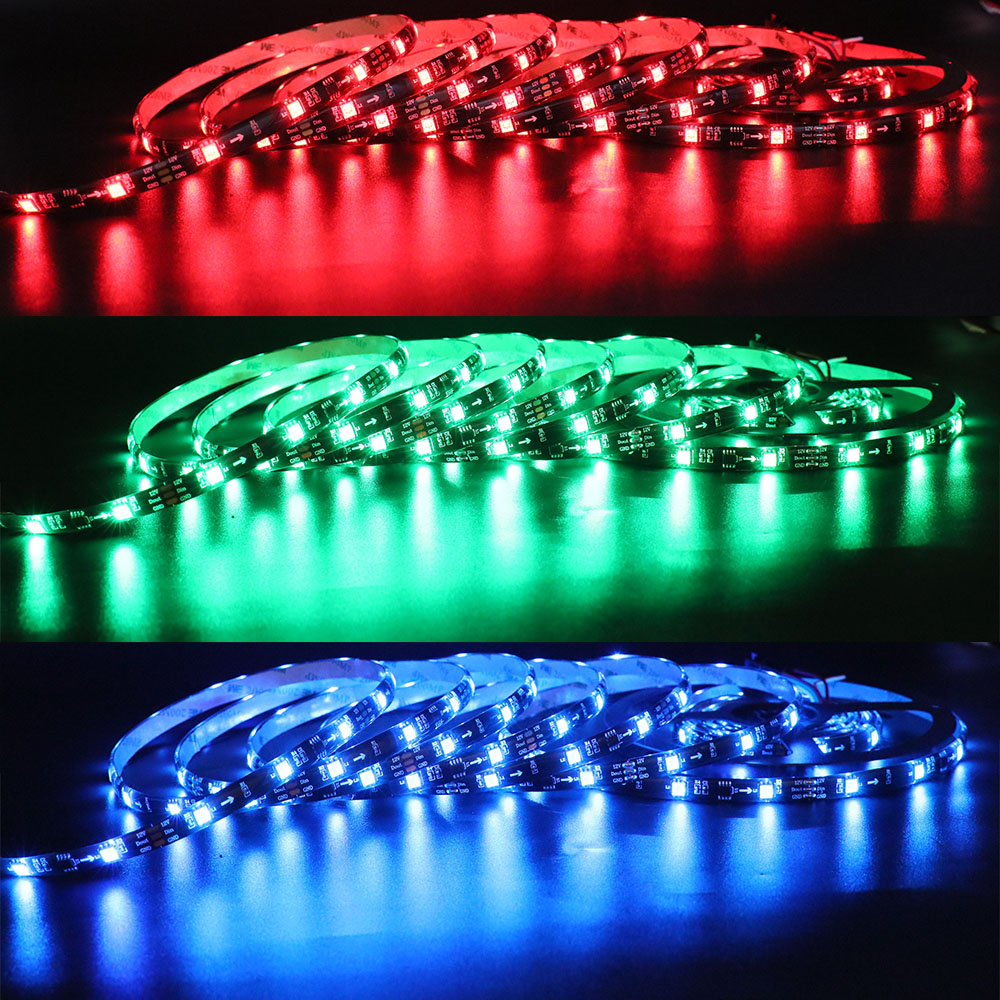

Dynamic color tracking, sorting, changing, and static color modes optional
10mm wide led light strip for narrow spaces

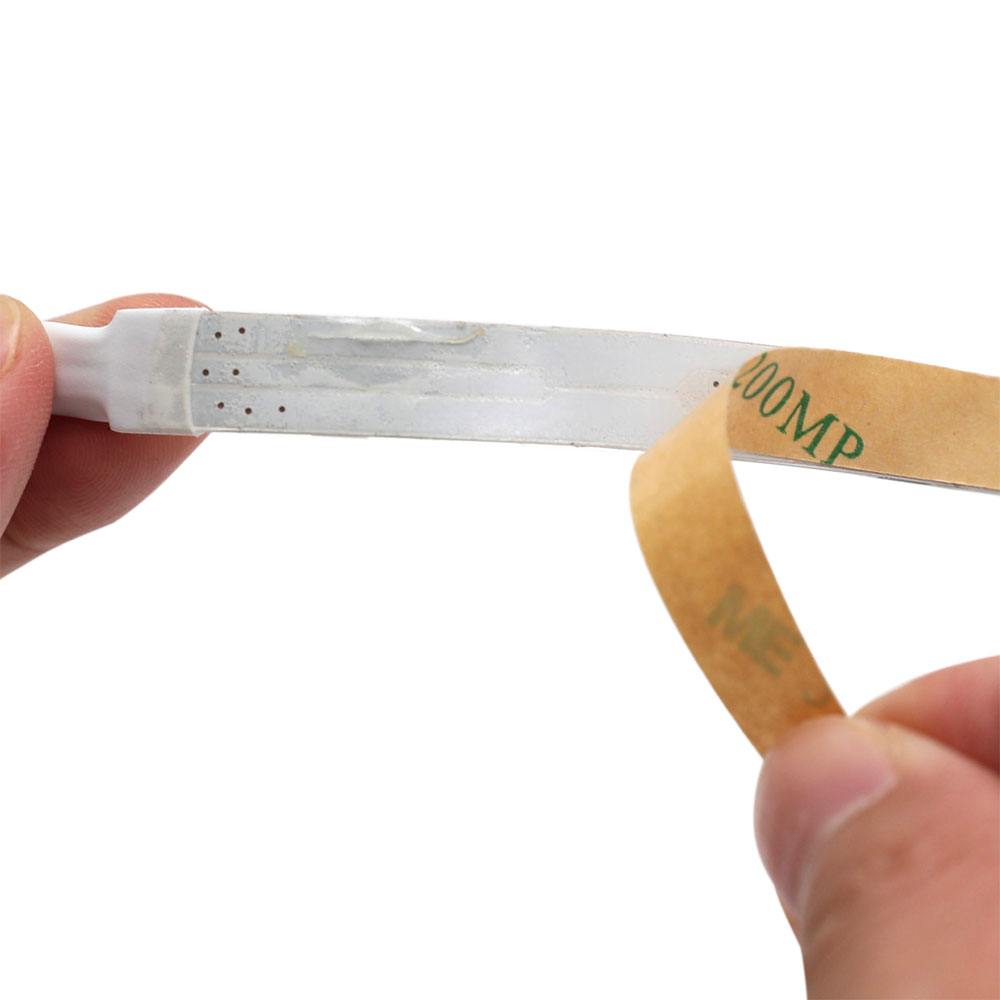

Easy installation with 3M tape on the back
JST connector attached to the end of the light strip
DC5V low voltage safe and efficient
0.5/1/2/5m (1.64-16.45ft) sold per roll
LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: WS2812B IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, Individually Addressable
LED Quantity: 30 LEDs per 1meter (3.28 ft)
IC Quantity: 30 ICs per 1meter (3.28 ft)

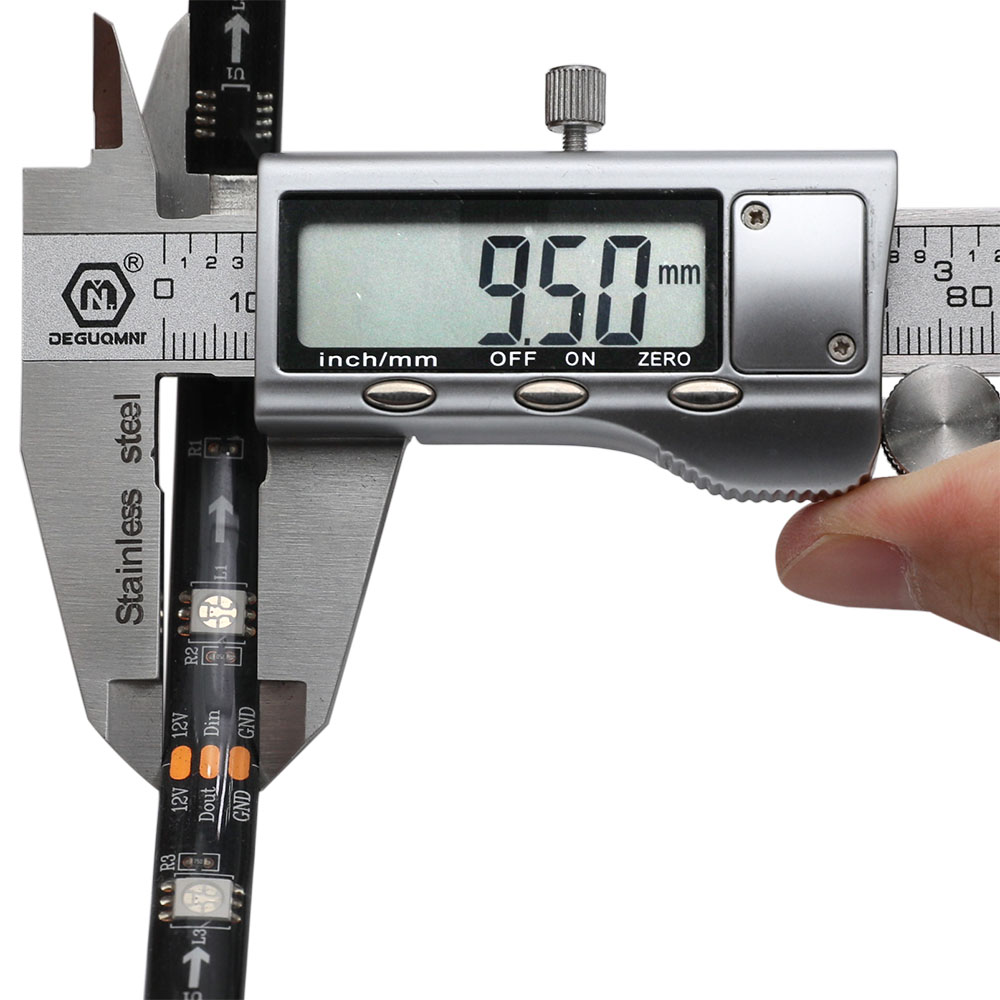

PCB Width: 10mm/0.39in
Input Voltage(V): 5VDC
Working Power: 45W/16.4ft Max
Waterproof Rating: IP65

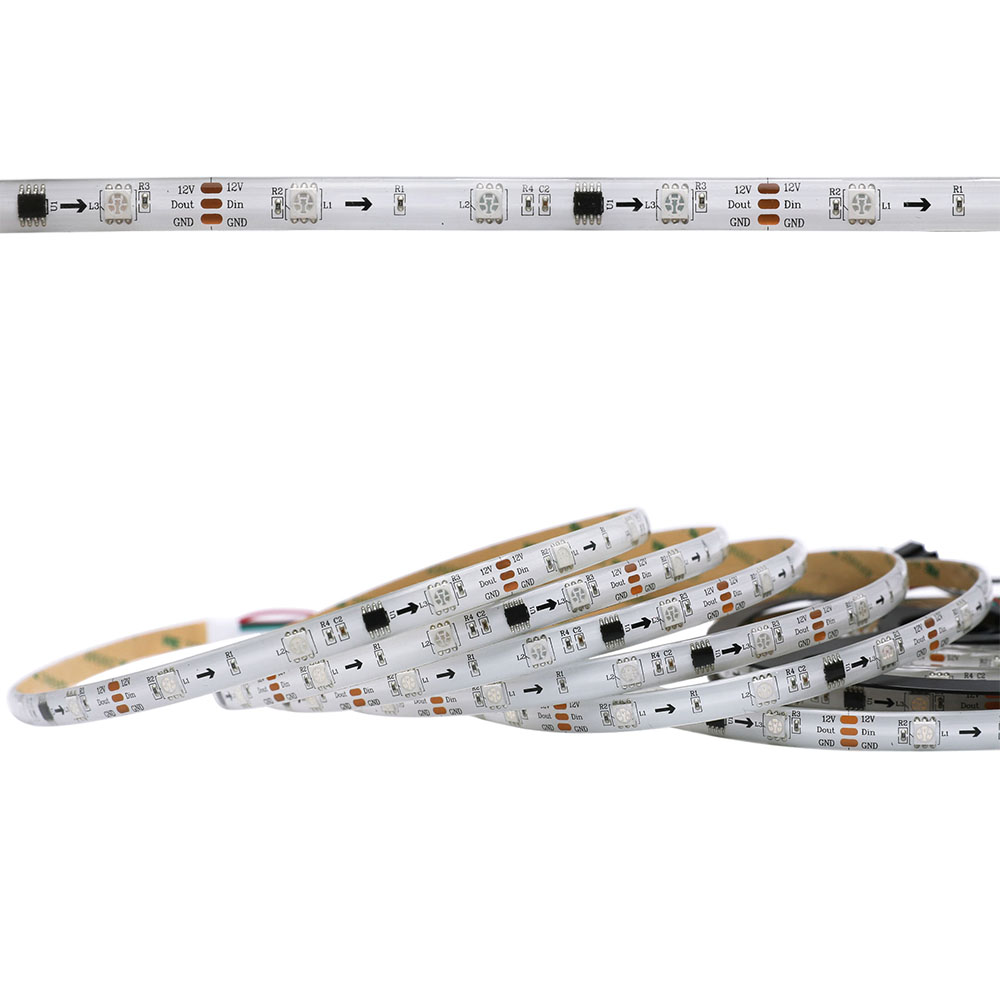

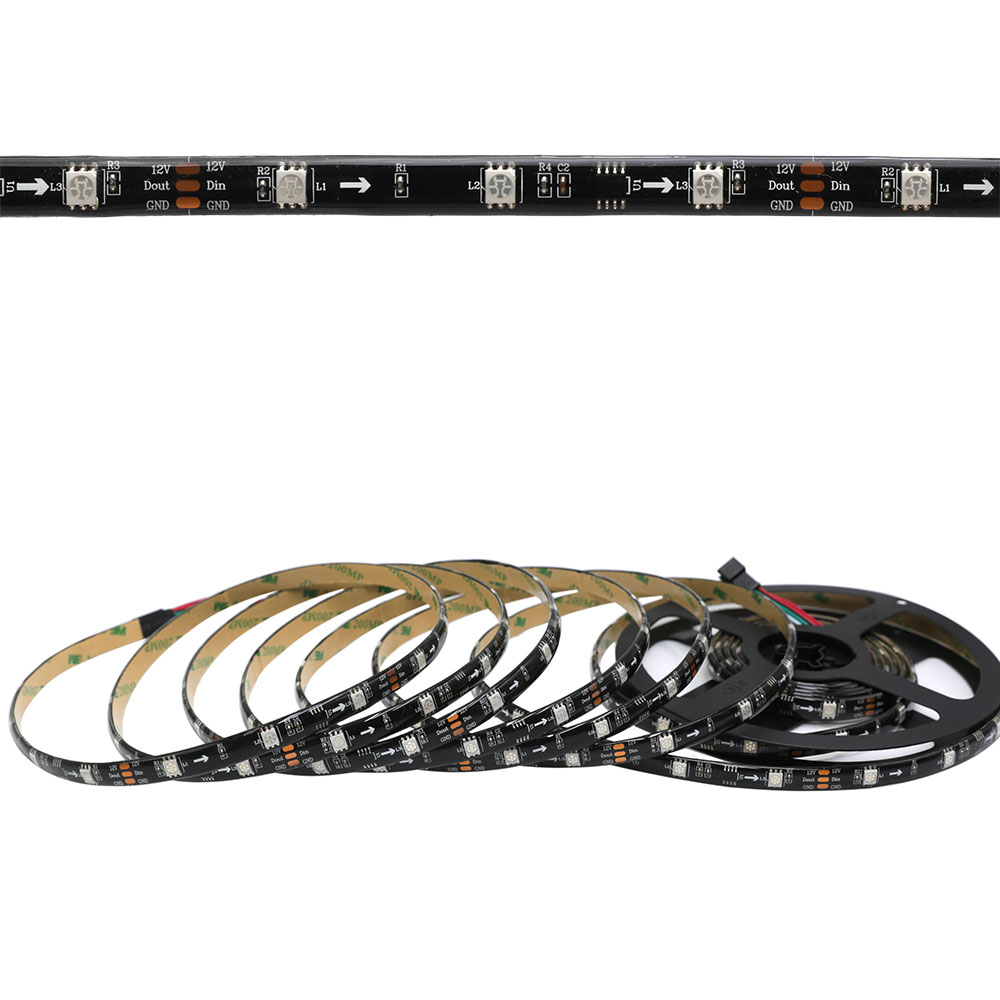

PCB Color: Black/White
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*

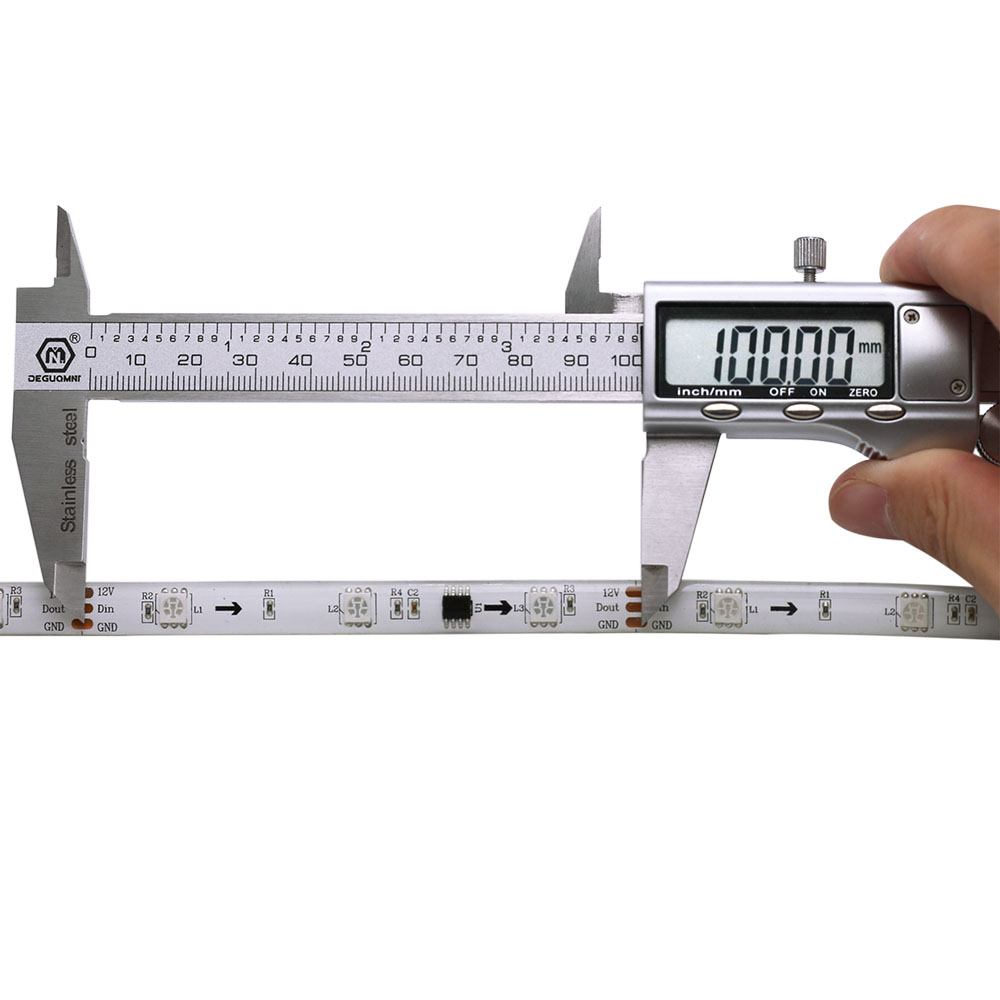

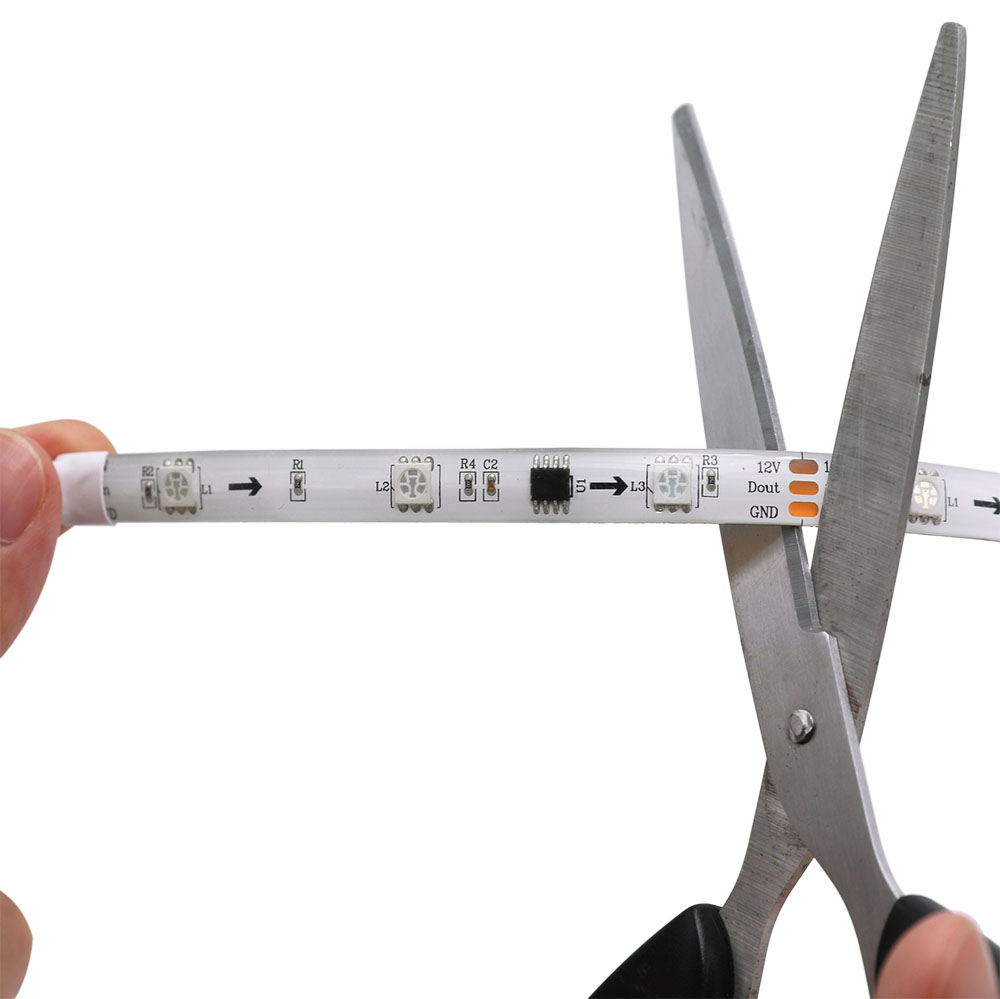

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
