Product Information

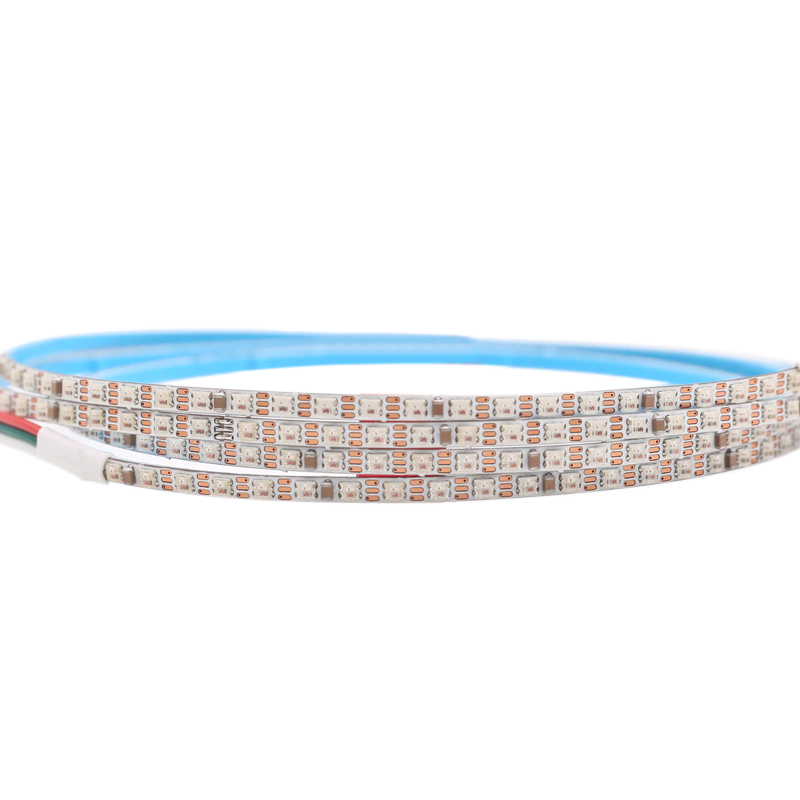

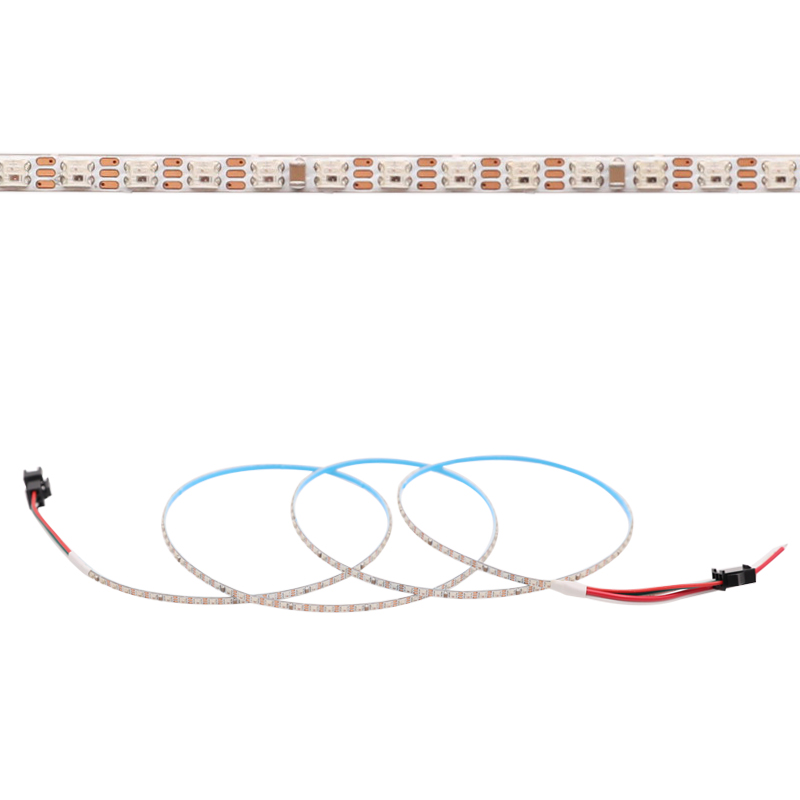

This is our narrowest and densest WS2812C-2020 LED strip, with 200 LEDs per meter evenly distributed on a 3mm narrow PCB. The high-density LED design provides brighter illumination and higher resolution. And the 3mm width allows it to be installed in narrow spaces, providing a flexible layout and mounting options.

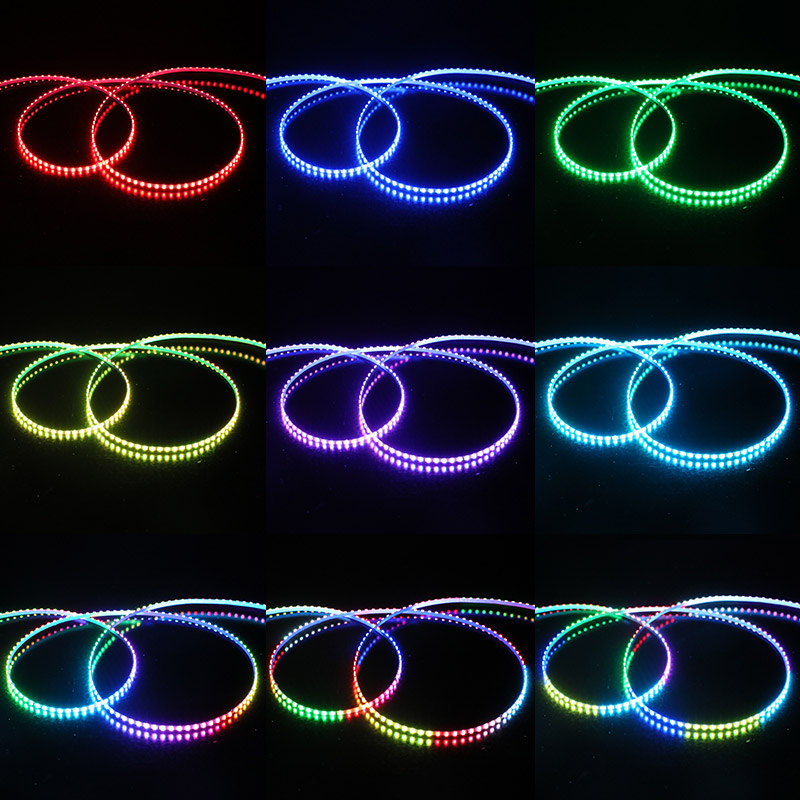

The 3mm thinnest 200LEDs/m 2020 LED strip integrates WS2812C IC chips with programmable features. Each 2020 LED can be controlled independently, allowing users to create a variety of colors, brightness, and dynamic effects. Provide unlimited creative possibilities for LED screen displays and art decorations.

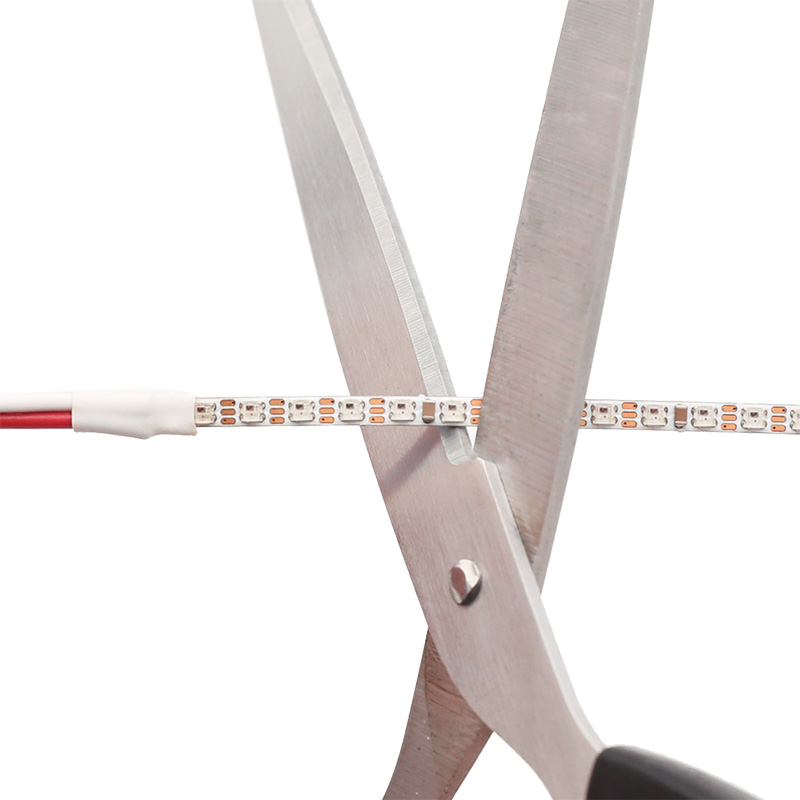

Note: Due to the ultra slim 3mm PCB width restricting the placement of resistors, there will be two LEDs in one cut unit. Each LED remains individually addressable.

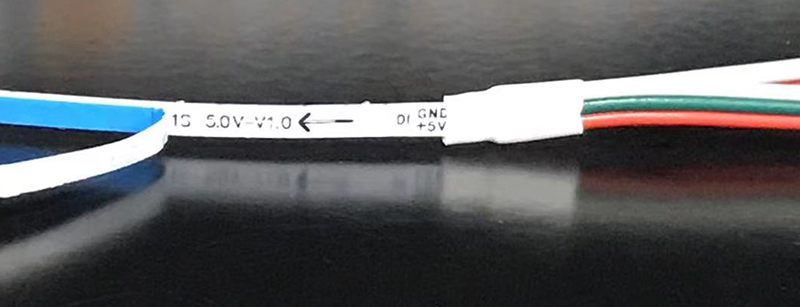

Signal arrows are printed on the back of the strip, you can peel off the adhesive backing to view.
WS2812C 2020 Datasheet Download
Product Specification
| Light Strip Type: | 3mm 200LEDs/m WS2812C-2020 LED Strip |
| LED Chip: | SMD2020 + Built-in WS2812C IC |
| Input Voltage: | DC5V |
| Power: | 20W/m |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | Addressable RGB |

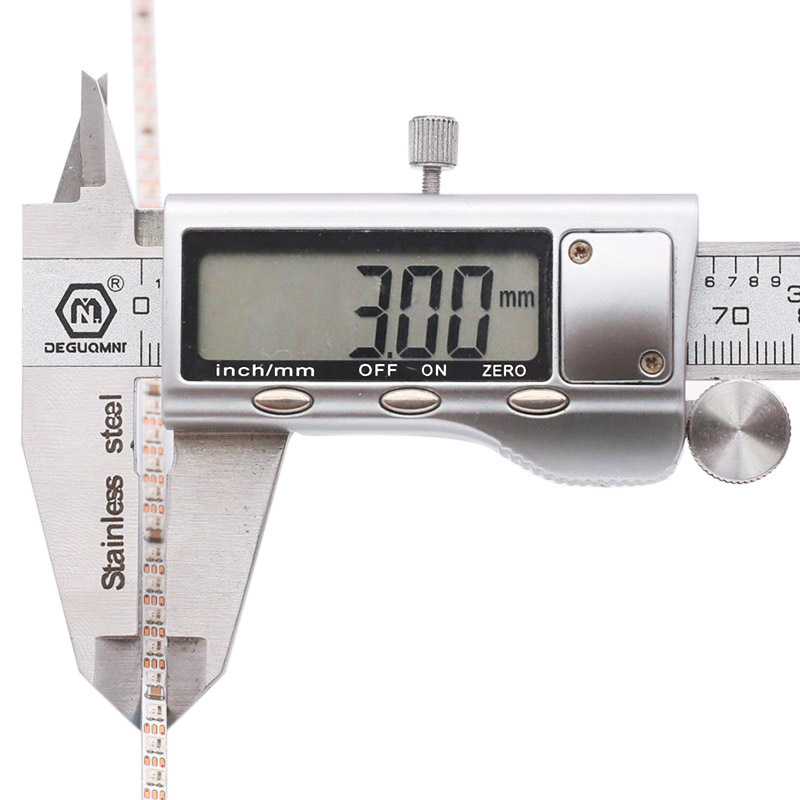

| PCB Width: | 3mm |
| LED Quantity: | 200 LEDs/m |
|
IC Quantity:
|
200 ICs/m
|
|
Cut Unit:
|

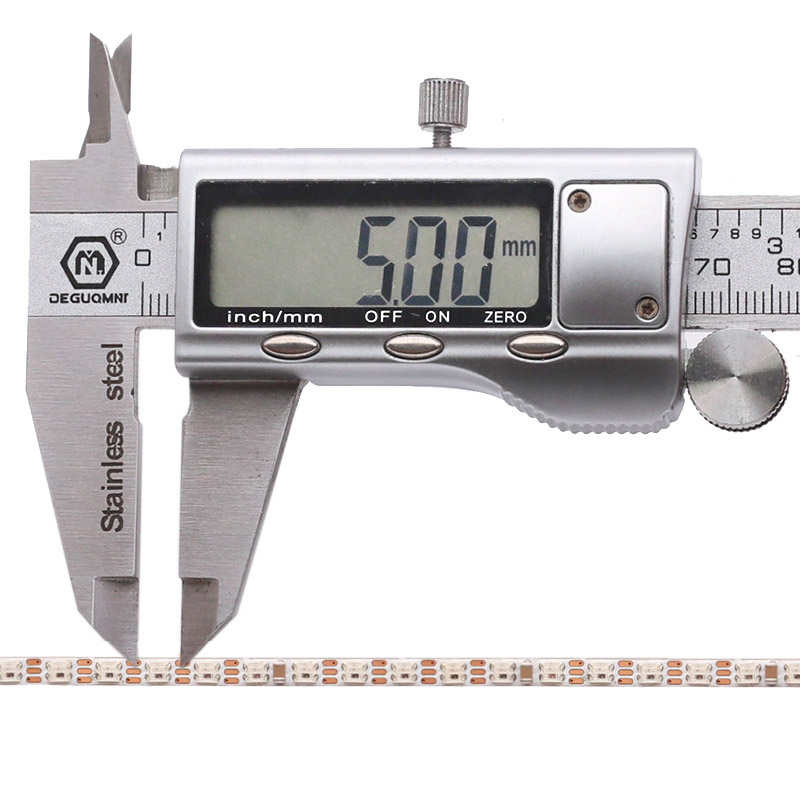

1 LED can be cut (5mm)
|
| Waterproof Rating: | Non-waterproof IP20, Outdoor Waterproof IP67 |
| Strip Length: | 1m/3.3ft |
How To Wire WS2812C-2020 LED Strip?
3-wire (VCC, DAT, GND) WS2812C-2020 ARGB led strip requires a digital led controller and DC5V power supply to work properly.
