Product Information
Key Features
Reliable Waterproof Seal
Engineered with a secure locking mechanism to create a tight, waterproof connection that protects against moisture and dust ingress in outdoor or wet locations.
3-Pin Signal Configuration
Perfectly suited for addressable LED strip lights using V+, Data, and Ground (GND) lines, such as WS2811, WS2812B, and SK6812 series.
Durable 22 AWG Wiring
Equipped with 3-core 22 AWG (0.3mm²) cable, providing better current handling and signal integrity compared to thinner, lower-gauge wires.

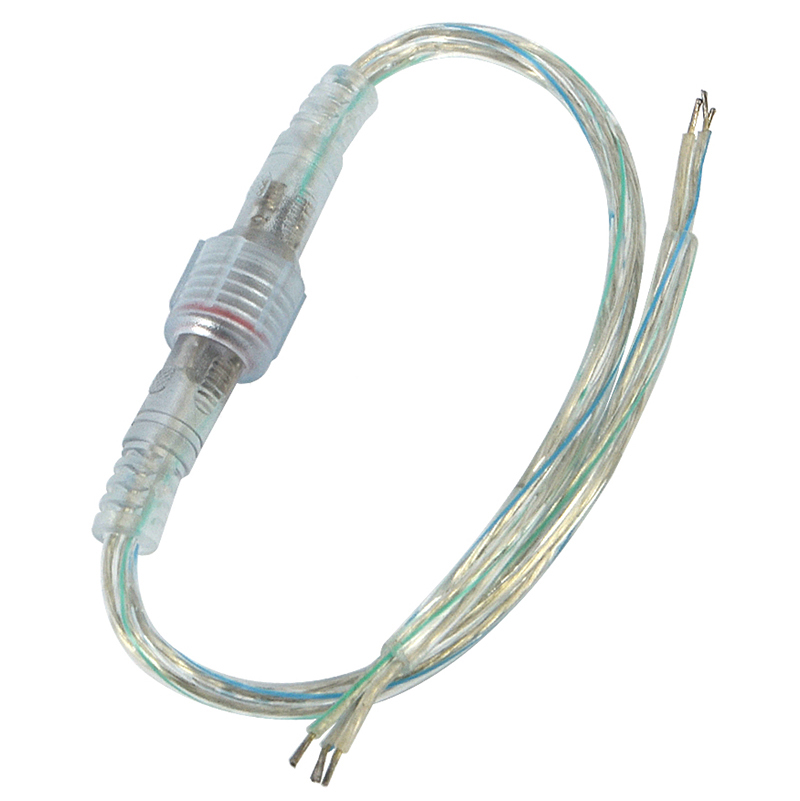

Complete Male/Female Pair
Includes both male and female pigtail connectors, providing a complete, ready-to-use solution for creating a detachable connection point in your lighting circuit.
Unique Transparent Housing
The clear connector housing offers a clean, modern aesthetic, allowing for a discreet and professional-looking installation.
Technical Highlights
- Pre-stripped wire ends for simplified installation.
- Secure screw-on or push-lock design ensures connections won't vibrate loose.
- Versatile compatibility with a wide range of 3-wire LED lighting systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | DC-ACCESSORIE-016 |
| Product Type | Waterproof Pigtail Connector |
| Pin Count | 3-Pin |
| Connector Gender | 1x Male, 1x Female |
| Wire Gauge | 22 AWG |
| Wire Cross-Section | 3 x 0.3mm² |
| Cable Length (Male) | Approx. 10cm / 3.94 in |
| Cable Length (Female) | Approx. 10cm / 3.94 in |

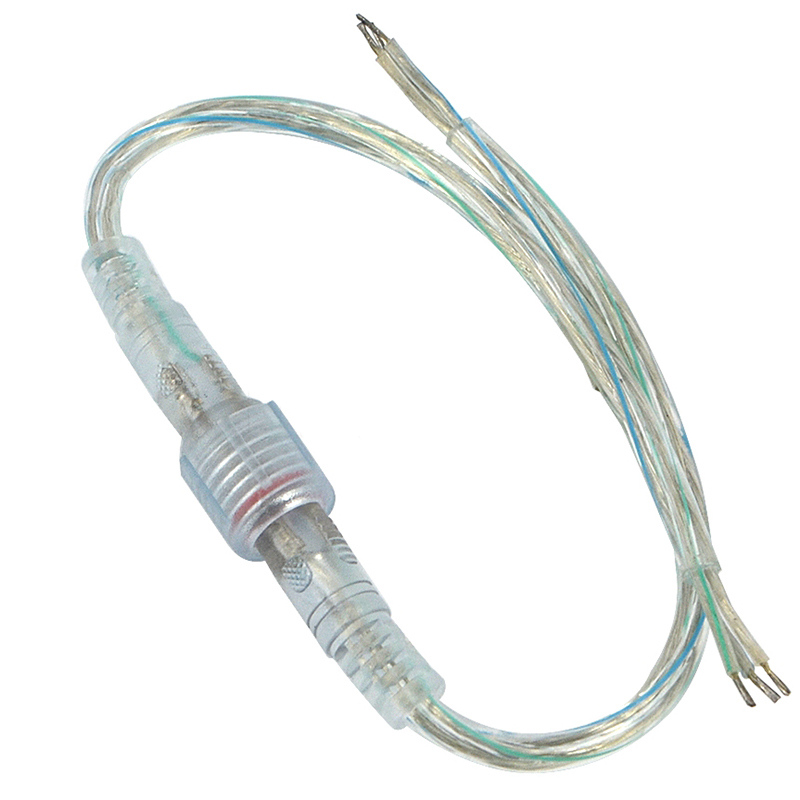

| Total Length (Connected) | Approx. 20cm / 7.88 in |
| Housing Material | PVC |
| Housing Color | Transparent |
Application Scenarios
How to Use This Waterproof Connector
- Ensure all power is disconnected before beginning installation.
- Identify the corresponding wires on your LED strip and the connector pigtails (typically V+, Data, Ground).
- Strip a small amount of insulation from the ends of each wire.
- Connect the wires from the pigtail to your LED strip's input wires. For the most secure and waterproof connection, solder the wires and seal the joint with heat-shrink tubing.
- To connect the system, align the male and female plugs, noting any alignment keys, and push them together firmly until they lock.
- If your connector has a threaded collar, tighten it securely to complete the waterproof seal.
- Always verify the correct wire alignment (V+/Data/GND) before applying power to prevent damage to your LEDs.
- The connector itself is waterproof, but the splice point where you attach the wires to your strip must also be independently waterproofed for full protection.
- Confirm that the 22 AWG wire gauge is adequate for the power requirements of the specific length of LED strip you are connecting.
What's in the Box

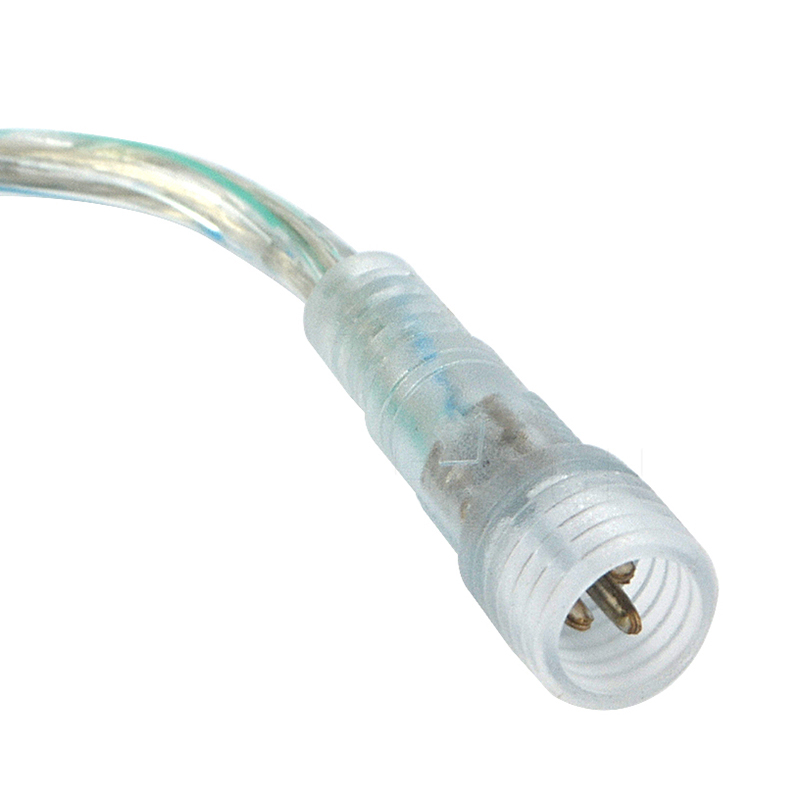

- ✓1 x 3-Pin Waterproof Male Pigtail Connector

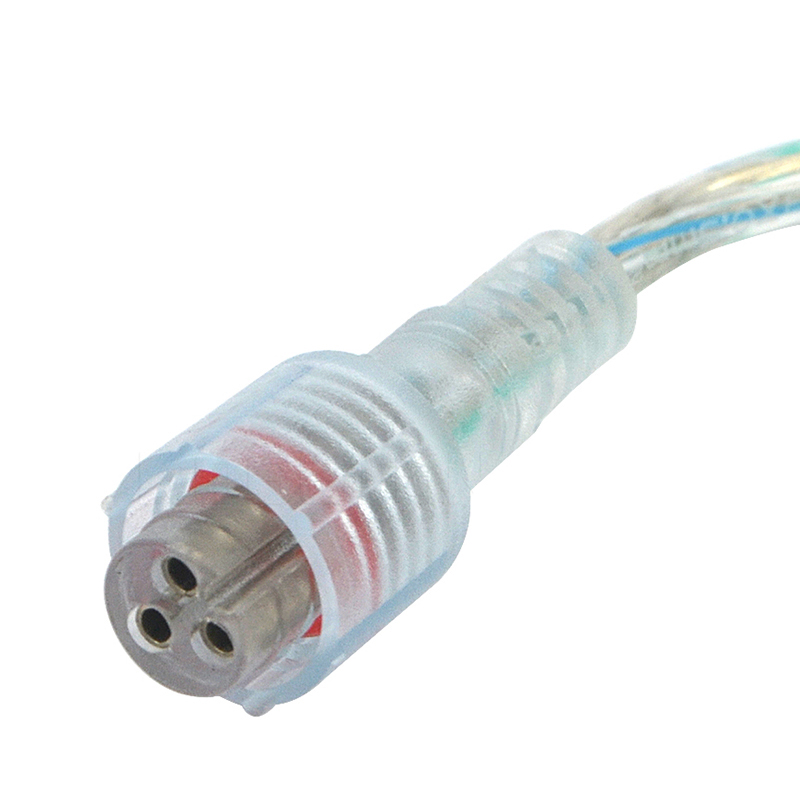

- ✓1 x 3-Pin Waterproof Female Pigtail Connector
Frequently Asked Questions
Q: What type of LED strips is this 3-pin connector for?
A:This connector is designed for 3-wire addressable LED strips that use a V+, Data, and Ground configuration.
Q: Is this sold as a pair?
A:Yes, each unit you purchase includes one male pigtail connector and one female pigtail connector.
Q: How do I attach this to a bare LED strip?
A:You need to connect the wires of the pigtail to the solder pads or input wires of your LED strip. We recommend soldering and using heat-shrink tubing for a permanent, waterproof seal.
Q: Can I use this for a 4-pin RGB or 2-pin single color strip?
A:No, this connector is specifically designed with three pins and is not compatible with 2-pin or 4-pin LED strips.
Q: How long is the cable on each connector?
A:Each connector has a cable length of approximately 10cm (3.94 inches), for a total combined length of about 20cm when connected.
Q: Is the connection truly waterproof for outdoor use?
A:Yes, when the male and female connectors are properly and fully joined, they form a seal that is rated for waterproof and outdoor applications.
