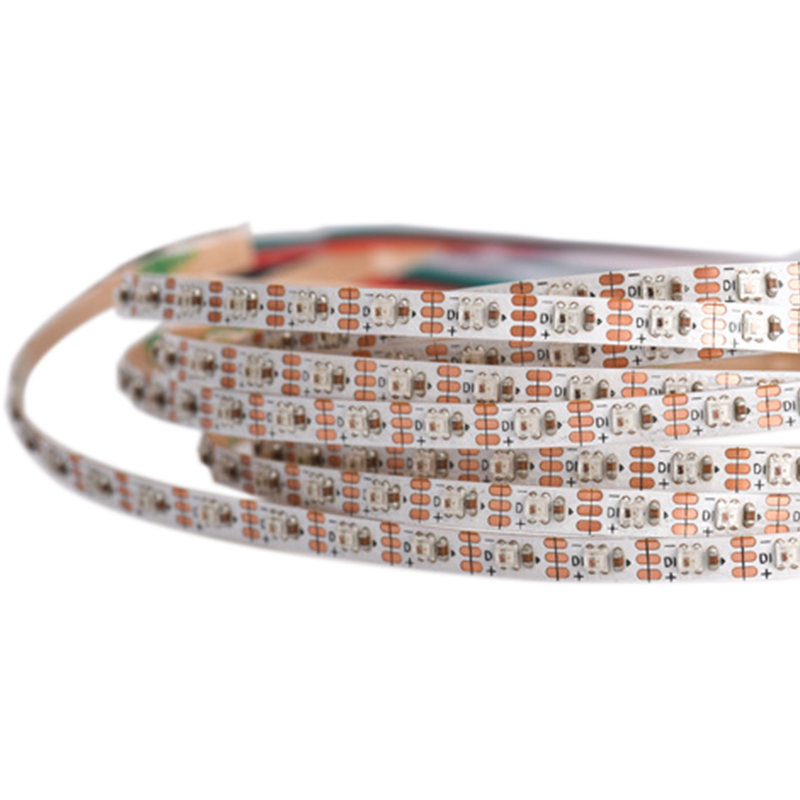

4MM WS2812C Strip Light 3.28ft/1m, Individually Addressable 2020 RGB LED
The WS2812C led light strip uses FPC as the assembly circuit board and uses SMD LEDs and original parts to assemble, so that the thickness of the product is only the thickness of a coin, with a small volume and a small space occupation. Flexible FPC material can be cut and wound at will, not easy to break, suitable for use in irregular places and places with small spaces. The LED lamp bead is designed with built-in IC, with few originals, high pixels, neat and beautiful appearance, suitable for advertising, lighting and decoration.

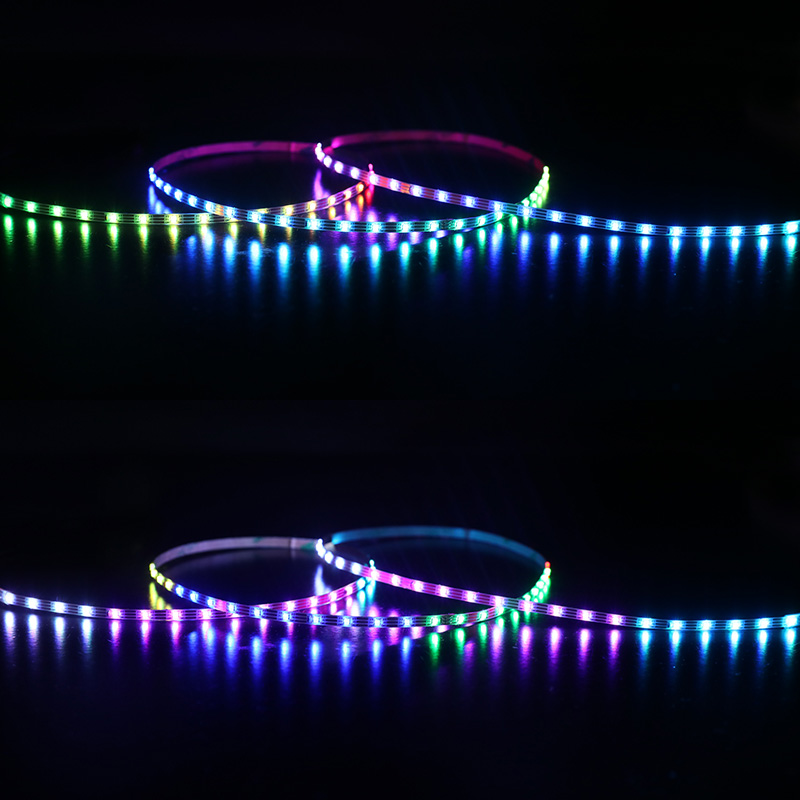

Superlighting's LED light strip is designed with two data lines, two power lines, built-in 4-pin lamp beads, 256 grey levels, fast data transmission, fast screen refresh, and use with the led controller to achieve monochrome, gradual change, running water, horse racing, chasing, dream, right Bump, text, numbers, English, pictures, animation, video and other effects.
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Using high-quality chips, the light source brightness is high, the angle is large, the colour brightness is highly consistent, and the performance is stable;

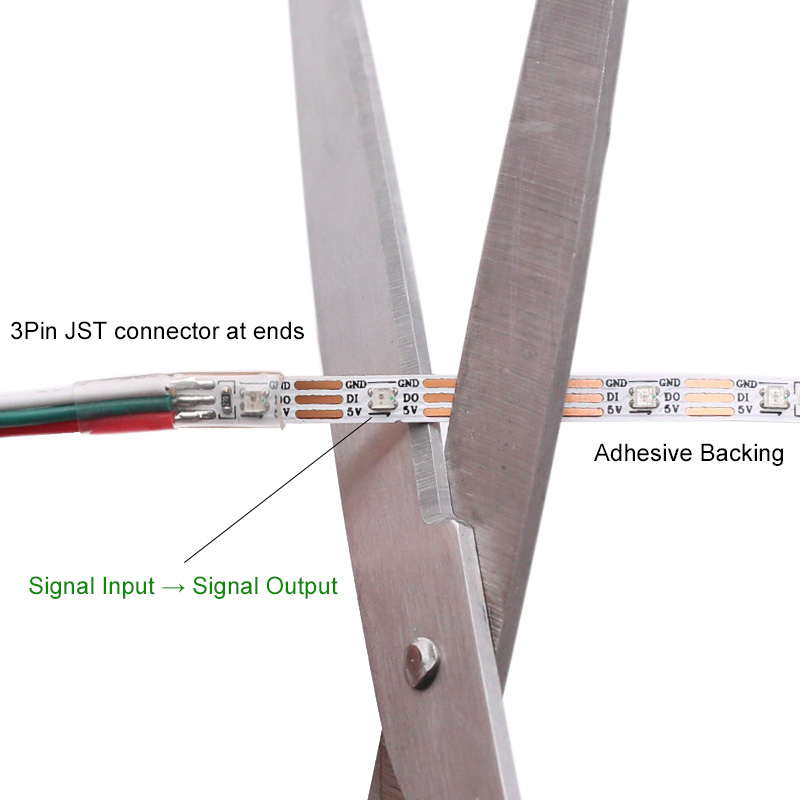

Each LED light forms a loop, which can be cut at the loop according to the required length without damaging other parts;
Easy to install and fix, flexible and convenient to cut to make the construction operation simple, ultra-thin design, low-temperature light source, make the product selection and matching of auxiliary materials more flexible during the installation process;
Energy-saving, high brightness, low heat, low energy consumption, no pollution, beautiful appearance, etc.;
Using DC5V power supply, it is safer to use;
Waterproof grade is optional: non-waterproof (IP20), casing (IP67),
Small size, multiple colours (, no radiation, high shock resistance, is a new generation of green environmental protection high-tech products;
Standards and Certifications
Working Voltage: DC5V
Power: 30W ±10% / M
Light Source: SMD 2020 LED

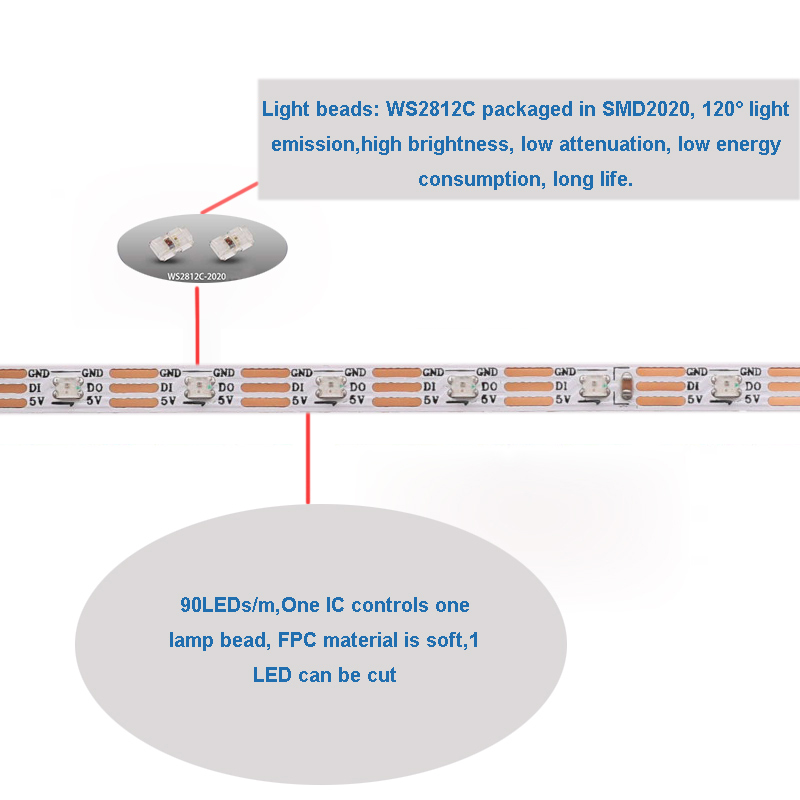

IC Model: WS2812C(built-in IC)
IC Quantity: 90 PCS/M
Pixel: 90 PCS/M
LED Quantity: 90LEDs/M, optional
Gray Level: 256 levels
Beam Angle: 120°
Waterproof Rating: IP20/IP67

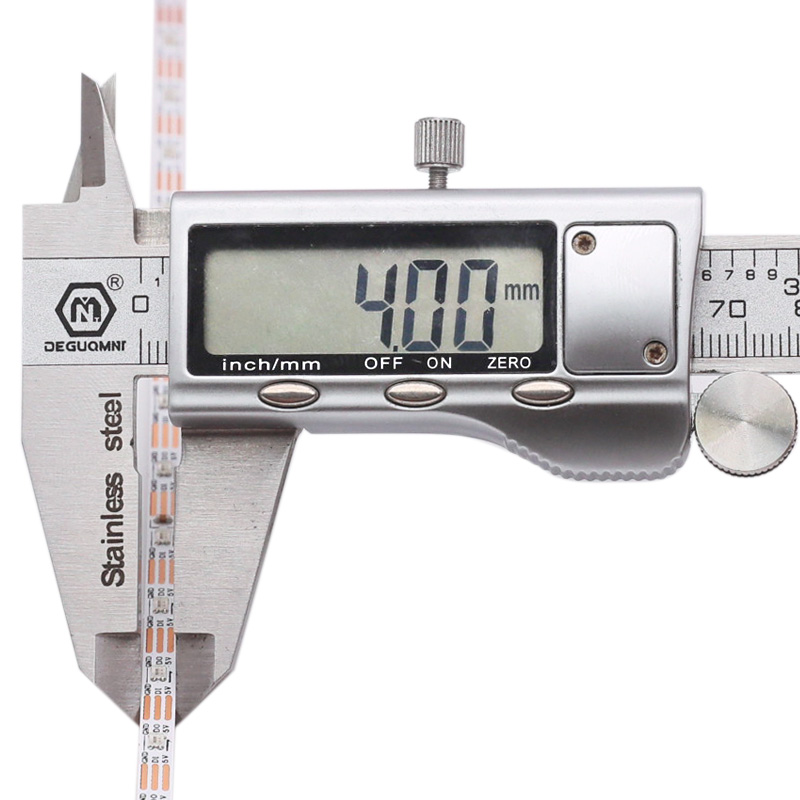

Product Size: 1000mm*4mm*1mm
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
1*3.28ft/1m IP20/IP67 Addressable led strip light
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will needs
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
Urban outline lighting, such as villas, advertising walls, signboards, Christmas landscape decoration;
Irregular design decoration, such as multi-deformable walls in shopping malls, hotels, nightclubs, KTV places, and ceiling groove design lights;
Public lighting, such as hospitals, villas, bridges, parks, stadiums, swimming pools, airports, subway stations, stations, etc.;
Furnishing concealed grooves, such as door frames, bar counters, wine cabinets, wardrobes, TV cabinets, etc.;
Car beauty, such as car body, car bottom, unicycle, balance car, etc.;
