Foldable Dual Row Addressable RGB DMX LED Strip For 360° Silicone Tube

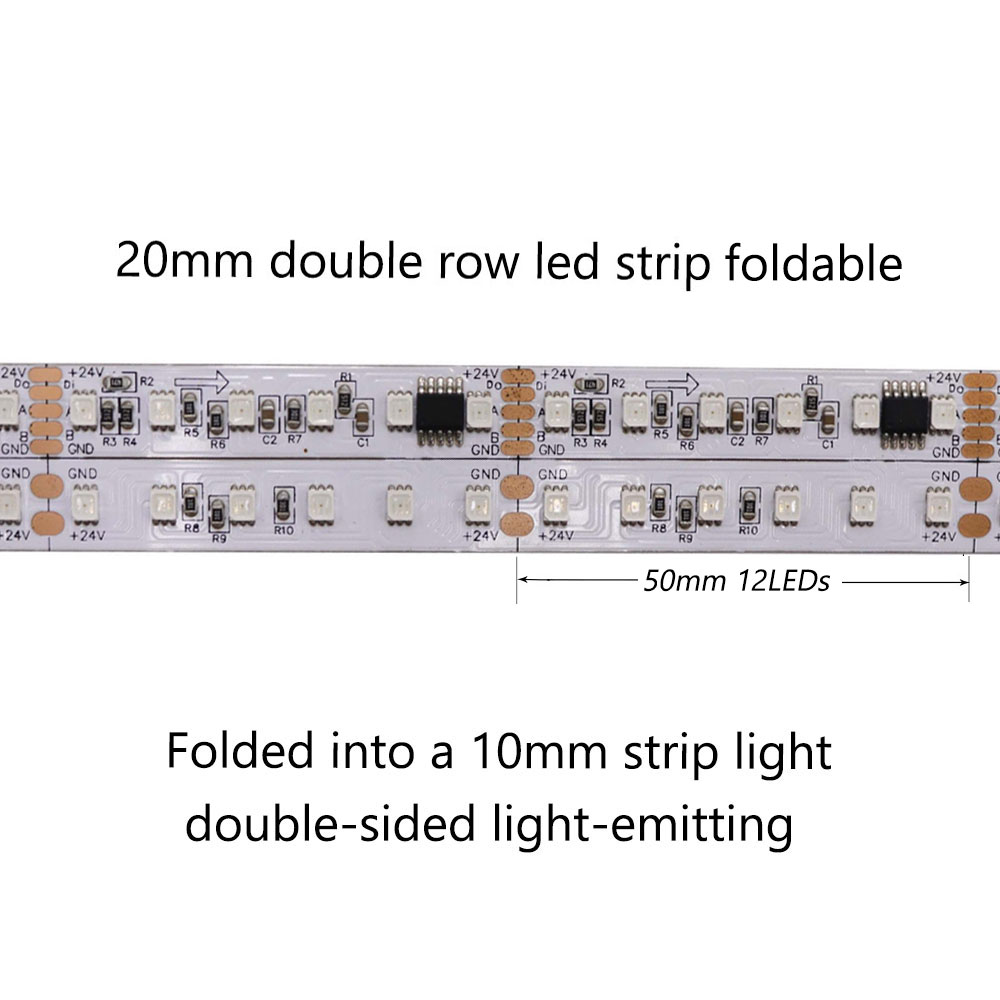

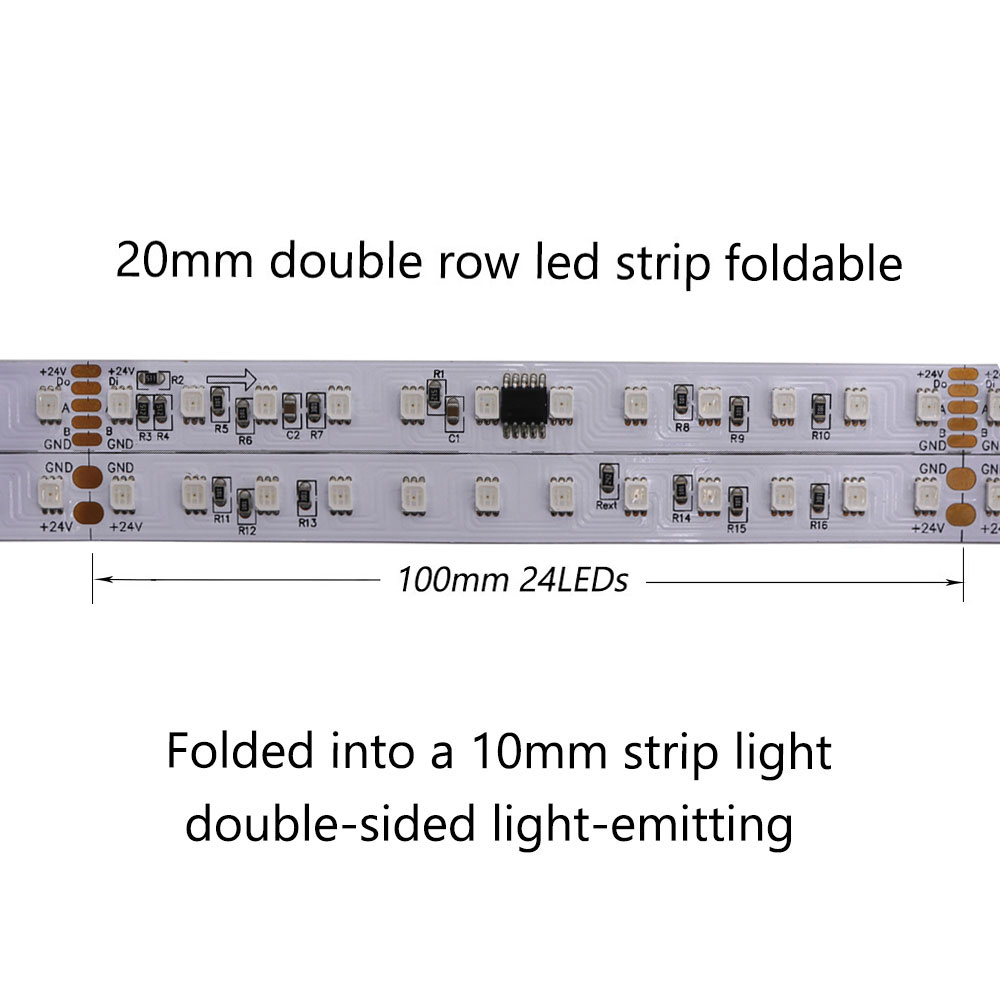

This is a special strip light which designed for 360° light-emitting silicone tube with round shape. It's 20 mm wide and consists of two PCB boards that can be folded into a 10 mm wide double-sided light-emitting strip. Use with round shape neon tube with 10mm PCB inner width.
Normally, we use two light strips placed back to back in the round silicone led tube to create a 360° light. With this foldable LED strip, you don't have to buy two strips, this one will do the job.
There are two types for you to choose from, the only difference is their cut length. The super high density (240pcs SMD2835 RGB light emitting diodes per meter) makes it possible to be placed in a silicone neon tube without light dots, presenting a whole strip of soft lighting.
Standards and Certifications
|Light Strip Type:||Double Row Foldable Addressable LED Strip|
|LED Chip:||SMD2835 + DMX512|
|LED Color:||RGB Dream Color|
|PCB Width:||20mm dual row, for 10mm PCB inner width neon tube|
|LED Quantity:||240 LEDs/m, 1200 LEDs per roll|
10/20 ICs per meter
|Waterproof Rating:||Non-waterproof IP20, Indoor Use|
|Lumen:||22 lm/LED, 6600lm/16.4ft|
DMX LED Strip Lights Wiring Diagram:
